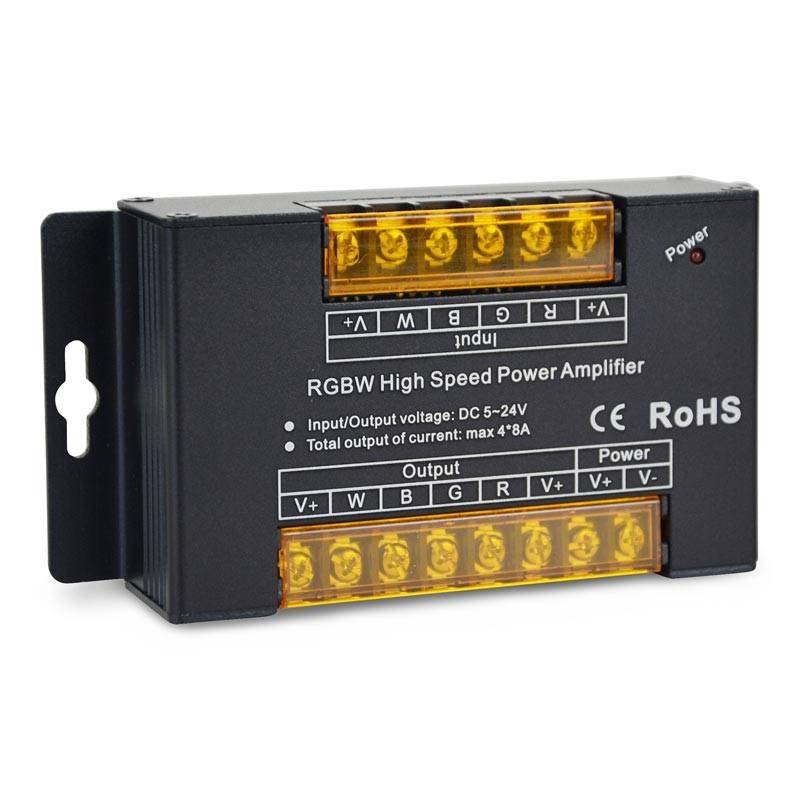

High-speed RGBW amplifier/repeater - 12-24V DC - 8A/Channel
SKU:B1625-4
€23.95
Tax included
Shipping to Africa available
For any shipping requests to Africa, please contact our sales department at: comercial@barcelonaled.com
RGBW LED Signal Amplifier/Repeater - Hi-Speed - 12-24V
This device offers the ability to amplify the PWM signal, allowing the installation of long LED strip extensions without experiencing signal loss.
It's suitable for 12-24V LED RGBW strips and luminaires, supporting a maximum of 8A per channel.
It's essential to select an appropriate power supply that matches the consumption of the LED strip or luminaire to be installed. Additionally, the "POWER" connection must be correctly connected to ensure the circuit operates properly.
Attention should also be paid to wiring to avoid short circuits, ensuring positive and negative polarity are respected at all times.
|
Product features:
|
Nominal Voltage (V)
5-24V
Power (W)
160-768 max
Lifetime (h)
50000
IP
IP20
Dimensions (mm) Lxlxh
147x74x34
Material
Aluminium
Use Outdoor
No
Temperature range
-20℃～+60℃
Frequency of use
Intensive
Energy efficiency class
A+ (2021)
Certificates
CE
ROHS
ROHS
Warranty
According to legal guarantee: 2 years
Maximum intensity (A)
8A / canal
Questions
| P: Question: |
Can this amplifier be used to get the same light color between different RGBW led strips? Thanks |
|---|
| R: Answer: | The RGBW signal at the input of the amplifier is the same as the RGBW output. |
|---|
| P: Question: |
How is the color change done? Are the RGB inputs digital or analog? |
|---|
| R: Answer: | This product is an RGBW amplifier/repeater, it is not an RGBW strip controller (it is only an amplifier) for longer installations. |
|---|
| P: Question: |
Very good. I have to install 35m of RGBW which I have to control either by wifi or by android app. The 35m must be synchronized (they are a single strip). Could you tell me what materials should I buy? Thank you. |
|---|
| R: Answer: | Please contact comercial@barcelonaled.com for a quotation. You will need 7 rolls of RGBW strip, 1 RGBW controller, for example B1645-RGBW, 3 amplifiers (1 each 10mts) ref B1625-4 and power supplies for each 10mts according to the power of the strip. |
|---|
