Single colour Amplifier/repeater - Tri-proof 12-24V DC - 6A/channel - IP67

SKU:B1625-MONO-IP67
Has superado el límite de unidades
In stock 474 units
Data sheet

Signal amplifier for 12-24V single-color LED strips and LED luminaires.

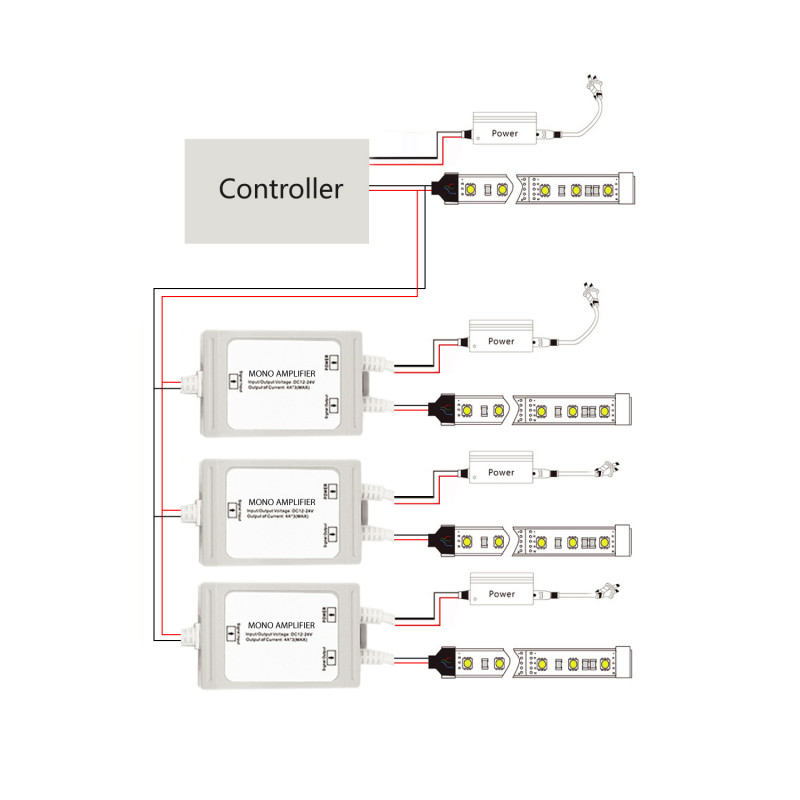

It allows extending the length of dimmable LED strip installations using a single controller.

The dimming signal will extend linearly and without delays, ensuring optimal performance at all times.

Due to its IP67 protection rating, it's suitable for outdoor use.

Shipping to Africa available
public
For any shipping requests to Africa, please contact our sales department at:  comercial@barcelonaled.com

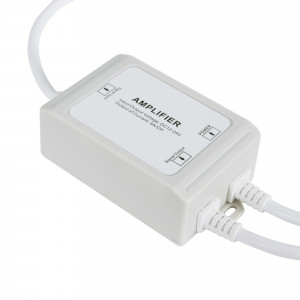

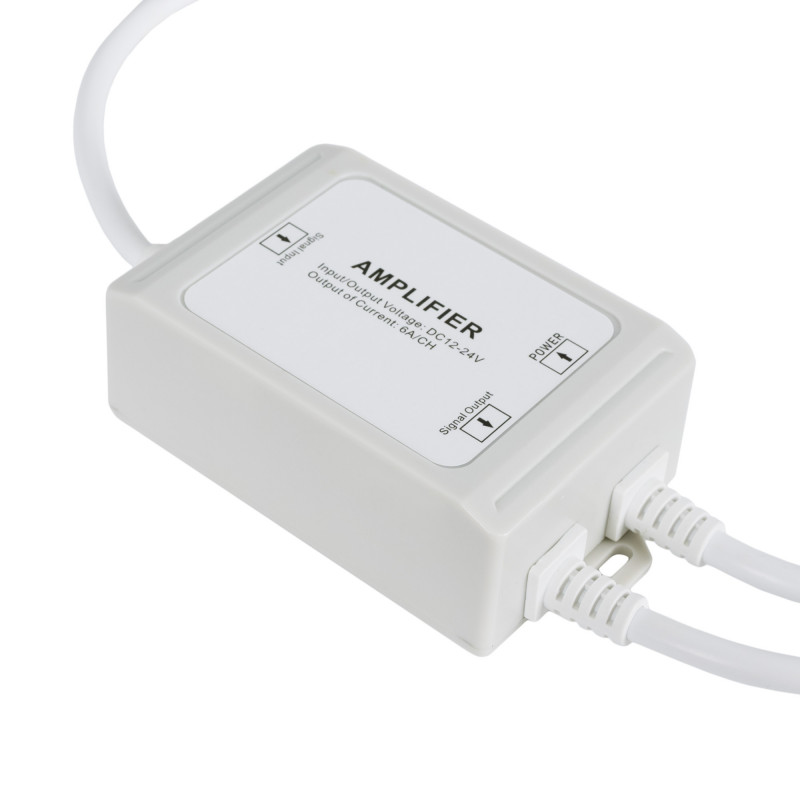

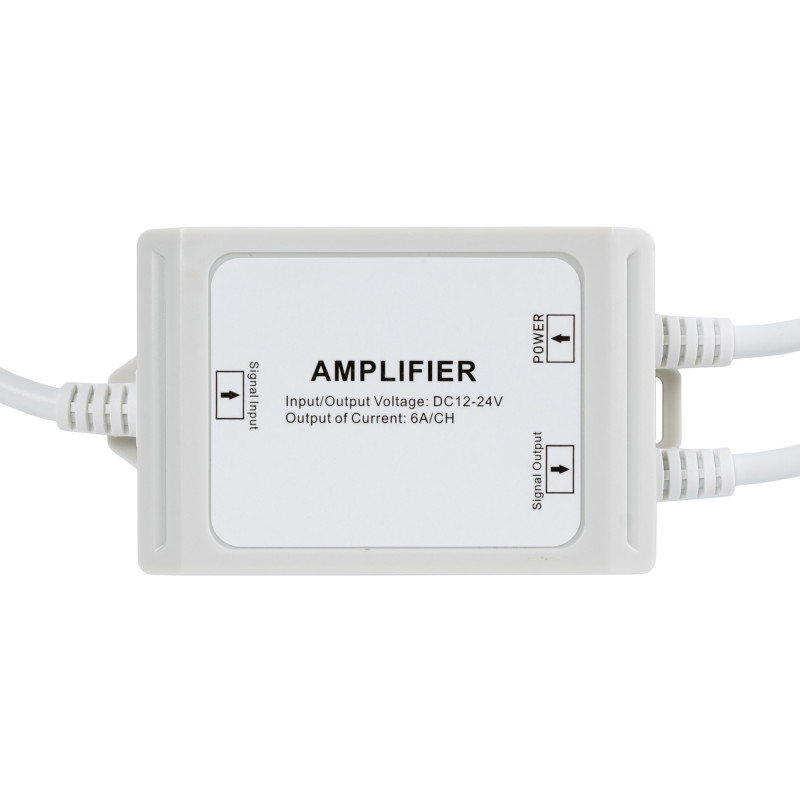

Single Colour LED Amplifier/Repeater - 12-24V

This device offers the ability to amplify the PWM signal, allowing the installation of long LED strip extensions without experiencing signal loss.

It's suitable for 12-24V LED strips and luminaires, supporting a maximum of 6A per channel.

Its IP67 protection rating guarantees resistance to external factors such as water and dust, making it ideal for outdoor use.

It's essential to select an appropriate power supply that matches the consumption of the LED strip or luminaire to be installed. Additionally, the "POWER" connection must be correctly connected to ensure the circuit operates properly.

Attention should also be paid to wiring to avoid short circuits, ensuring positive and negative polarity are respected at all times.

Product features:

  • Input voltage: 12-24V DC
  • Maximum current: 6A x channel
  • Dimensions: 78 X 53 X 30 mm
  • Dimming type: single colour
  • IP67: outdoor use

Nominal Voltage (V)
12-24V
IP
IP67
Dimensions (mm) Lxlxh
78 X 53 X 30
Sensor
No
Colour control
Monocolor
Material
Plastic
Use Outdoor
Yes
Frequency of use
Intensive
Certificates
CE
ROHS
Warranty
According to legal guarantee: 2 years
Maximum intensity (A)
6A/canal
