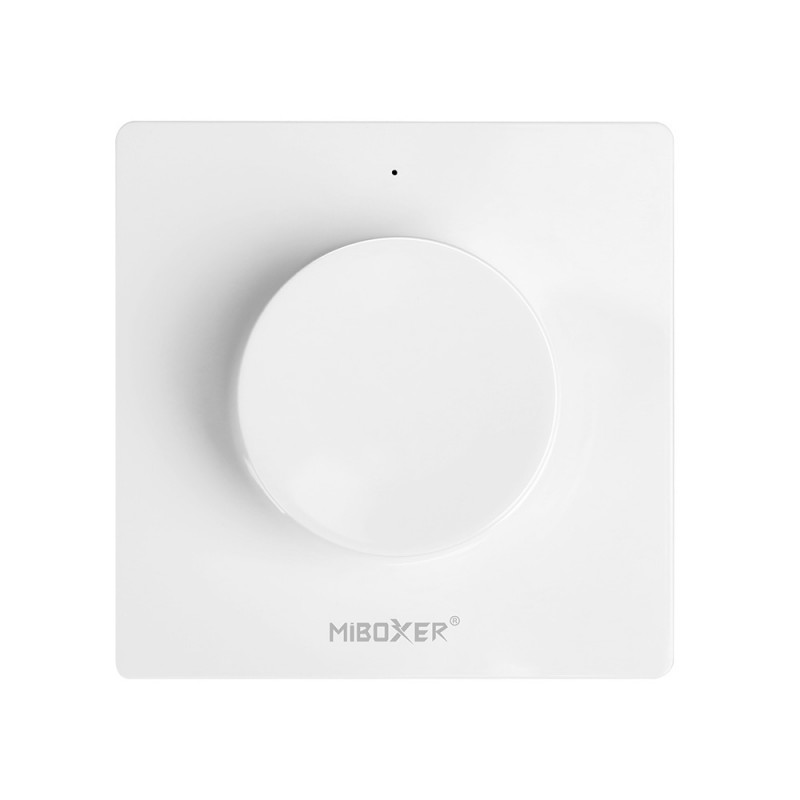

RF Rotary Controller - Single Color + CCT - Magnetic Base - Mi Light - White
RF Rotary Controller - Single Color + CCT - Magnetic Base - Mi Light - White
RF Rotary Controller - Single Color + CCT - Magnetic Base - Mi Light - White

RF Rotary Controller - Single Color + CCT - Magnetic Base - Mi Light - White

SKU:K1
Has superado el límite de unidades
In stock 3 units
Data sheet

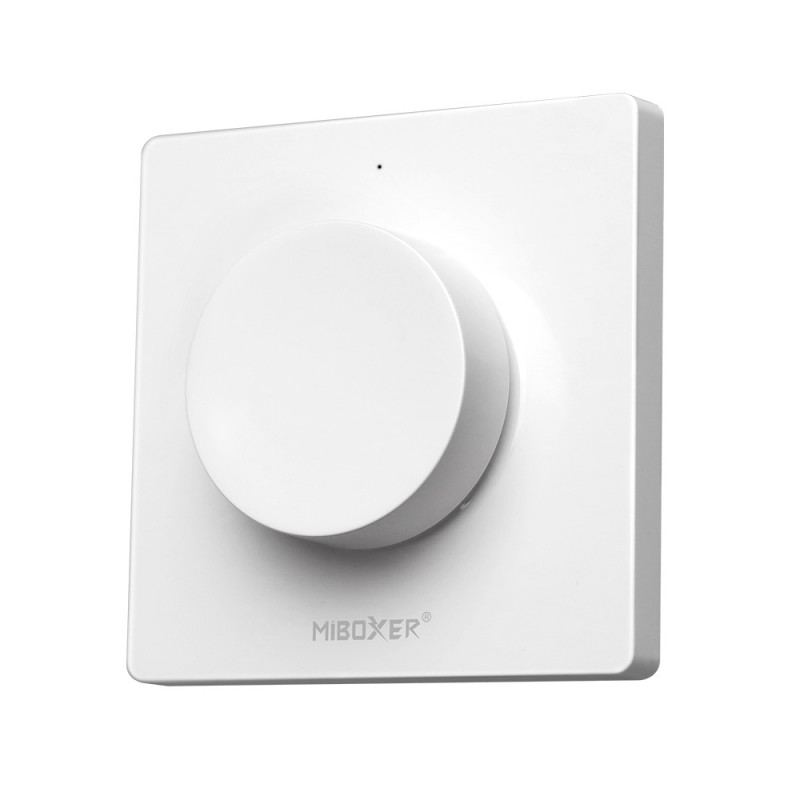

The RF control panel offers simple and intuitive control of Miboxer/Milight 2.4G single-color LED and CCT luminaires.

It is magnetically installed on a holder fixed to the wall.

Through a wheel, it allows for precise adjustment of brightness and color temperature.

Available in white colour.

Shipping to Africa available
public
For any shipping requests to Africa, please contact our sales department at:  comercial@barcelonaled.com

The RF controller is manufactured with 2.4GHz wireless control technology with low power consumption, anti-interference system and fast communication.

With a range distance of 30 meters, it allows the control of up to 4 zones individually, with no restriction on the number of bulbs.

This panel is compatible with all Miboxer/Milight single-color or CCT 2.4GHz products.

It incorporates a rotary wheel for easy and intuitive adjustment of color temperature and brightness.

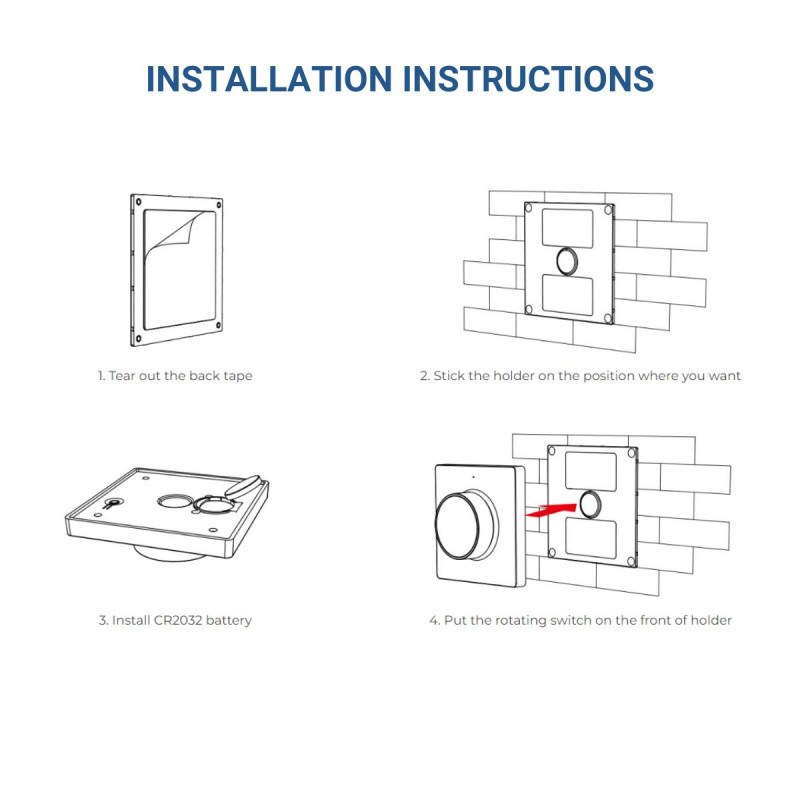

The installation of the RF controller is extremely practical: it's magnetically placed on a holder fixed to the wall, thus providing an easy and comfortable user experience.

Rotary wheel functions

Short press: Power on/off

Rotation: Brightness adjustment

Press and hold while light is on: once the indicator finishes flashing, the CCT mode is activated. Rotate to adjust the color temperature. (Caution: the device will exit CCT mode if the user does not use it within 3 seconds)

Press and hold while the light is off: to enter night light mode.

Product features:

  • Input voltage: 100-240V AC
  • Magnetic installation
  • 4 zones
  • Signal output: RF 2.4GHz
  • RF range: 30m (unobstructed)
  • Dimensions: 86 x 86 x 27 mm
  • Includes wall holder
  • Standby power consumption: <6uA
  • Transmit power: 6dBm

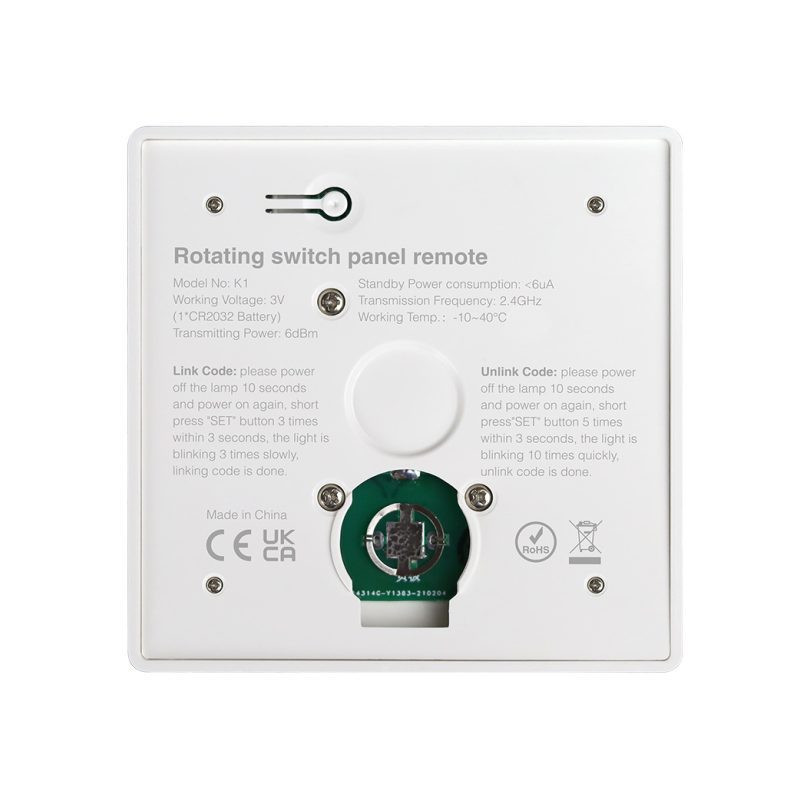

  • Battery: 3V (CR2032 battery - Not included)
  • Colour: white
  • Indoor use: IP20
Nominal Voltage (V)
100-240V
IP
IP20
Dimensions (mm) Lxlxh
86 x 86 x 27
Dimmable
Yes
Colour control
CCT
Monocolor
Connectivity
RF
Material
Glass
Polycarbonate
Use Outdoor
No
Temperature range
-10~40°C
Certificates
CE
ROHS
Warranty
According to legal guarantee: 2 years
Control Distance
30m
