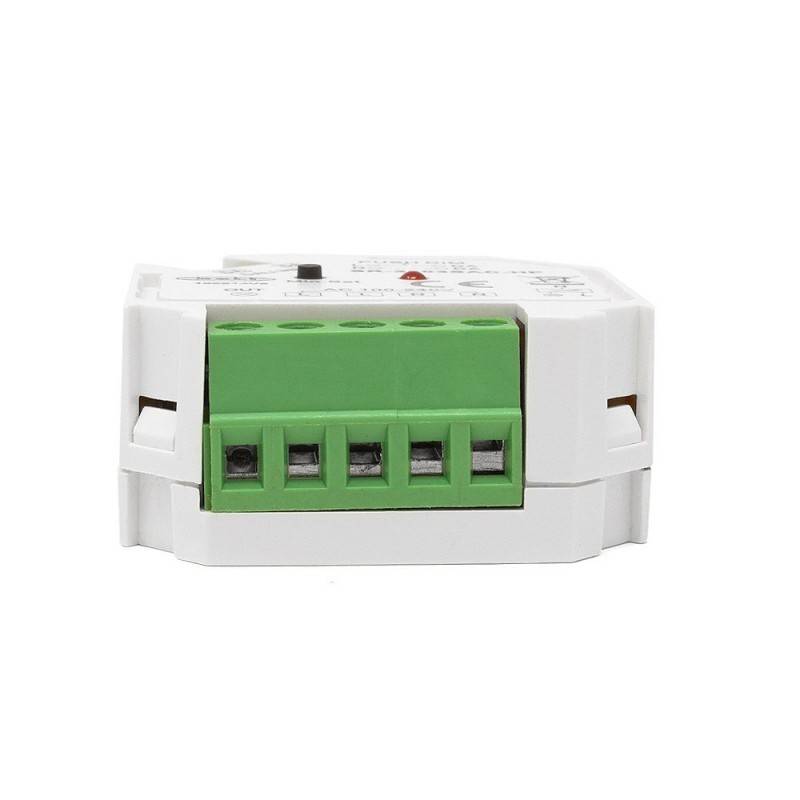

Wall mountable dimmer

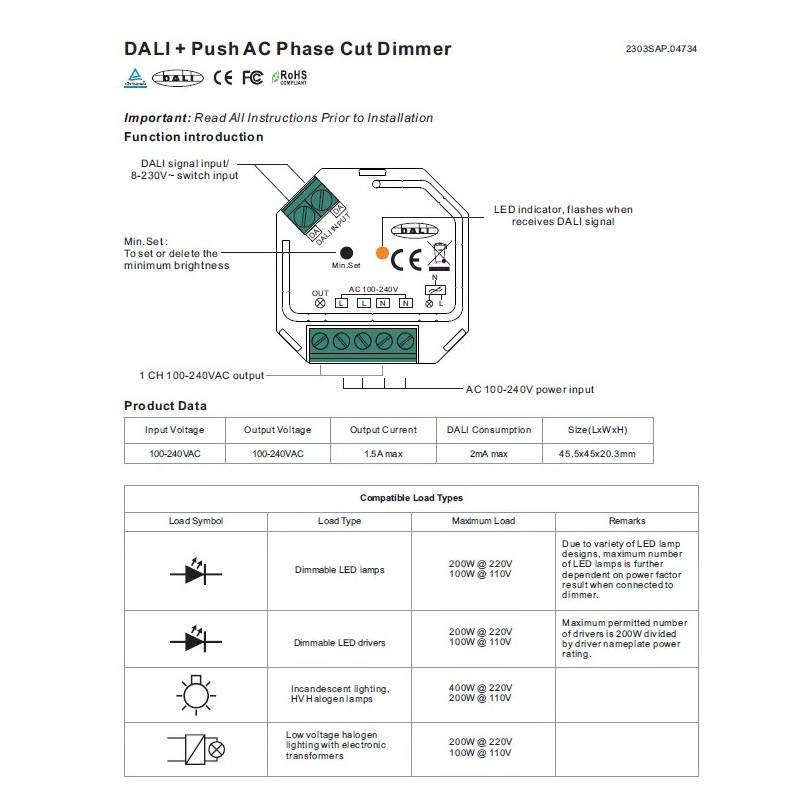

DALI PUSH PHASE CUT DIMMER

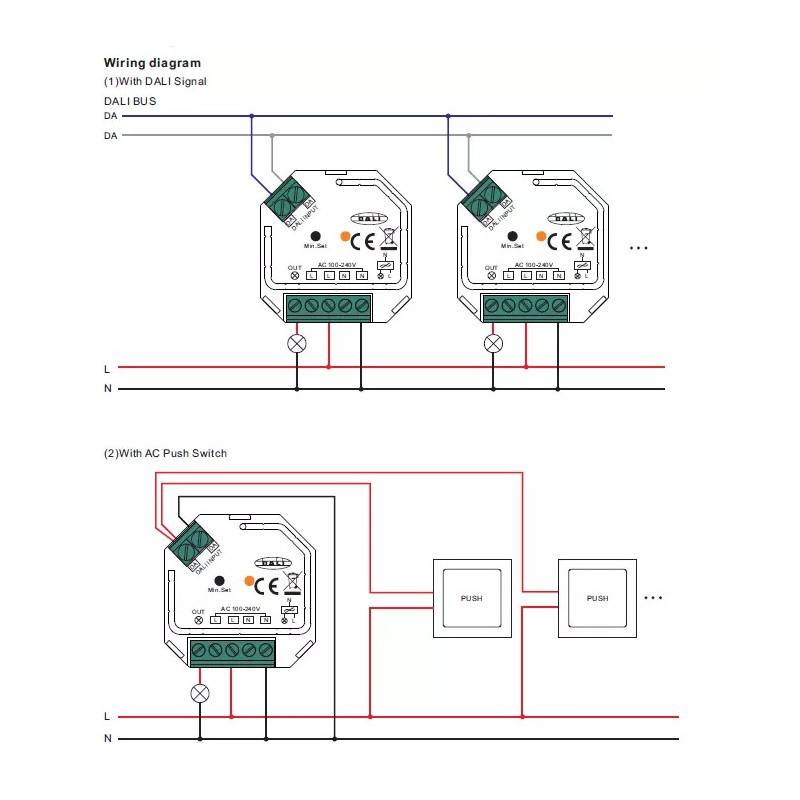

dimmer diagram

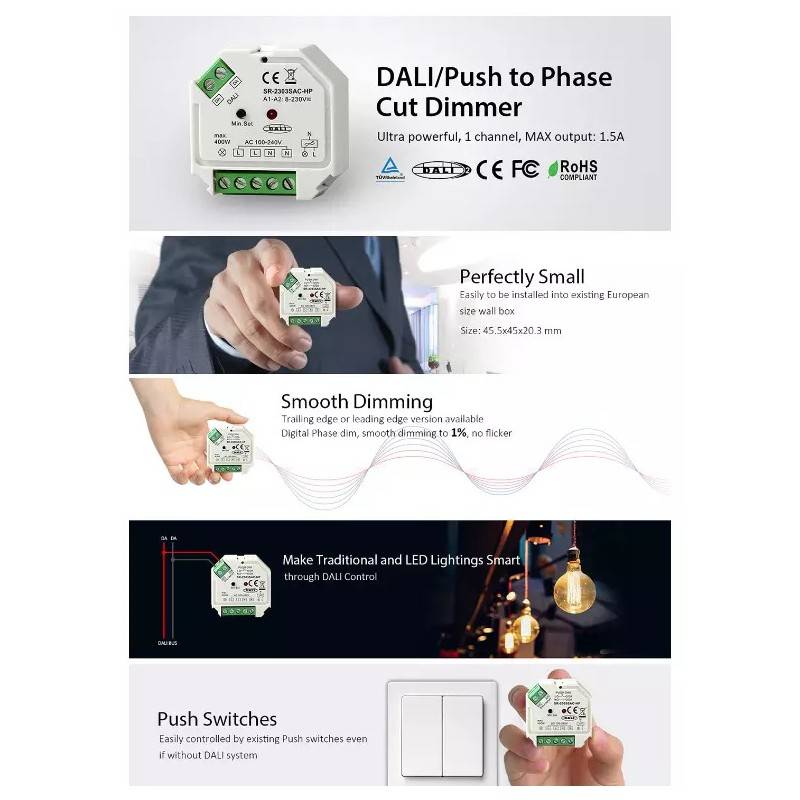

SR-2303SAC-HP

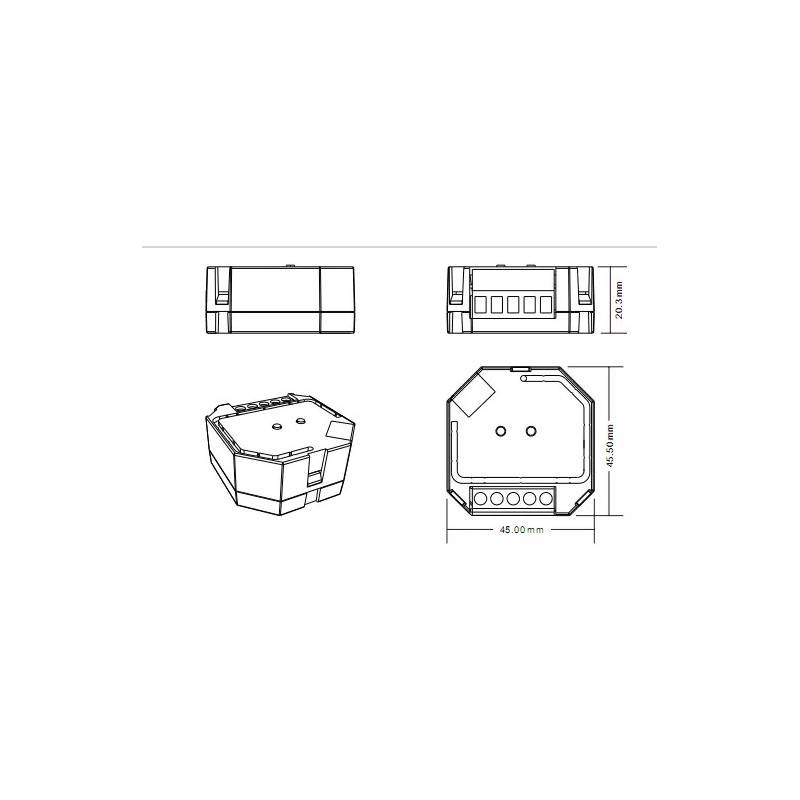

dimensions SR-2303SAC-HP

Single-color DALI and PUSH Dimmer Controller - 400W - 1 channel - 100-240V AC - Sunricher

SKU:SR-2303SAC-HP
Has superado el límite de unidades
In stock 957 units
Data sheet

TheSR-2303SAC-HP controller is a trailing edge dimmer with one channel controllable by DALI and PUSH (push button). It has 100-240V/AC input and output and 1 channel with a maximum output of 400W.

It is suitable for dimmable LED lamps, halogen or end-of-phase cut-off dimmable power supplies.

It has an innovative user adjustable minimum brightness function and can be dimmed up to 100%.

Mini size, easy to install in a standard 86x86mm wall box.

**Compatible with DALI-2

Shipping to Africa available
public
For any shipping requests to Africa, please contact our sales department at:  comercial@barcelonaled.com

The SR-2303SAC-HP is an innovative AC phase cut dimmer with DALI and PUSH interface. It is designed with 100-240V/AC input and output, one channel and a maximum output of 400W.

It is manufactured with rugged materials and excellent insulation making it safe, reliable and durable.

Integrated DALI-2 interface and compatible with all DALI systems on the market. It is also compatible with universal 8V-230V~ input pushbutton switches.

Supports resistive and capacitive loads, and has a maximum output current of 1.5A.

It has a DALI address to control the output with a maximum of 400W.

This controller has an innovative user-adjustable minimum brightness function that allows dimming from 0 to 100% brightness.

Due to its small size, it is suitable for installation in a standard 86x86mm wall box.

Main product features:

  • Input and output voltage: 100-240V/AC.
  • 1 channel with a max. current of 1.5A
  • DALI and PUSH dimmable
  • Brightness adjustment from 0 to 100% brightness
  • High compatibility with universal 8V-230V input pushbutton switches.
  • Allows dimming LED, halogen and incandescent lamps
  • Built-in DALI-2 interface, DALI DT6 device.
  • Compatible with all DALI systems on the market.
  • Mini size, easy to install in a standard 86*86mm wall box.
  • Dimension: 45.5x45x20.3mm
  • Max. output power: 400W

Nominal Voltage (V)
100 - 240 V/AC
Dimensions (mm) Lxlxh
45.5x45x20.3
Control system
DALI
Certificates
CE
ROHS
Warranty
According to legal guarantee: 2 years
Maximum intensity (A)
1.5
