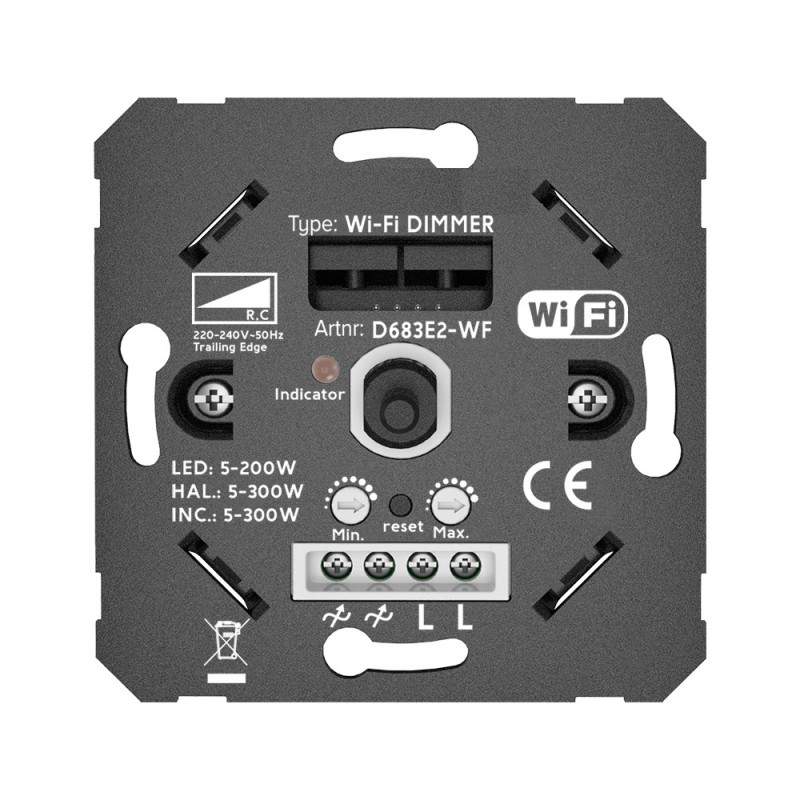

Smart WIFI Dimmer 200W On/Off Function

The 200W wifi LED dimmer allows us to control the intensity of all LED technologies that allow dimming from 0 to 100%. It has a toggle switch, offering the possibility to turn on and off the luminaire from two different points of the room (accompanied by another toggle switch). At the same time it incorporates WIFI technology to be able to regulate the intensity from any device that supports the Tuya application.

This dimmer offers the possibility of creating cozy atmospheres and areas with great LED lighting by simply turning the controller. It also has a brightness preset button. With soft start to ensure the life of the lamp and driver. Built-in protection for overload, short circuit and high temperature.

Dimmer Installation

Installation should be done by a professional. If you have any questions about the installation or use of this product, please consult one of our qualified technicians.

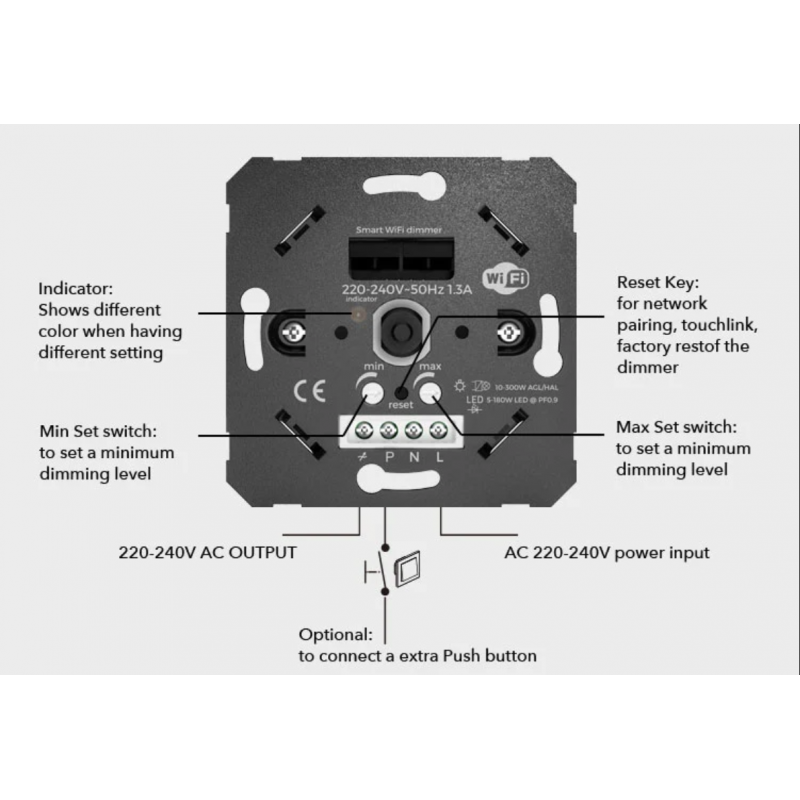

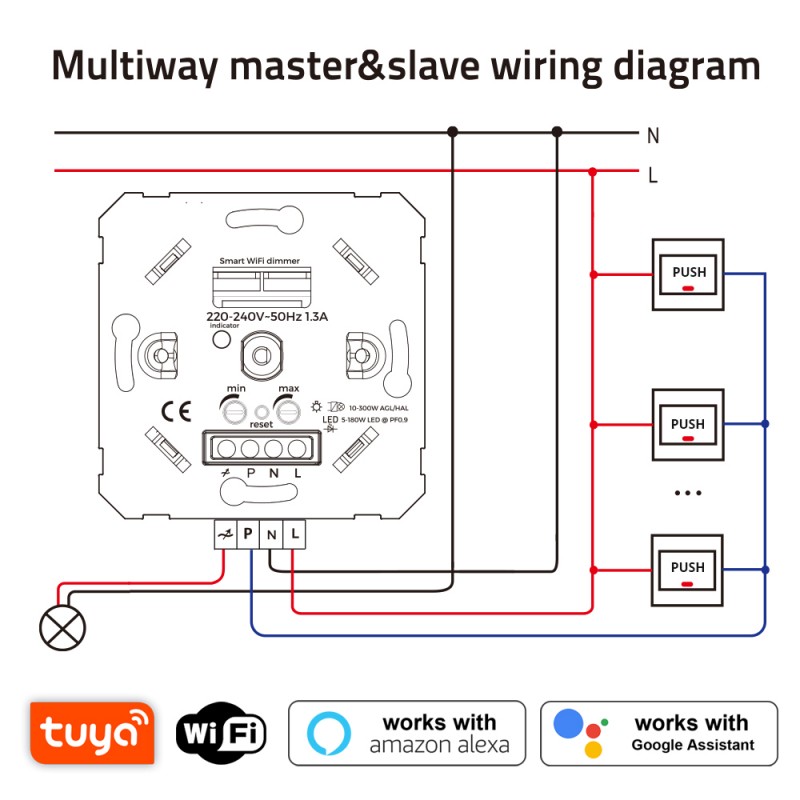

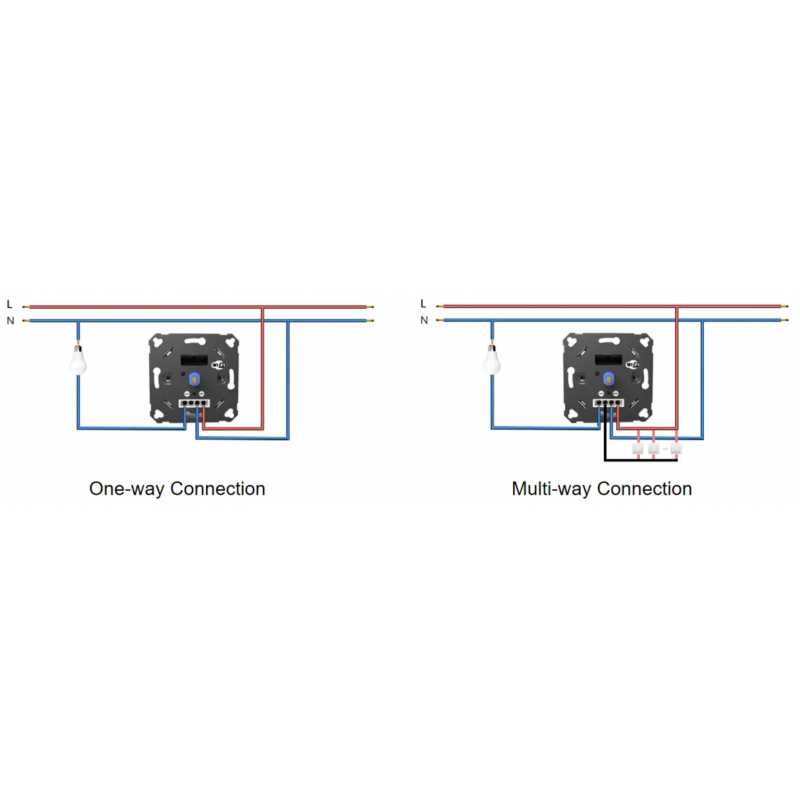

1. Before installation, ensure that electricity is disconnected during installation. Then connect the power cables as shown in the connection diagram below.
2. Install the controller in the recessed housing.
3. Turn on the power. Turn on the LED lamps connected through the shaft of the LED dimmer. Turn the knob on the dimmer to the left and adjust the minimum light with MIN. You can adjust with a screwdriver. Adjust the illumination of the lamps.

Installation with a voltage of 230V must be done by a qualified professional. No more than one dimmer can be connected in parallel to work with the same load from two points.

Characteristics:

• Trailing Edge dimming.
• Rotary knob and push button
• Requires neutral
• WiFi Dimmer. Works with Tuya app, compatible with Amazon Alexa and Google Home.
• Unidirectional / Multidirectional.
• Has Reset key to return the product to factory settings.
• Compatible with most recessed housings such as Busch Jaeger, Jung, Berker, etc.
