Staircase light controller with PIR sensor

The staircase light controller is equipped with a highly sensitive PIR sensor that detects human motion and ambient light.

This ensures that the stair lights only turn on when necessary, which saves energy and prolongs the life of the LED lights.

It offers 32 constant voltage output channels, with a maximum current of 1A/channel.

It also has 2 groups of SPI output, compatible with 28 types of RGB digital LED strips (IC) and allows easy configuration of IC type and color order (R/G/B).

It's possible to select colors, switching speed and brightness, all adjustable in 8 different levels.

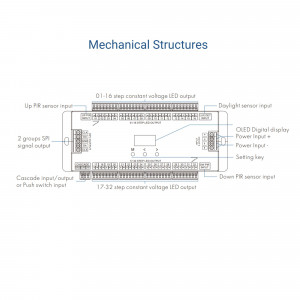

The controller incorporates an OLED display and 3 buttons for easy setup and adjustment of lighting options.

To illuminate staircases with more than 32 steps, it's possible to cascade two controllers for continuous coverage.

Compatible with standard IR reflection sensors and ES-T infrared sensors when a precise detection area is required.

Features overheat, overload and short-circuit protection, and performs quick self-test for reliability.
