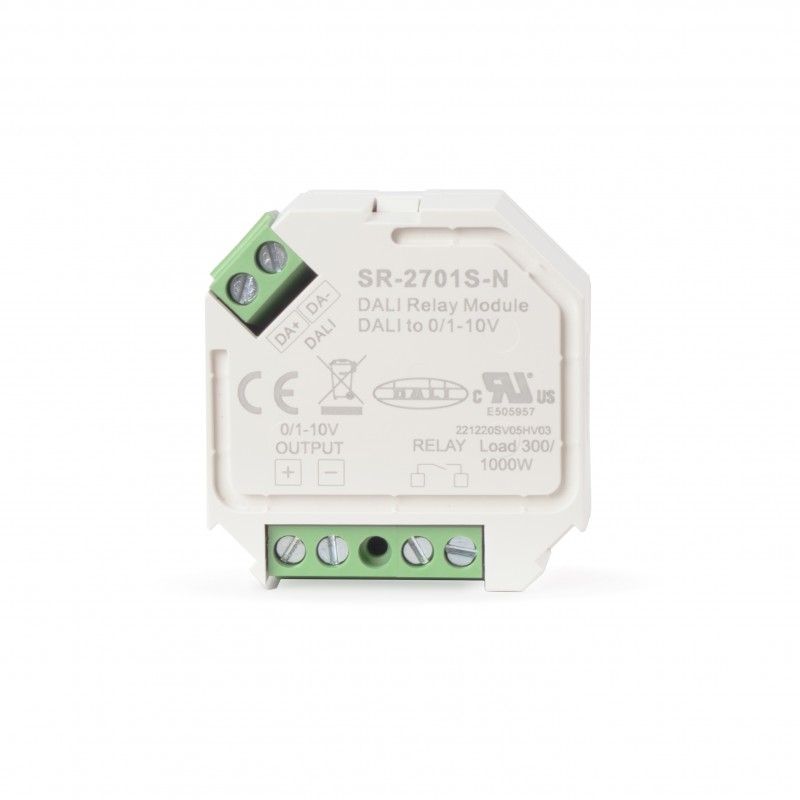

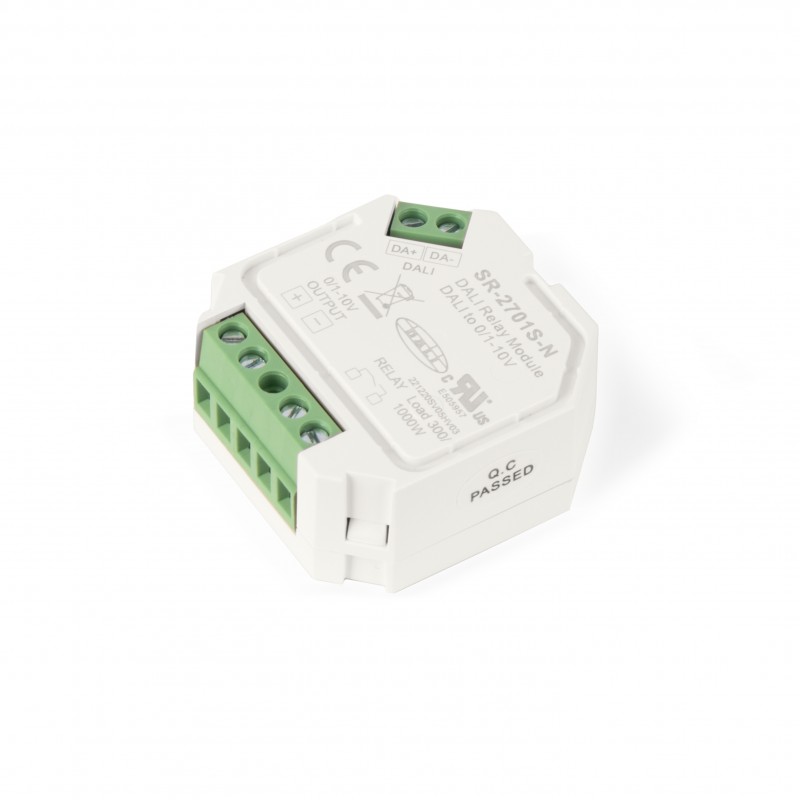

Sunricher 2 in 1 Converter: DALI to 0-10V + DALI Relay

Sunricher 2 in 1 Converter: DALI to 0-10V + DALI Relay

Name: Sunricher 2 in 1 Converter: DALI to 0-10V + DALI Relay
Brand: SUNRICHER
SKU: SR-2701S-N
Price: 59.95 EUR
Availability: InStock

SKU:SR-2701S-N

€59.95 Tax included

In stock 144 units

Data sheet

The Sunricher Dali to 0-10V + DALI Relay Converter fulfills two functions: it allows to dim 0-10V devices by converting the DALI signal to 0-10V and it also acts as a relay device that allows to switch light sources on and off via DALI.

Its compact size allows it to be easily integrated into the existing system and it can switch voltages up to 250V/AC and 30V/DC.

Shipping to Africa available

public

For any shipping requests to Africa, please contact our sales department at: comercial@barcelonaled.com

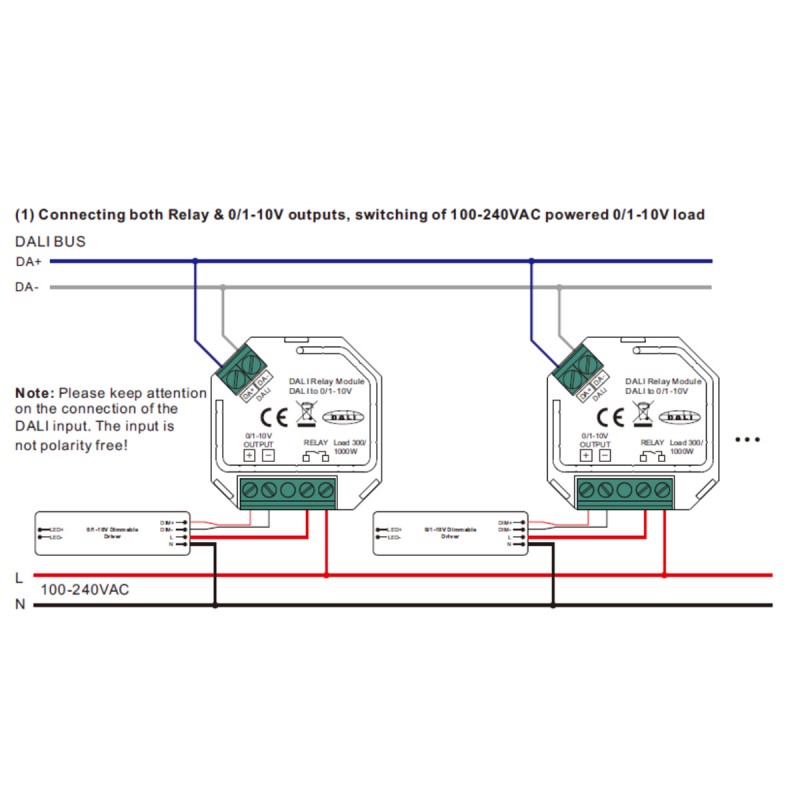

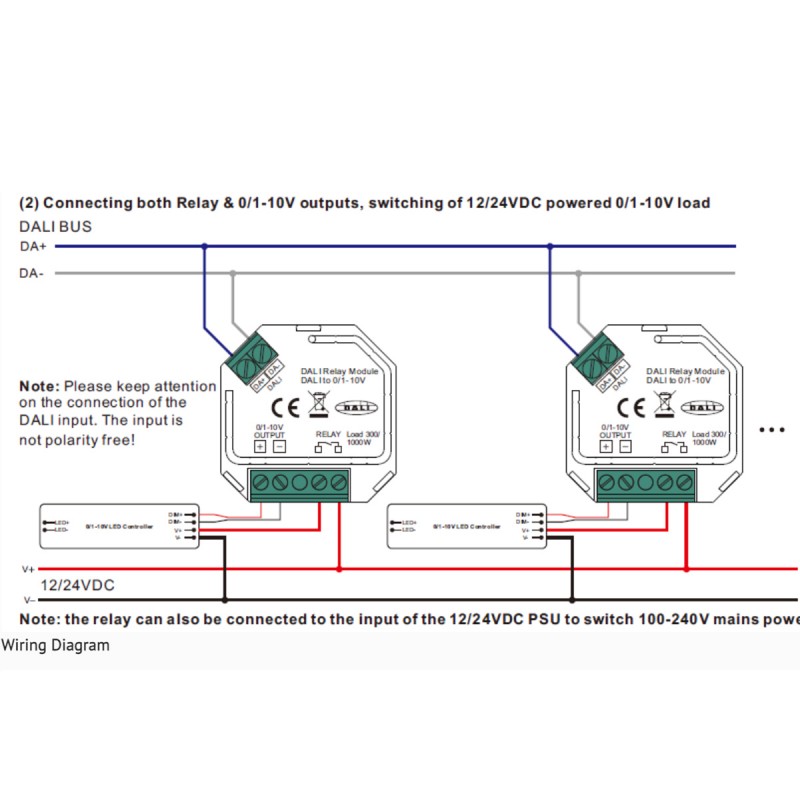

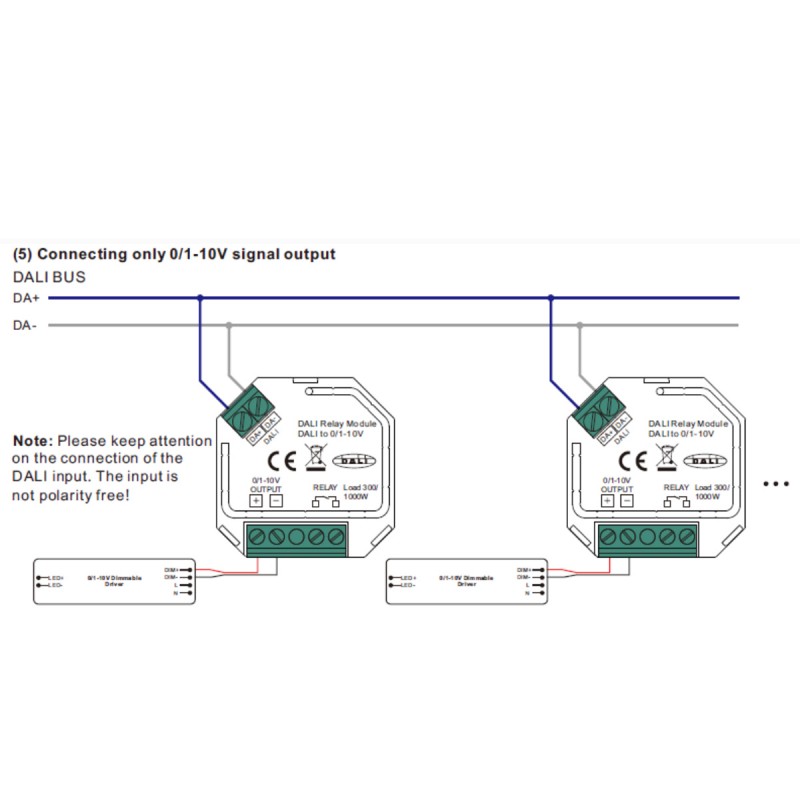

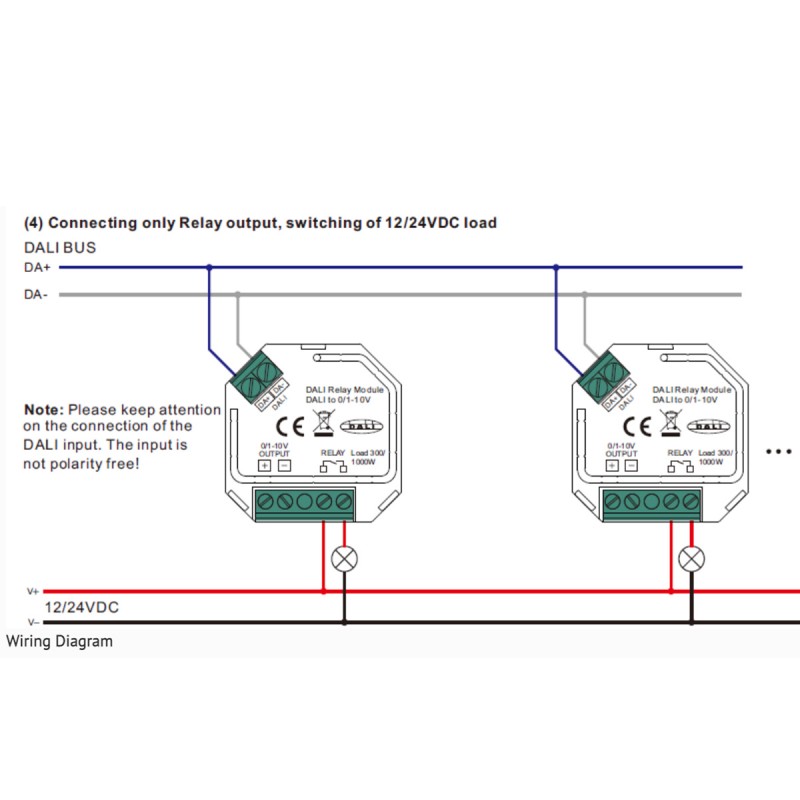

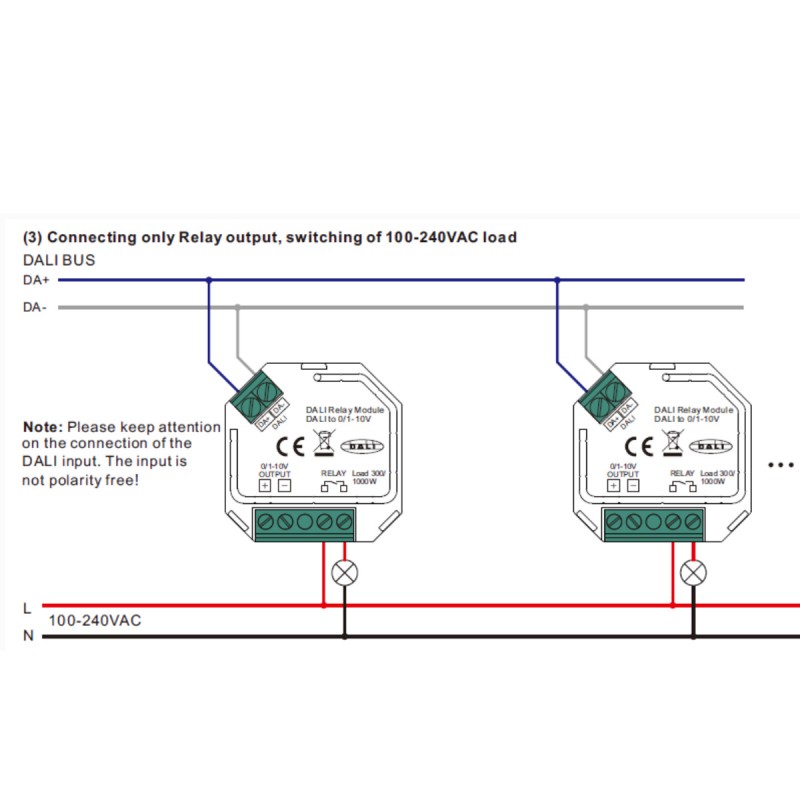

The Sunricher 2 in 1 converter is a device that acts as a DALI relay and as a DALI to 0/1-10V converter, capable of switching AC and DC loads. It allows to switch on, switch off and control 0/1-10v light sources that are not DALI compatible.

The maximum switching voltage allowed for Alternating Current (AC) is 240V, and the maximum switching voltage for Direct Current (DC) loads is 30V.

Supported load types:

1. LED: fluorescent tube lamps (compact with electronic ballast), electronic transformers: max. load 300W - 230VAC / 150W - 110VAC.

2. Ferromagnetic transformers: max. load 1000W - 230VAC / 500W - 110VAC

3. Conventional incandescent and halogen light sources: max. load 1000W - 230VAC / 500W - 110VAC

Compared to the analog dimming of 0-10V, the digital dimming of the DALI system is more precise, addressable, with stable focus control and easy installation.

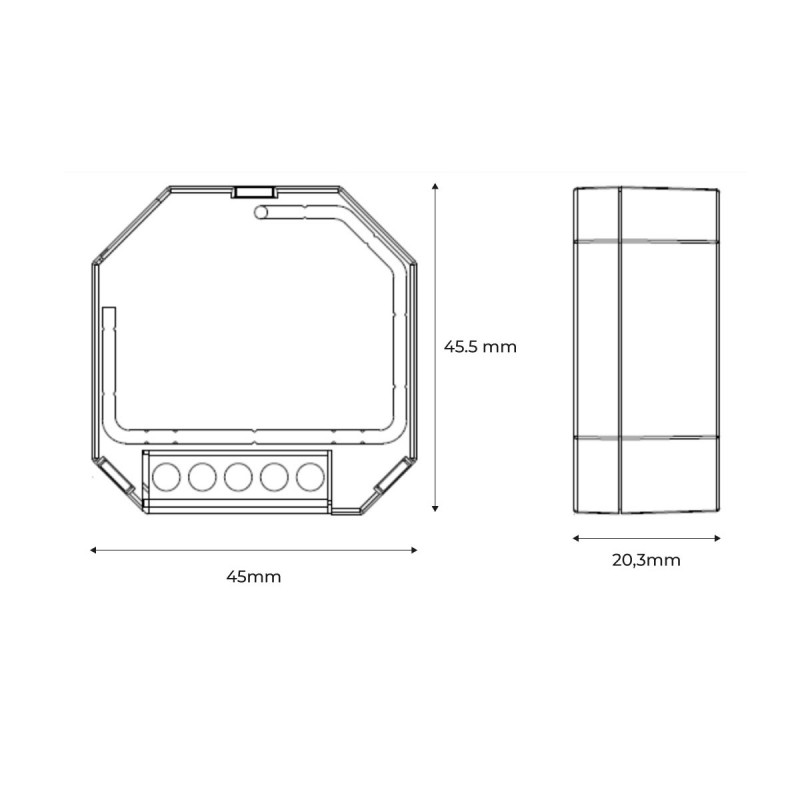

Due to its compact design, it is possible to install it in any standard wall box.

Main product features:
