"Sunricher" Touch control panel - 1 zone - RGBW - Perfect RF

SKU:SR-2820B(AC)
Has superado el límite de unidades
In stock 17 units
Data sheet

The Sunricher recessed touch control panel offers complete lighting control for 100-240V RGBW LED luminaires.

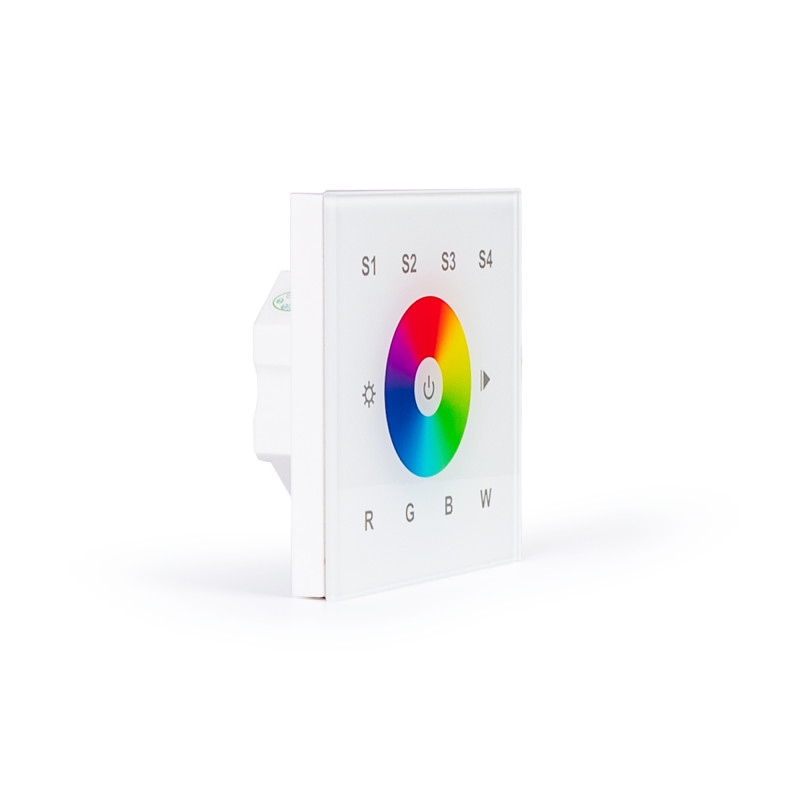

Its elegant, high-sensitivity glass touch interface includes a color wheel for precise adjustments, along with touch keys with LED indicators.

It allows adjustment of brightness, saturation, speed in scenes and dynamic modes, etc.

Shipping to Africa available
public
For any shipping requests to Africa, please contact our sales department at:  comercial@barcelonaled.com

The Sunricher Touch Control Panel features a sleek design and an ultra-sensitive glass panel that allows for precise and intuitive adjustment of RGBW lighting.

It can control up to 1 zone individually or synchronized with multiple 2.4G RF controllers in each zone.

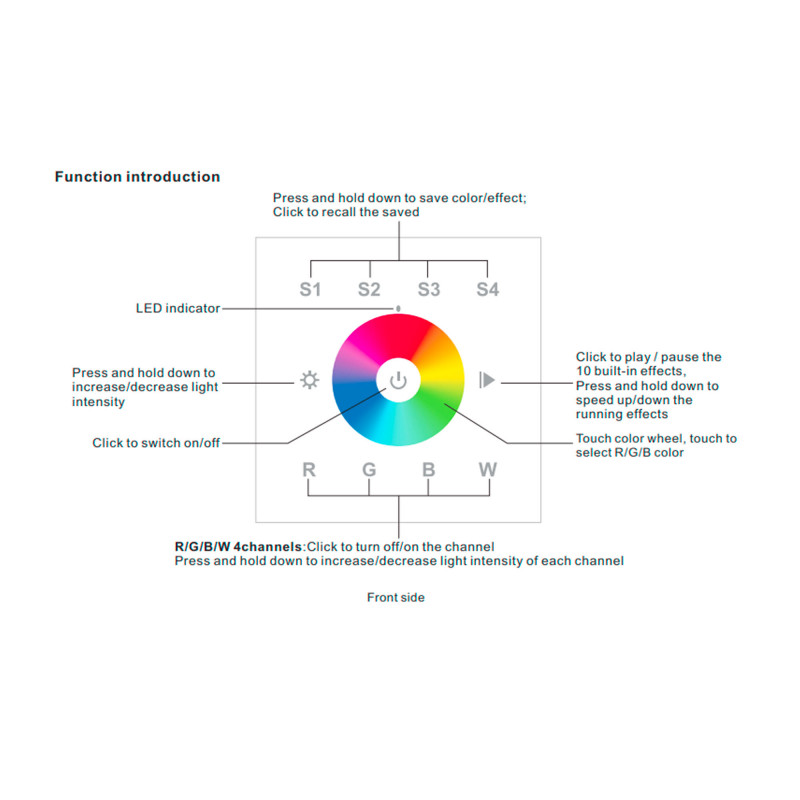

It offers 10 preset dynamic modes, the ability to record up to 4 scenes and adjustments for color, speed, brightness and saturation.

The panel can be controlled via WiFi through the app, on IOS or Android mobiles.

Its standard dimensions fit into a universal (EU) flush-mounted box.

Product features:

  • Voltage: 100-240V AC
  • 1 zone
  • Input signal: Touch + RF 2.4GHz
  • Output signal: RF 2.4GHz

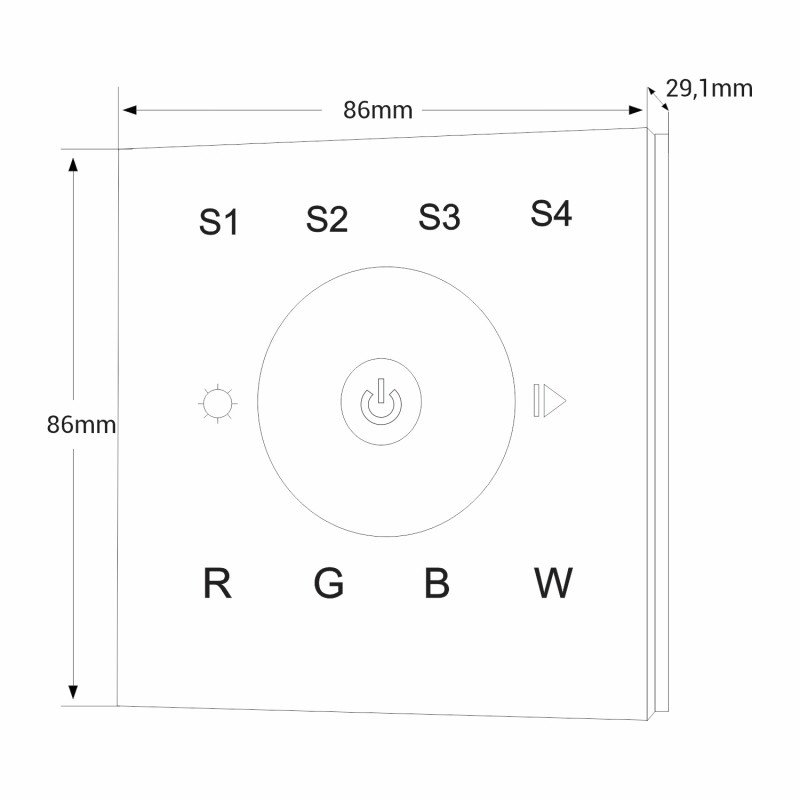

  • Dimensions: 86 x 86 x 29.1 mm
  • Indoor use: IP20
Nominal Voltage (V)
100 - 240 V/AC
IP
IP20
Dimensions (mm) Lxlxh
86x86x29.1
Dimmable
Yes
Colour control
RGBW
Connectivity
RF
Material
Glass
Use Outdoor
No
Temperature range
-10~40°C
Certificates
CE
ROHS
Warranty
According to legal guarantee: 2 years
