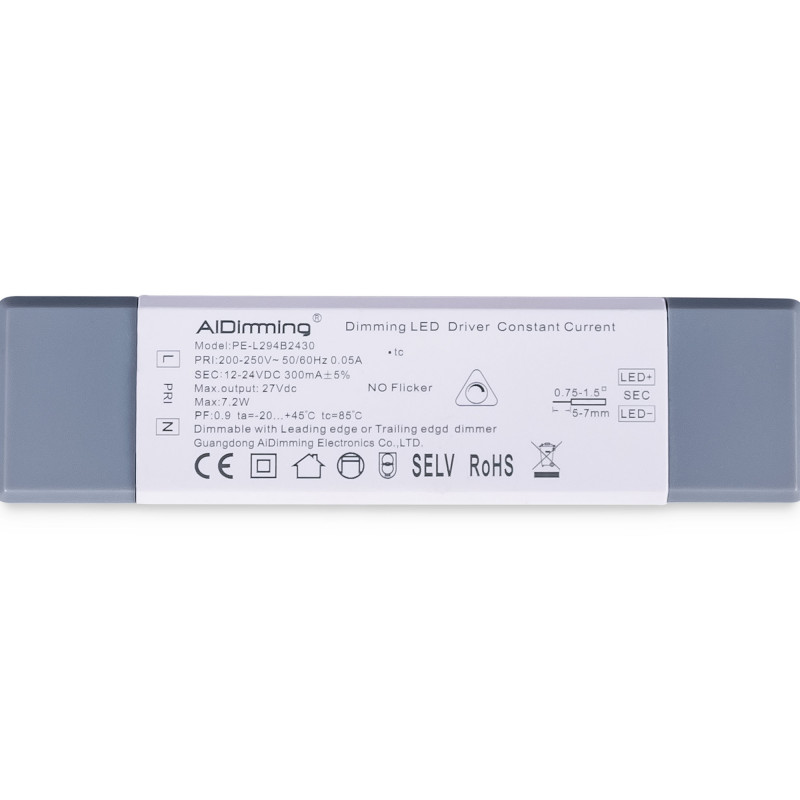

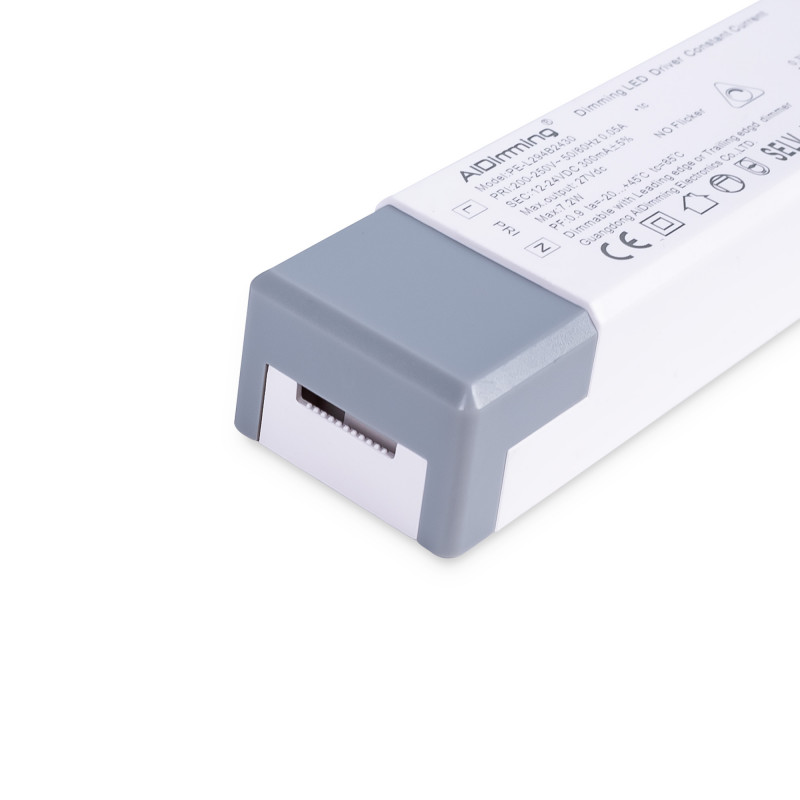

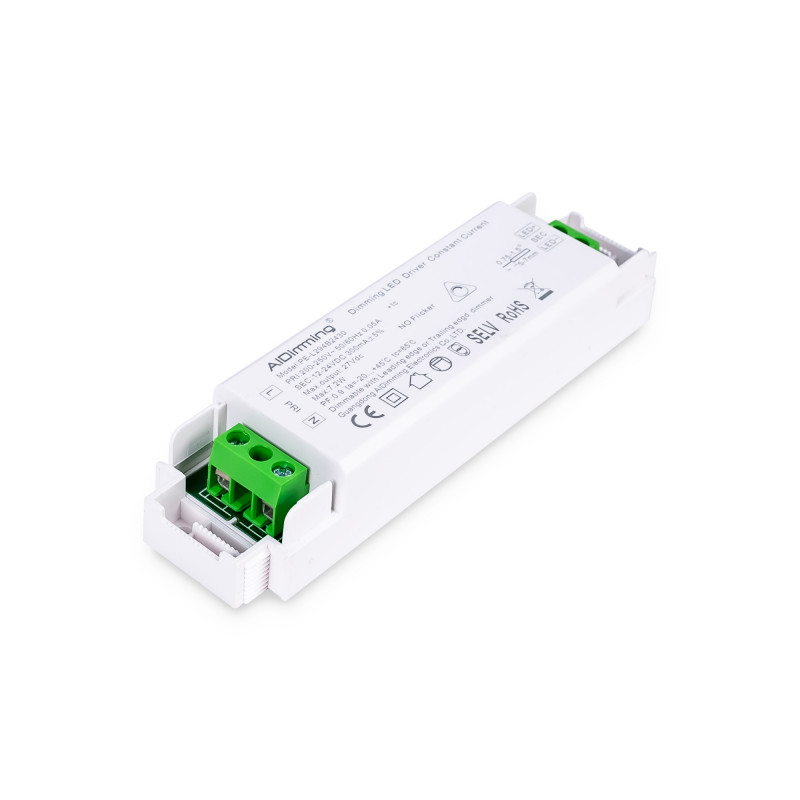

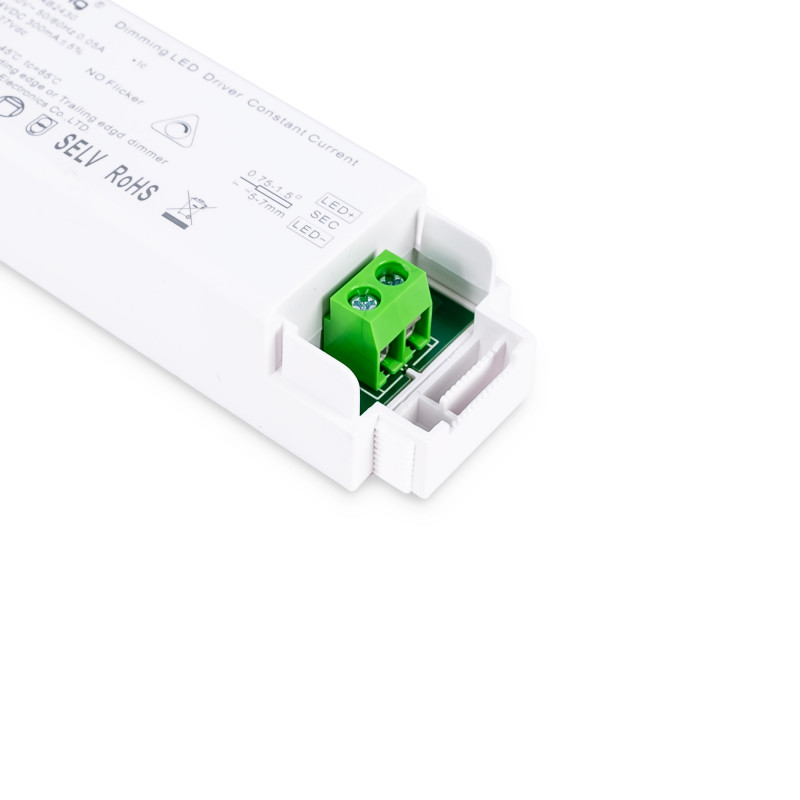

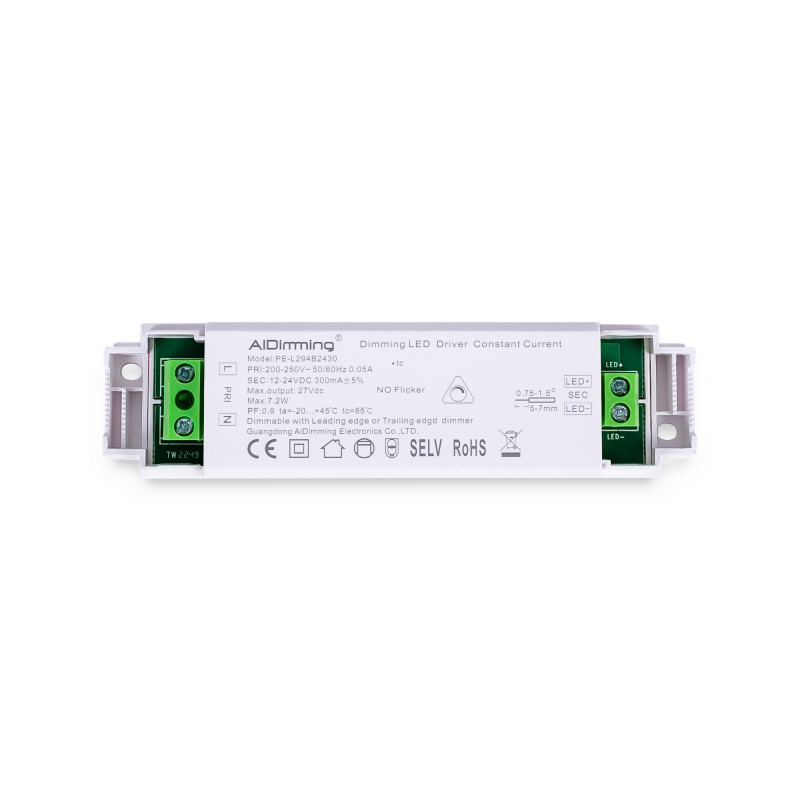

TRIAC dimmable driver - 12-24V DC - 300mA - 6W
SKU:PE-L294B2430
€11.95
Tax included
Shipping to Africa available
For any shipping requests to Africa, please contact our sales department at: comercial@barcelonaled.com
The TRIAC dimmable driver is manufactured with high-quality components and a robust design, ensuring a long service life.
It supplies constant current to LED lamps and luminaires up to a maximum of 300mA.
It provides stable, uniform regulation without abrupt jumps. Additionally, it includes an EMC filter to prevent electromagnetic interferences.
It's specially designed to emit light without flickering, ensuring pleasant and comfortable lighting for the eyes, promoting the well-being and productivity of users.
Supports both leading-edge phase-cut dimming and trailing-edge phase-cut dimming.
|
Product features:
|
Nominal Voltage (V)
200 - 250V AC
Lifetime (h)
25000
IP
IP20
Dimensions (mm) Lxlxh
115 x 30 x 21
Frequency (Hz)
50 - 60
Sensor
No
Power factor (cosφ)
0.9
Control system
TRIAC
Output voltage (V)
200 - 250V
Number of channels
1
Material
Plastic
Use Outdoor
No
Temperature range
-20°C ~ +45°C
Frequency of use
Intensive
Energy efficiency class
A+ (2021)
Certificates
CE
ROHS
ROHS
Warranty
According to legal guarantee: 2 years
Questions
| P: Question: |
Bon dia, Aquest driver serveix per bombetes led de 12v? Moltes gràcies! |
|---|
| R: Answer: | Hello, this driver has an output of 12 and 24 V of Constant Current, therefore, it would be useful if the pump is adjustable and 6W. Thank you very much.
Barcelona LED: Sergi| 19/10/2024 |
|---|
| P: Question: | Hello good afternoon.I want to regulate 2 downlights 6w,each with its dimmable driver,so far so good.but how do I control the driver?I have a dimmer switch 0-10v controlled by a push button.The focus s stays on,with the push button or off,or regulates.I lack or I spare something?thanks. |
|---|
| R: Answer: | This driver model is for TRIAC regulation. If your installed dimmer is for 0-10v control systems, you need a dimmable driver compatible with that dimming system, in our catalog currently for that power we only have the model SRP-TRIAC-10CC (adapting to the current required by the downlight). |
|---|
| P: Question: | Hello good, a question to make an installation of led strip 24 v dc that is adjustable, about 2 meters with the strip of led 90w 5 meters this would be the regulator that I would go well? and to regulate it I can put a push button mechanism or how it works? |
|---|
| R: Answer: | No, this controller is not suitable for what you need. For the strips it is better to use the controller with reference B1626-2. |
|---|
