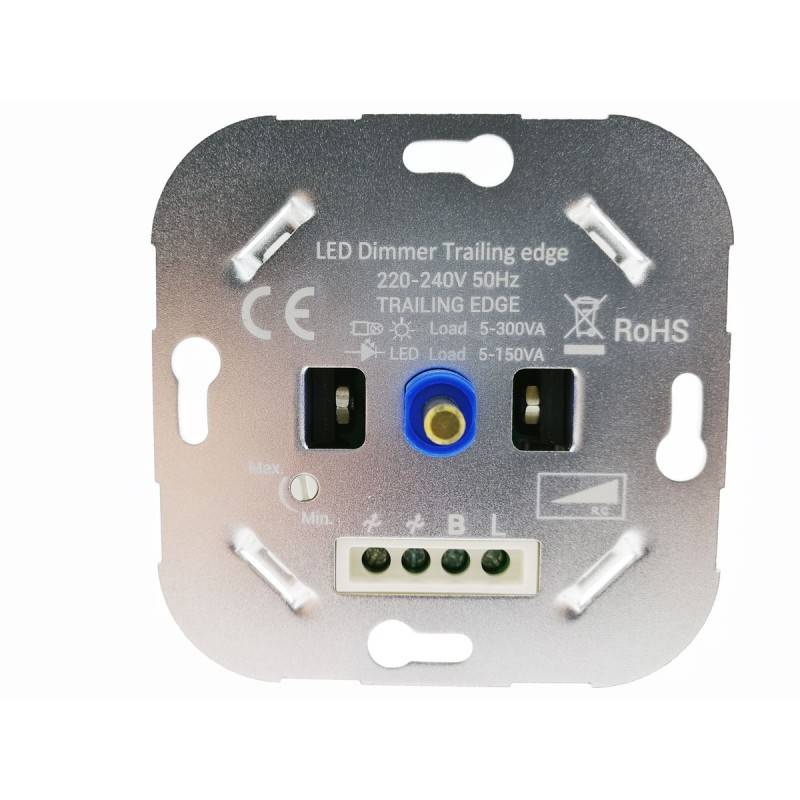

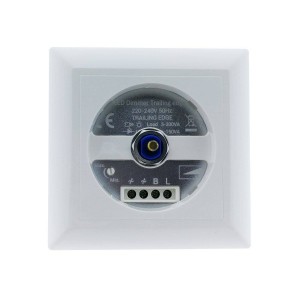

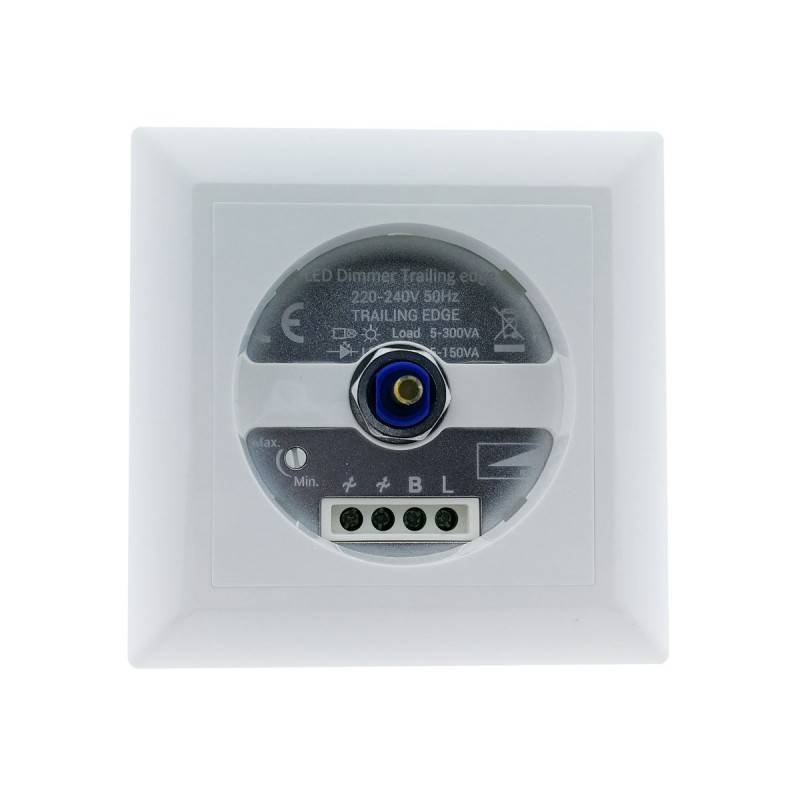

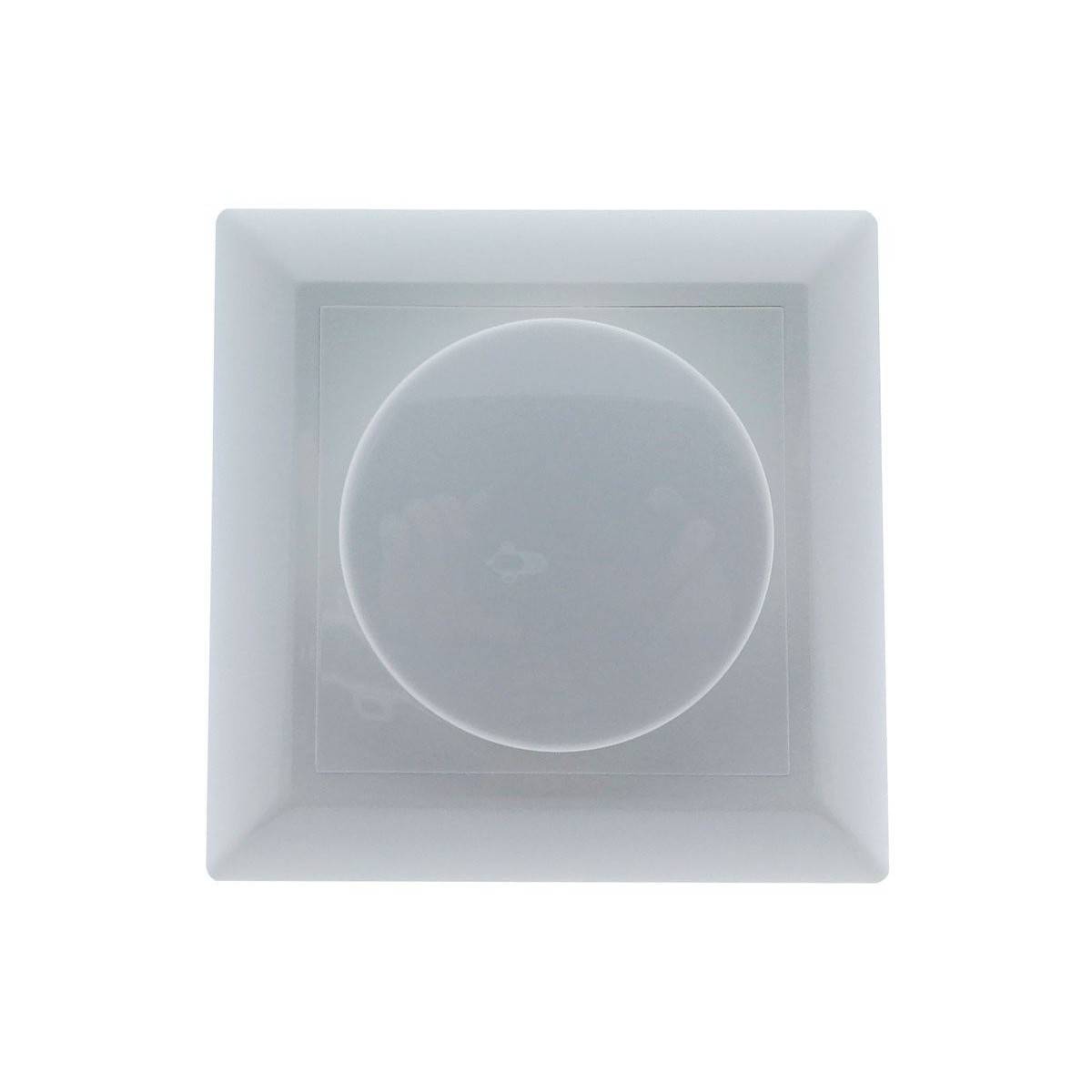

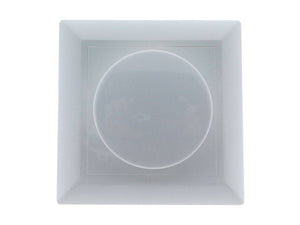

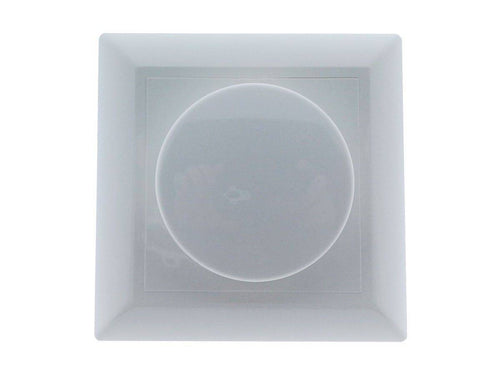

Dimmable Triac Dimmer 150W On/Off Function

The 150W TRIAC type LED dimmer allows us to control the intensity of all LED technologies that allow dimming from 0 to 100%. It has a toggle switch, offering the possibility to turn on and off the luminaire from two different points of the room (accompanied by another toggle switch).

This dimmer offers the possibility of creating cozy atmospheres and areas with great LED lighting by simply turning the controller. In addition, it has a brightness preset button. With soft start to ensure the life of the lamp and driver. Built-in overload, short circuit and high temperature protection.

Dimmable Triac Dimmer Installation

Installation should be done by a professional. If you have any questions about the installation or use of this product, please consult one of our qualified technicians.

1. Before installation, ensure that electricity is disconnected during installation. Then connect the power cables as shown in the connection diagram below.

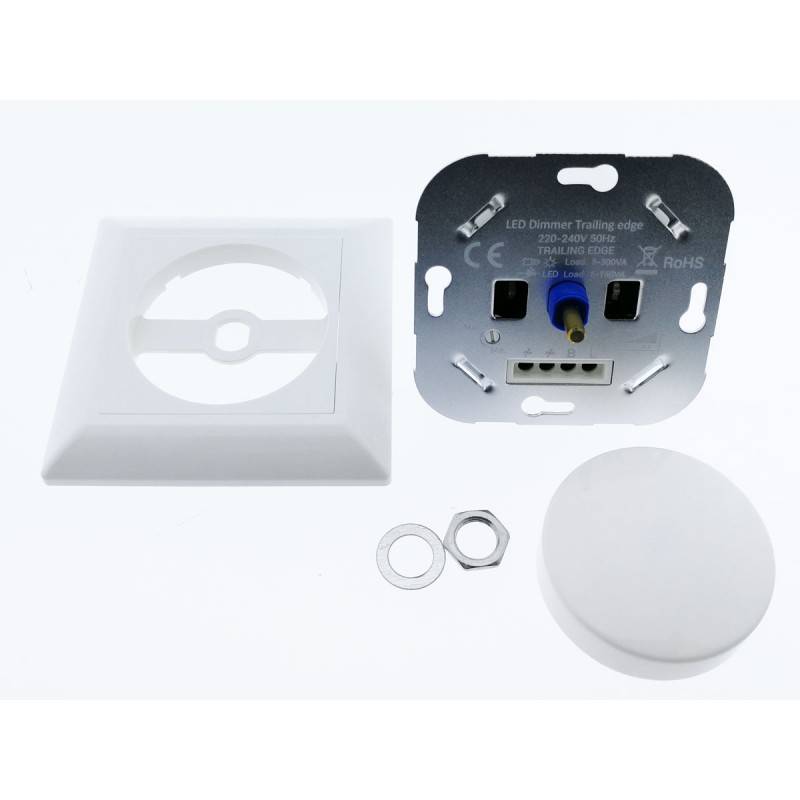

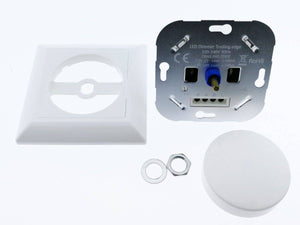

2. Install the controller in the recessed housing.

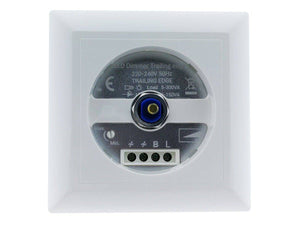

3. Turn on the power. Turn on the LED lamps connected through the shaft of the LED dimmer. Turn the knob on the dimmer to the left and adjust the minimum light with MIN. You can adjust with a screwdriver. Adjust the illumination of the lamps.

The 150W Triac dimmer, with on/off function, is a two-wire LED dimmer that connects as shown in the diagram above. Installation with 230V voltage must be done by a qualified professional. No more than one dimmer can be connected in parallel to work with the same load from two points.

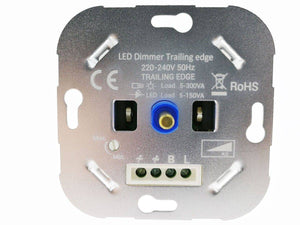

Characteristics Triac Dimmer 150W: Voltage: 220-240V/AC. Frequency: 50 Hz. Maximum load: 150W. Minimum load: 5W. Dimmer mode: Low voltage electronic dimmer (Trailing edge). Control method: Bidirectional.
