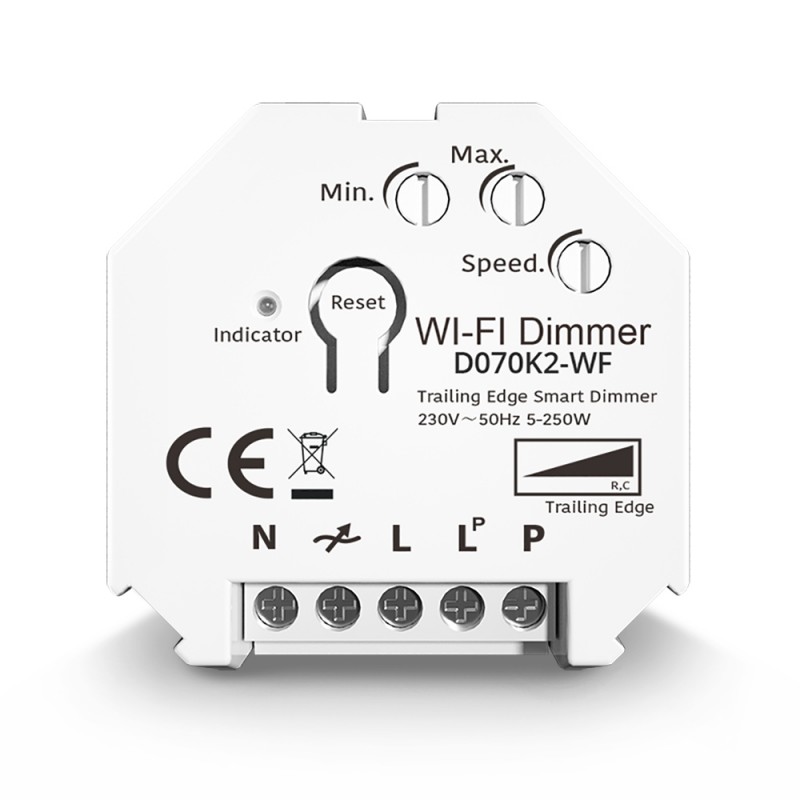

Dimmer SMART WIFI 250W Tuya APP - PUSH
SKU:B704-SPUSH
€34.95
Tax included
Shipping to Africa available
For any shipping requests to Africa, please contact our sales department at: comercial@barcelonaled.com
Dimmer SMART WIFI 250W Tuya APP. This LED dimmer allows you to control the intensity of light through a PUSH key or through any device that supports the Tuya APP application. It is compatible with most dimmable LED lamps. It also works with halogen or electronic transformers and also with incandescent lighting. Thanks to the TUYA app it is possible to do wireless voice control with Alexa or Google Home.
This dimmer offers us the possibility to create cozy atmospheres. In addition, it has a brightness preset button. With soft start to ensure the lifetime of the lamp and driver. Built-in protection for overload, short circuit and high temperatures.

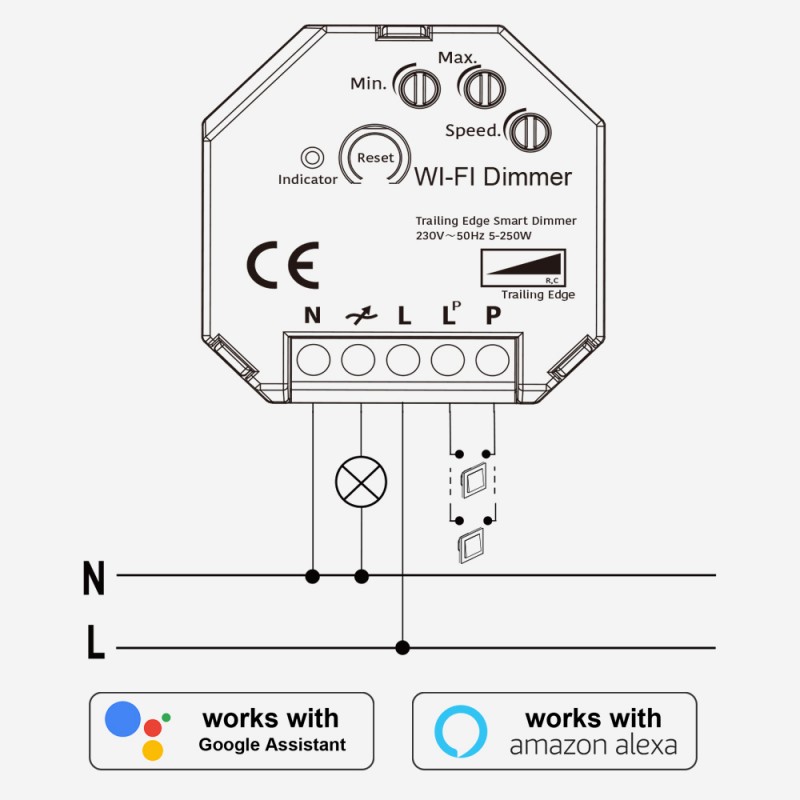

Dimmer installation:
Installation should be done by a professional. If you have any questions about the installation or use of this product, please consult one of our qualified technicians.
Nominal Voltage (V)
220-240V/AC
Power (W)
250W max.
Lifetime (h)
35000
IP
IP20
Frequency (Hz)
50Hz
Sensor
No
Connectivity
By wiring
Material
Polycarbonate
Use Outdoor
No
Temperature range
-20°C ~ +40°C
Frequency of use
Intensive
Energy efficiency class
A+ (2021)
Certificates
CE
ROHS
ROHS
Warranty
According to legal guarantee: 2 years
Questions
| P: Question: | I need to replace some 230v LED dimmers that are switched from several pushbuttons, and I would like to replace them with WiFi models, would these be suitable for that purpose? |
|---|
| R: Answer: | You may find model B704-SPUSH useful. |
|---|
| P: Question: | To work smart lighting including pulsador light switch is it best to use sonoff 4CHPRO3 or does this just work off normal on/off switches ? |
|---|
| R: Answer: | This can be used with a mechanism push button and the TUYA app. The 4CHPRO does not allow external push button |
|---|
| P: Question: | Can these be din rail mounted ? And do you do a relay that just does on/off and not dimming ? |
|---|
| R: Answer: | It is not for DIN rail. If you want to just turn it on and off maybe you can use ref. SONOFFDUALR3. For DIN rail maybe you can use SONOFF4CHR3 |
|---|
| P: Question: |
I am wanting to install quite a lot of led dimmable strip that some of them will be over 250 watt in total. Do you do a dimmer that as a higher wattage output or can you split load over two dimmer controls to work at same time ? |
|---|
| R: Answer: | This dimmer is not for led strips. It is for TRIAC regulation of 220vac devices. If your led strip works at 220v, it is possible that the regulation of these models can cause flickering problems (regulation is not recommended). The maximum power of the dimmer is 250W |
|---|
| P: Question: |
In the description of the dimmer it says it is 250w, but in the datasheet it says it is for 200w. I want to use it to control some 200w projectors, but I don't know if it is just right. Could you clarify it for me? Thank you very much |
|---|
| R: Answer: | The Dimmer is for dimming 220-240Vac LED luminaires with power between 5W-250W. The projector can be dimmable by TRIAC (Trailing Edge). |
|---|
