Mini Regulator (RF + PUSH) Single Color Triac 400W max. 230V (1 channel) SUNRICHER - Perfect RF
Triac Single Color Controller 400W 230V (1 channel)

Mini Regulator (RF + PUSH) Single Color Triac 400W max. 230V (1 channel) SUNRICHER - Perfect RF

SKU:SR-1009SAC-HP
Has superado el límite de unidades
In stock 110 units
Data sheet

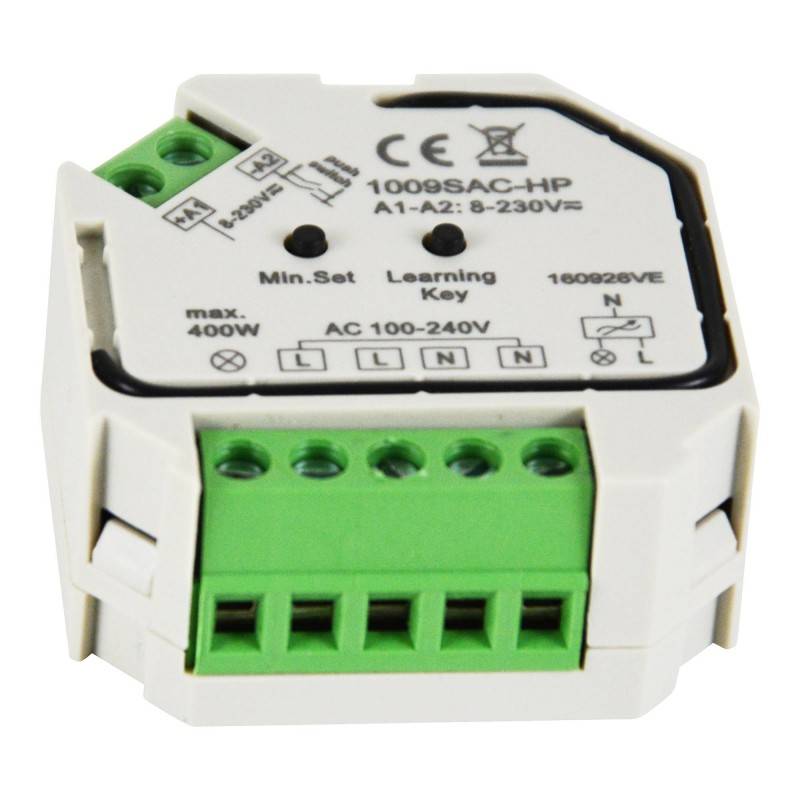

TRIAC brand Mini Single Color Controller. It supports up to 400W max installed power and works with a range of input and output voltage 100 to 240V. Its size is so small that you can install it anywhere. Its square design makes only 45x45mm with a height of about 20mm. For installations with a dimmable push button

Shipping to Africa available
public
For any shipping requests to Africa, please contact our sales department at:  comercial@barcelonaled.com

The smallest regulator that exists in the market.

If you have a complicated installation where you need a very small regulator due to lack of space or that weighs very little this is your product.

Technical characteristics:

  • 1 single channel

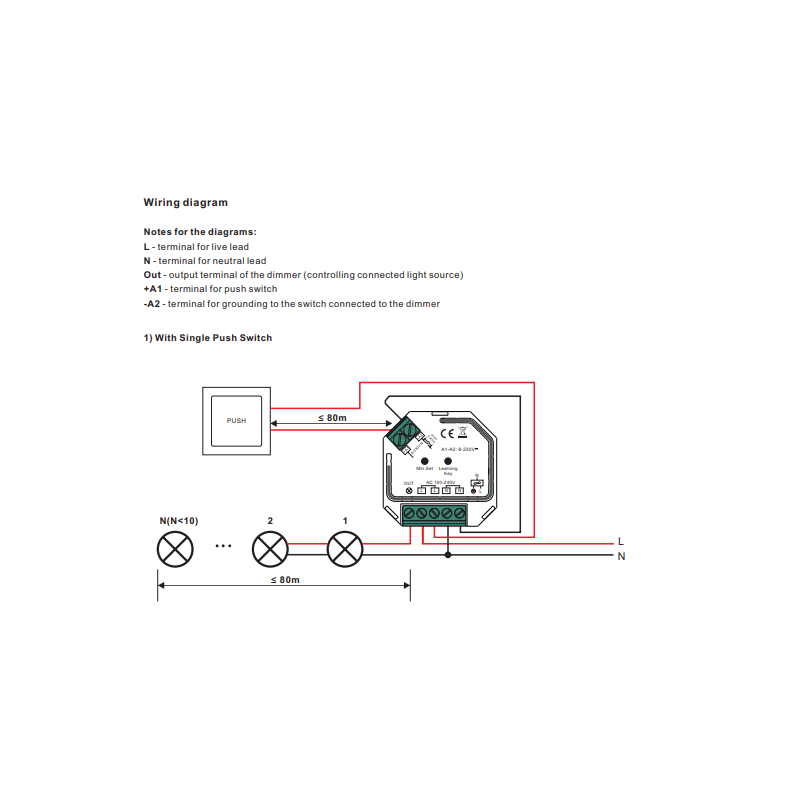

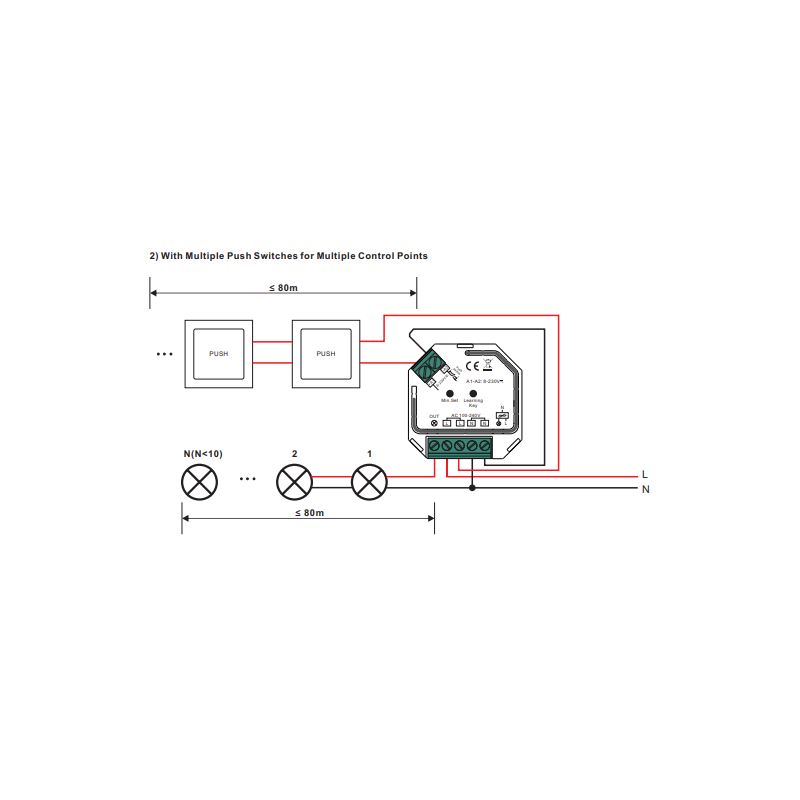

  • Dimmable with push button, 8v - 230v AC/DC

  • Press Learning key to pair (RF) => Compatible with SR2833K1 and SR-2833K2. If the controller is used with a push button, this step is not necessary.

  • Short press turns on and off (Memorizes last time)

  • Long press Dimerizes up and down (After release)

  • Set Key: Minimum brightness selection (adjust level and press set medium-short press)

  • Set Key: Clear min brightness selection (set to max and press set medium-short set)

  • Only the minimum level can be set

2018-08-19
Nominal Voltage (V)
100 - 240 V/AC
Lifetime (h)
25000
IP
IP20

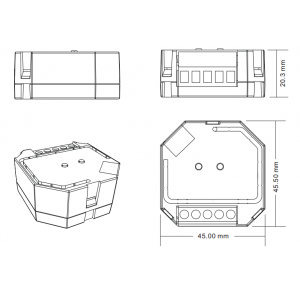

Dimensions (mm) Lxlxh
45x45x20
Frequency (Hz)
50 - 60
Sensor
No
Control system
TRIAC
Output voltage (V)
0/230V-AC
Colour control
Monocolor
Connectivity
By wiring
Number of channels
1
Material
Plastic
Use Outdoor
Yes, in a watertight box
Frequency of use
Intensive
Energy efficiency class
A+ (2021)
Certificates
CE
ROHS
Warranty
According to legal guarantee: 2 years
Number of zones
1
Maximum intensity (A)
1,2
SUNRICHER
