LED bar for machinery, automotive and nautical applications 72W - 30º.
LED bar for machinery, automotive and nautical applications 72W - 30º.

LED bar for off road, 4x4, machinery and nautical 72W 5000lm

SKU:BV005
Has superado el límite de unidades
In stock 108 units
Data sheet

4X4 off road 72WLED BAR for use as a front or rear light projector on all types of vehicles (trucks, boats, off-road, industrial vehicles, tractors, etc).

It has a waterproofing degree of IP67 and a closed angle of 30º. It works with current from 9 to 36V.

Shipping to Africa available
public
For any shipping requests to Africa, please contact our sales department at:  comercial@barcelonaled.com

LED WORKING BAR FOR AUTOMOTIVE, MACHINERY & Nautical and 4x4

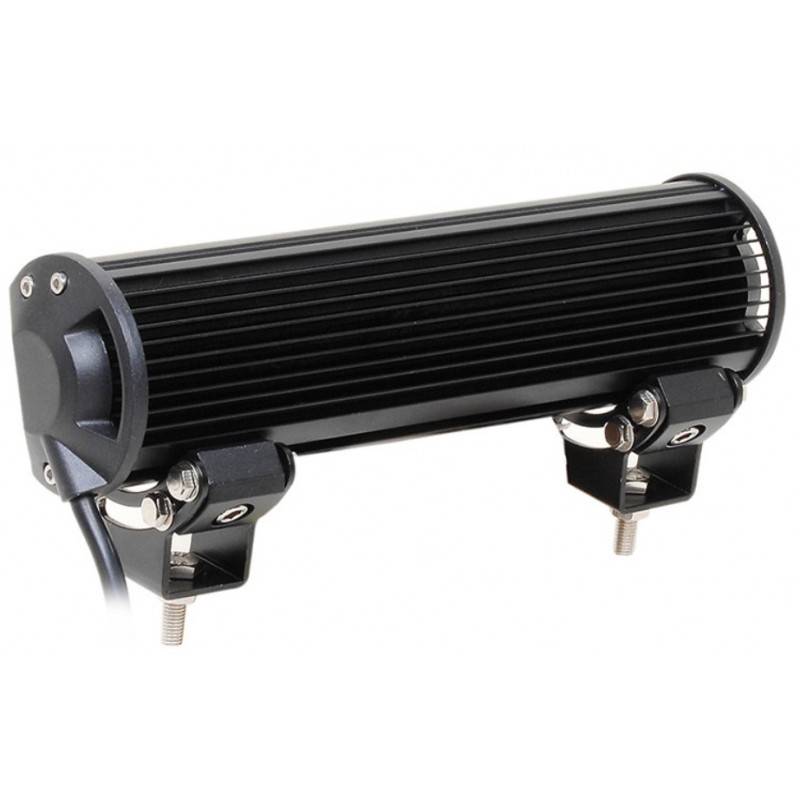

With the LED BAR FOR VEHICLES you can get a great luminosity in the dark to be able to work with the light you need. It is very easy to install as it comes ready to be mounted outdoors with its pivoting base. It has a power of 72W thanks to the built-in LEDs inside.

The LED bar for vehicles is resistant to vibration and high temperatures thanks to its aluminum housing, you can also leave it outside the vehicle without any problem because it has a high degree of waterproofing (IP67). It is perfect for industrial machines, tractors, trailers, cars, boats, etc.

Technical characteristics:

  • Power: 72W
  • Lumens: 5000lm
  • IP: 67
  • Temperature: 6000K
  • Angle: 30º
  • Voltage: 9-36V
  • Measures: 80mm x 280mm

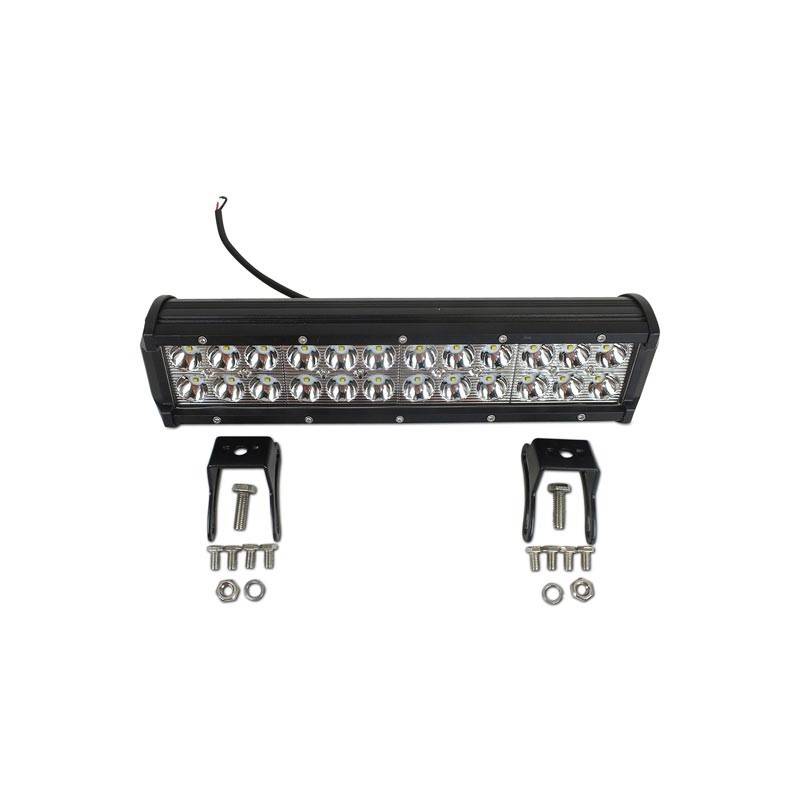

  • Includes stainless steel brackets with screws and washers.

Medidas barra de led para vehiculos

Applications of the LED bar:

  • Cars.
  • Quad.
  • Boats.
  • Trucks.
  • Bus.
  • Industrial machinery.
  • Tractor.
  • Work lighting.
  • Off-road lighting.

barra LED

Combinations of the LED bar for vehicles:

Depending on the light you need, you can combine the 72W led bar with 27W and 18W led spotlights and with closed or open angles. See the full range of vehicle spotlights by clicking here.

LED 4x4

luces LED 4X4

luces vehículos

Nominal Voltage (V)
9-36V
Power (W)
72
Lumens (Lm)
5000
Kelvin (K)
6000
Beam angle (º)
30
Lifetime (h)
25000
IP
IP67
Dimensions (mm) Lxlxh
280x80x60
Frequency (Hz)
50 - 60
Hue
Cool white
Sensor
No
Efficiency (Lm/w)
69
CRI
80-85
UGR
No
LED Type
SMD 2835
Dimmable
Yes
Driver
Internal
Orientable
Yes
Material
Metal
Diffuser material
Plastic
Use Outdoor
Yes
Temperature range
-20°C ~ +40°C
Frequency of use
Normal
Energy efficiency class
A+ (2021)
Certificates
CE
ROHS
Warranty
According to legal guarantee: 2 years
Barcelona LED

Questions

P: Question: Sorry I have not expressed myself well, I mean if there is a switch to operate the ignition of this bar that can be placed on the handlebars of a motorcycle (trike) or screw it on a specific hole.
Thank you very much.
R: Answer: We do not have accessories external to the luminaire
P: Question: Is there any push button kit or button to screw or place on the handlebars of a motorcycle this led bar?
Thank you very much.
R: Answer: We do not have a specific support to place on the handlebars.
