Asymmetric LED floodlight 200W - 150lm/W - IP65
SKU:B8221
€123.99
Tax included
Shipping to Africa available
For any shipping requests to Africa, please contact our sales department at: comercial@barcelonaled.com
Asymmetric industrial LED floodlight 200W - 7 years warranty

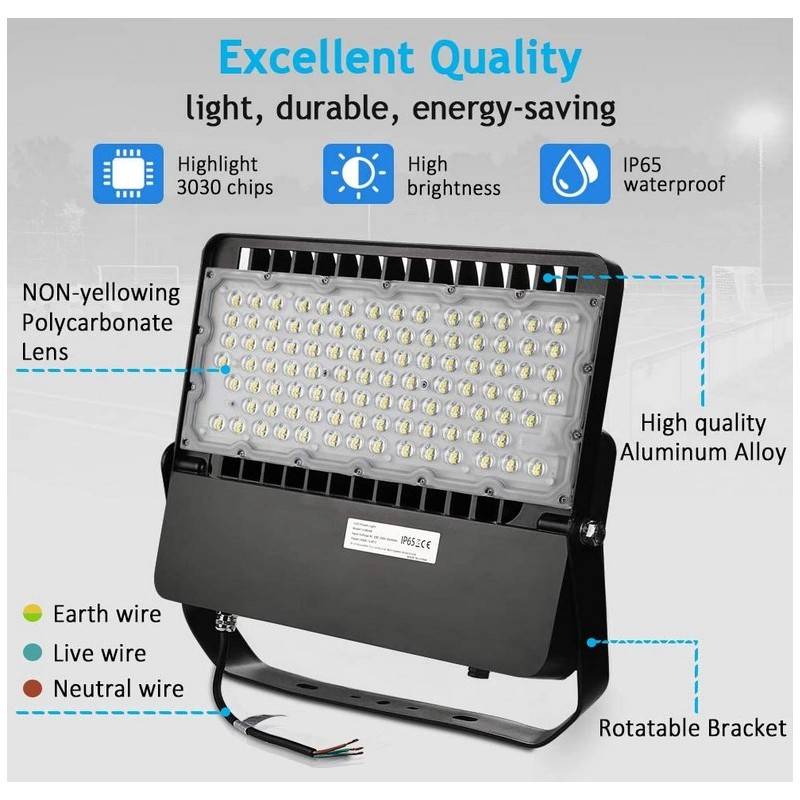

The 200W asymmetrical LED floodlight offers optimum results both in terms of light and waterproofing, since its high IP protection rating (IP65) gives it great resistance to external factors such as rain and dust.
It is made of die-cast aluminum, which ensures a long service life.
Due to its high efficiency and durability, it is an ideal product for installation in areas that require many hours of lighting.
In addition, its asymmetrical lens made of high-strength polycarbonate optimizes light distribution from elevated locations, providing a focused beam directed towards the ground, with less glare and light pollution than symmetrical floodlights.
Mounting
Its mounting is simple and versatile, and can be mounted on ceilings, walls, poles or floors.
It simply requires positioning the projector in the desired location, marking the fixing points, drilling the corresponding surface and securing the base with screws.
It is recommended to use at least two anchor points to ensure stability and prevent possible falls. The projection angle is easily adjusted by loosening and tightening the side screws as required.

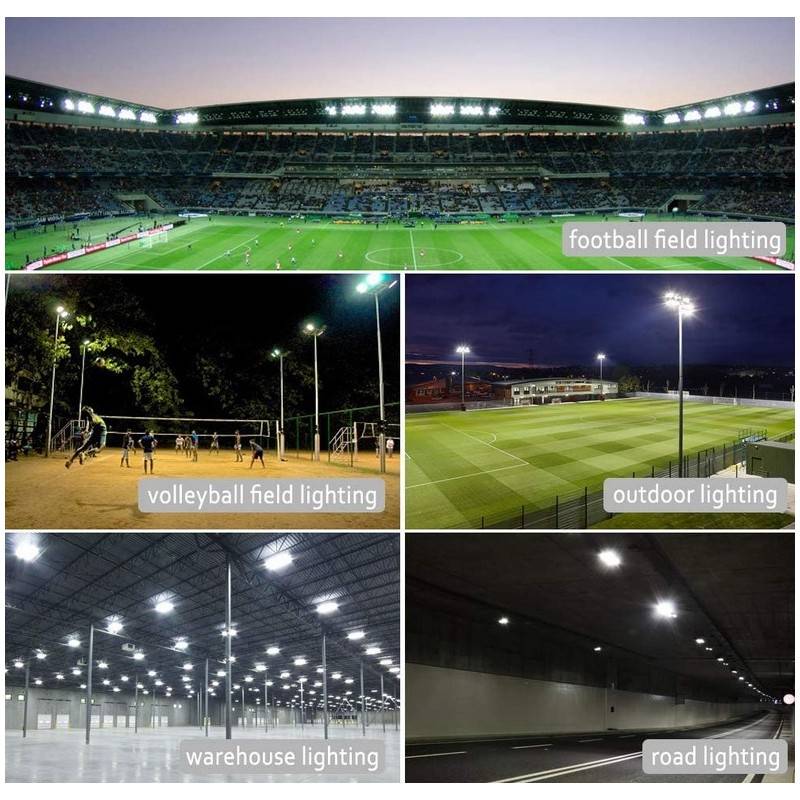

Applications
- Professional lighting of industrial buildings and parking lots
- Architectural lighting of buildings and facades
- Stadium and sporting event lighting
- Road lighting
|
Product features:
|
Nominal Voltage (V)
100-240V
Power (W)
200
Lumens (Lm)
30000
Kelvin (K)
5000
Beam angle (º)
80 / 150
Lifetime (h)
50000
IP
IP66
Dimensions (mm) Lxlxh
438x396x60
Frequency (Hz)
50 - 60
Hue
Cool white
Sensor
No
Efficiency (Lm/w)
150
CRI
80-85
LED Type
Chip EPISTAR
Dimmable
No
Power factor (cosφ)
0.9
Driver
Internal
Orientable
Yes
Material
Aluminium
Diffuser material
Polycarbonate
Use Outdoor
Yes
Frequency of use
Intensive
Energy efficiency class
D
Certificates
CE
ROHS
ROHS
Warranty
7 años
Questions
| P: Question: | How many operating hours and ignition cycles does the spotlight have? |
|---|
| R: Answer: | Good morning, According to the manufacturer, 50000 hours of operation. If you need a quotation, please contact our customer service at handel@barcelonaled.com. Barcelona LED: Benajamin| 10/10/2023 |
|---|
| P: Question: | Hello to illuminate a field of 34 meters long X 26 meters wide.... how many 200w projectors would you need? |
|---|
| R: Answer: | It depends on the height and the amount of light needed. For 300-400lx at a height of 6 mts, you will need about 5 projectors for each long side and 3 for each short side (Approximate).A lighting study is recommended. |
|---|
| P: Question: | Can it be used to illuminate a gymnasium installed in an industrial building that is about 6 m high? |
|---|
| R: Answer: | Yes, but depending on the size of the room and the amount of light desired, you may need more than one. It is an asymmetrical projector (it illuminates more widthwise than lengthwise). |
|---|
| P: Question: |
How far away does this LED projector illuminate? Is the light white? |
|---|
| R: Answer: | It is neutral white light of 5000ºK. It is not possible to give a distance data, it is necessary to know how much light is necessary, besides being an asymmetrical projector. More or less with a single luminaire. At a distance of about 8 meters in the center you will have about 120 lx. At a distance of about 6 meters in the center you will have about 220 lx. |
|---|
| P: Question: | If I order the spotlight today when will I receive it. I live in Palma (Mallorca) |
|---|
| R: Answer: | You can see the shipping and delivery conditions outside the peninsula at the end of the web. |
|---|
| P: Question: | What is the color temperature and its spectrum. |
|---|
| R: Answer: | The color temperature is over 4900-5000ºK, its main wavelength is in the 485nm, in limiting ranges of 430nm - 750nm. |
|---|
| P: Question: |
When will b8221 and b8400-120bn be available, thank you. |
|---|
| R: Answer: | For availability, please contact comercial@barcelonaled.com. |
|---|
| P: Question: | Are they suitable for a paddle court? Thank you! |
|---|
| R: Answer: | It is an asymmetrical projector, to illuminate streets, passages, tracks or areas asymmetrically with degrees of 150º horizontal by 80º vertical (of the projector plane). |
|---|
