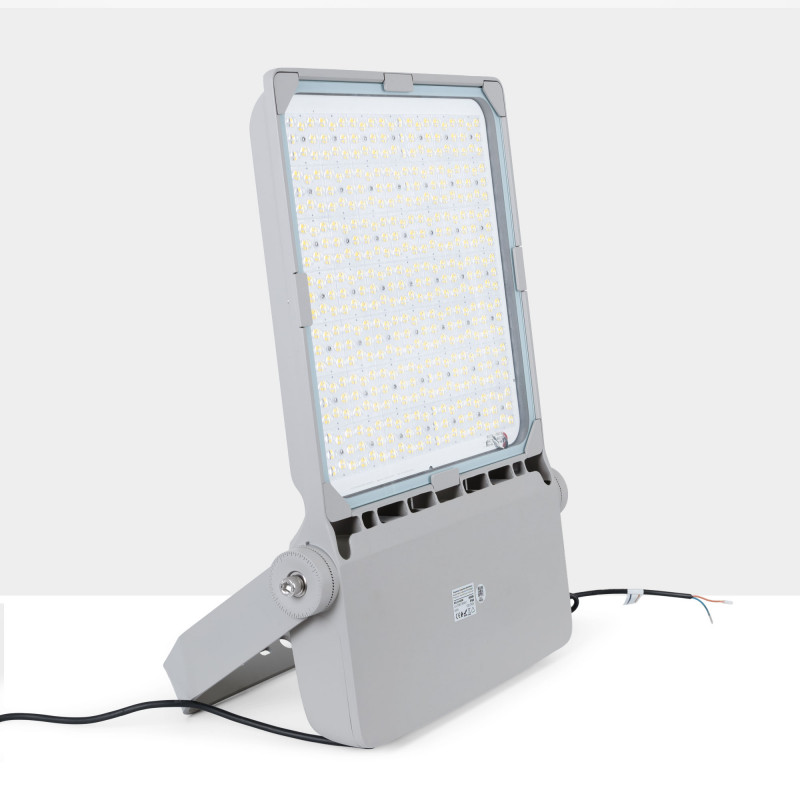

Outdoor Asymmetric LED floodlight 600W - Dimmable 1-10V - 160lm/W - IP66

Outdoor Asymmetric LED floodlight 600W - Dimmable 1-10V - 160lm/W - IP66

SKU:BFL23-600W
Has superado el límite de unidades
In stock 100 units
Data sheet

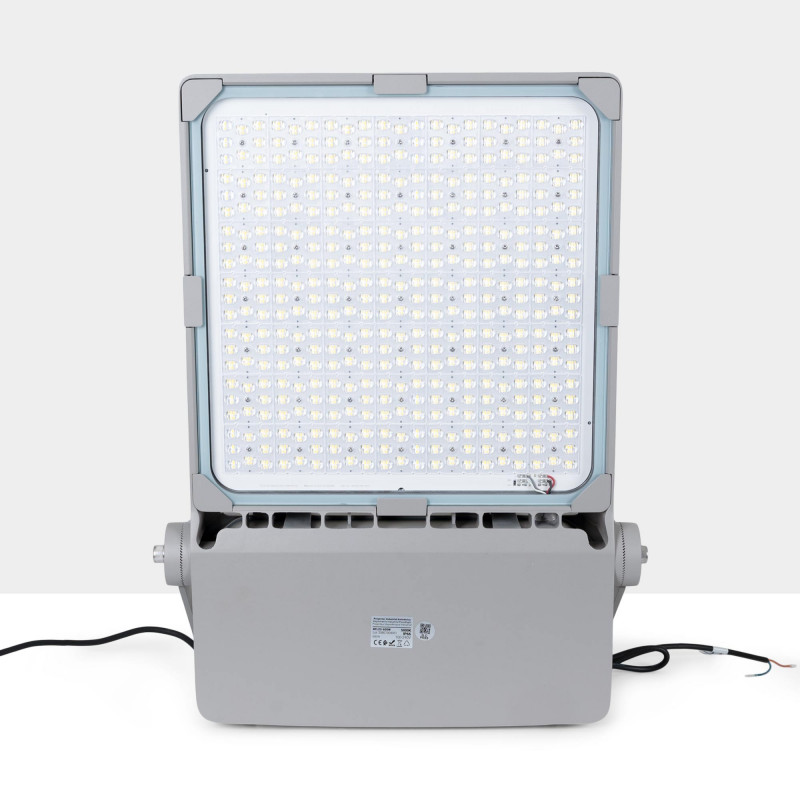

Asymmetrical industrial LED floodlight 600W, compact and resistant, high efficiency (160lm/W).

Perfect for sports, industrial and outdoor spaces thanks to its asymmetrical lens that optimizes light distribution.

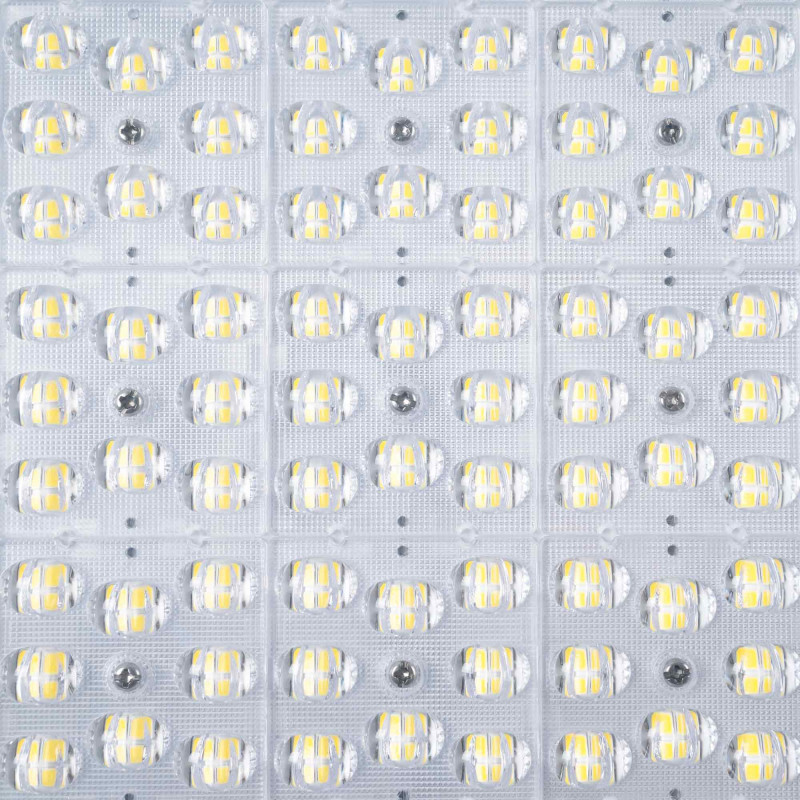

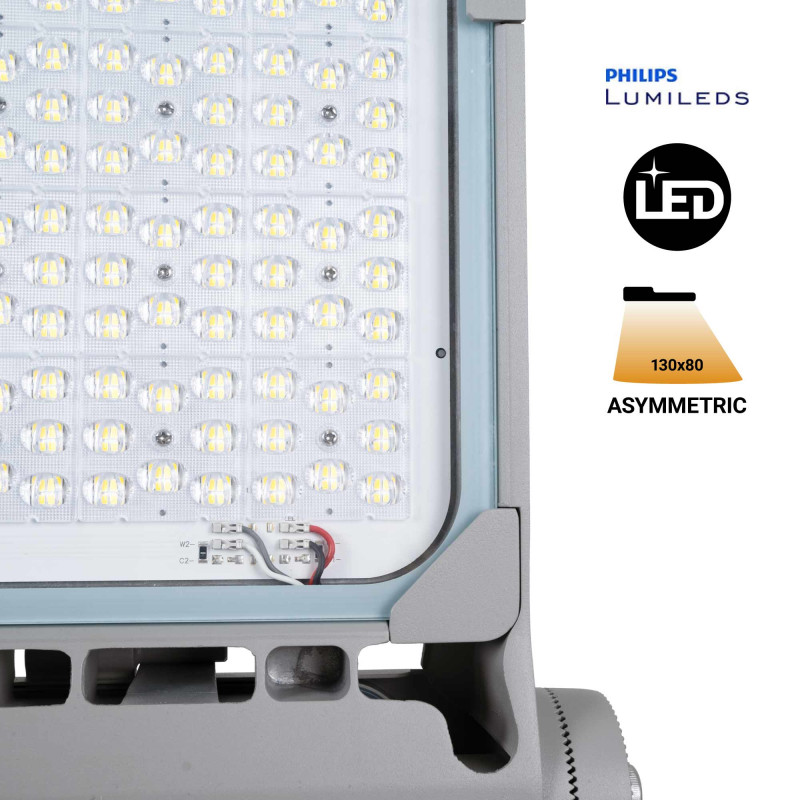

It incorporates Lumileds LED chips, guaranteeing exceptional lighting quality and superior efficiency.

It is dimmable to 1-10V and has IP66 protection degree.

Mounting height: 12 to 18 meters.

Warranty 5 years.

Shipping to Africa available
public
For any shipping requests to Africa, please contact our sales department at:  comercial@barcelonaled.com

600W Asymmetric Industrial LED Floodlight - High Efficiency and Versatility

This 600W asymmetrical outdoor LED floodlight is the perfect solution for a wide variety of applications. Its compact and robust design ensures long-lasting performance in any environment.

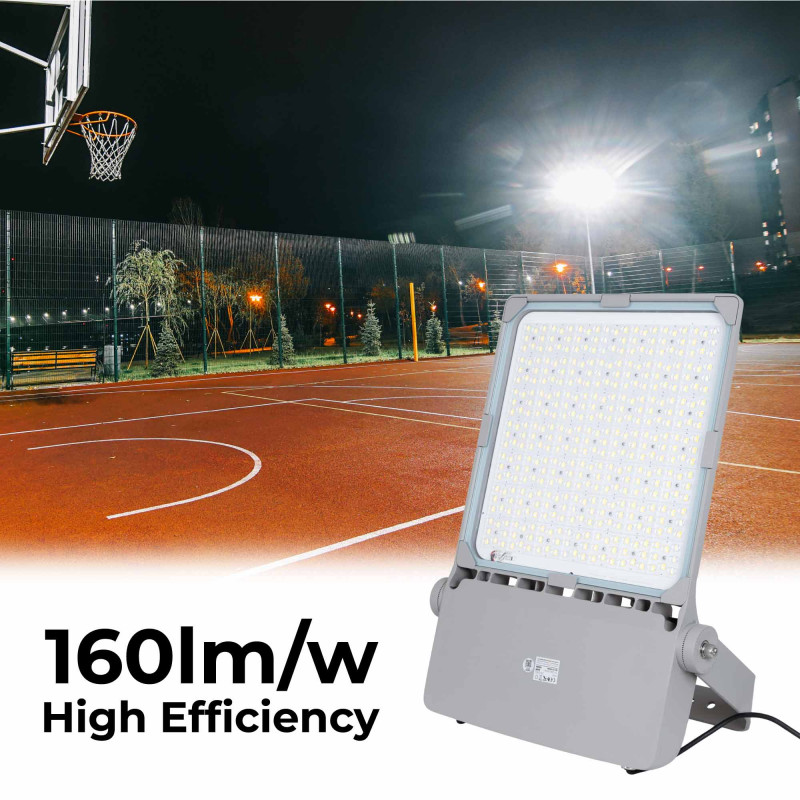

  • High luminous efficiency: With 160lm/W, this 600W floodlight features Lumileds LED chips, ensuring powerful illumination with low energy consumption.

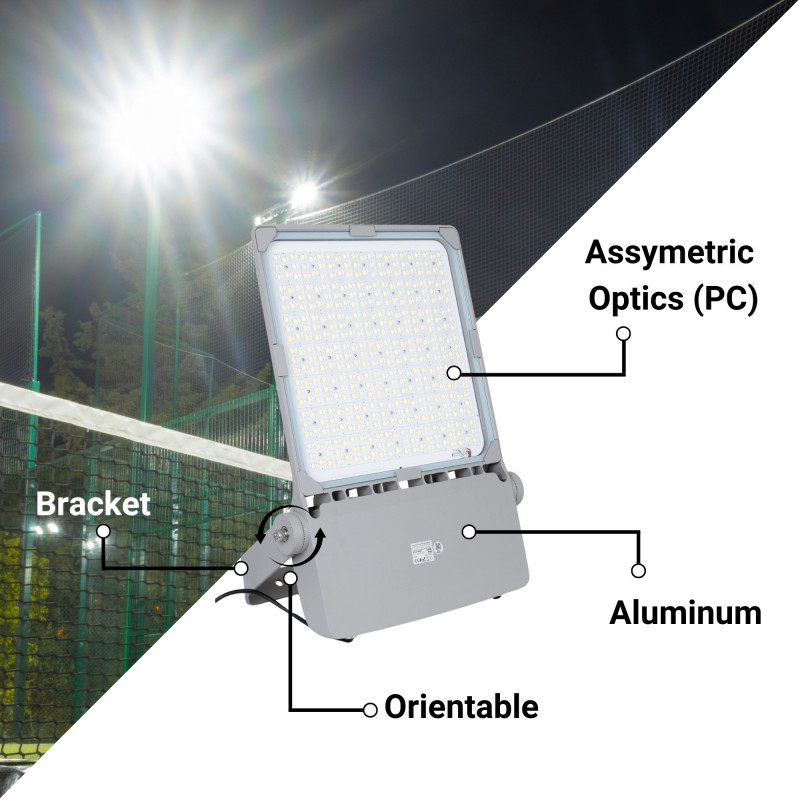

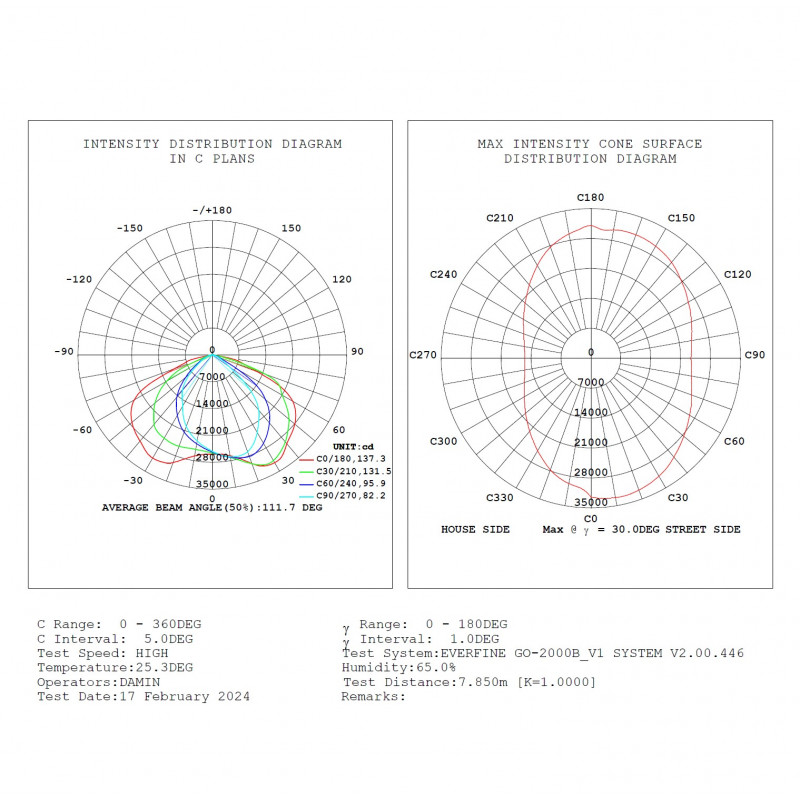

  • Asymmetrical lens: Optimizes light distribution from elevated locations, providing a focused beam directed towards the ground, with less glare and light pollution than symmetrical floodlights. Angle: 130º x 80º.

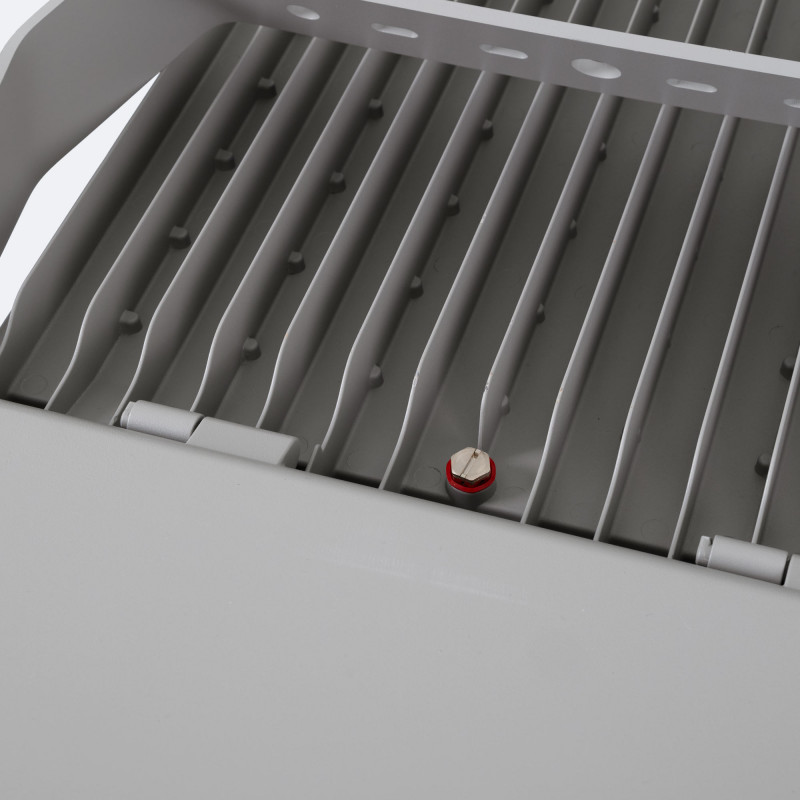

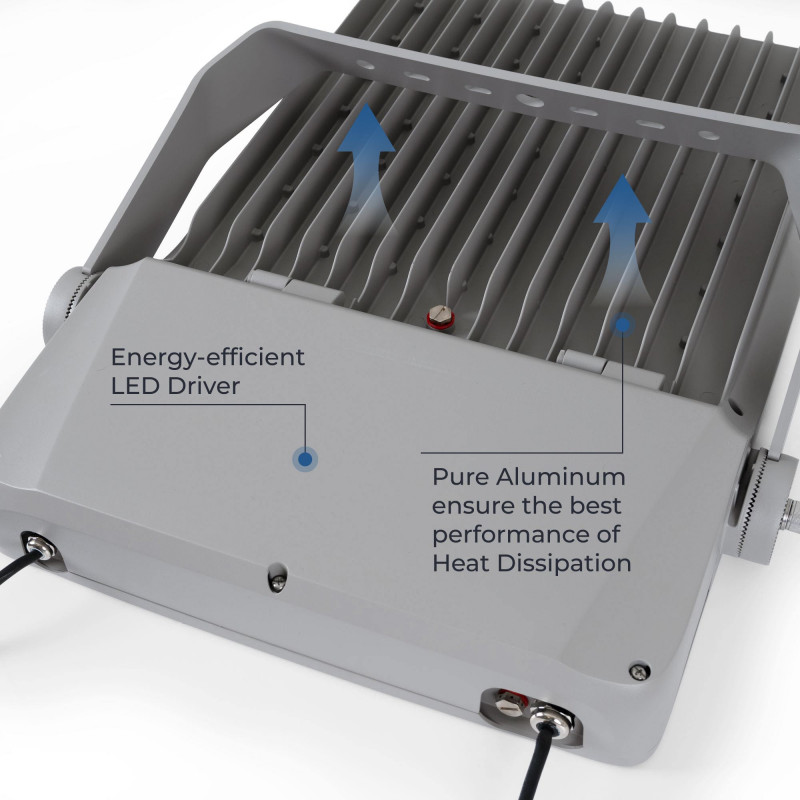

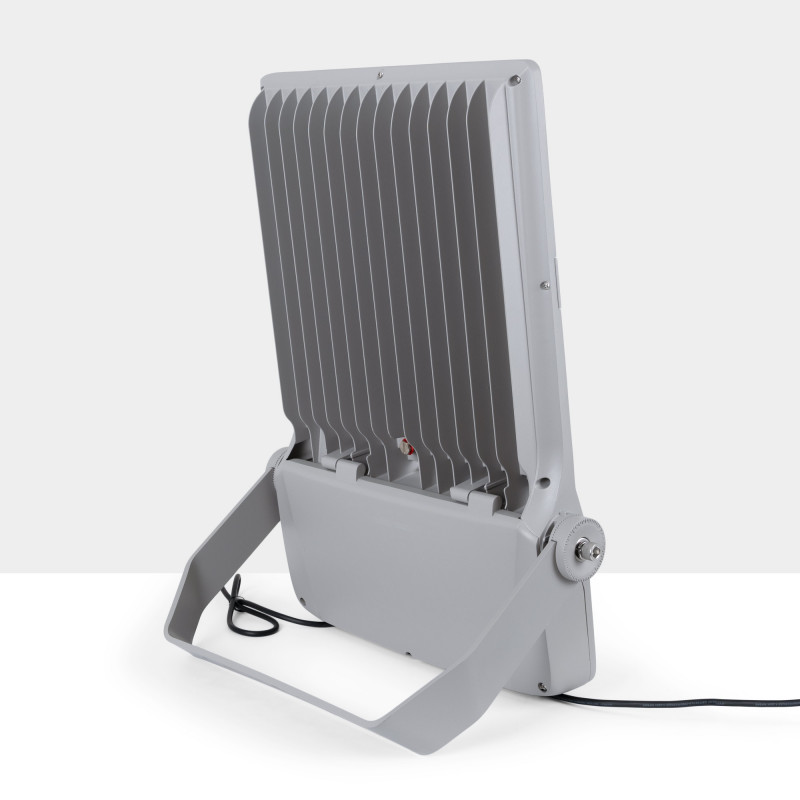

  • High quality materials: Made of high thermal conductivity die-cast aluminum, ensures excellent heat dissipation. The polycarbonate lens and high-strength glass offers double protection, protecting against UV rays and maintaining high brightness.

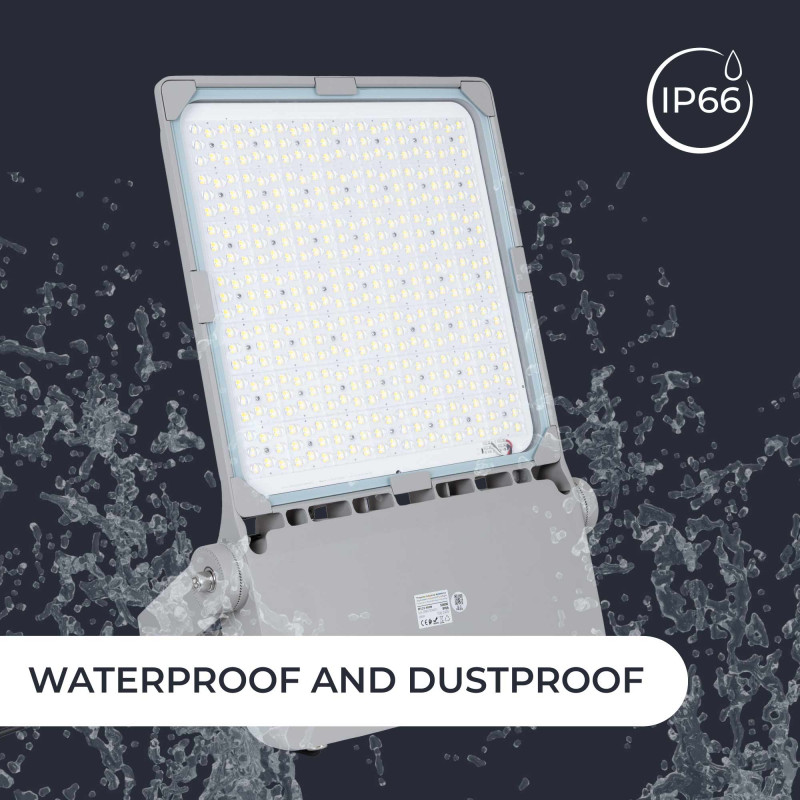

  • Outdoor-rated: With IP66 protection rating and IK08 impact resistance, it is ideal for outdoor use, resisting dust, water and impact.

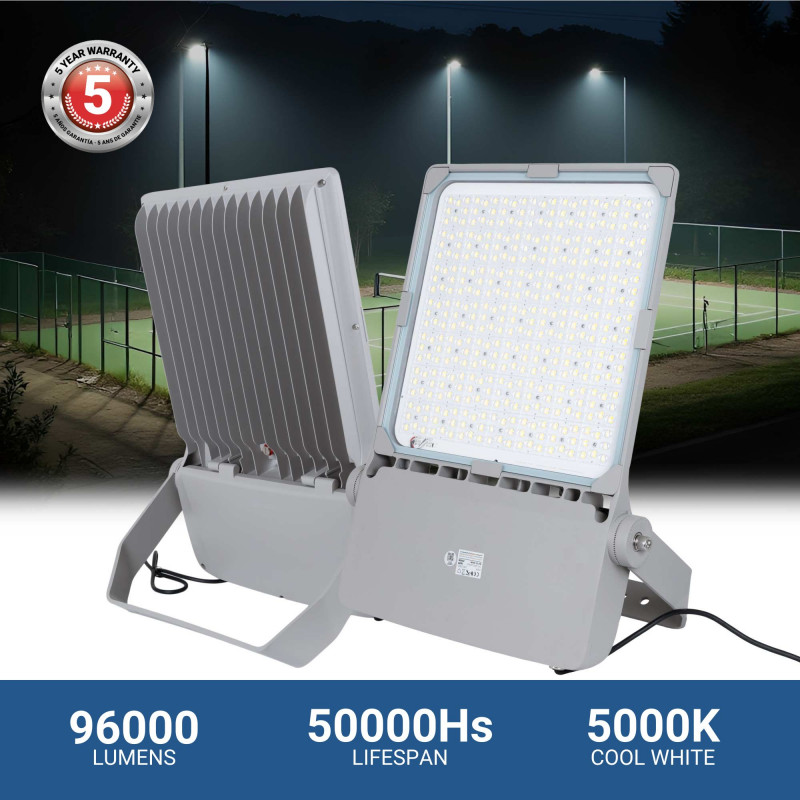

  • Long life and reliability: It is designed for superior durability, with an estimated life of 50,000 hours.

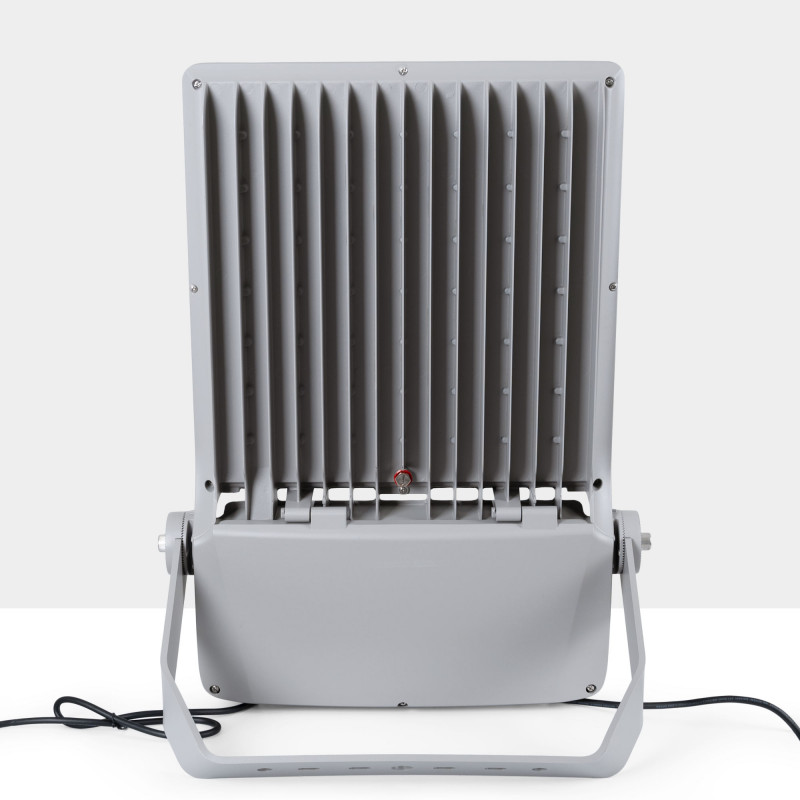

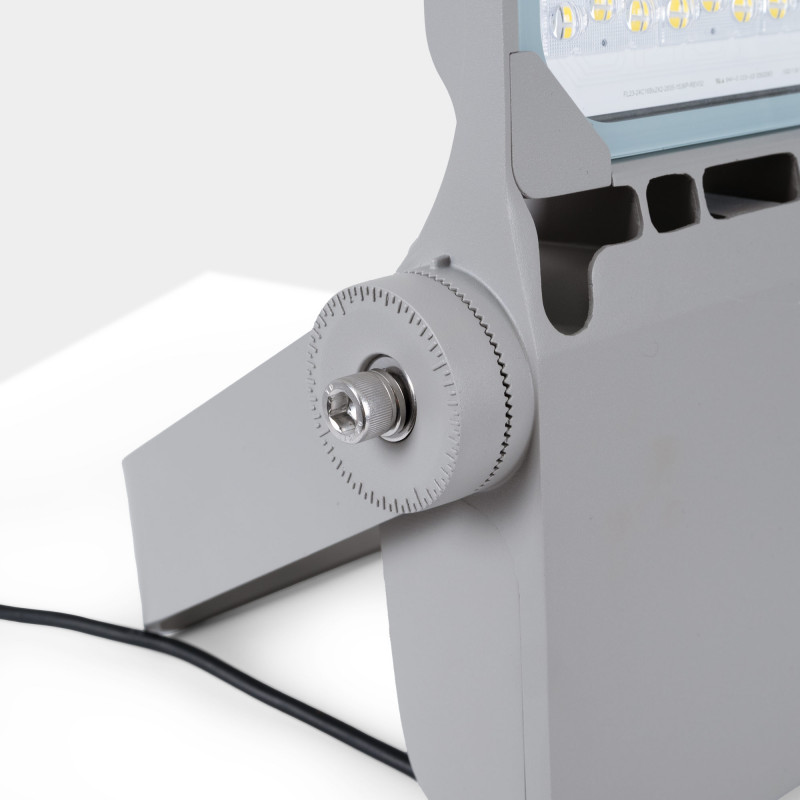

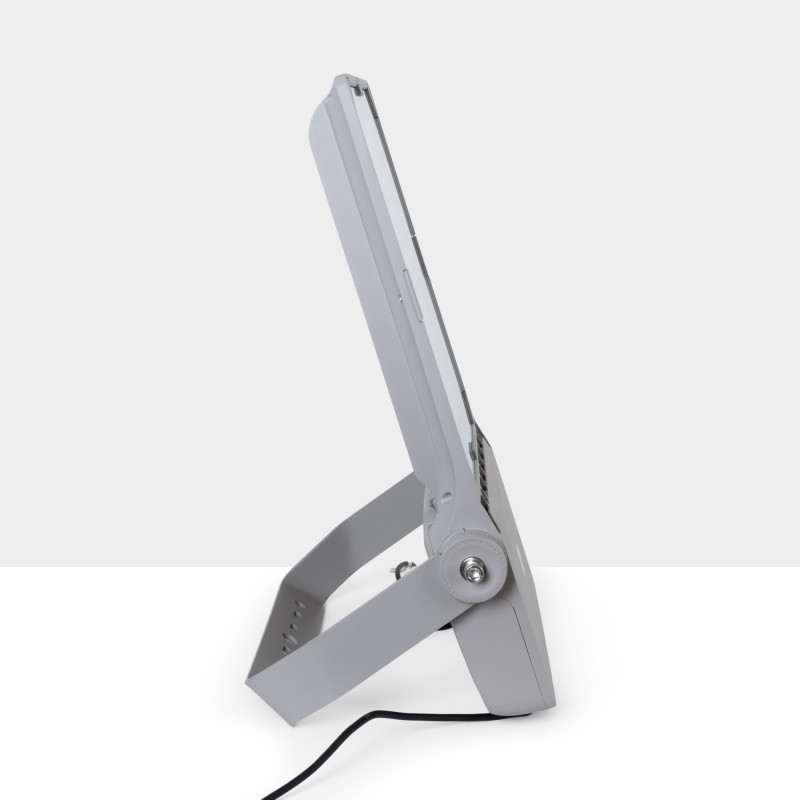

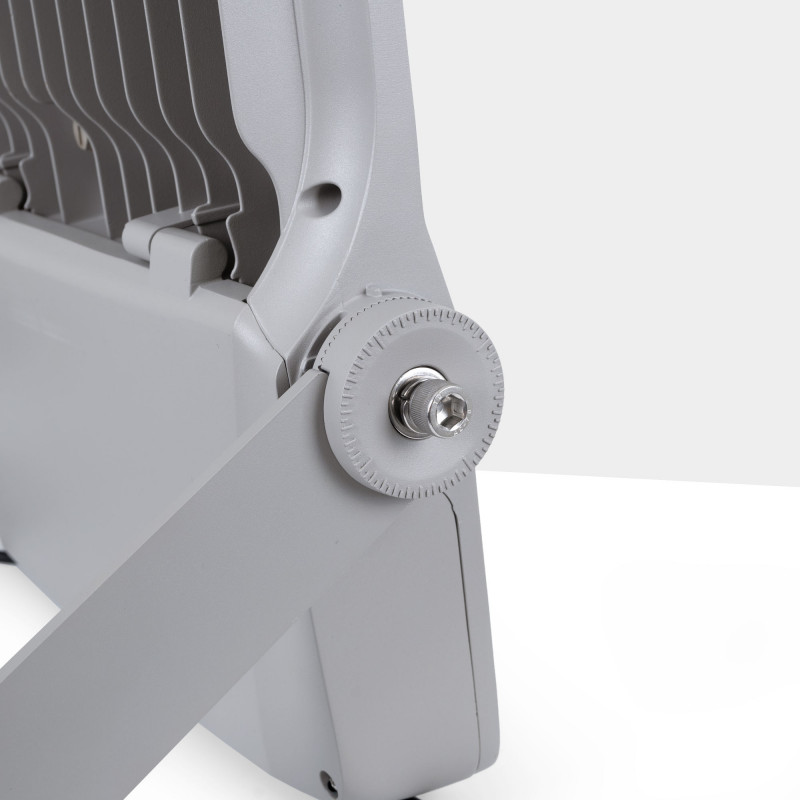

  • Versatile mounting: Equipped with a 5-point adjustment bracket, it allows the direction of the light to be adjusted according to the needs of each application. At least two anchor points are required for secure attachment.

  • Light shade: Available in cool white (5000K), providing bright and clear illumination.

  • Dimmable 1-10V: Supports 1-10V dimming, allowing custom intensity adjustment for different projects.

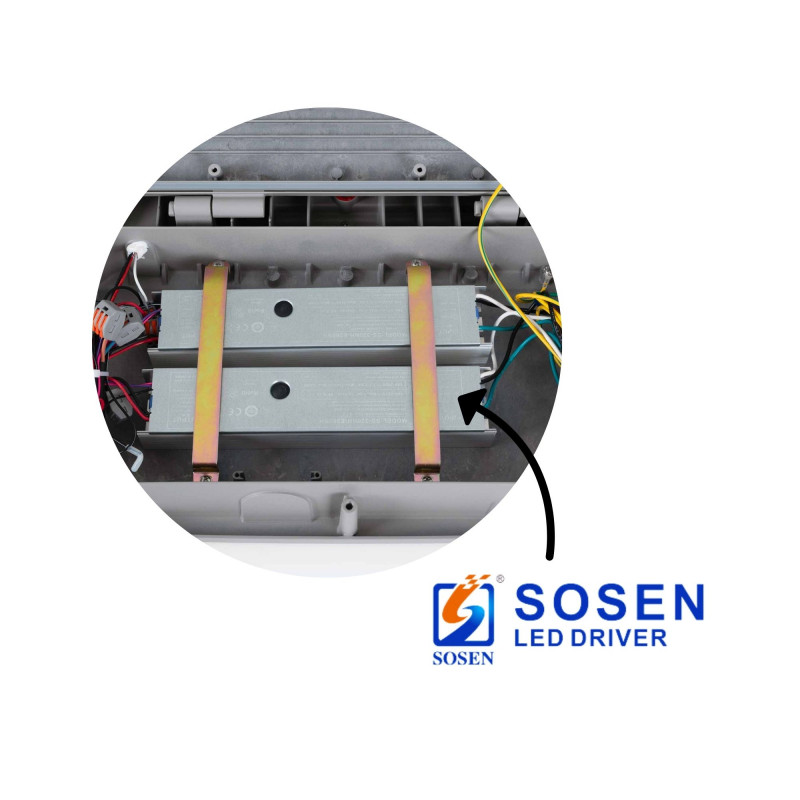

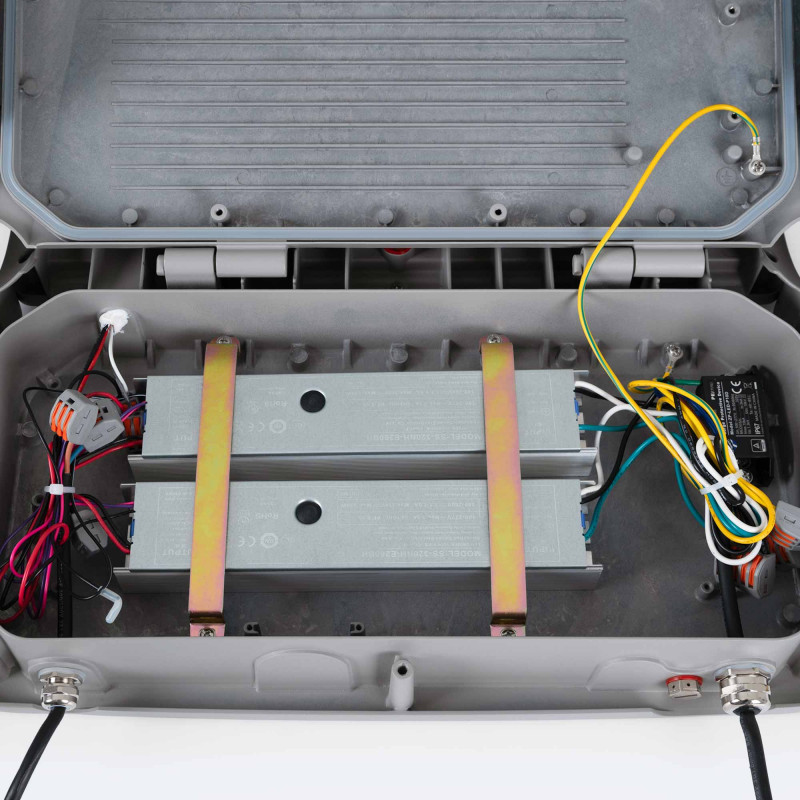

  • SOSEN Driver: Designed to maximize efficiency and reduce power consumption without compromising light output. They also withstand adverse environmental conditions, such as extreme temperatures and humidity, thus protecting the luminaire against overloads and short circuits.

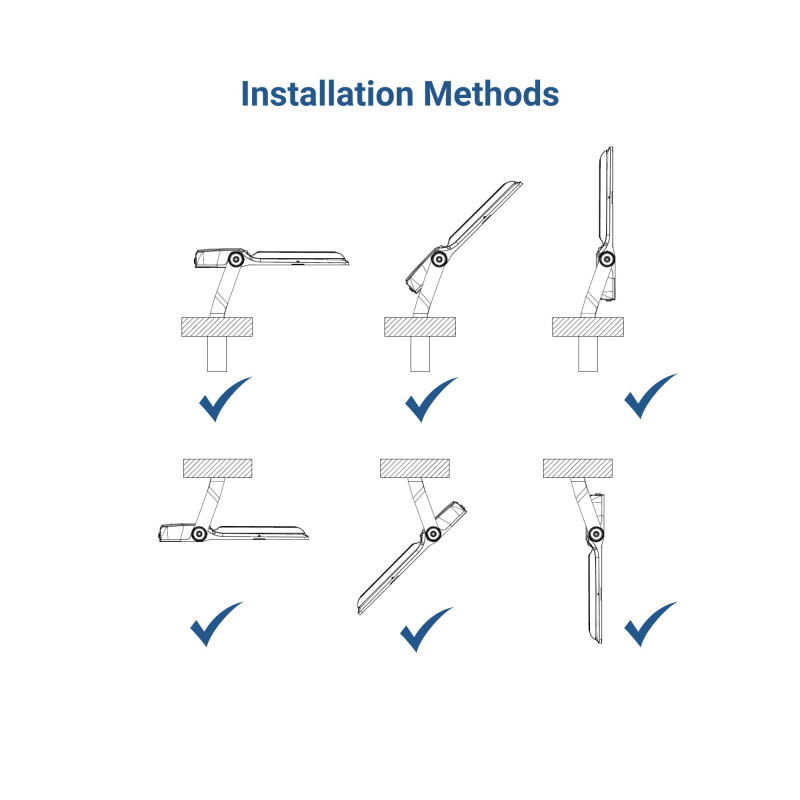

  • Versatile mounting: Can be ceiling, wall, pole or ground mounted, with an adjustable bracket and adjustable orientation. At least two anchor points are required for secure attachment.

  • Mounting height: Ideal for installation between 12-18 meters.

Asymmetrical LED floodlight applications and uses

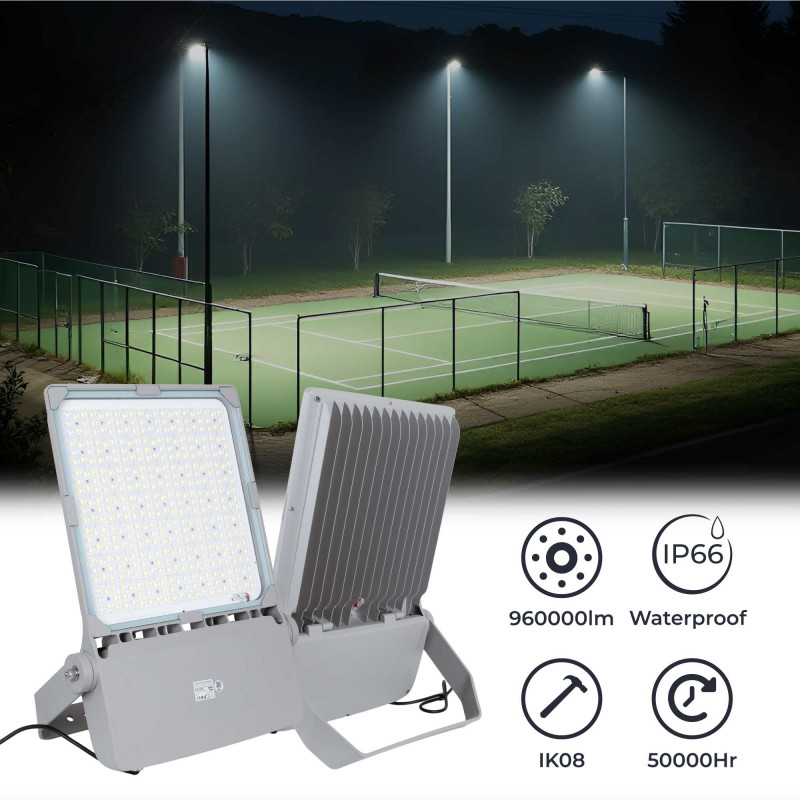

  • Sports facilities such as stadiums and arenas.
  • Industrial and logistic areas: warehouses, loading areas, parking lots.
  • Commercial areas: shopping malls and department stores.
  • Public spaces and infrastructures: airports, stations, ports.
  • Security lighting: perimeters and restricted access areas.
  • Road lighting: ensures clear and safe visibility on roads and streets.
Nominal Voltage (V)
220 - 240 V/AC
Power (W)
600
Lumens (Lm)
96000
Kelvin (K)
5000
Beam angle (º)
130 x 80
IP
IP66
Frequency (Hz)
50 - 60
Hue
Cool white
Sensor
No
Efficiency (Lm/w)
160
LED Type
Philips Lumileds SMD2835
Dimmable
Yes
Driver
SOSEN
Control system
1-10V
Orientable
Yes
Material
Aluminium
Diffuser material
Polycarbonate
Use Outdoor
Yes
Frequency of use
Intensive
Energy efficiency class
C
Certificates
CE
ROHS
Warranty
5 years
Net weight (kg)
12
Length
750mm
Width
500mm
Height
80mm
