Outdoor LED Floodlight with PIR Sensor - 20W - IP54 - 120º - 4000K

Outdoor LED Projector with Motion Sensor- IP54 - 120º - 4000K- 20W

SKU:B1461-S
Has superado el límite de unidades
In stock 78 units
Data sheet

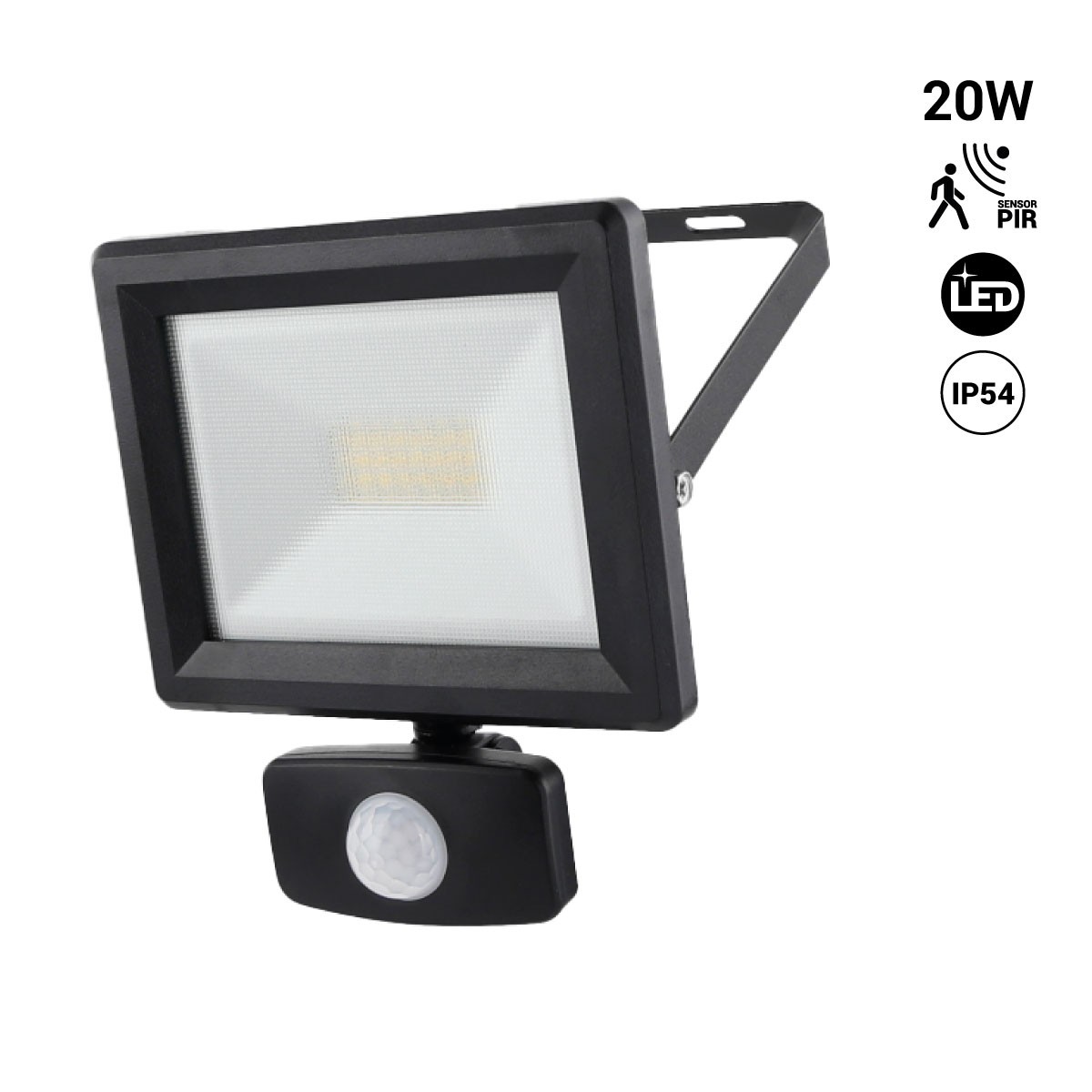

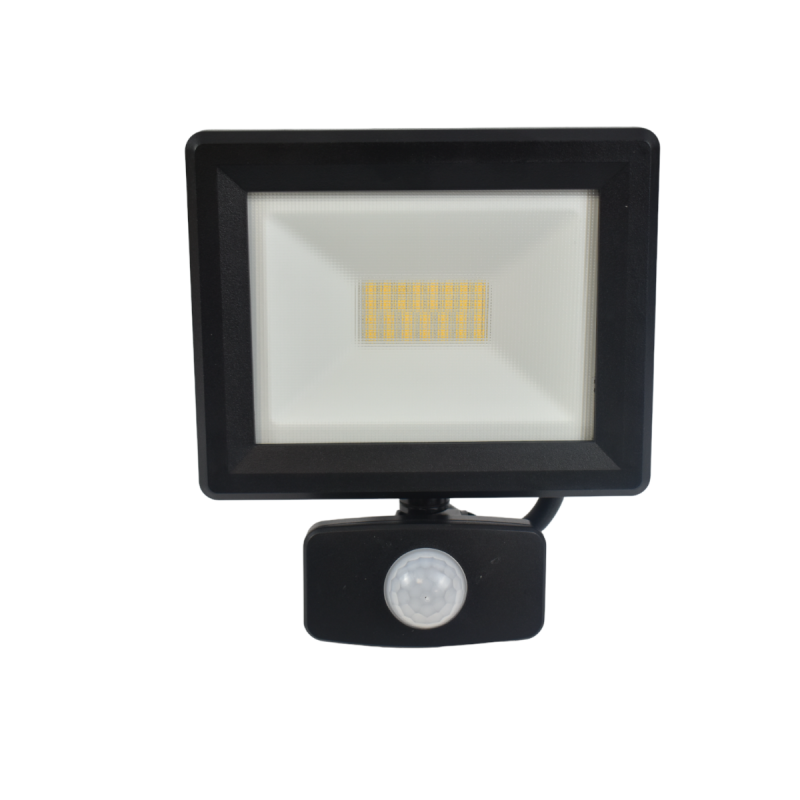

Outdoor LED projector with PIR sensor with compact and resistant design, with high quality standards.

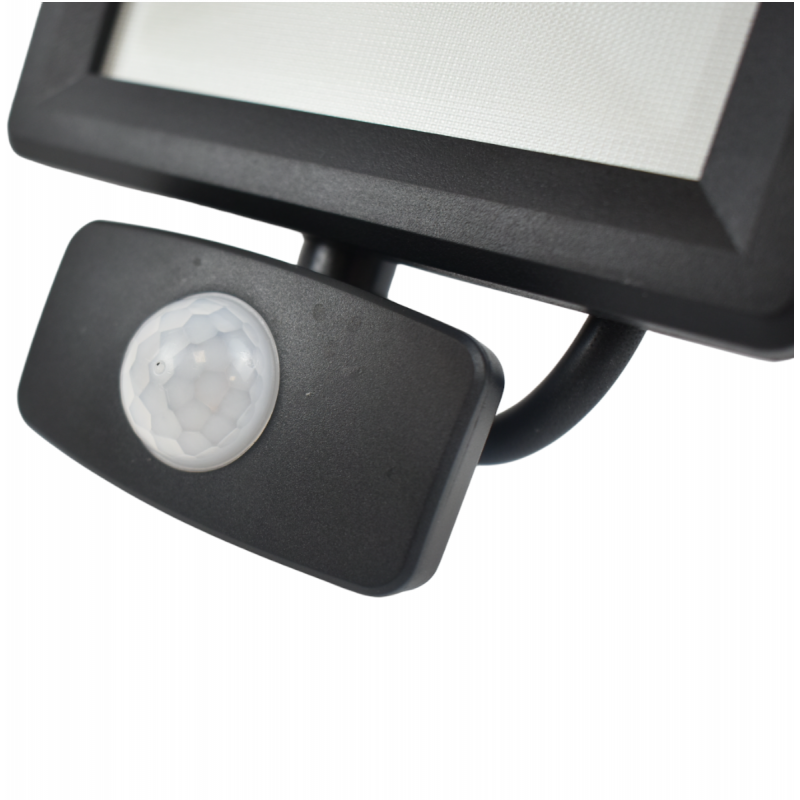

It incorporates a high precision PIR sensor, which allows adjusting different parameters such as range, light level and time of the luminaire, to adjust it to the user's needs.

With a power of 20W and a luminous efficiency of 100 lm/W, it is an ideal product for the replacement of traditional reflectors, which will also allow great energy savings. It emits neutral white light (4000K).

Thanks to its IP54 degree of protection, it is suitable for outdoor use.

Shipping to Africa available
public
For any shipping requests to Africa, please contact our sales department at:  comercial@barcelonaled.com

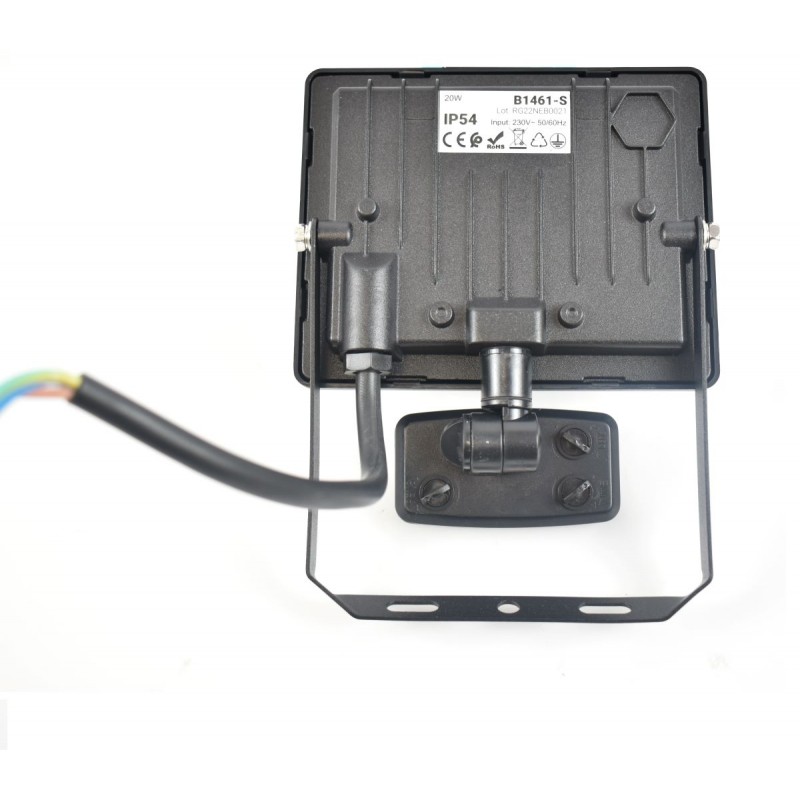

Outdoor LED projector with PIR sensor made of aluminum and high quality materials that ensure optimum heat dissipation and durability.

It offers a neutral white illumination (4000K), with an efficiency of 100 lm/W, a power of 20W and a high color rendering index (CRI>80), which allows to reproduce colors with great fidelity.

It has an IP54 protection rating that makes it suitable for outdoor use.

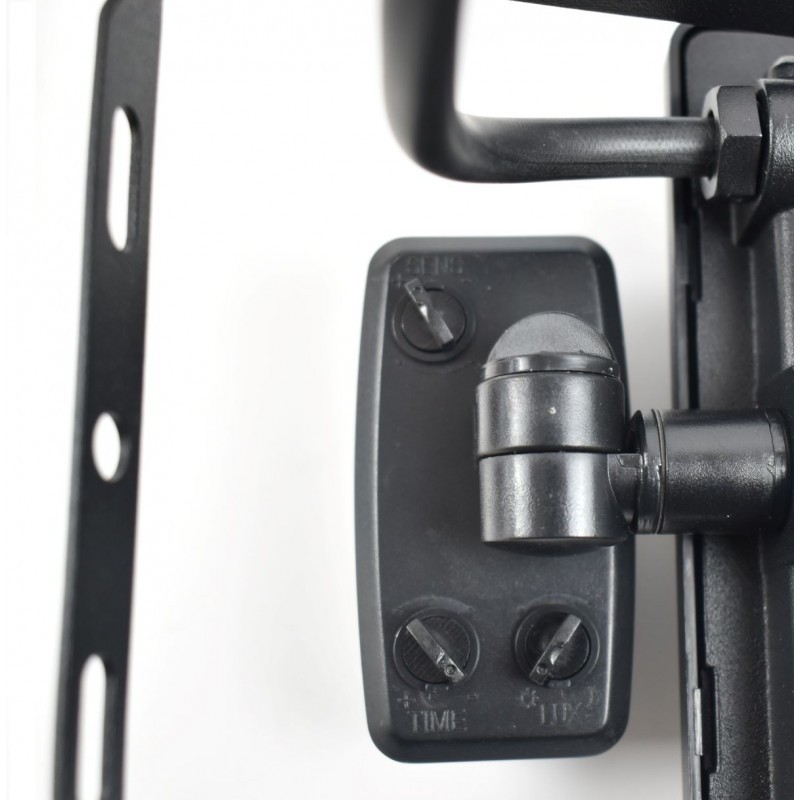

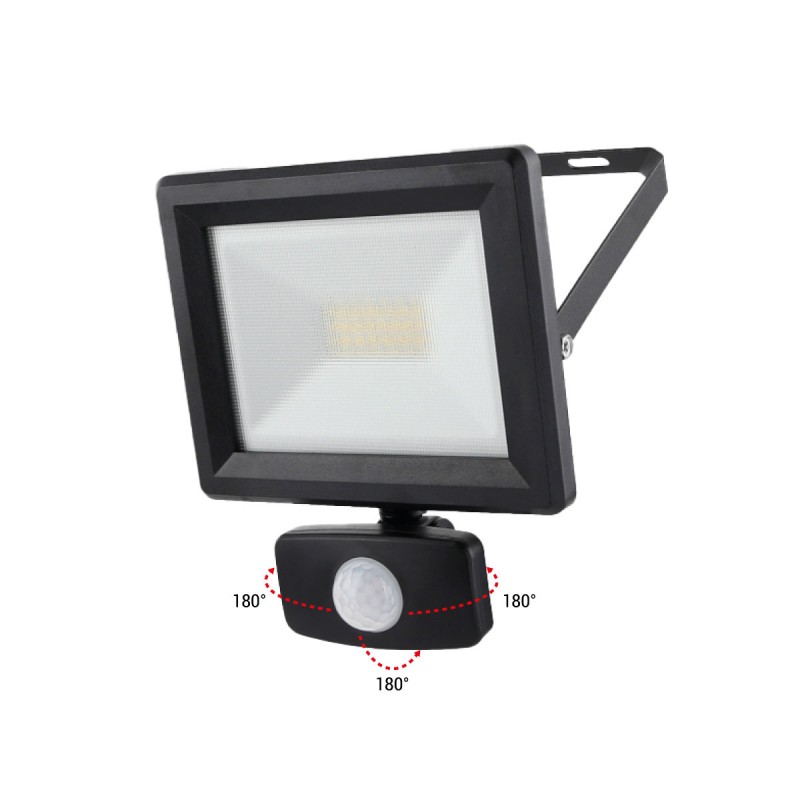

The projector includes a PIR sensor that allows adjusting the operating light sensitivity from 3 to 2000 Lux. It is also possible to adjust the detection distance from 4 to 10 m, and to program the standby time (from 10 sec. to 10 min.), i.e. the time in which the luminaire switches off once the sensor stops detecting presence.

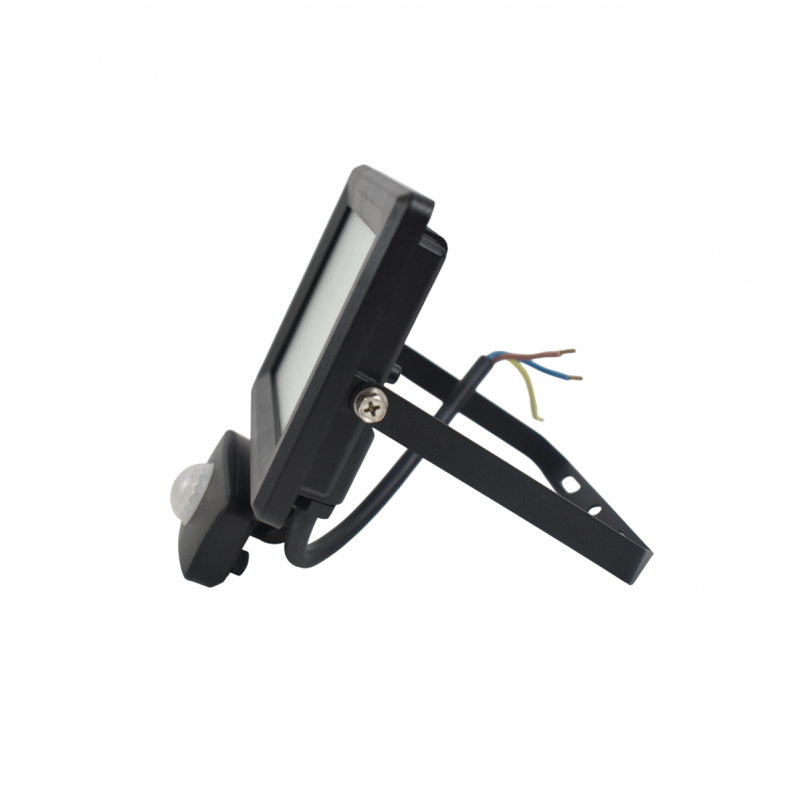

It can be installed on any surface using the tilting bracket supplied with the product. It is important to secure the bracket with screws (not included).

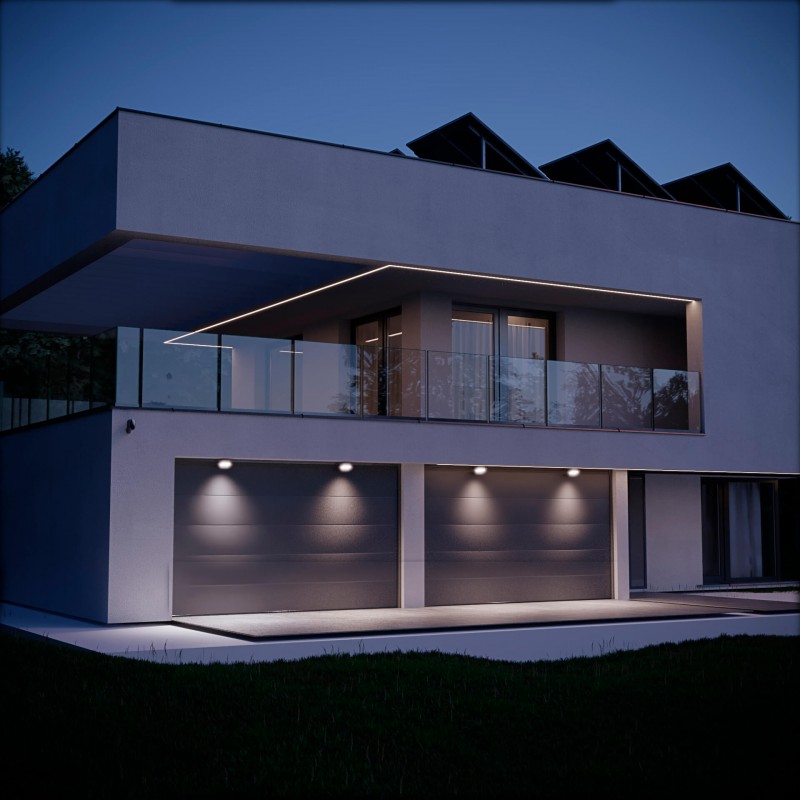

This floodlight is perfect for a variety of applications, such as store entrances, facades, garden lighting or walkways, where in addition to providing efficient and quality lighting, it will enable great energy savings.

Main product features:

  • Manufactured with high quality components
  • Incorporates dimmable PIR sensor
  • Outdoor use: IP54
  • Power: 20W
  • Angle of aperture: 120
  • CRI>80
  • Efficiency: 100 lm/W
  • Shade: neutral white (4000K)

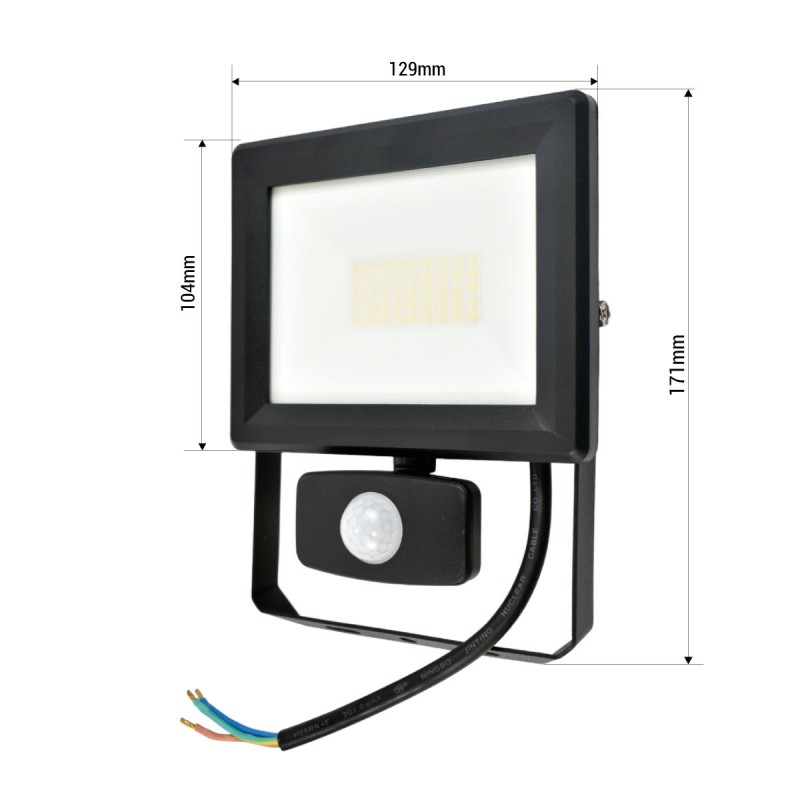

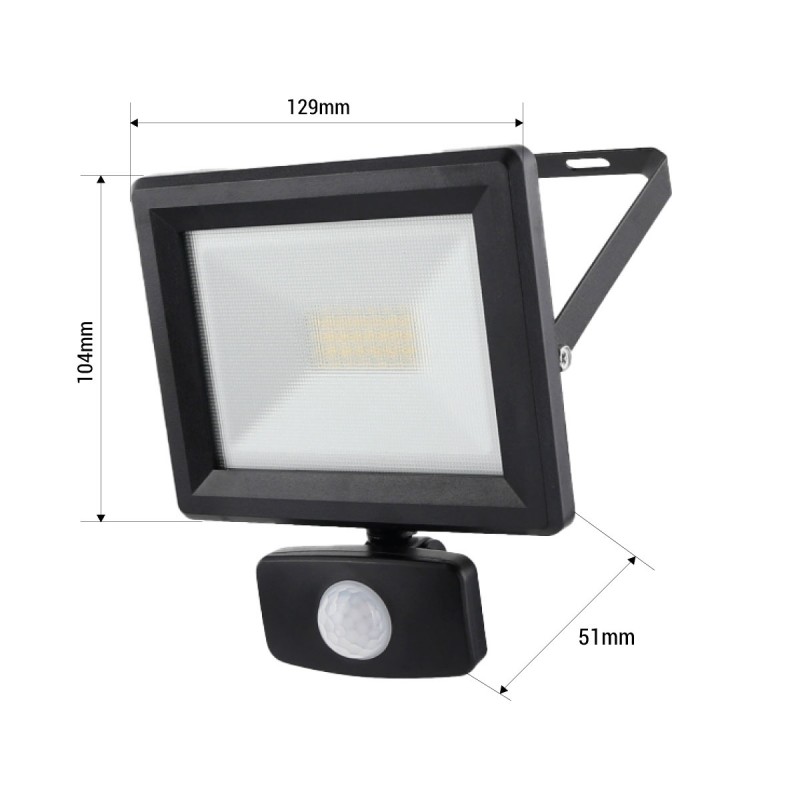

  • Dimensions: 104 x 129 x 51 mm

For more precise technical parameters such as CRI, luminous efficiency, etc., please refer to the attached test reports in the "Downloads" section, or contact our sales advisors.

Nominal Voltage (V)
220 - 240 V/AC
Power (W)
20
Kelvin (K)
4000
Beam angle (º)
120
IP
IP54
Sensor
Yes
Efficiency (Lm/w)
100
CRI
80-85
LED Type
SMD 2835
Use Outdoor
Yes
Certificates
CE
ROHS
Warranty
According to legal guarantee: 2 years
