SKU:B1892-N-BC
Colour temperature
Has superado el límite de unidades
In stock 935 units
Data sheet

20W LED floodlight with PIR sensor. The sensor allows to configure sensitivity, switch-on time and outdoor light level.

Resistant design with IP65 protection rating and high energy efficiency.

Available in warm white (3000K) and cool white (6000K).

Perfect for energy saving and outdoor security.

Shipping to Africa available
public
For any shipping requests to Africa, please contact our sales department at:  comercial@barcelonaled.com

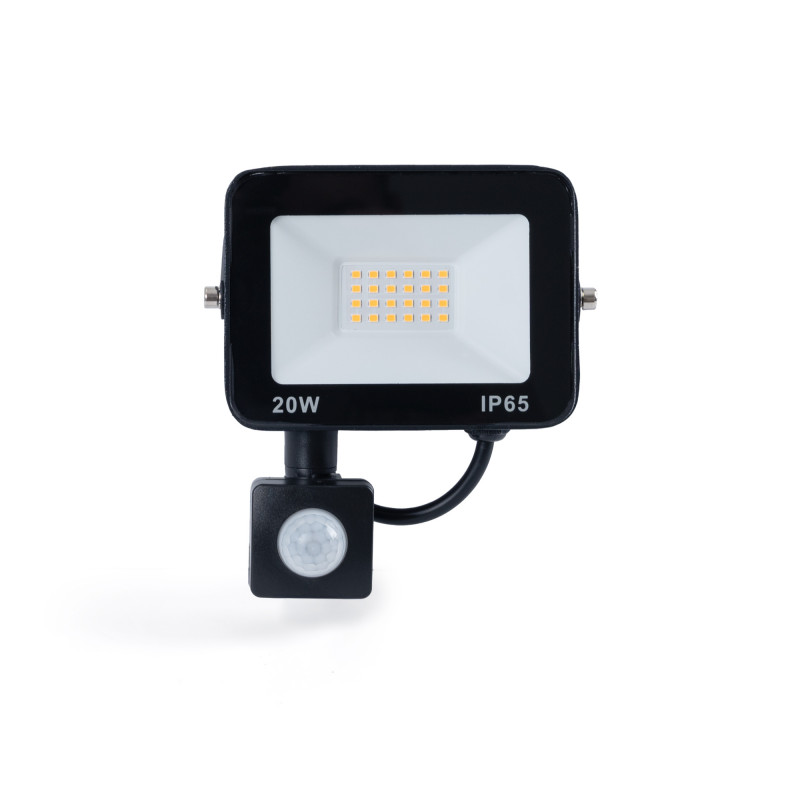

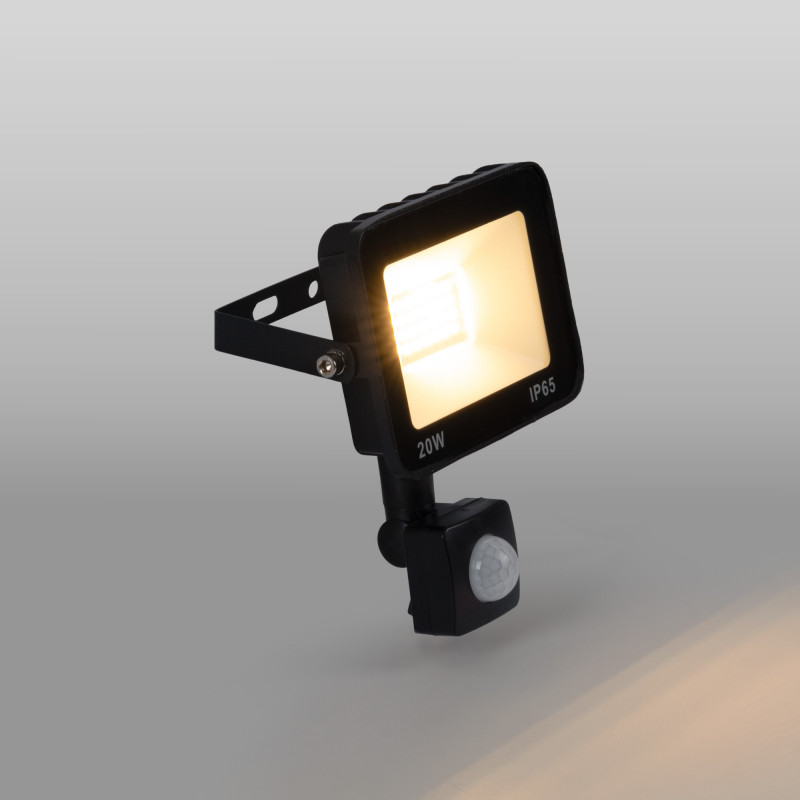

Outdoor LED floodlight with PIR sensor 20W

Optimize the lighting of your outdoor spaces with our 20W LED floodlight, which combines compact design and high resistance with energy efficiency.

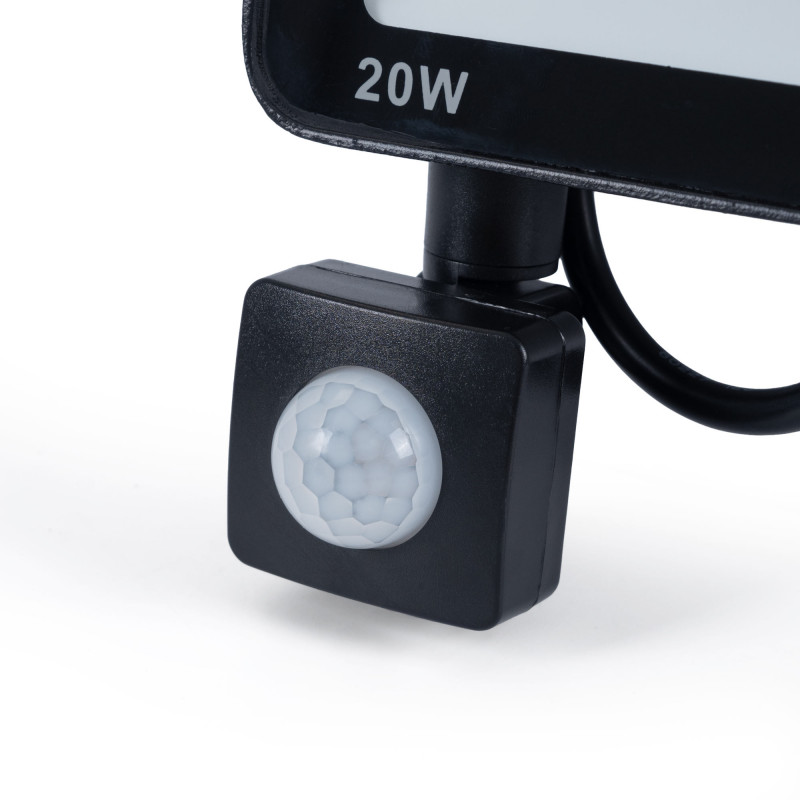

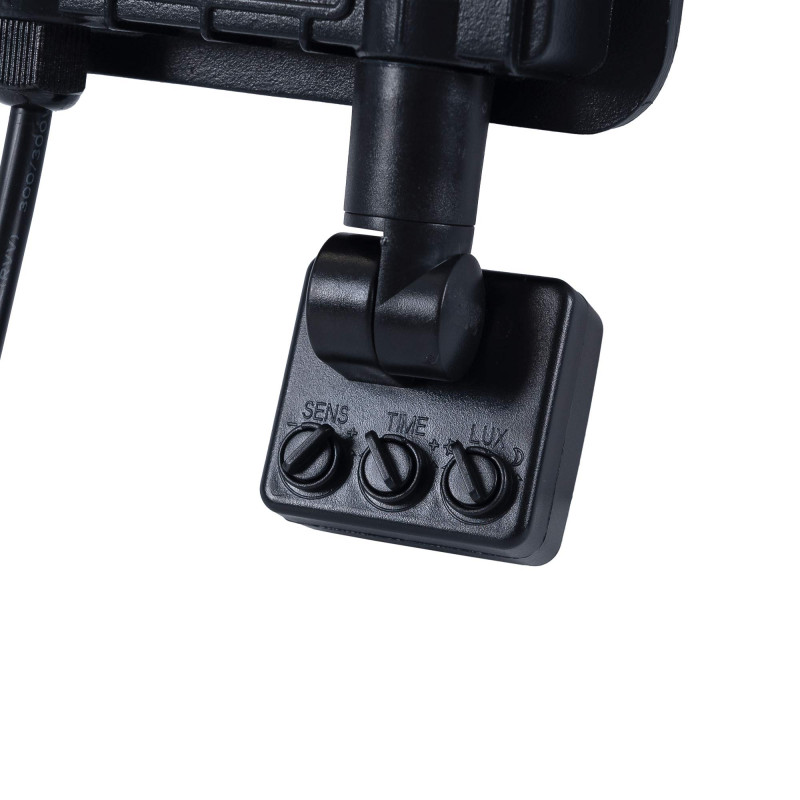

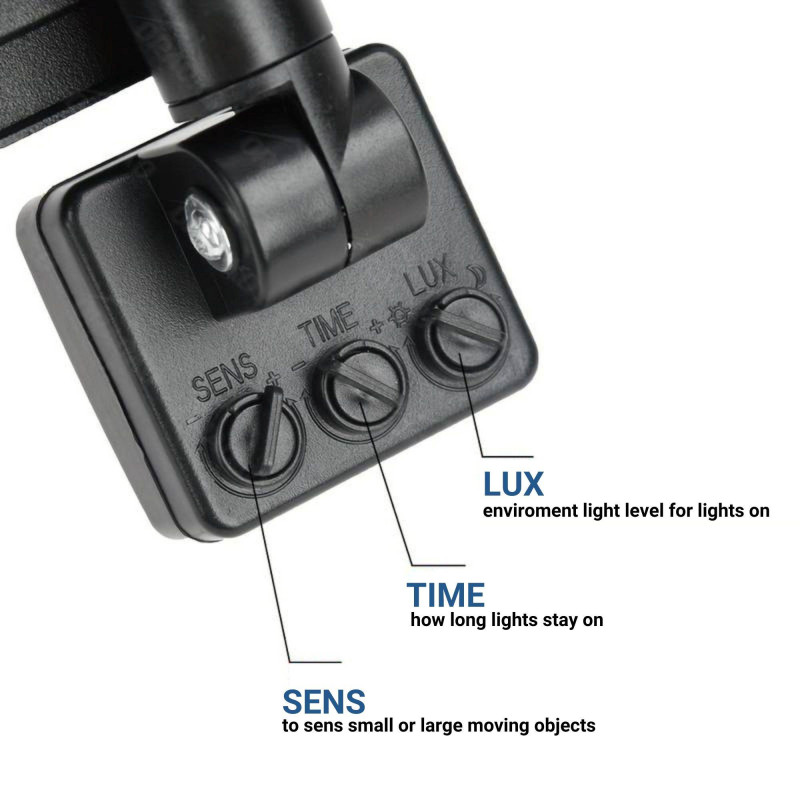

  • PIR Sensor: Equipped with 3 knobs that allow you to adjust:

Sensitivity: Adjust the sensitivity according to the size of moving objects.
✔ O n time: Sets the time the luminaire stays on after detecting motion (10士2 sec. to 5士0.5 min.).
✔ O utdoor light level: adjusts the level of ambient light required to activate the projector (2-2000 Lux). A: when set to the sun position, the sensor operates all day; B: when set to the moon position, the sensor only activates the projector at night or when the ambient lighting is insufficient.


- Sensing distance: <25°:3-8 m.

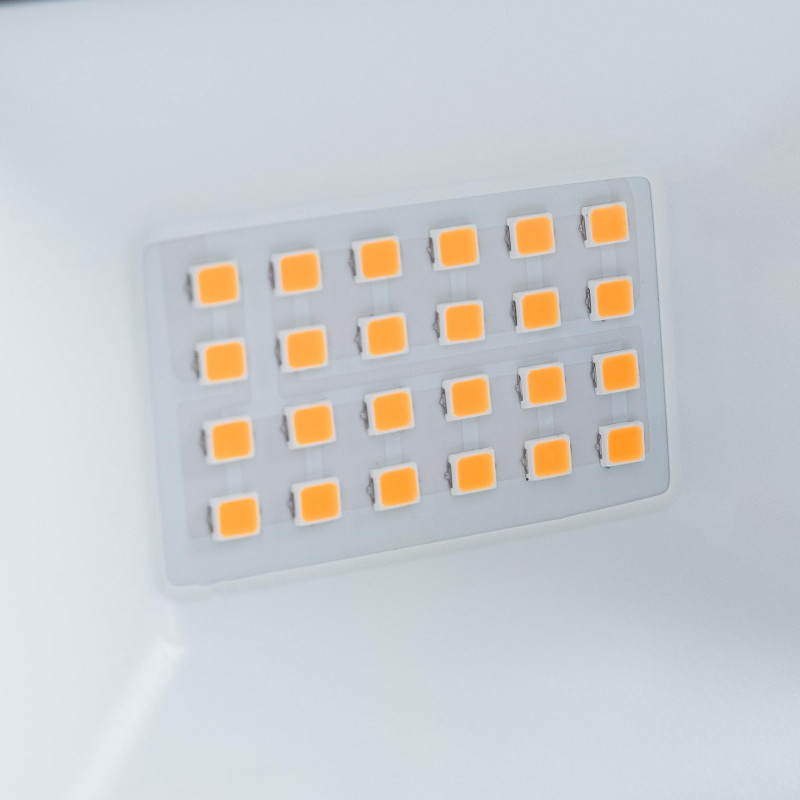

  • High performance: with an efficiency of 80 lm/W, it offers illumination available in 2 shades: warm white (3000K) and cool white (6000K). Its CRI>80, ensures excellent color rendering.

  • Wide opening angle: It offers an opening angle of 120°, providing a wide and uniform illumination coverage.

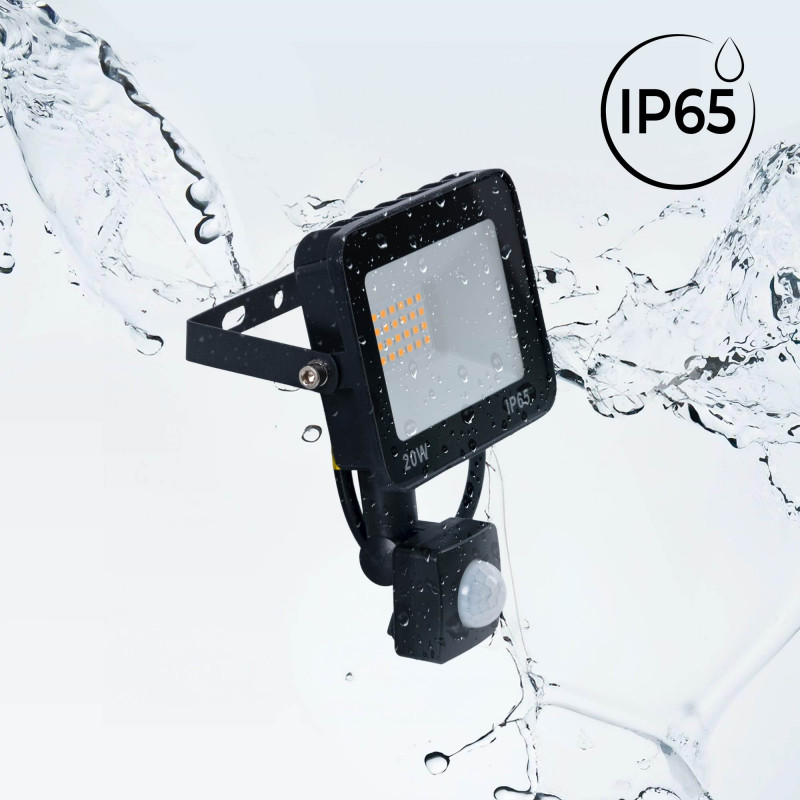

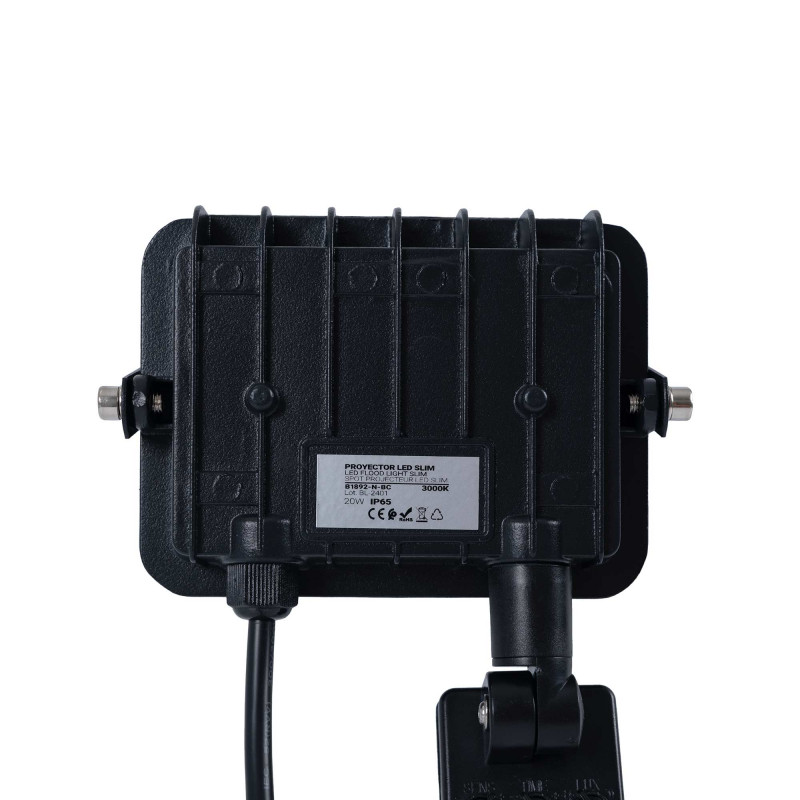

  • Extreme resistance: Manufactured in aluminum with IP65 degree of protection, ensuring durability and optimal heat dissipation.

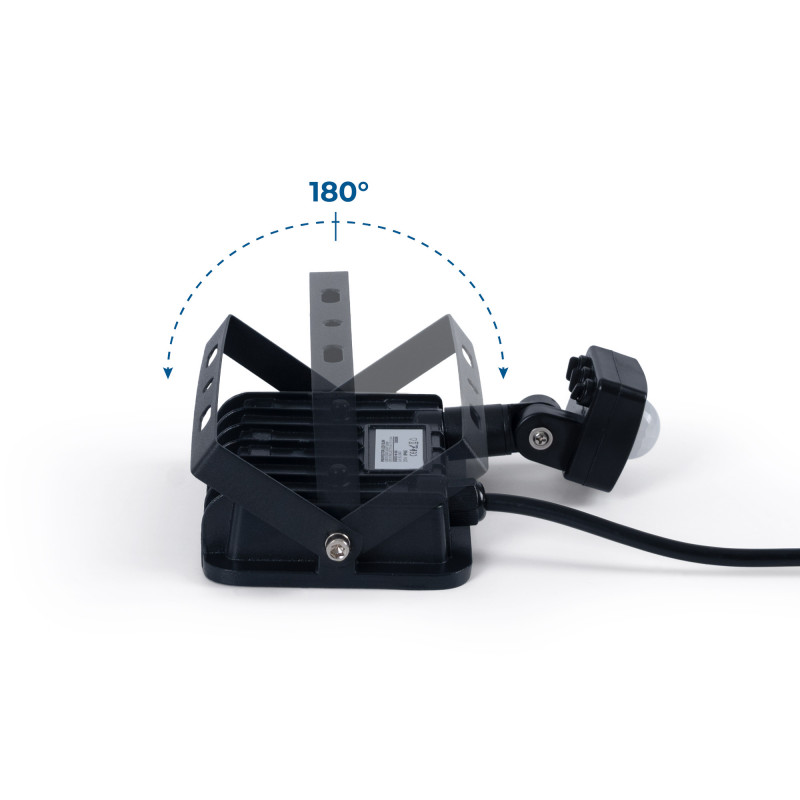

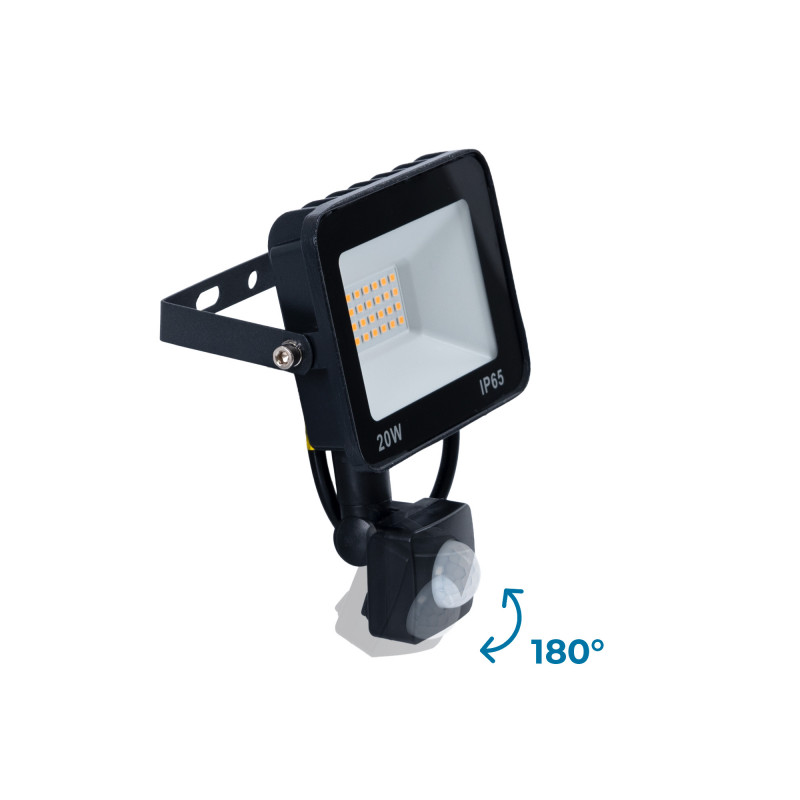

  • Versatile installation: Equipped with a 180° adjustable bracket, it allows adjusting the light direction according to the needs. Recommended installation height: 1.8-2.5m.

    Perfect for store entrances, facades, parking areas, gardens or passageways, providing quality lighting and great energy savings.

    Nominal Voltage (V)
    220 - 240 V/AC
    Power (W)
    20
    Kelvin (K)
    3000
    6000
    Beam angle (º)
    120
    Lifetime (h)
    25000
    IP
    IP65
    Hue
    Cool white
    Warm white
    Sensor
    Yes
    Efficiency (Lm/w)
    80
    CRI
    80-85
    LED Type
    SMD 2835
    Dimmable
    No
    Power factor (cosφ)
    0.9
    Orientable
    Yes
    Material
    Aluminium
    Polycarbonate
    Diffuser material
    Glass
    Use Outdoor
    Yes
    Energy efficiency class
    F
    Certificates
    CE
    ROHS
    Warranty
    According to legal guarantee: 2 years
    Length
    120mm
    Width
    90mm
    Height
    30mm
