ALDO FUMAGALLI recessed LED spotlight IP67
recessed floor spotlight
ground recessed beacon
LED ground recessed spotlights
recessed LED spotlight
ALDO FUMAGALLI recessed LED spotlight IP67
ALDO FUMAGALLI recessed LED spotlight IP67
ALDO FUMAGALLI recessed LED spotlight IP67

ALDO FUMAGALLI recessed LED spotlight IP67

SKU:1L0.000.000.AXZ1R
Colour temperature
Colour
Has superado el límite de unidades
In stock 52 units
Data sheet

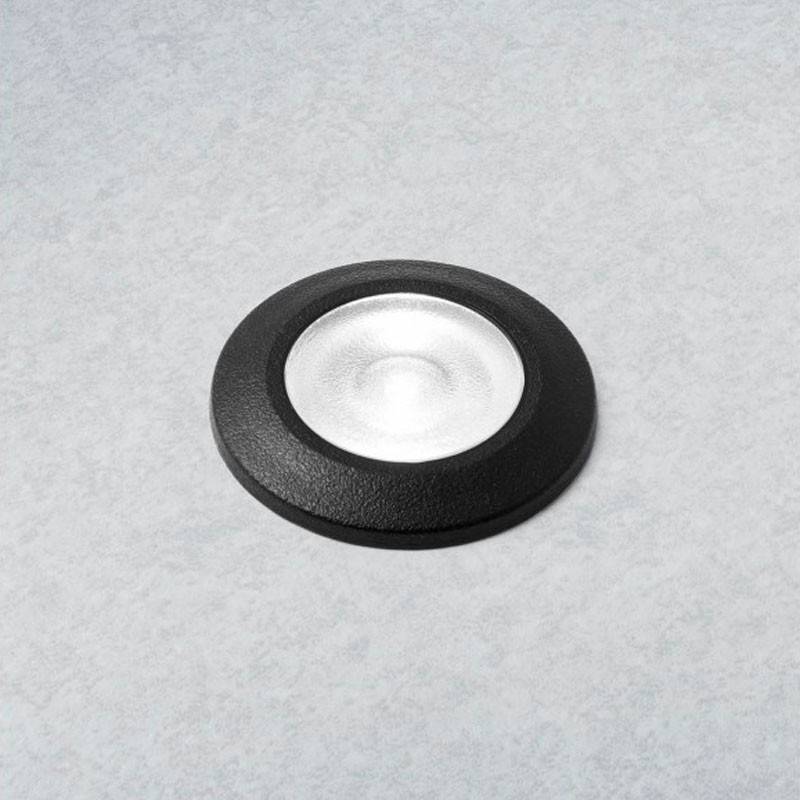

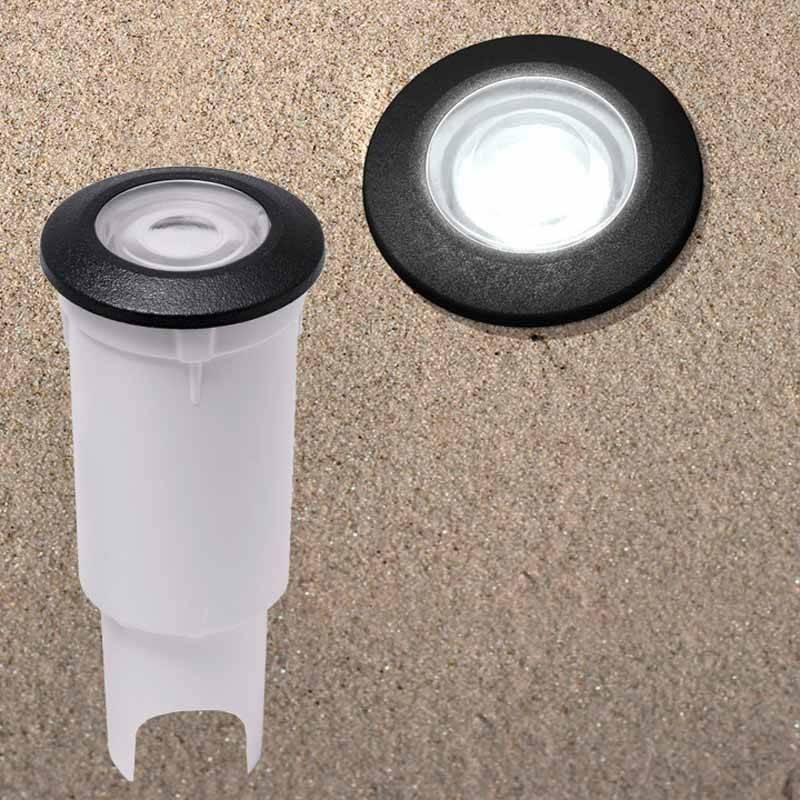

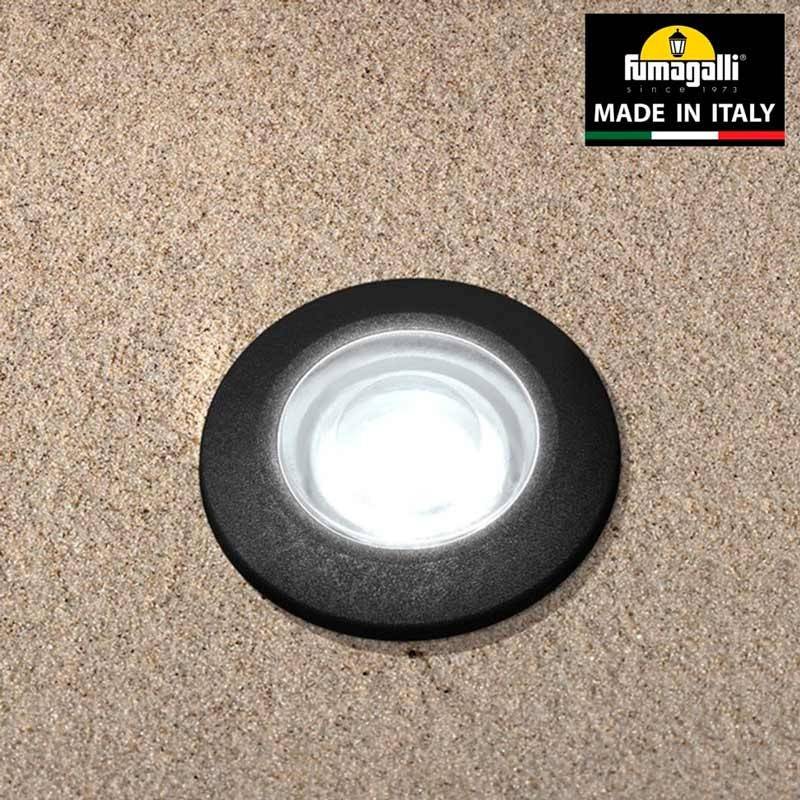

Ground recessed beacon of the Fumagalli brand. With circular shape and frontal light emission, the heavy duty recessed spotlight can be walked on by vehicles up to 5000Kg. The ALDO recessed spotlight stands out for its versatility as it can be installed on the floor, wall, stair steps or ceiling, with no visible screws.

Made of resin resistant to weathering, rain and shock, with IP67 degree of protection. Diffuser of frosted polycarbonate.

1.7W G9 LED bulb included, with a high luminous efficiency of 100lm/W, a total intensity of 170 lumens. Warm 3000ºK light, ideal for creating a comfortable atmosphere.

  • IP67
  • G9 1.7W
  • 3000ºK
  • Ø50x110m
  • Cut Ø47mm.
  • 100-240V
Shipping to Africa available
public
For any shipping requests to Africa, please contact our sales department at:  comercial@barcelonaled.com

ALDO recessed LED beacon for floor mounting | FUMAGALLI

FUMAGALLI 's ALDO recessed LED beacon has a modern and elegant design, finished with a black frame. You can install the LED beacon on walls, ceilings or floors, offering a very versatile high quality product. Designed with shockproof resin, resistant to corrosion, oxidation, and UV rays. Recessed LED spotlights perfect for outdoor lighting with IP67 protection rating.

foco empotrable en suelo

It is usually installed to illuminate paths or to illuminate passage areas with poor visibility. You can also use this LED luminaire as a LED downlight. With a static load capacity of up to 500kg, it can be stepped on.

  • Diameter: 50mm.
  • Mounting diameter: 47mm.
  • Mounting depth: 110mm.

balizas LED

G9 LED bulb included

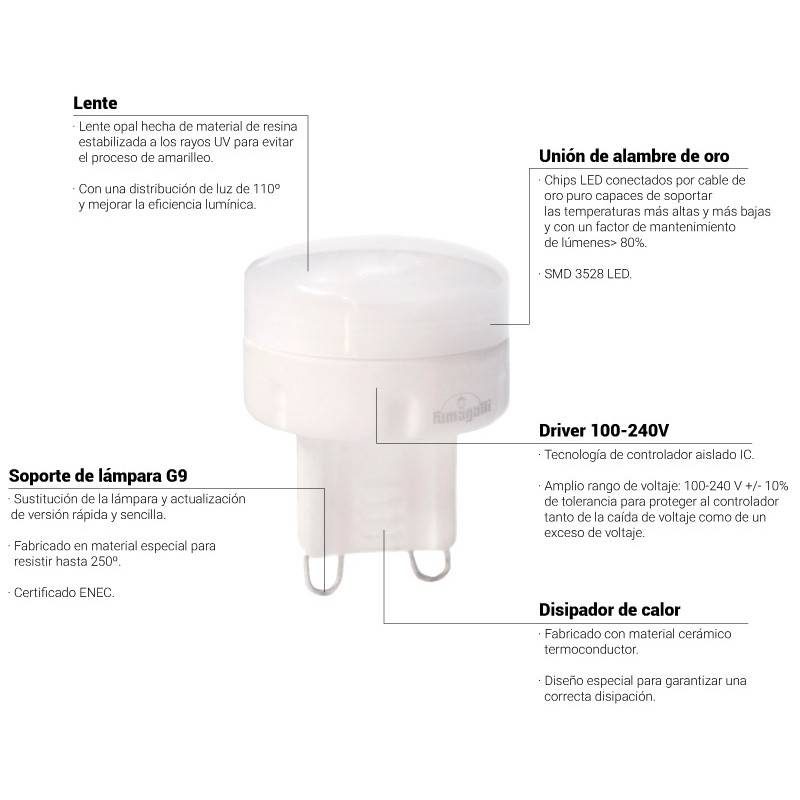

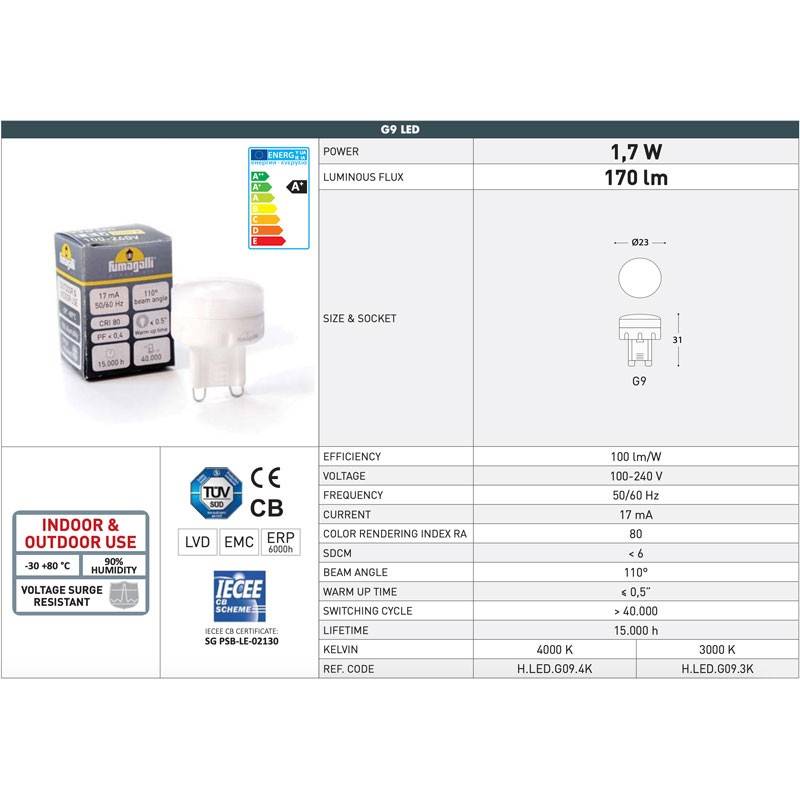

The recessed LED spotlight is supplied with a G9 LED bulb of 1.7W consumption, with long life and high performance. Warm white color temperature of 3000ºK. Voltage of 100-240V. Angle of opening of the light beam of 110 degrees. Power of 1.7W. High performance and high efficiency SMD 3528 LED chip, 100lm/W. A total luminous intensity of 170 lumens. G9 socket allows for easy bulb replacement.

bombilla LED G9

ALDO LED spotlights features

  • Opal polycarbonate diffuser.
  • Perfect for floor, ceiling and wall installation, with no visible screws.
  • Equipped with LED bulb G9 included 3000ºK with TÜV approval for high performance and long life.
  • Like all the Fumagalli range, it is made of shockproof resin material, resistant to rust, corrosion and UV rays.
  • Insulation class II, degree of protection IP67.

baliza empotrable en suelo

Recessed beacons applications

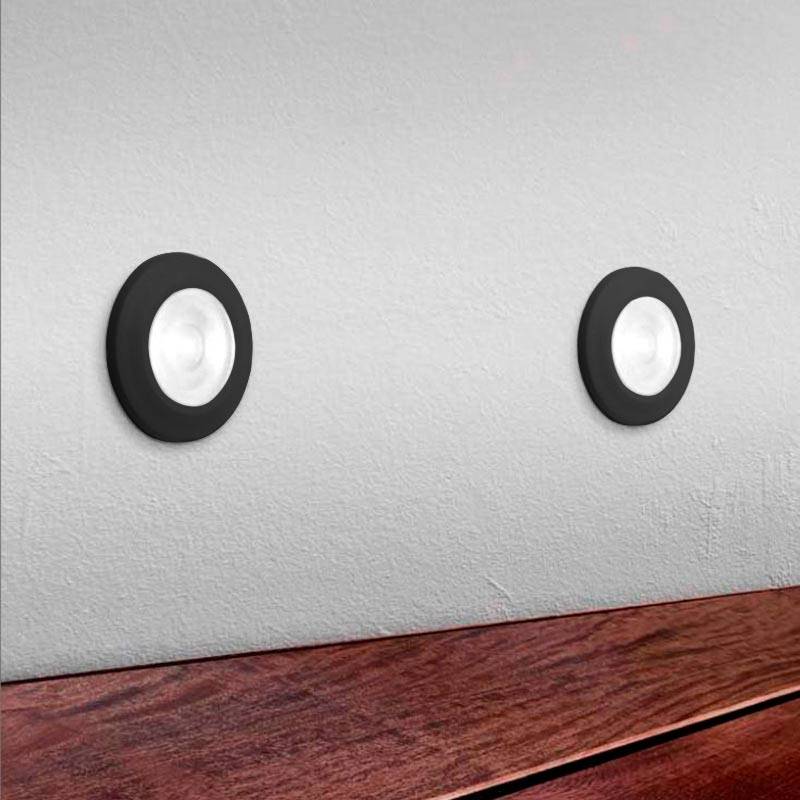

The "ALDO" ground embeddable beacon is perfect for illuminating paths, terraces or gardens, it is usually installed on the ground but can be used in many different ways. It allows to illuminate poorly lit areas to enhance visibility with a modern touch.

baliza LED empotrable

It can also be used in:

  • Outdoor lighting: gardens, terraces, stairs, patios.
  • Paths and walkways.
  • Indoor lighting: floor, wall and ceiling.

foco LED empotrable en suelo

Technical characteristics

fumagalli

bombilla LED G9

Nominal Voltage (V)
100-240
Power (W)
1.7
Lumens (Lm)
170
Kelvin (K)
3000
Beam angle (º)
110
Socket
G9
Lifetime (h)
30000
IP
IP67
Dimensions (mm) Lxlxh
Ø50x110
Frequency (Hz)
50 - 60
Hue
Warm white
Efficiency (Lm/w)
100
CRI
80-85
Dimmable
No
Cutting dimensions (mm)
Ø47
Material
Resin
Use Outdoor
Yes
Temperature range
-20°C ~ +40°C
Frequency of use
Intensive
Energy efficiency class
A+ (2021)
Certificates
CE
ROHS
Warranty
According to legal guarantee: 2 years
