Kit Floor lights 6 beacons Ø58x9mm + Connection cables + Power supply 0,65A
LED recessed spotlight kit

Kit 6 recessed LED spotlights Ø58x9mm 0,5W 12V-DC IP67

SKU:BA50001-AZ
Colour temperature
Has superado el límite de unidades
In stock 51 units
Data sheet

LED recessed spotlights kit consisting of 6 recessed LED beacons of Ø58x9mm and 0,5W of power. Includes connection cables and power supply 0,65A.

  • 6 x 0,5W - 12V-DC
  • Ø58x9mm
  • SMD3350
  • ✂51mm
  • IP67
  • Ready to install kit, with all accessories included.
Shipping to Africa available
public
For any shipping requests to Africa, please contact our sales department at:  comercial@barcelonaled.com

Kit of 6 recessed LED spotlights Ø58x9mm 0,5W 12V-DC IP67

Includes connection cables and power supply, ready to use kit.

Our LED ground lights have ultra slim design and elegant appearance, they are very resistant to possible impacts, designed for long life and very low power consumption.

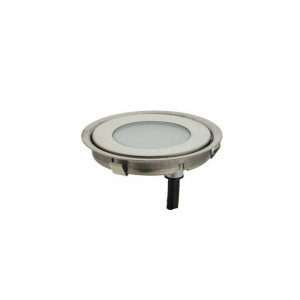

The LED ground light uses 6 SMD 3350 LEDs as the light source, encapsulated in a stainless steel housing. As the luminous surface is made of high intensity tempered glass, the light emitted is uniform and homogeneous.
It can be used both indoors and outdoors, as it is a completely watertight product (IP67) and resistant to all weather conditions.

  • Dimensions of the beacons: Ø58x9mm
  • Necessary cutting diameter: Ø51mm

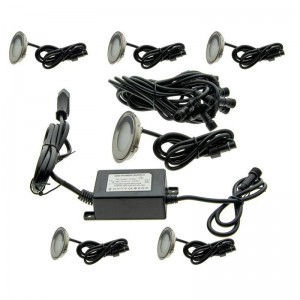

The LED floor spotlight KIT consists of an 8 Watt power supply, 6 floor lights and all the necessary wiring for installation. The cable length between 2 lights is 1 meter.

Installation diagram:

foco led 12v

focos de led

focos empotrables led

  • Ideal product for outdoor and indoor use.
  • Very low power consumption, only 3 Watt, ideal for all energy saving applications.
  • Available in silver color.
  • No UV or IR radiation, 0% mercury or hazardous materials, environmentally friendly.
  • Generates virtually no heat.
  • No noticeable flicker at all.

Applications:

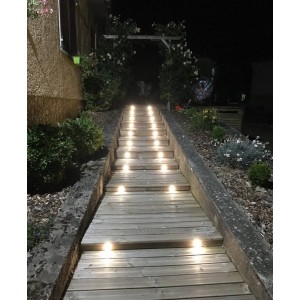

  • Garden pathway lighting.

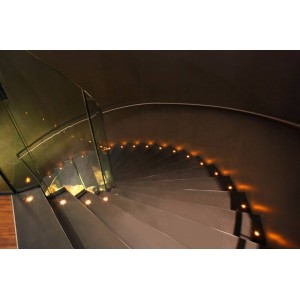

  • Decorative LED lights for floors, stairs, corridors, terraces...
  • Decorative light for pool decking.

focos led exterior

focos led

baliza led exterior

balizas led

led suelo kit de luces de suelo rgb led suelo impermeable

2018-10-11
Nominal Voltage (V)
12V-DC
Power (W)
6x 0,5
Kelvin (K)
3000
Lifetime (h)
25000
IP
IP67
Dimensions (mm) Lxlxh
Ø58x9
Frequency (Hz)
50 - 60
Hue
Blue
Warm white
LED Type
SMD 3350
Dimmable
Yes
Driver
External, including
Cutting dimensions (mm)
Ø51
Material
Stainless steel
Diffuser material
Polycarbonate
Use Outdoor
Yes
Temperature range
-20°C ~ +40°C
Frequency of use
Normal
Energy efficiency class
A+ (2021)
Certificates
CE
ROHS
Warranty
According to legal guarantee: 2 years
Barcelona LED

Questions

P: Question: Hello,
Are these lights dimmable?
Thank you!
R: Answer: The kit is not dimmable, you should put some 12vdc controller between the source and the leds.
P: Question: Does it have a flush box?
R: Answer: The kit of 6 recessed LED spotlights is installed directly recessed without the need for anything else.
