RGB recessed outdoor ground spotlight - 12V DC -9W - IP67

SKU:BA50020-RGB
Has superado el límite de unidades
In stock 20 units
Data sheet

RGB recessed downlight, specifically designed for outdoor lighting. It has an IP67 degree of protection that gives it a high level of insulation against external factors such as rain and dust.

It incorporates high efficiency COB LED technology, with a power of 9W and RGB system that gives it multiple decorative possibilities.

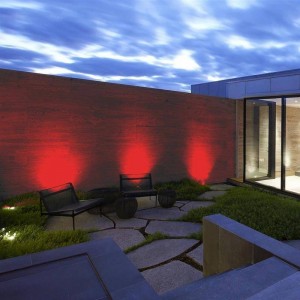

With an opening angle of 30°, it can be used as a wall washer, but also to illuminate and decorate paths, passageways and terraces, among many other applications.

It is suitable for pedestrian traffic, and includes a plastic tube for mounting in concrete.

Shipping to Africa available
public
For any shipping requests to Africa, please contact our sales department at:  comercial@barcelonaled.com

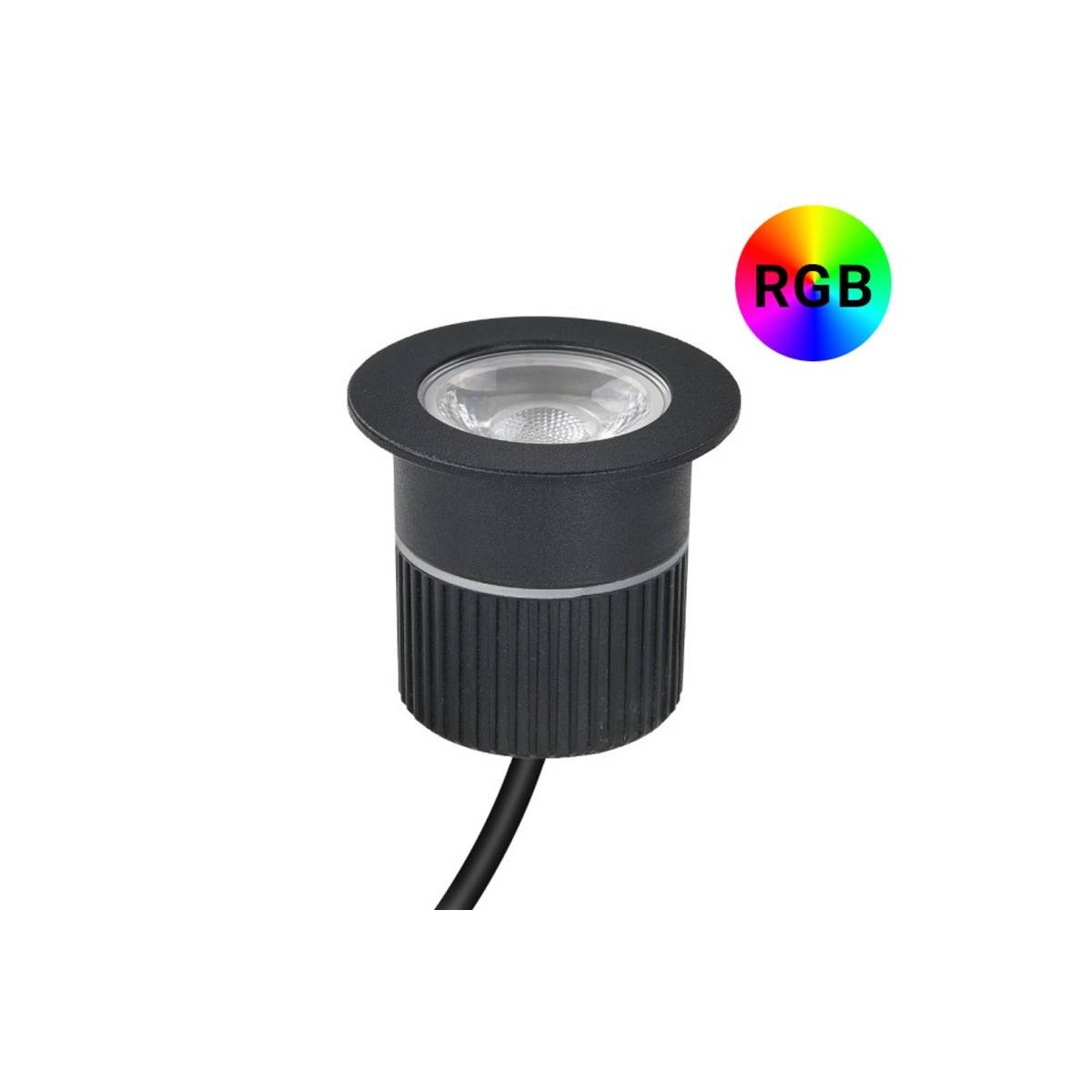

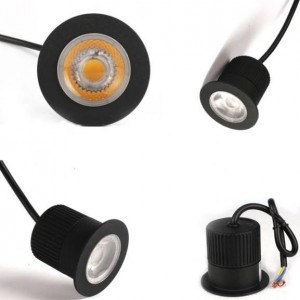

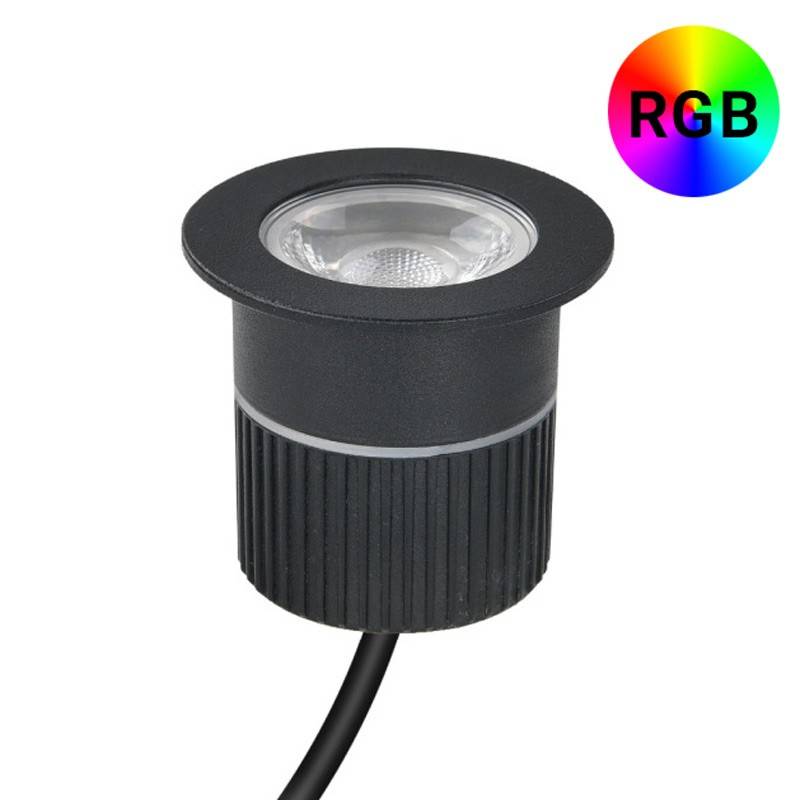

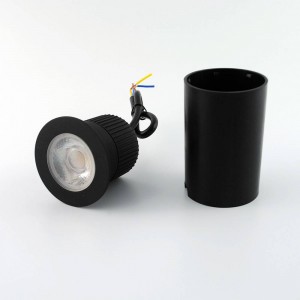

LED ground recessed spotlight made of high quality materials, with a black aluminum housing and a polycarbonate diffuser.

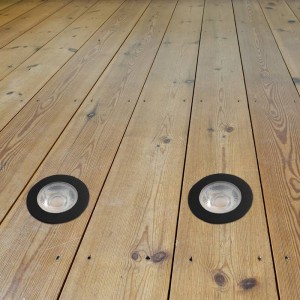

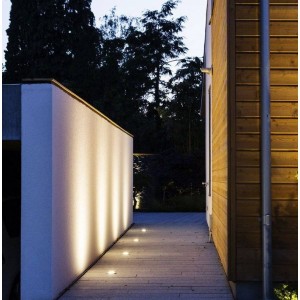

Designed to illuminate paths or as a decorative light to bathe exterior walls, it provides vertical illumination at a luminous angle of 30º.

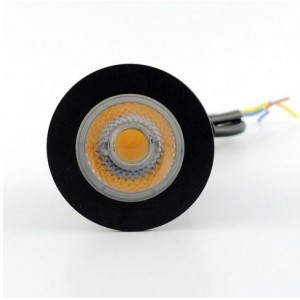

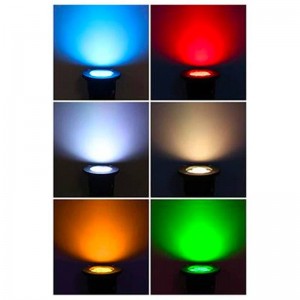

It incorporates COB LED chips in RGB hue, allowing to create numerous color patterns and effects. Requires the addition of an RGB controller for use.

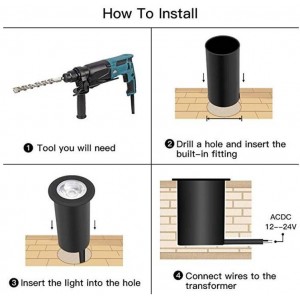

It includes a 1m long cable and a plastic tube for concreted mounting.

Its IP67 protection rating allows outdoor installation, preventing rain or solid particles from entering.

Applications:

✔ Outdoor lighting: terrace, garden, staircase, patio.

✔ Architectural lighting.

✔ Road and pathway signage.

✔ Indoor lighting.

Main product features:

  • Rated voltage: 12V DC
  • Power rating: 9W
  • LED type: COB
  • Opening angle: 30º
  • Shade: RGB
  • Requires add RGB driver and controller (not included)
  • IP67: outdoor use
  • Includes cable (1m)
  • Concrete pipe included

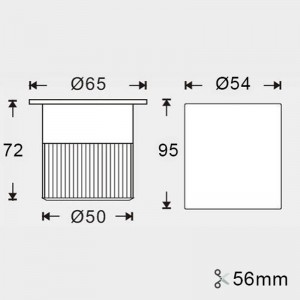

  • Dimensions: ø 50 x 72 mm
  • Cutting dimensions: ø 56 mm
  • Depth: Without tube: 72mm/ with tube: 95mm

Nominal Voltage (V)
12V-DC
Power (W)
9
Beam angle (º)
30
Lifetime (h)
25000
IP
IP67
Dimensions (mm) Lxlxh
Ø50 x 72
Frequency (Hz)
50 - 60
Hue
RGB
LED Type
COB
Cutting dimensions (mm)
Ø56
Material
Aluminium
Diffuser material
Polycarbonate
Use Outdoor
Yes
Temperature range
-20°C ~ +40°C
Frequency of use
Normal
Certificates
CE
ROHS
Warranty
According to legal guarantee: 2 years
Barcelona LED

Questions

P: Question: Which RGB controller is suitable for this focus?...Type of controller control?
R: Answer: Any of the RGB s12vdc controllers can be used, for example the B1605N (remember that it is not waterproof).
P: Question: Good.

With which driver controller can I run all 3 at the same time, with a remote control?
R: Answer: Any of the s12vdc RGB controllers can be used for the 3 beacons, for example the B1605N (keep in mind that it is not waterproof).
