Recessed beacon
LED Beacon
LED ground recessed beacon for indirect lighting 0,75W 12V-DC IP67

LED ground recessed beacon for indirect lighting 0,75W 12V-DC IP67

SKU:BA50018-BC-B
Colour temperature
Colour
Has superado el límite de unidades
In stock 89 units
Data sheet

LED beacon recessed in the ground with high watertightness IP67. Specially indicated to illuminate the way in dark areas or to indicate where to go outdoors or indoors. Also for decorative use. They have two lines of light output in warm white color, one opposite to the other. Made of aluminum with polycarbonate. Thanks to its design go completely unnoticed. Black or white exterior color.

  • 0,75W - 12VDC
  • Warm white SMD LED (3000k)
  • Ø58.5x53mm
  • ✂42mm
  • IP67
  • Outside color black and white
  • Interconnection cable length ( 50 cm)
Shipping to Africa available
public
For any shipping requests to Africa, please contact our sales department at:  comercial@barcelonaled.com

LED ground recessed spotlight with indirect light IP67 12V-DC 0.75W

Recessed LED beacon for illumination of roads, paths, gardens or signaling . Available in warm white (3000K). Emits light in the form of butterfly indirectly, bathing the ground.

The side lighting prevents dazzling at night, this beacon is ideal for illuminating roads and paths in gardens and parks.

The circularrecessed LED groundlight is IP67 rated, which allows it to withstand rain, moisture, dust and dirt. It is perfect for indoor or outdoor installation.

Made of stainless steel housing and opal polycarbonate diffuser. It includes SMD2835 LED chips in warm white of high brightness and intensity, and the optic emits a closed luminous angle of 30º.

Outside diameter: Ø58,5mm

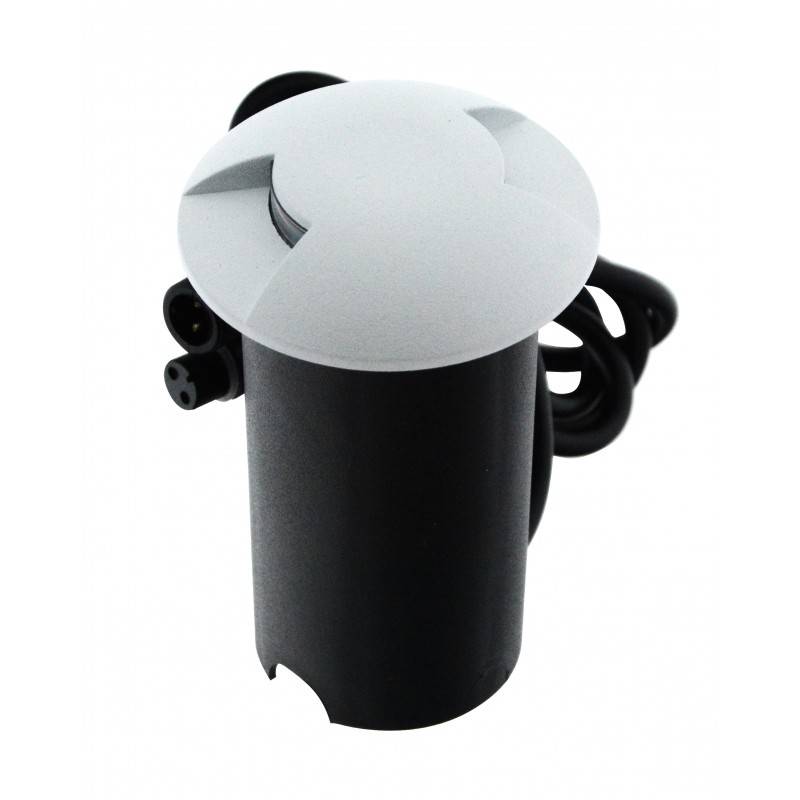

Depth: 53mm without tube / 125mm with tube
Cutting dimensions: Ø42mm

Outside color black and white

LED smd white cathode ( 3000k)

Requires 12V-DC power supply (not included).

If you want to install in concrete, you must use the plastic tube necessarily.

Installation diagram:

instalacion balizas led

Applications:

  • Outdoor lighting: terrace, garden, staircase, patio.
  • Indoor lighting: floor, wall.
  • Illumination of roads and paths

balizas led exterior

Example of installation on the side of a staircase:

baliza led interior

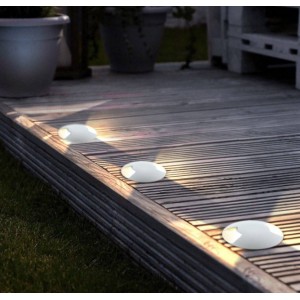

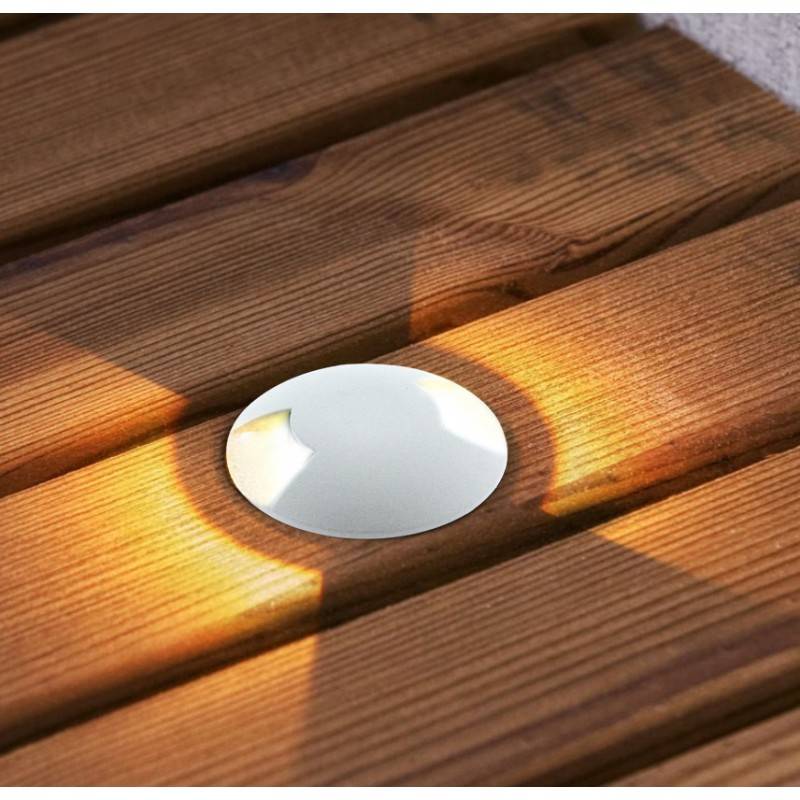

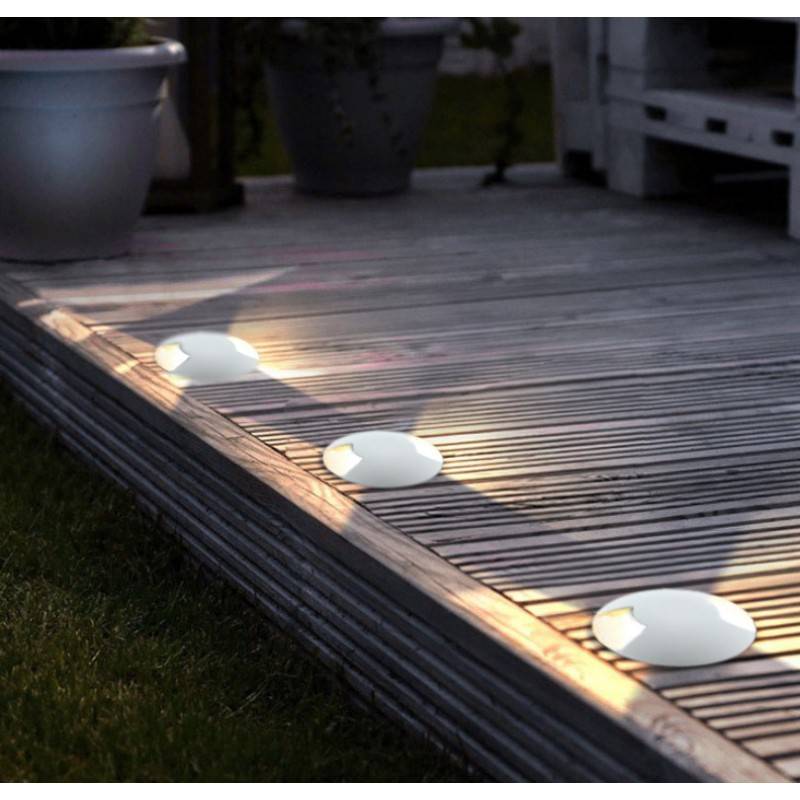

Example of installation on wooden platform:

balizas led

Example of installation on floating wooden floor, where the low glare is appreciated because the light beam is not directed to the eyes of people.

iluminación exterior

iluminacion exterior jardin

Nominal Voltage (V)
12V-DC
Power (W)
0,75
Kelvin (K)
3000
Lifetime (h)
25000
IP
IP67
Dimensions (mm) Lxlxh
Ø58,5x92 con tubo
Ø58,5x92 with tube
Frequency (Hz)
50 - 60
Hue
Warm white
LED Type
SMD 2835
Dimmable
Yes
Driver
Not included
Cutting dimensions (mm)
Ø42
Material
Acero
Diffuser material
Polycarbonate
Use Outdoor
Yes
Temperature range
-20°C ~ +40°C
Frequency of use
Normal
Energy efficiency class
A+ (2021)
Certificates
CE
ROHS
Warranty
According to legal guarantee: 2 years
