RGB 12W 12V-DC IP67 recessed LED downlight RGB 12W 12V-DC IP67

SKU:BA50015-RGB
Colour temperature
Has superado el límite de unidades
In stock 30 units
Data sheet

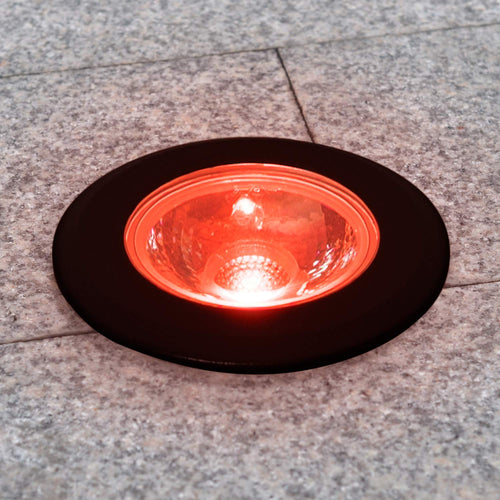

RGB LED spotlight recessed in the floor with 12W of power and 12V-DC power supply. Its optics emits at a light angle of 100º, so the wallwasher effect, coupled with its RGB colors produce spectacular lighting effects. Perfect for building facades, vegetated areas, stairs and exterior paths, architectural lighting.

  • 12VDC - 12W
  • RGB color ( LED SMD2835)
  • Ø80x92mm ( outside diameter 80 mm)
  • ✂60mm ( cutting diameter 60 mm)
  • IP67
  • Depth 92 mm
  • Connection cable length 1 meter
Shipping to Africa available
public
For any shipping requests to Africa, please contact our sales department at:  comercial@barcelonaled.com

RGB 12W 12V-DC IP67 recessed LED spotlight RGB 12W 12V-DC IP67

LED ground recessed beacon for outdoor pathway decoration, signage or wall washers. Available in RGB.

Circularrecessed LED ground light, with IP67 degree of protection that withstands rain, moisture, dust and dirt. It is perfect for indoor or outdoor installation.

The RGB recessed LED spotlight is made of black lacquered steel housing and opal polycarbonate diffuser. It includes SMD2835 RGB LEDs of high intensity and brightness, emitting light at an angle of 100º.

Outer diameter: Ø80mm
Depth: 92mm without tube / 125mm with tube
Cutting dimensions: Ø60mm

Length of the connection cable (1 meter).

Requires 12V-DC power supply and RGB controller (not included).

The plastic tube is required for mounting in installations where the assembly is to be concreted.

focos led

Applications of 12W RGB LED floodlight:

Outdoor lighting: terrace, garden, staircase, patio.

Indoor lighting: floor, wall.

Architectural lighting.

foco led rgb

focos led exterior

iluminación led de suelo tipo baliza o bañador de pared espacio exterior iluminado con balizas o luces de suelo led para señalar el camino

Nominal Voltage (V)
12V-DC
Beam angle (º)
100
Lifetime (h)
25000
IP
IP67
Dimensions (mm) Lxlxh
Acero
Ø80x125 with tube
Frequency (Hz)
50 - 60
Hue
RGB
LED Type
SMD 2835
Dimmable
Yes
Driver
Not included
Cutting dimensions (mm)
Ø55
Material
Acero
Diffuser material
Polycarbonate
Use Outdoor
Yes
Temperature range
-20°C ~ +40°C
Frequency of use
Normal
Energy efficiency class
A+ (2021)
Certificates
CE
ROHS
Warranty
According to legal guarantee: 2 years
Barcelona LED

Questions

P: Question: Hello,
I would like to place 9 of these lights outside, I am not at all skilled in the electrical issue, that means that require 12V-DC power supply and RGB controller (not included)? How much does it cost if it is necessary to acquire it? thanks


R: Answer: Depending on the characteristics of the installation the power supply can be watertight or go indoors and control with remote control, app etc. . The power supply and the controller must be for 12vdc and higher than 108W. You can contact a sales representative
P: Question: Do I need an RGB controller per focus?
R: Answer: A controller is required, it can control several spotlights at the same time, the reference B1644-2 is an excellent option.
A 12V power supply is also required.
P: Question: I need to install 6 with wifi connection at 5/6w minimum.
Thanks
R: Answer: You will need a rgb wifi controller, you may be interested in model B1644-2 "not for outdoor use".
P: Question: Hello,
I have an installation with 4 recessed spotlights, but they are wrong. These are 220v
As these spotlights are DC, how many meters of cable do they support?
What power supply would I need to connect the 4?
And how would I regulate the color of them?
Thank you. Greetings.
R: Answer: You can use a 12v 60W source, you will need a RGB controller for dimming. The distance depends on the cable section.
