RGB LED Ground Recessed Spotlight 18W 12V-DC IP67
SKU:BA50016-RGB
€111.95
Tax included
Shipping to Africa available
For any shipping requests to Africa, please contact our sales department at: comercial@barcelonaled.com
RGB multicolor LED spotlight RGB multicolor LED floodlight IP67 12V-DC 18W

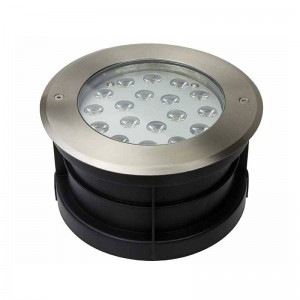

Recessed LED beacon for outdoor pathway decoration, signage or wall washer. Emits light in any RGB combination, up to 16 million colors. Emits light vertically, with a closed luminous angle of 30º, perfect for wallwashing at great heights (3 to 7 meters, depending on the distance).
LED circularrecessed floorlight, with an IP67 degree of protection that allows it to withstand rain, humidity, dust and dirt. It is perfect for indoor or outdoor installation.

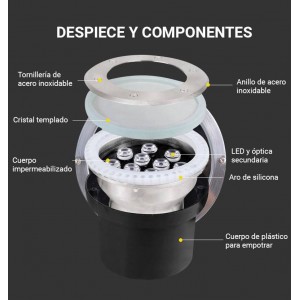

Made of plastic and stainless steel housing and opal polycarbonate diffuser. Includes SMD2835 LED chips in warm white of high brightness and intensity.
Requires 12V-DC power supply (not included) and RGB controller (not included).

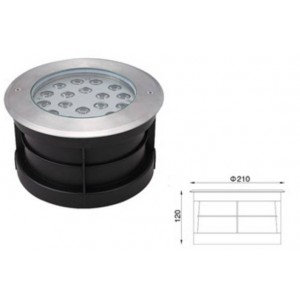

Outside diameter: Ø210mm
Depth: 72mm
Cutting dimensions: Ø197mm
Requires 12V-DC power supply (not included) and RGB controller (not included).
It is suitable for recessing in raised floors as well as concrete.
Applications:
- Outdoor lighting: terrace, garden, staircase, patio.
- Indoor lighting: floor, wall.
- Architectural lighting.
Nominal Voltage (V)
12V-DC
Power (W)
18
Lifetime (h)
30000
IP
IP67
Dimensions (mm) Lxlxh
Ø210x72
Frequency (Hz)
50 - 60
Hue
RGB
LED Type
SMD 2835
Dimmable
Yes
Driver
Not included
Cutting dimensions (mm)
Ø197
Material
Plastic
Stainless steel
Stainless steel
Diffuser material
Polycarbonate
Use Outdoor
Yes
Temperature range
-20°C ~ +40°C
Frequency of use
Intensive
Energy efficiency class
A+ (2021)
Certificates
CE
ROHS
ROHS
Warranty
According to legal guarantee: 2 years
Questions
| P: Question: |
Hi, the intention is to install these BA50016-RGB lights outdoors and leave the controller in a room of a building. In such a case, the wiring that goes from the controller (the 4 wires of the colors) to the lights, does it have to have some minimum section for going under tube by external channeling? The distance between controller and lights would be 95m. Greetings |
|---|
| R: Answer: | It is not possible to connect 12Vdc luminaires for such long distances due to voltage drops (the power supply/controller should not be more than 5mts away). |
|---|
| P: Question: | Shipping to Canary Islands, Lanzarote |
|---|
| R: Answer: | You can see shipping and delivery conditions at the end of the web site. |
|---|
| P: Question: | Which transformer is suitable for this projector? |
|---|
| R: Answer: | 12V transformers according to the power of the number of spotlights to be installed. We have waterproof and IP20 models for indoors, which in this case should be placed in waterproof boxes if exposed. https://www.barcelonaled.com/pt/fitas-led/fonte-de-alimentacao-led/fonte-de-alimentacao-12v-led/ |
|---|
| P: Question: |
Hello Does it have control to ekegir the color? Or how do you do it ? |
|---|
| R: Answer: | It does not have a remote control, it is an RGB spotlight with a 4-channel connector. It must be connected to an RGB controller with 4 control outputs (V+, R, G, B), the controller must have control for changing colors. In addition to the 12vdc source. |
|---|
| P: Question: |
Can this recessed LED spotlight be installed on the lawn? Is it connected directly to the current or transformer? Thanks |
|---|

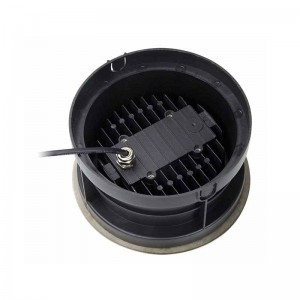

| R: Answer: | It has a cylindrical base that is installed on the ground and the spotlight is placed inside the base. If it is not a waterlogged area, there should be no problem to install it in a grassy area. This model of spotlight has to be connected to a 12VDC power supply. |
|---|
