2 in 1 PIR motion sensor (surface/embeddable) - 360º - IP20

2 in 1 PIR motion sensor (surface/embeddable) - 360º - IP20

SKU:SP45
Has superado el límite de unidades
In stock 1956 units
Data sheet

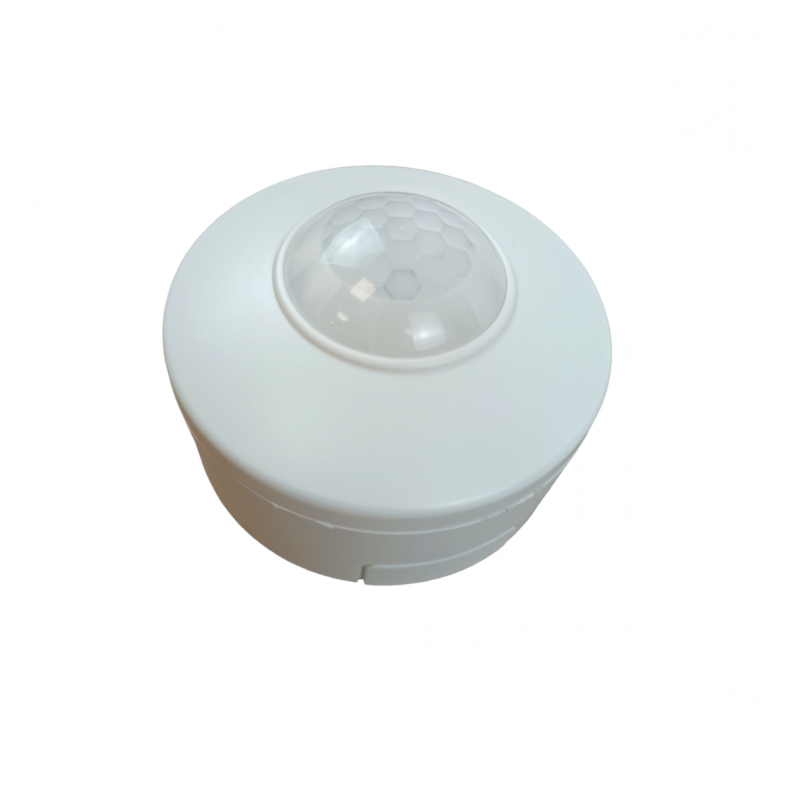

The 2-in-1 PIR motion sensor can detect the presence of motion at a coverage angle of 360°, a distance of 16 meters and a height of 2.2 to 4 meters.

It controls the switching on and off of one or several LED luminaires (up to 1000W total) achieving great energy savings.

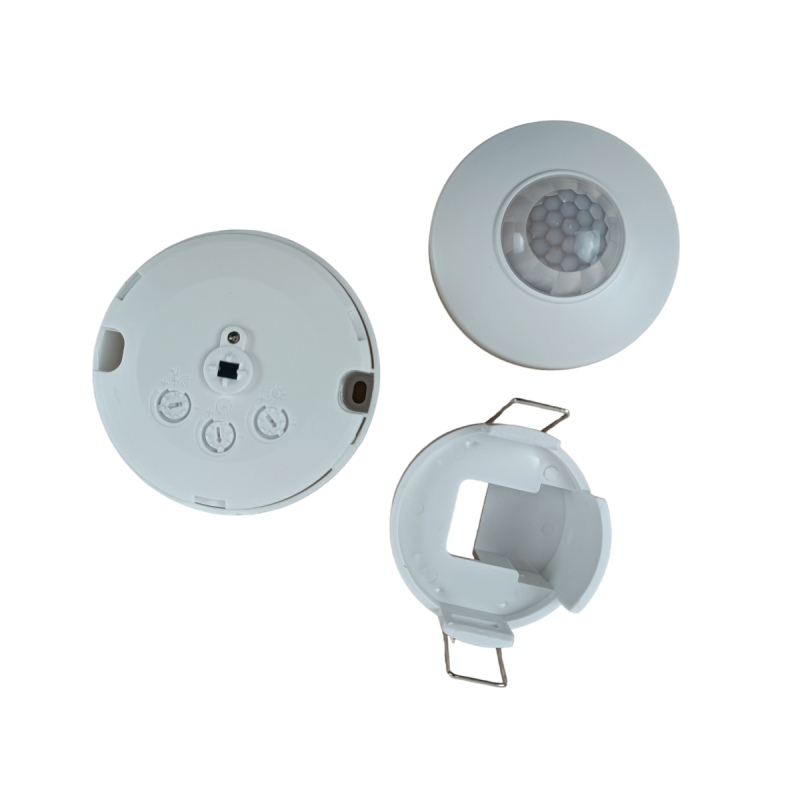

It can be installed either surface mounted or recessed.

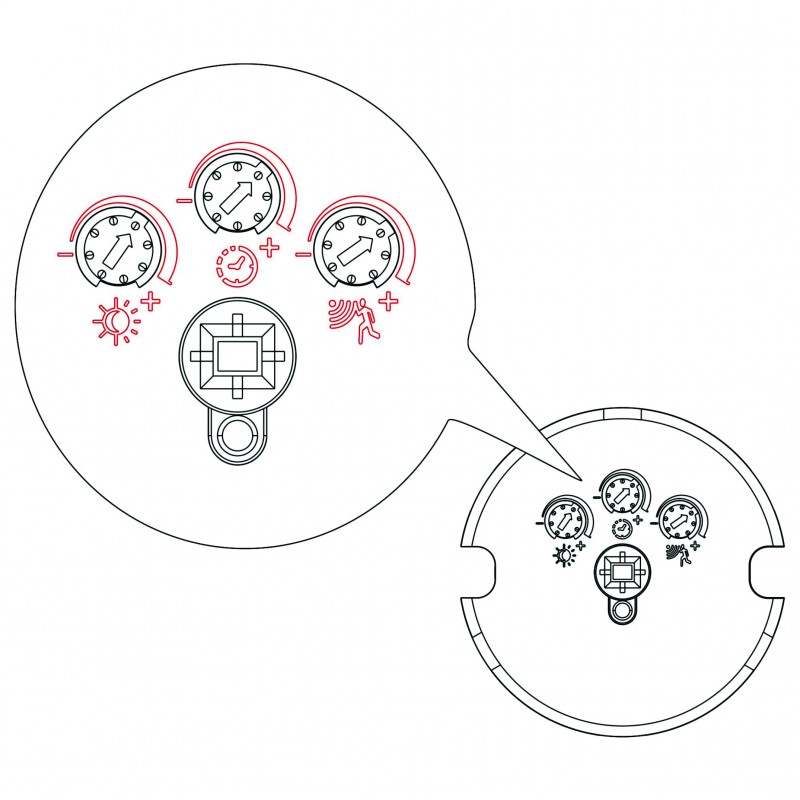

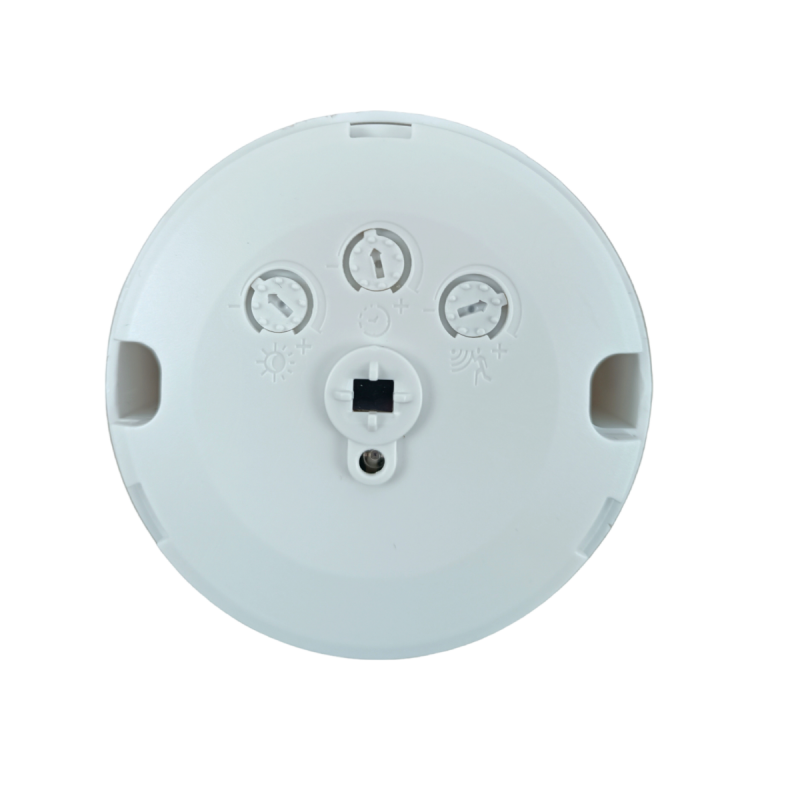

This sensor allows adjusting different parameters such as range, light level and time to suit the user's needs.

Shipping to Africa available
public
For any shipping requests to Africa, please contact our sales department at:  comercial@barcelonaled.com

The 2-in-1 PIR motion sensor is able to capture invisible infrared emissions from any heat source, without emitting any radiation. It enables energy savings of up to 90% through simple and efficient control of LED luminaires.

It can operate both day and night by adjusting the operating light sensitivity. In addition, it allows adjusting the detection distance from 2 to 16 m, according to the size of each environment. It is also possible to program the standby time, i.e. the time in which the luminaire turns off once the sensor stops detecting presence.

Its compact size makes it compatible with most installations and it can be surface or recessed mounted.

It can control up to 1000W in the case of LED luminaires and up to 2000W in the case of traditional luminaires.

INSTALLATION TIPS

Because the detector responds to temperature changes, avoid the following situations:
- Avoid pointing the detector towards objects with highly reflective surfaces, such as mirrors, etc.
- Avoid mounting the detector near heat sources such as heating vents, air conditioning units, lights, etc.
- Avoid pointing the detector toward objects that may move in the wind, such as curtains, tall plants, etc.

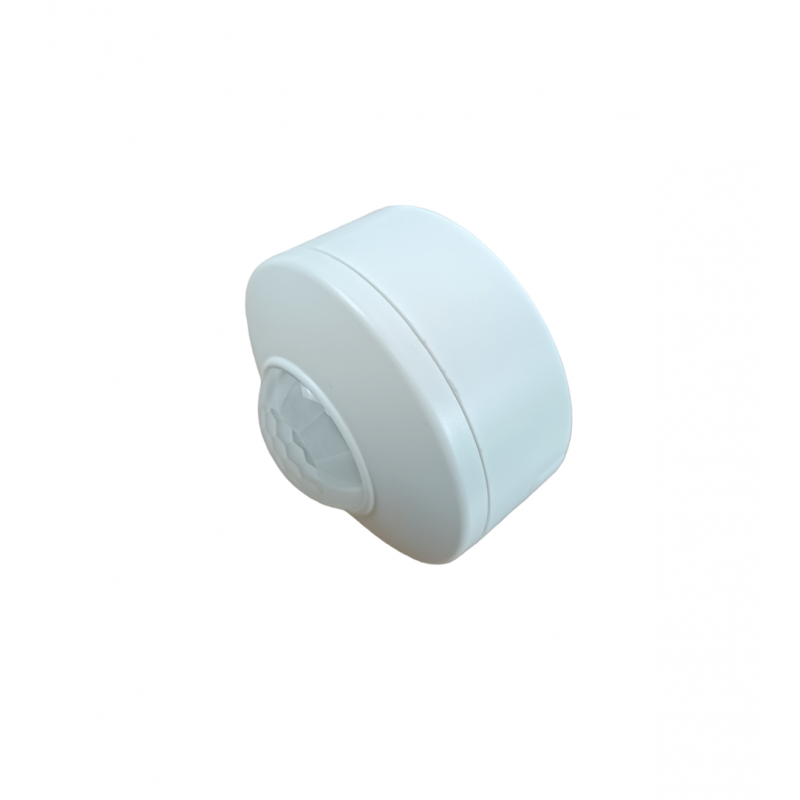

Surface installation:

- Move the top cover by turning it counterclockwise.

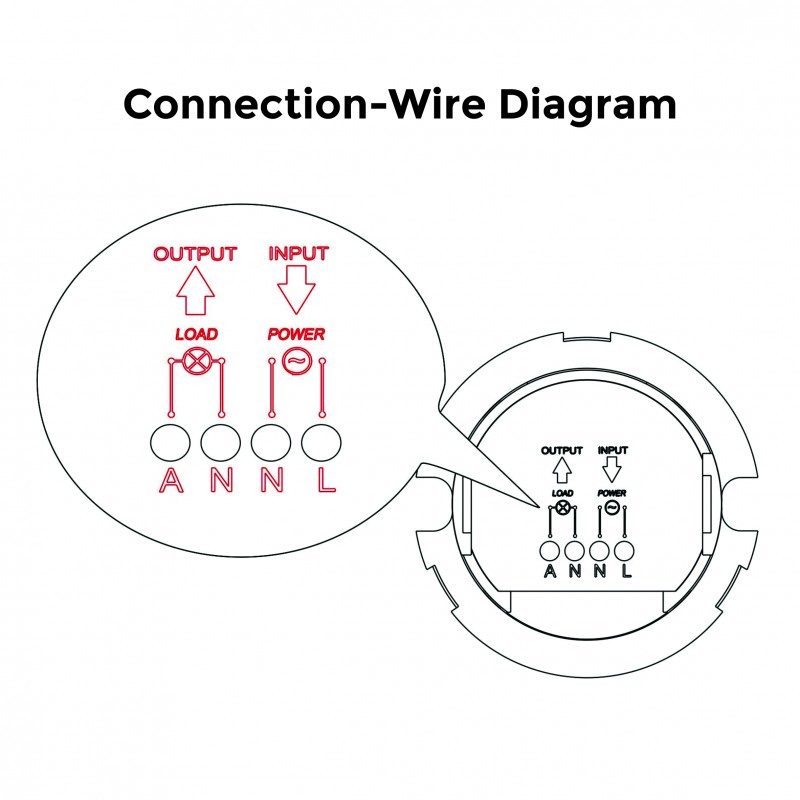

- Connect the power and load according to the cable connection diagram.

- Fix the lower part in the selected position with the screw.

- Reinstall the top cover on the sensor. You can then connect and test it.

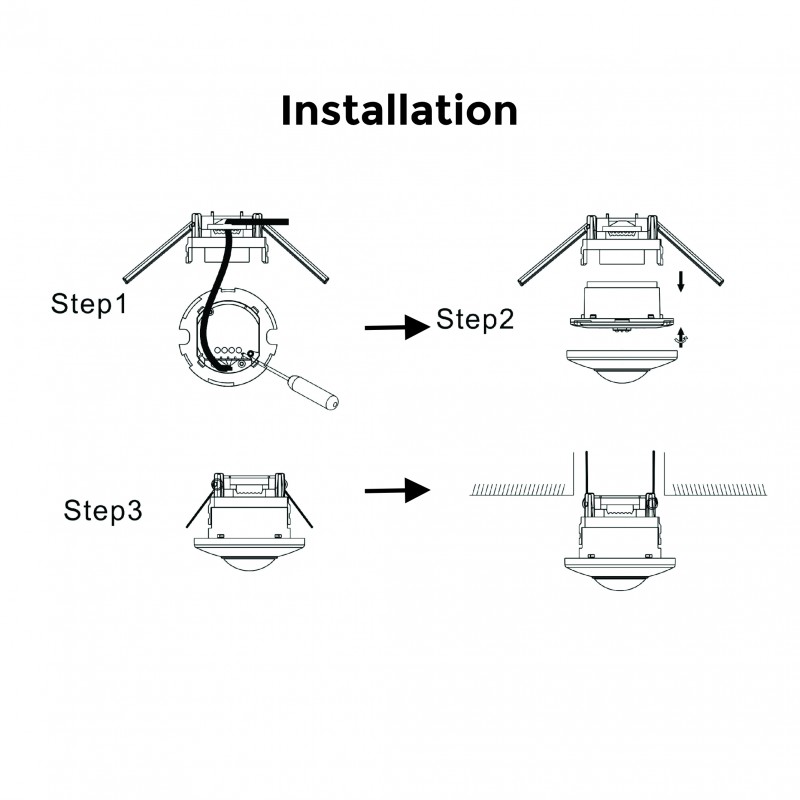

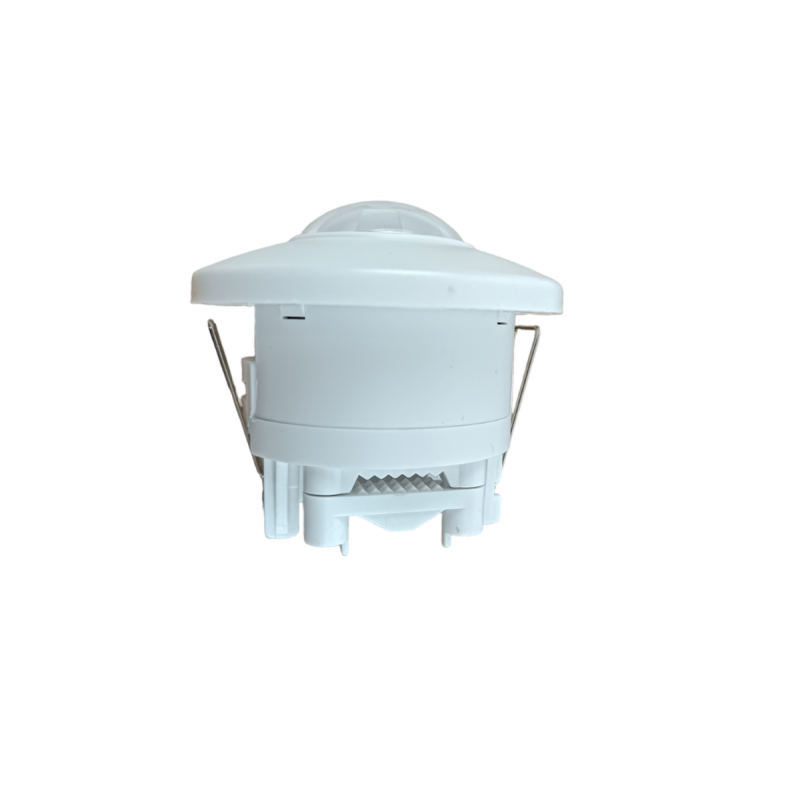

Recessed installation:

- Loosen the screws of the connection terminal and then connect to the connection terminal of the sensor according to the wire connection diagram.

- Bend the metal spring of the sensor upwards until it is in position "I".

- Place the sensor in the installation hole or box in the ceiling, when the spring is released, the sensor will be placed in the installation position.

- Once installation is complete, turn on the power and test it.

Main product features:

  • Rated voltage: 220-240V/DC

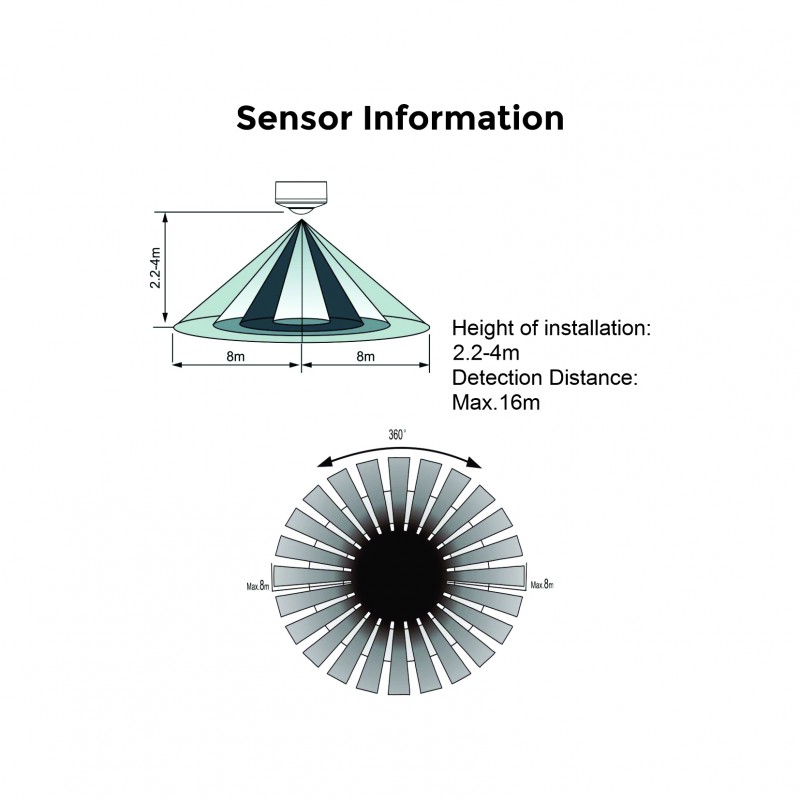

  • Maximum range: 16 meters
  • Detection angle: 360°.
  • Adjustable light sensor: <10-2000LUX
  • Max. load: 1000W LED, 2000W incandescent
  • Standby time: Min. 10sec ± 3sec / Max. 15min ± 3min
  • Installation: surface or recessed
  • Installation height: 2.2 - 4m
  • IP20: indoor use
  • Dimensions: Ø74 x 46.5 mm
  • Cutting dimensions: Ø73 mm

Nominal Voltage (V)
220 - 240 V/AC
IP
IP20
Dimensions (mm) Lxlxh
Ø74x46.5
Frequency (Hz)
50 - 60
Detection angle (º)
360
Detection range (m)
16
Cutting dimensions (mm)
Ø73
Use Outdoor
No
Temperature range
-20°C ~ +40°C
Certificates
CE
ROHS
Warranty
According to legal guarantee: 2 years
