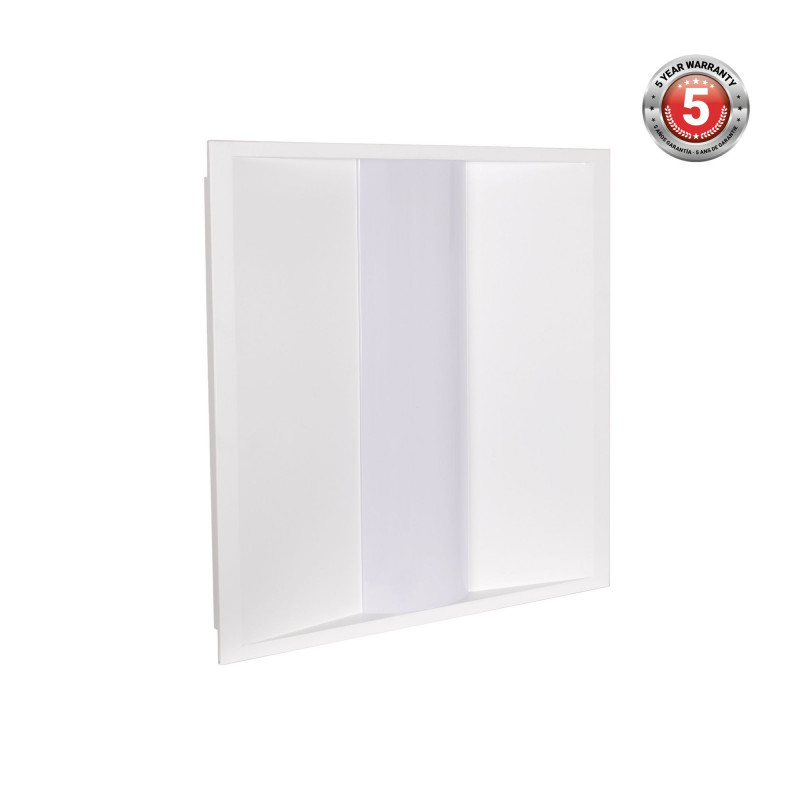

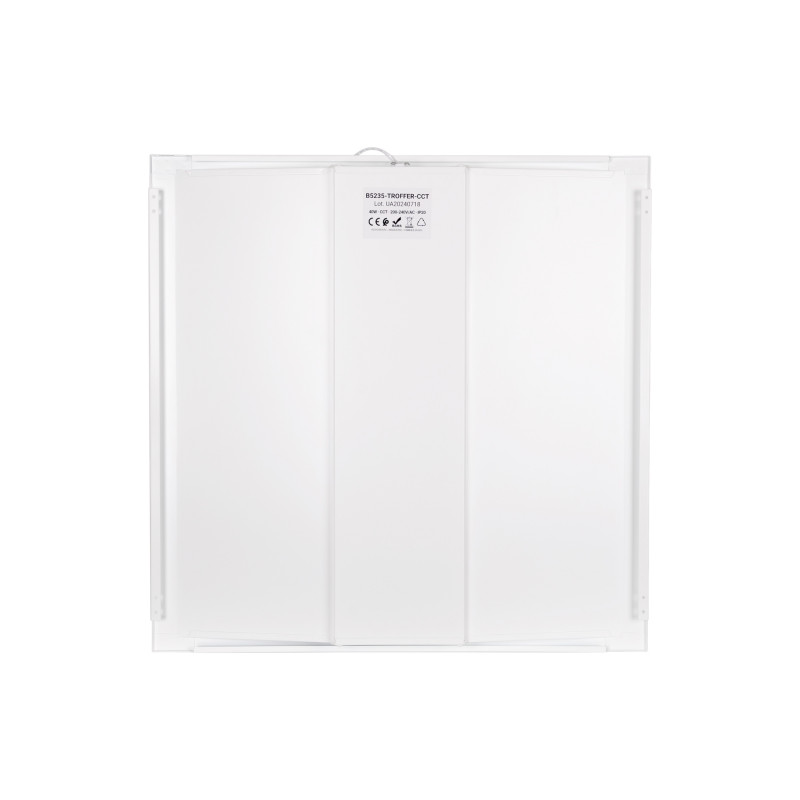

Recessed LED Troffer Panel 60x60cm - CCT - 40W - OSRAM Chip - Philips Driver - UGR18

SKU:B5235-TROFFER-CCT
Has superado el límite de unidades
In stock 499 units
Data sheet

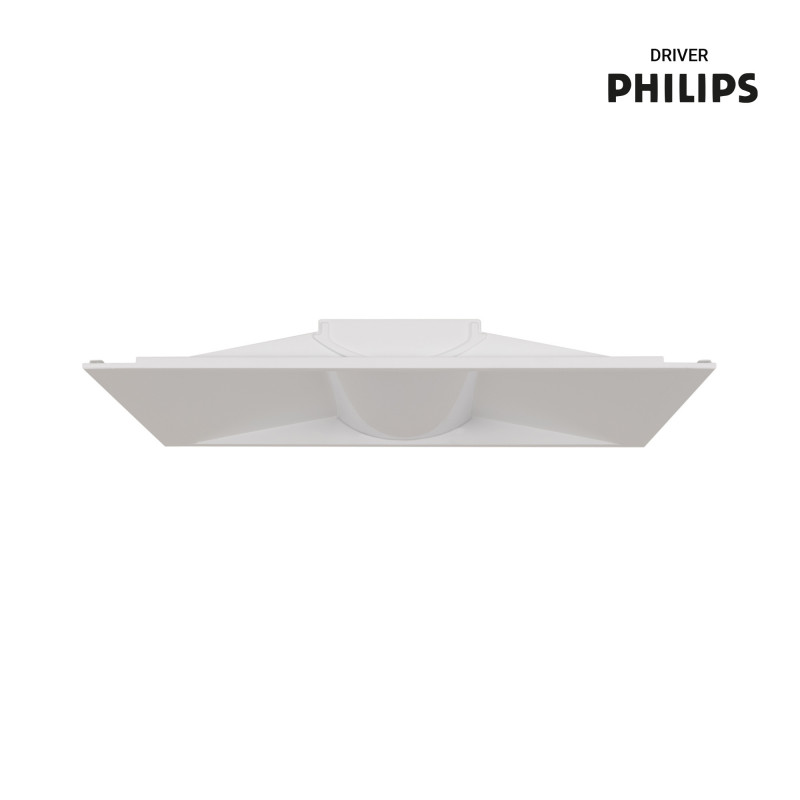

The Troffer 40W LED Panel provides uniform and glare-free illumination, thanks to its OSRAM chip and high quality PHILIPS driver.

With an efficiency of 120 lm/W and adjustable CCT system (3000K, 4000K, 6500K), it adapts to any space.

5 years warranty** ** 5 years warranty** ** 5 years warranty** ** 5 years warranty** ** 5 years warranty** ** 5 years warranty

Shipping to Africa available
public
For any shipping requests to Africa, please contact our sales department at:  comercial@barcelonaled.com

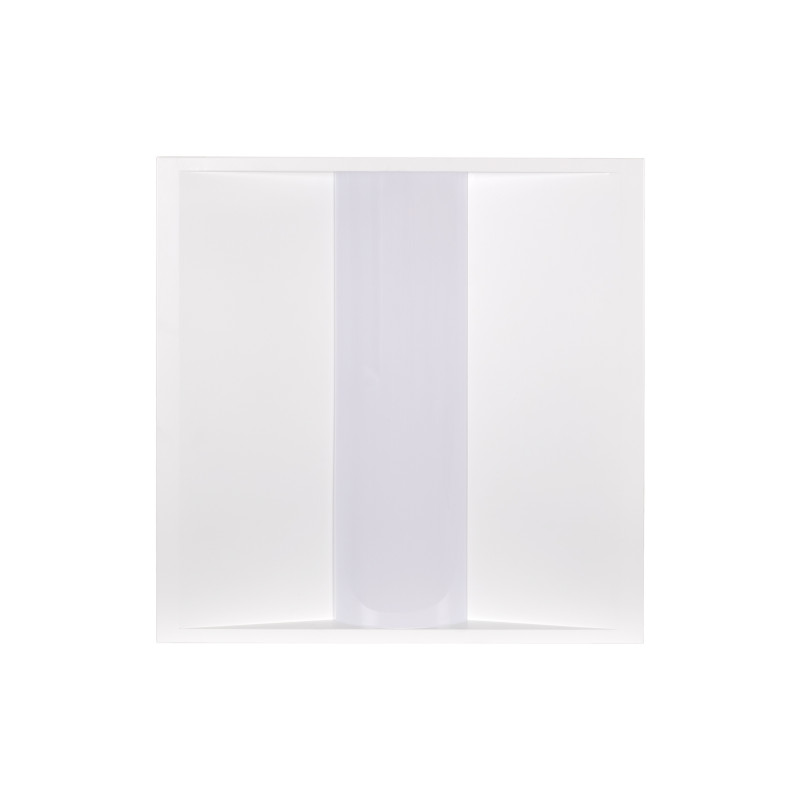

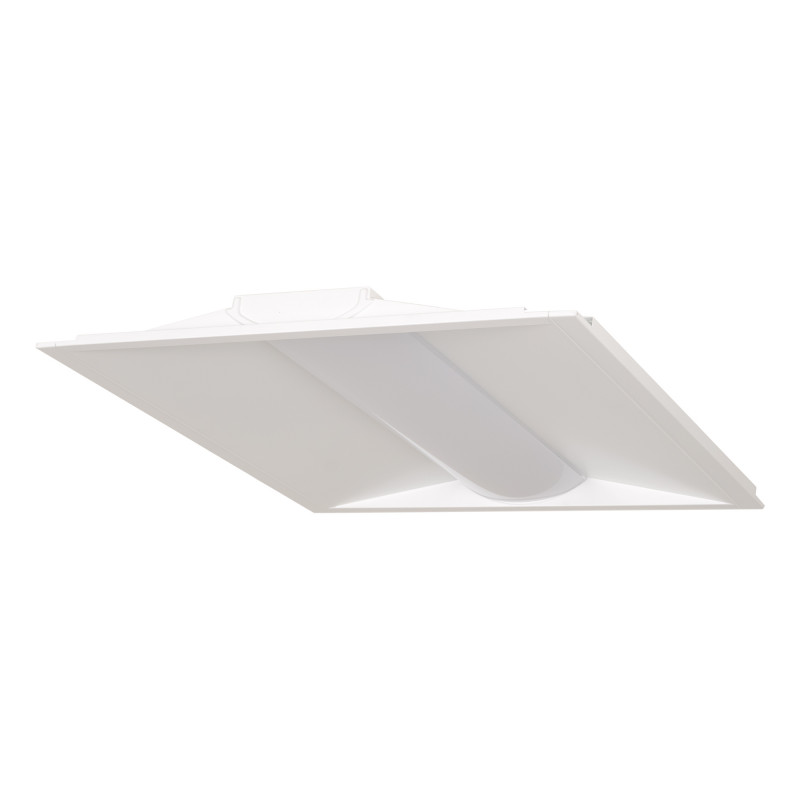

Troffer LED Panel 60x60 cm: Innovation in design and visual comfort

Optimize your spaces with a LED panel that combines high efficiency and design for residential or professional environments.

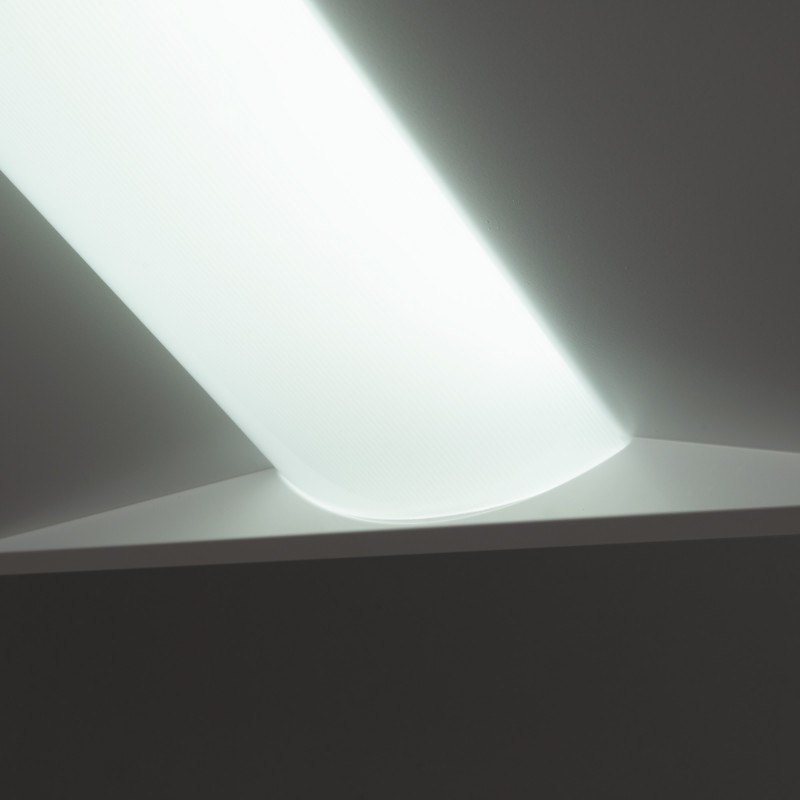

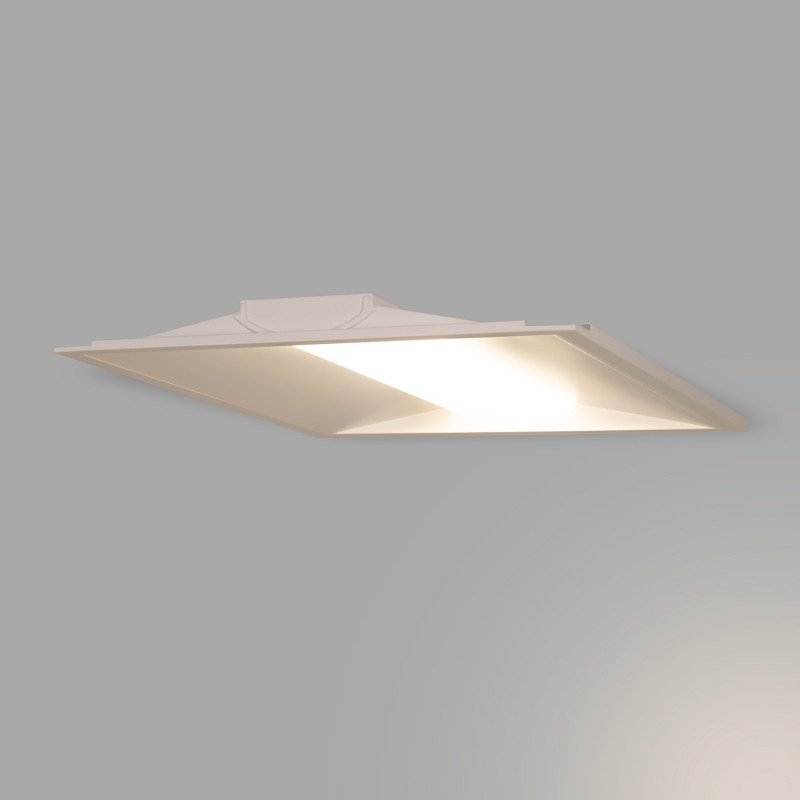

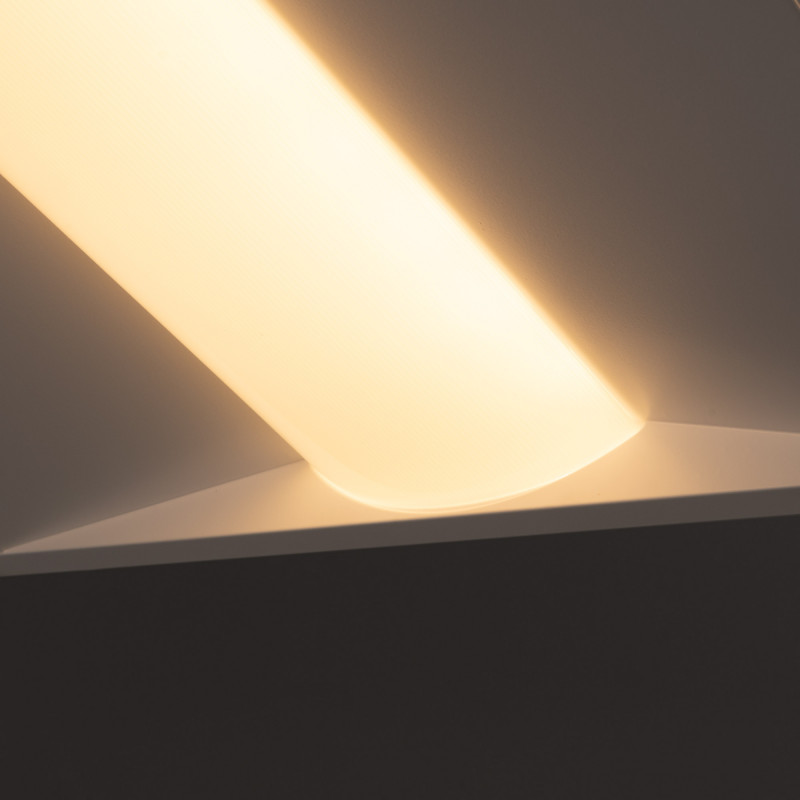

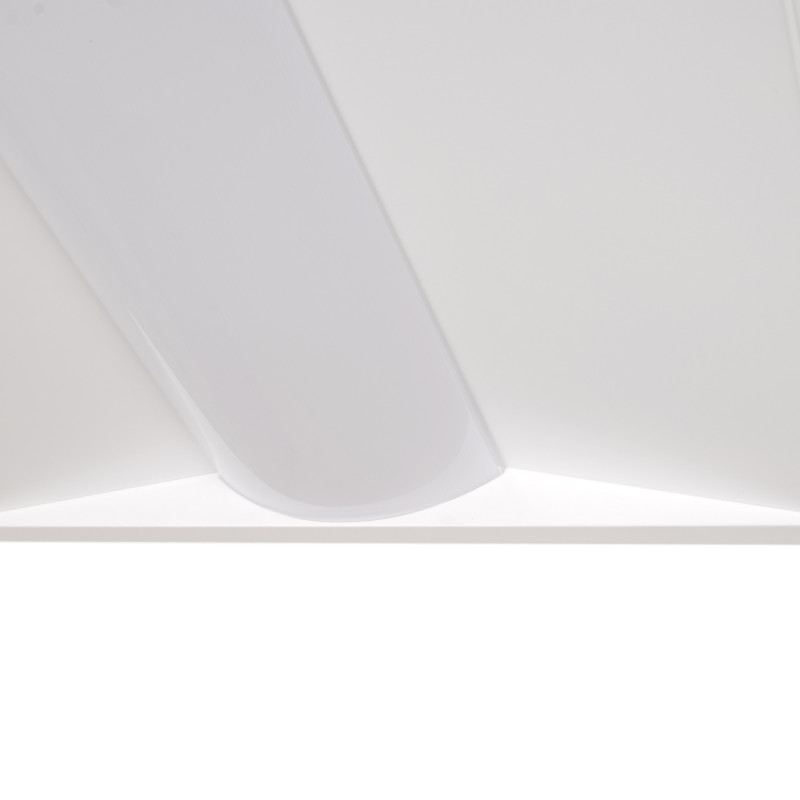

  • Low glare: Its troffer design guarantees homogeneous illumination with a low glare index (UGR<18).

  • Luminous efficiency: With 120 lm/W, it combines light output and energy savings.

  • High color rendering: Its CRI>80 guarantees natural and true-to-life colors, similar to daylight.

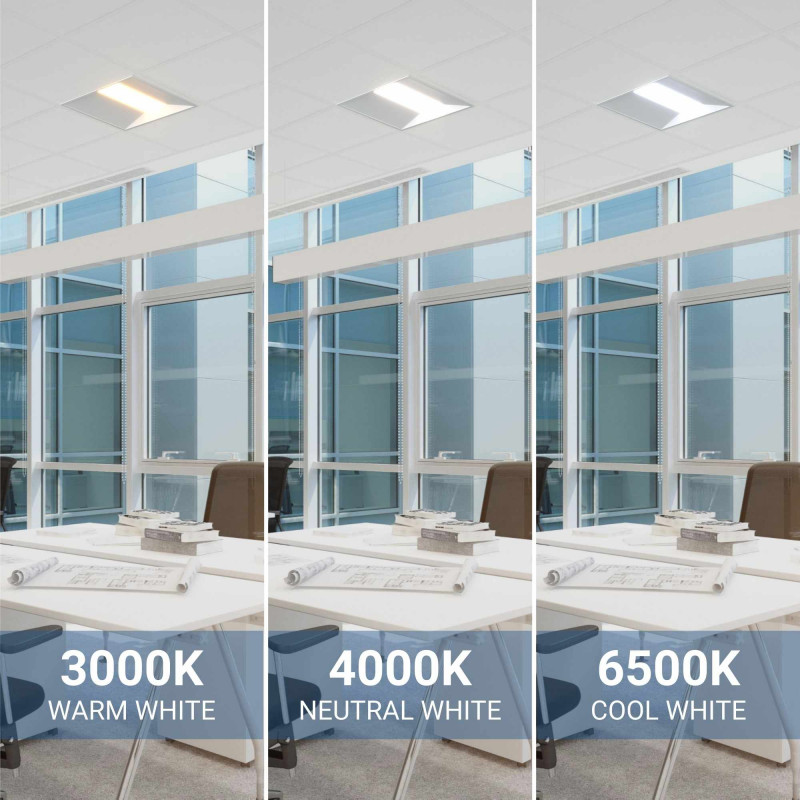

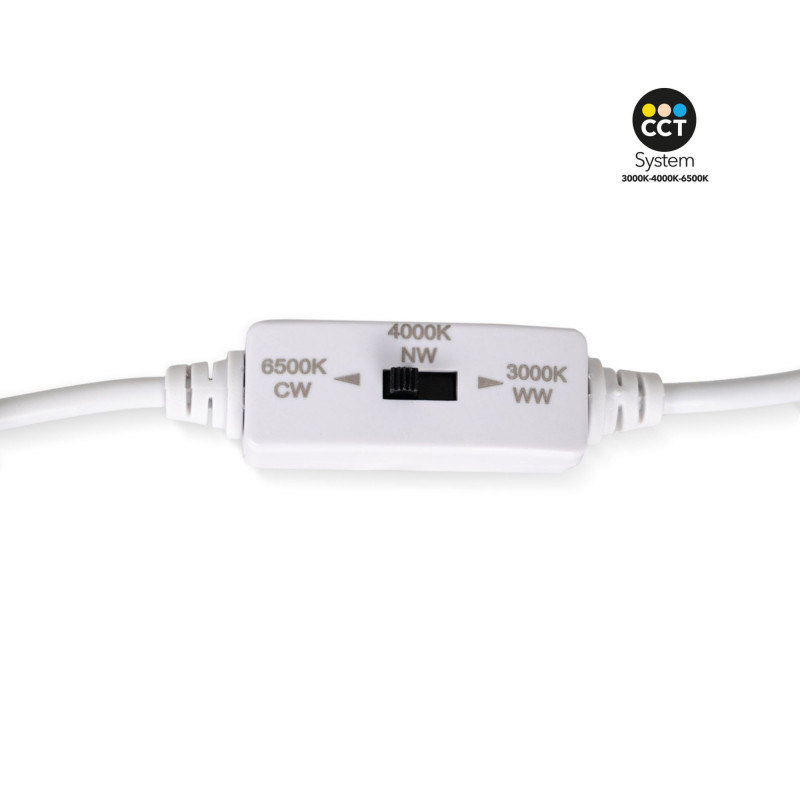

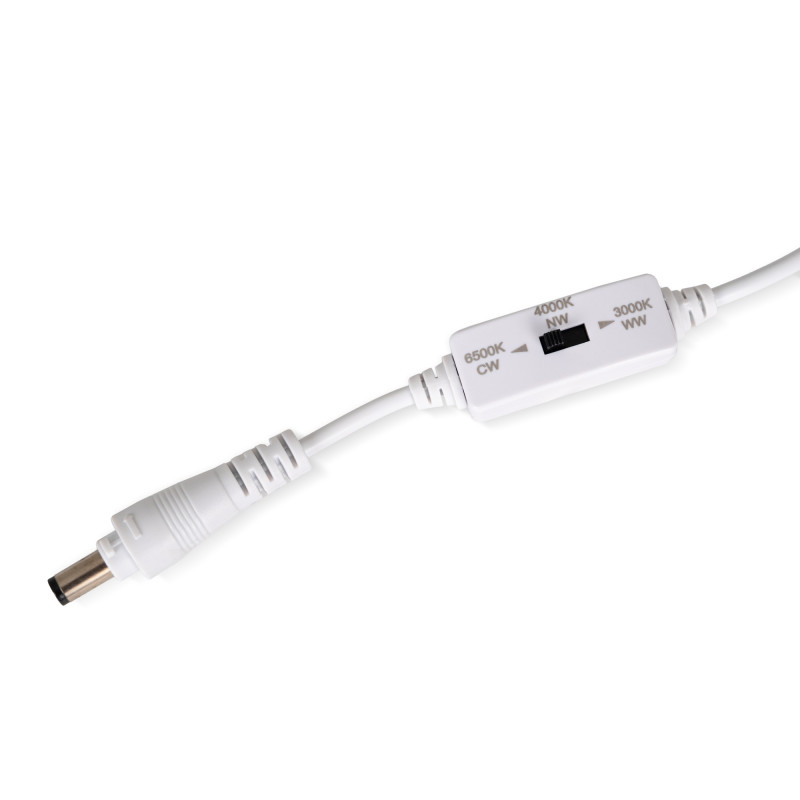

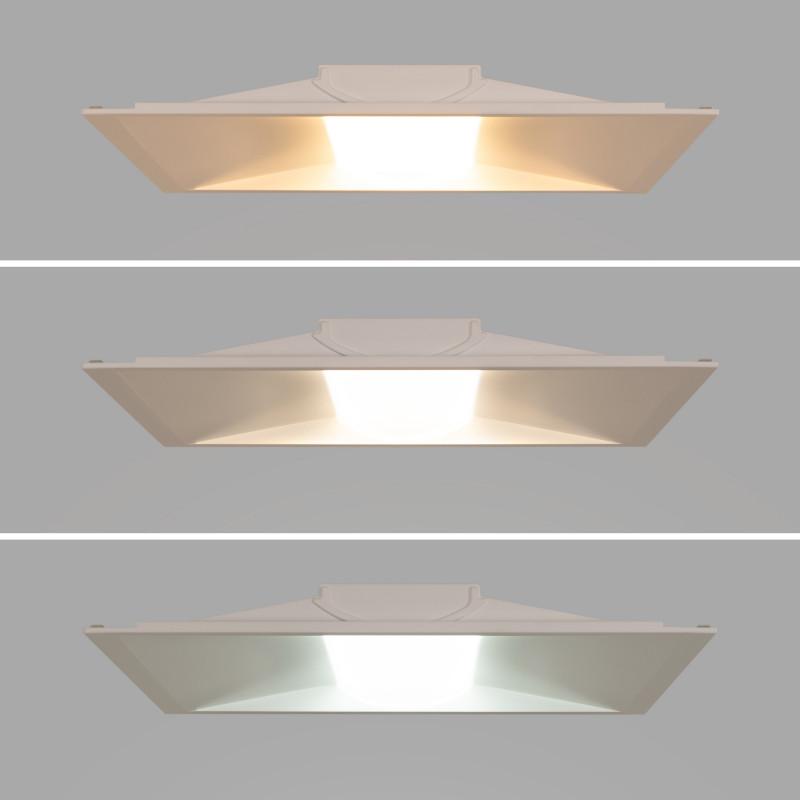

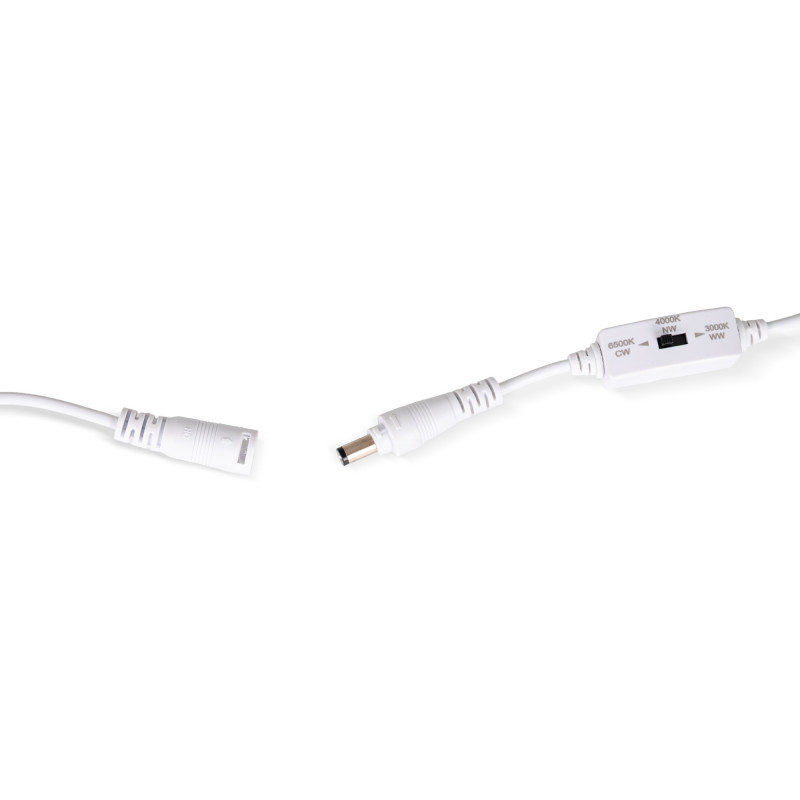

  • CCT system: Adjust the color temperature according to your needs between warm white (3000K), neutral (4000K) or cool (6500K), by means of an integrated switch.

  • Professional design and durability: Ideal for indoors, it features IP20 protection and is backed by a 5-year warranty.

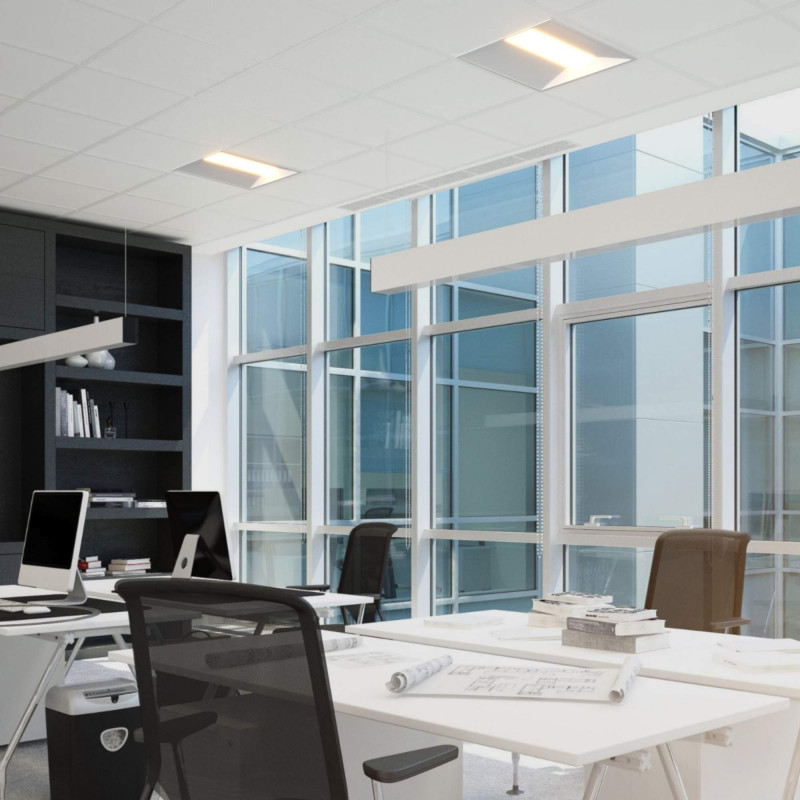

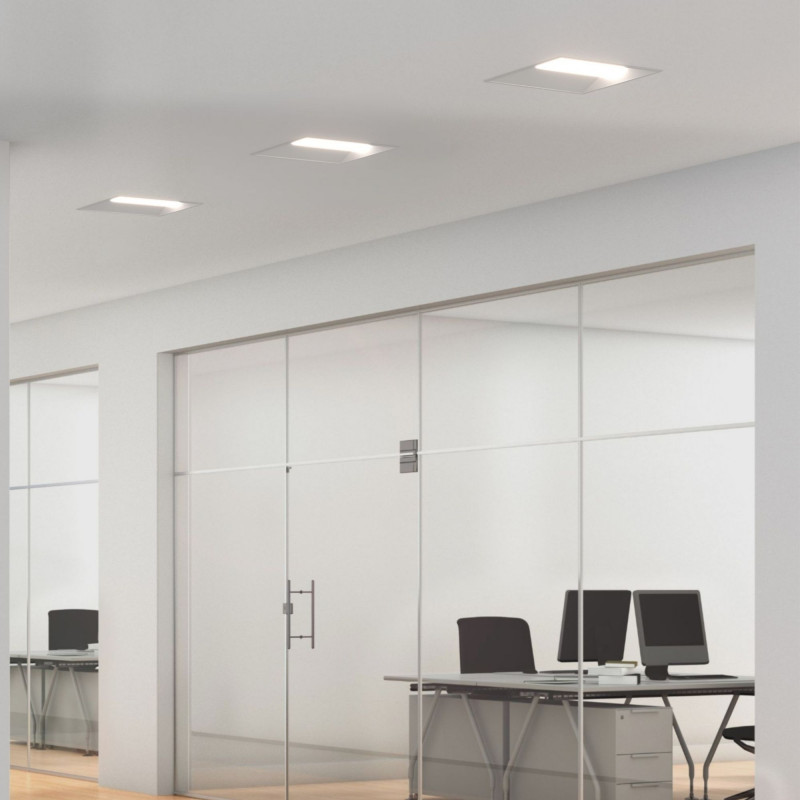

  • Easy installation: It is designed for recessed installation in false ceilings or directly into plasterboard using a recessed frame (not included).
Nominal Voltage (V)
220 - 240 V/AC
Power (W)
40
Lumens (Lm)
4800
Kelvin (K)
3000
4000
6500

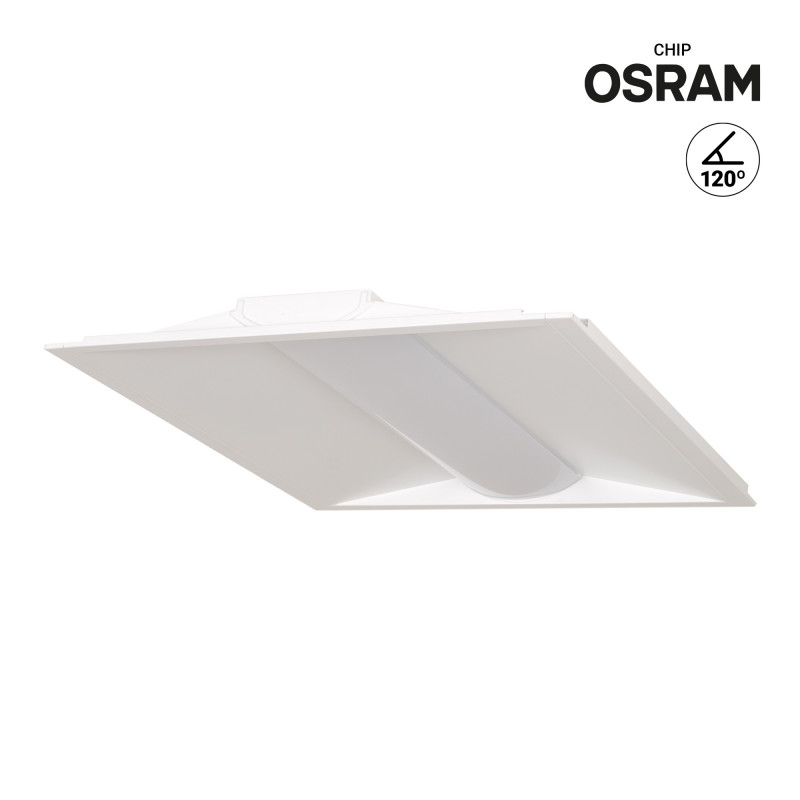

Beam angle (º)
120
IP
IP20
Frequency (Hz)
50 - 60
Hue
CCT
Efficiency (Lm/w)
120
CRI
80-85
LED Type
Chip OSRAM
SMD 2835
Dimmable
No

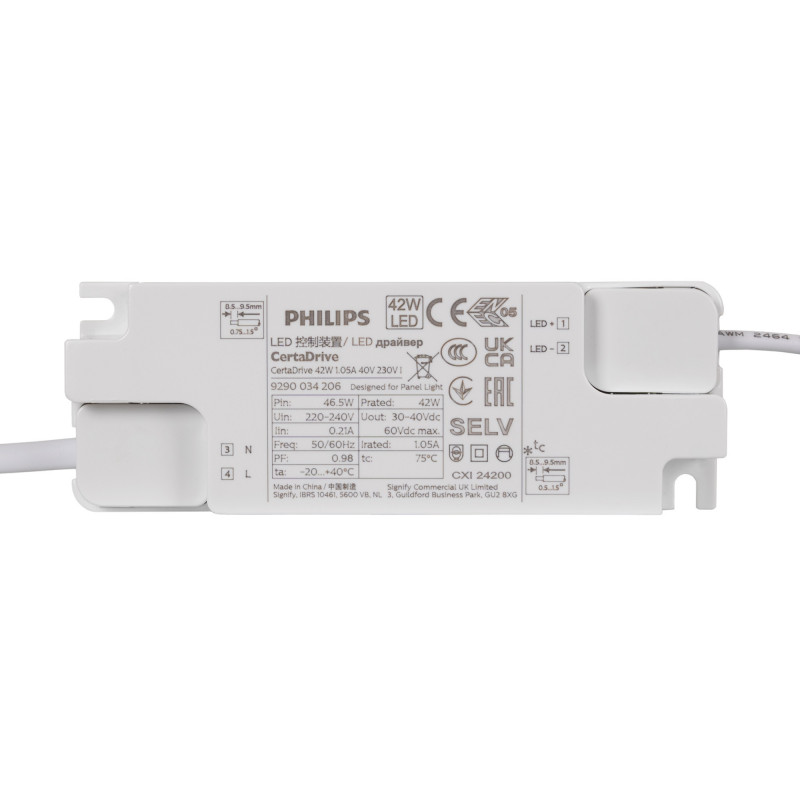

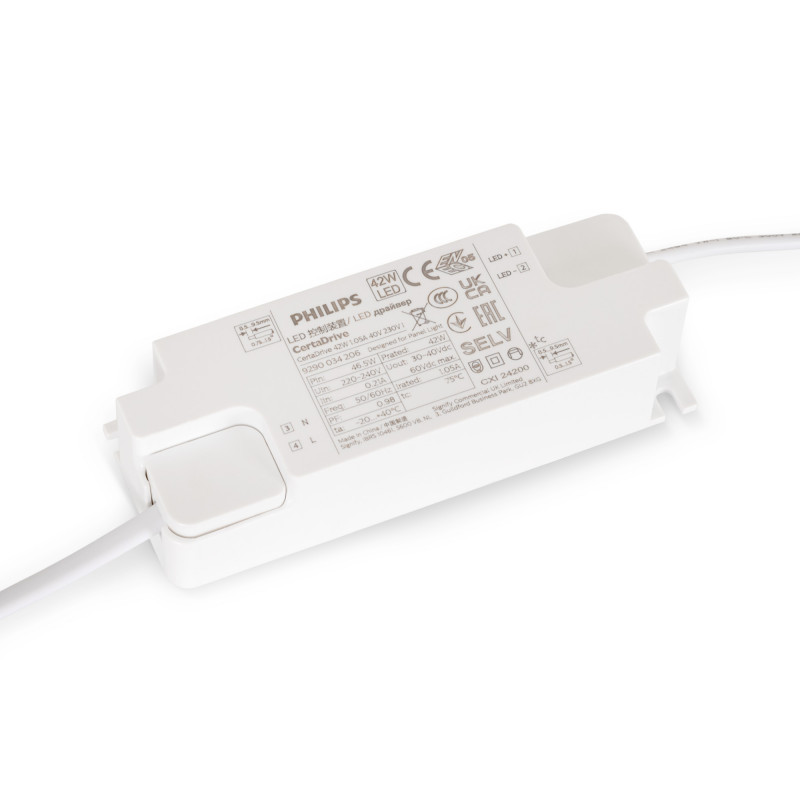

Driver
External
Philips
Orientable
No
Use Outdoor
No
Energy efficiency class
E
Certificates
CE
ROHS
Warranty
5 years
LED Panel dimensions
60x60
