4 zone DALI CCT touch switch

The SR-200TS-CCT touch switch is a touch controlled dimmer switch with DALI output. The CCT system offers the following advantages:

• Adjustable light color, different lighting tones in one.
• Fully customizable lighting.
• Multi-environments.
• Solution for frequent changes of tones.

Complies with standard DALI protocol for dimming and switching 4 light zones. Each DALI device can install multiple dimmer switches.

Touch switch with heavy-duty tempered glass panel for smooth dimming and flicker-free switching functions. CCT dimmer and color dimmer of LED lights compliant with standard DALI protocol and compatible with various DALI devices.

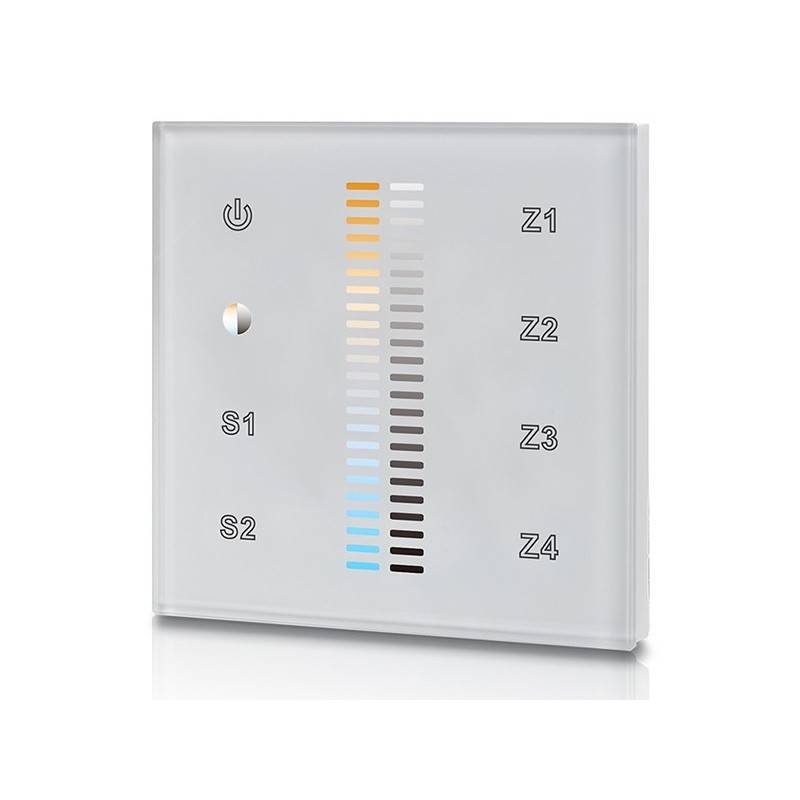

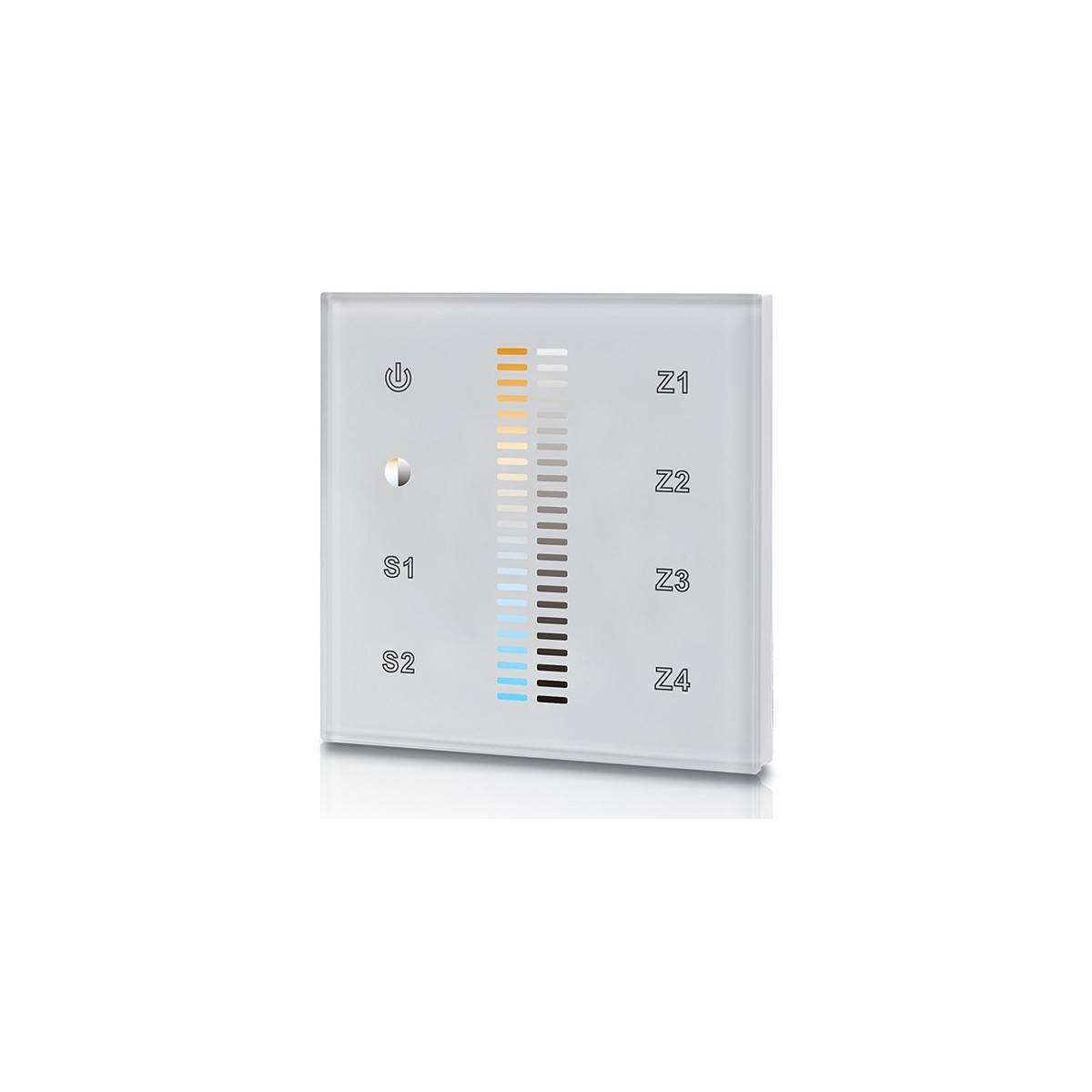

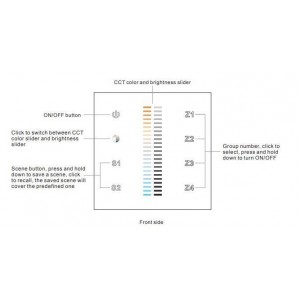

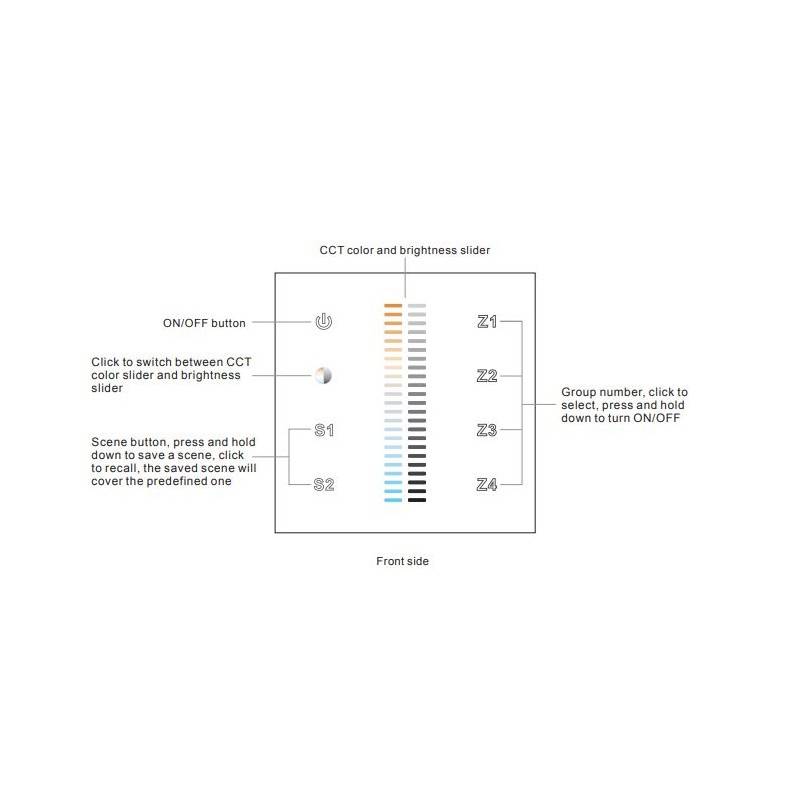

Button to switch between CCT, with color and brightness slider in the center. 2 scene buttons, press and hold to save a scene, click to play the loaded scene.
to play the loaded scene. 4 zone buttons to select. Press the zone to select and press and hold to turn on and off.

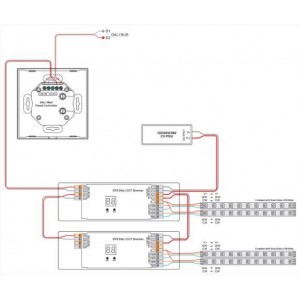

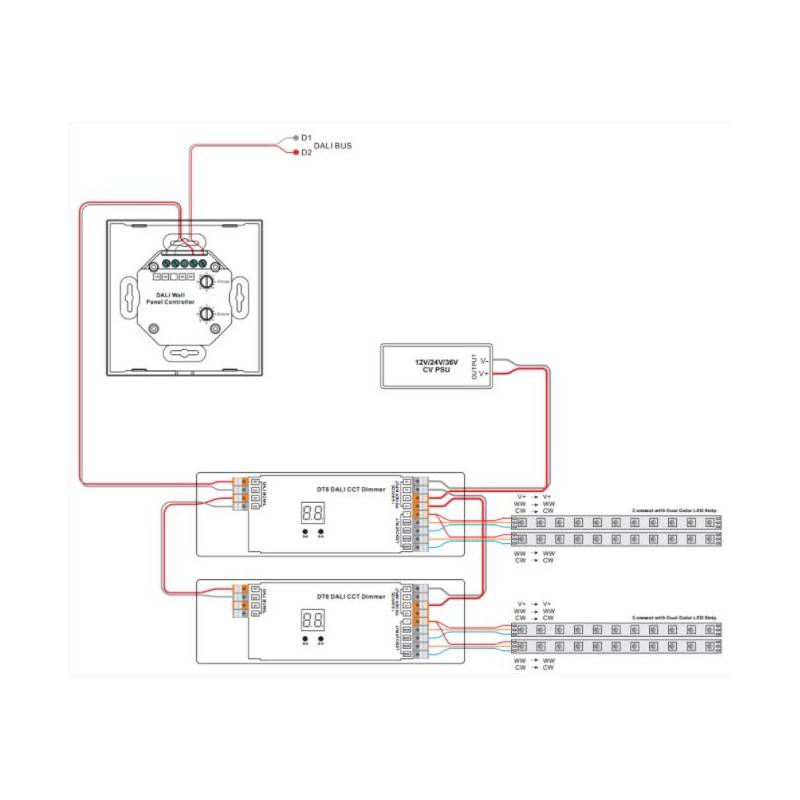

This touch switch is compatible with SRP-2305-50CC (DIM (Max CCT); SR-2303BEA (4A 2Ch); SR-2303SAC-HP (1A); SR-2400P.

Controls up to 4 zones

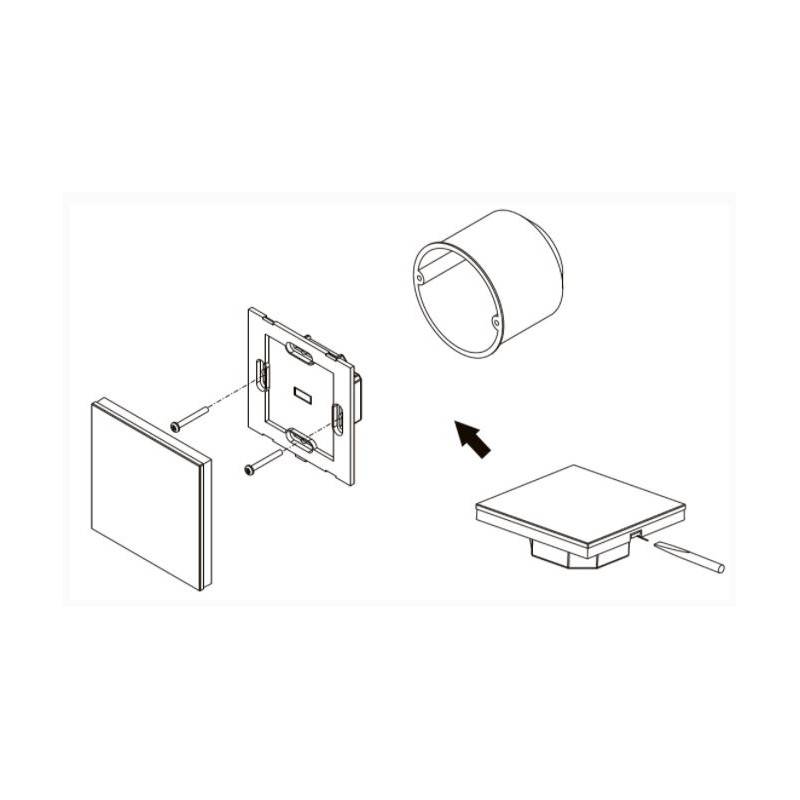

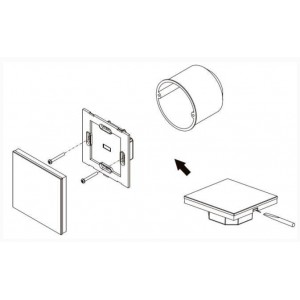

Touch control panel allows control of 4 zones with 2 customizable scenes, brightness and color dimming. European standard size switch offers easy installation, with instruction manual inside the box. Compatible with multiple 12-24V-DC devices.

Controls different types of LED lighting. Status indication of LED lights on panel.

DALI dimming and is specially designed for evenly dimmable LED lighting, with no dimming jumps, no flickering, and no noise.

Main features

• Touch sensitive.
• Tempered glass interface.
• Complies with DALI standard protocol IEC 62386-102, IEC 62386-207, iec
  62386-207, IEC 62386-209.
• Enables to control 4 DALI groups and 2 DALI scenes.

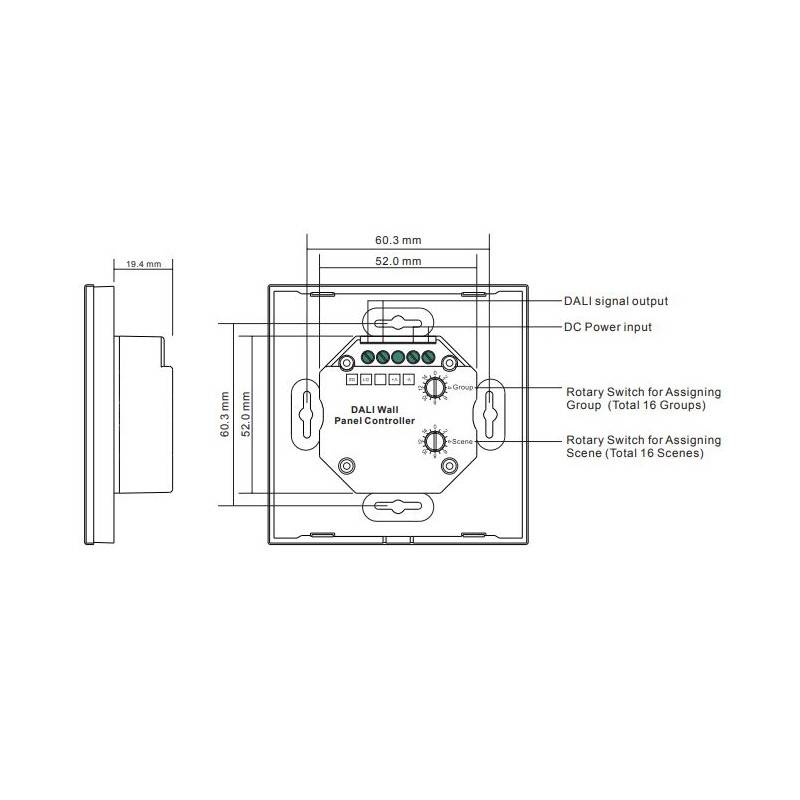

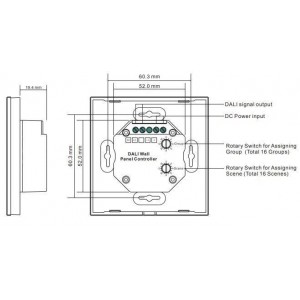

• Enable to set the initial DALI group number (0-15) and scene
  number (0-15) by means of rotary switches on the back.
• Supports DT8 devices
• Color temperature setting according to DALI, color type Tc.
• Each DT8 device is controlled via a single DALI address.
• Available in European standard size.
• Compatible with SR-2303BEA (4A); SR-2400P; SRP-2305-50CC (1A); SR-2303SAC-HP (1A).
• DALI certified.
• TUV CE certified.

DT8 DALI Dual Color Touch Controller technical characteristics

• 12-24V-DC
• 200 mA.
• Output: DALI signal.
• Power consumption: 200mA.

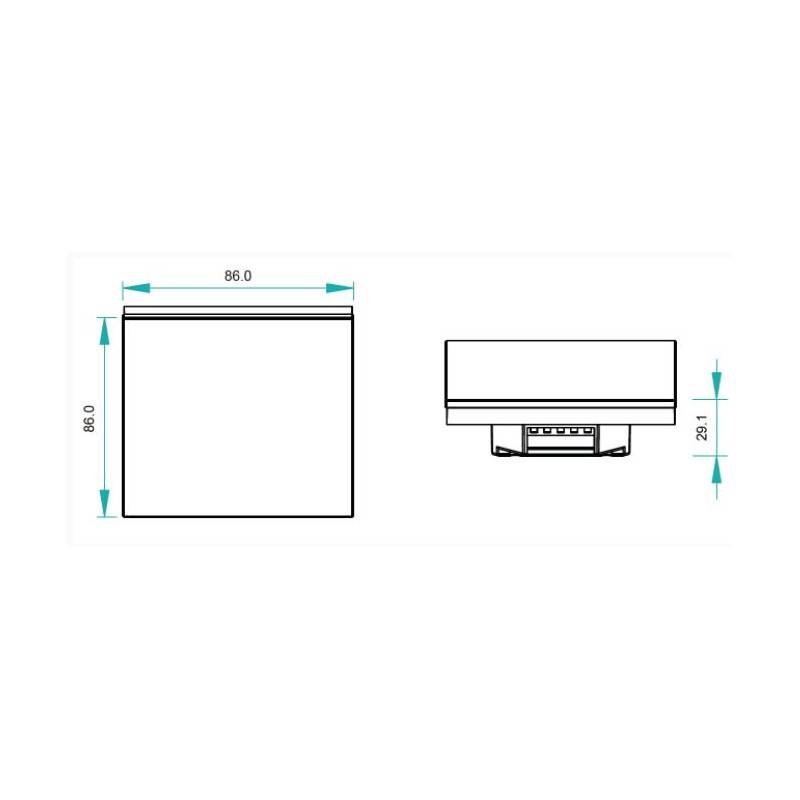

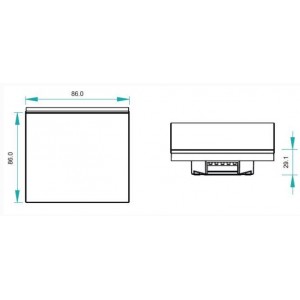

• Dimensions: 86x86x29.1mm
• IP20
• Certifications: CE, RoHS, TUV.
• Two-year warranty.
