Mini controller RGB WIFI 5-28V for iOS/Android - Alexa - Google Home
SKU:B1611
€13.95
Tax included
Shipping to Africa available
For any shipping requests to Africa, please contact our sales department at: comercial@barcelonaled.com

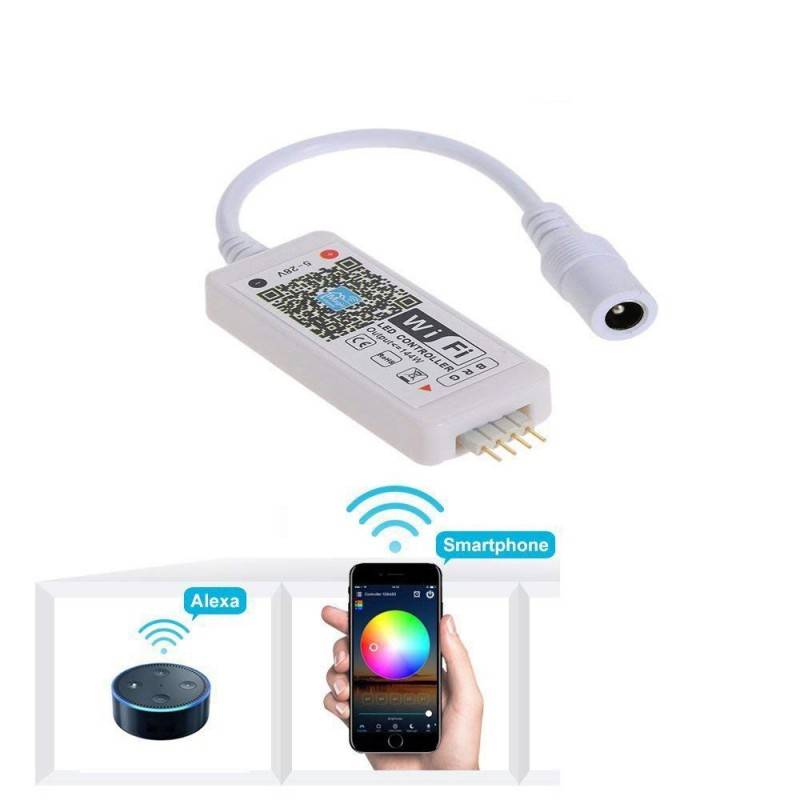

Mini RGB WIFI controller 5-28V
controller for RGB LED Strip. The mini RGB WIFI controller allows you to manage RGB LED installations very easily and remotely thanks to its WIFI connection and control via mobile application MAGIC HOME (free download by scanning the QR code on the surface of the unit).
Installation is also very simple, just connect the controller to a 5 to 28V power supply at the input and to the RGB installation at the output.
The most economical, easy to install and simple way to control your RGB LED fixture.
Technical specifications:
- Working temperature: -20º to 55ºC.
- Supply voltage: 5 to 28V DC
- Size: 53x24x11mm
- Connection mode: Common Negative / Common Positive
- Connection to local wifi network and control via mobile application.
Features:
- Compatible with any RGB LED wired installation (RGB LED strips, RGB Beacons, RGB Projectors etc...).
- Cross-fading, flashing, dimming and constant color pattern changes.
- Infinite color combinations.
- Adjustable brightness, color, color temperature and speed control.
- Can support up to 144W of power without the need for a signal repeater or additional power supply.
- CE and RoHS certifications
Nominal Voltage (V)
5/28V-DC
Power (W)
60-336 máx.
Lifetime (h)
25000
IP
IP20
Dimensions (mm) Lxlxh
53x22x10
Detection range (m)
25000
Sensor
Yes
Control system
12/24V-DC
Output voltage (V)
0/24V-DC
Colour control
RGB
Connectivity
WIFI
Number of channels
4
Material
Plastic
Use Outdoor
Yes, in a watertight box
Temperature range
-20 ~ +50°C
Frequency of use
Normal
Energy efficiency class
A+ (2021)
Certificates
CE
ROHS
ROHS
Warranty
According to legal guarantee: 2 years
Number of zones
1
Maximum intensity (A)
4A/channel
Questions
| P: Question: | Good morning. Does it have the app, music control? |
|---|
| R: Answer: | If the App has options to select music from the cell phone or activate the microphone. |
|---|
| P: Question: | Is it possible, apart from regulating the color and intensity with the mobile application, to operate the LED strip connected to this controller as a normal lamp (I mean, by pressing a button or switch)? |
|---|
| R: Answer: | If you turn the controller power off and on, it will return to its last state. If you power off from the mobile APP you will not be able to power on with the switch. The controller will have a short delay to reconnect to the wifi network and use the APP. |
|---|
| P: Question: | Good, I am looking for a controller that is compatible with alexa in the region of spain. with that skill connects? What app has this controller? |
|---|
| R: Answer: | This device works with the Magic Home APP, there are other models of RGBW controllers with the Tuya APP ref. B1645. |
|---|
| P: Question: |
It is valid for rgb par 56 spotlights. If not, which one do you recommend for two 45w bulbs? Thanks |
|---|
| R: Answer: | The PAR56 is not normally controlled by 4 wires, the control electronics go inside and must be a model from the same manufacturer. This controller needs 4 connection wires |
|---|
| P: Question: | To use this controller with the mobile app, is it necessary to be connected by wifi to the internet? |
|---|
| R: Answer: | The RGB controller must be linked to the local wifi network so that the APP and the mobile are always connected and by sharing the same wifi network does not have to be changed in the mobile settings each time it is used. Also to be able to control by voice commands if you have in the same wifi network Alexa or Google home. On the other hand the controller generates its own wifi network LEDnetXXXXXXXX and can be connected only to this network to control with the APP without using the local wifi, or register in the application. |
|---|
