RGB+CCT touch control panel - 1 zone - RF 2.4GHz - Black - Milight

SKU:B0-RGBCCT
Has superado el límite de unidades
In stock 81 units
Data sheet

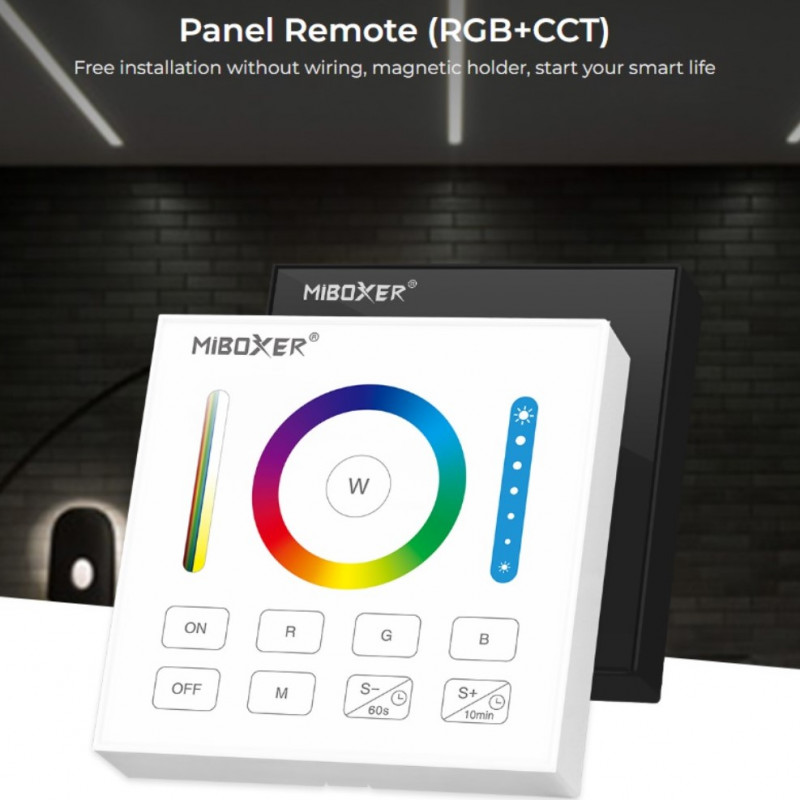

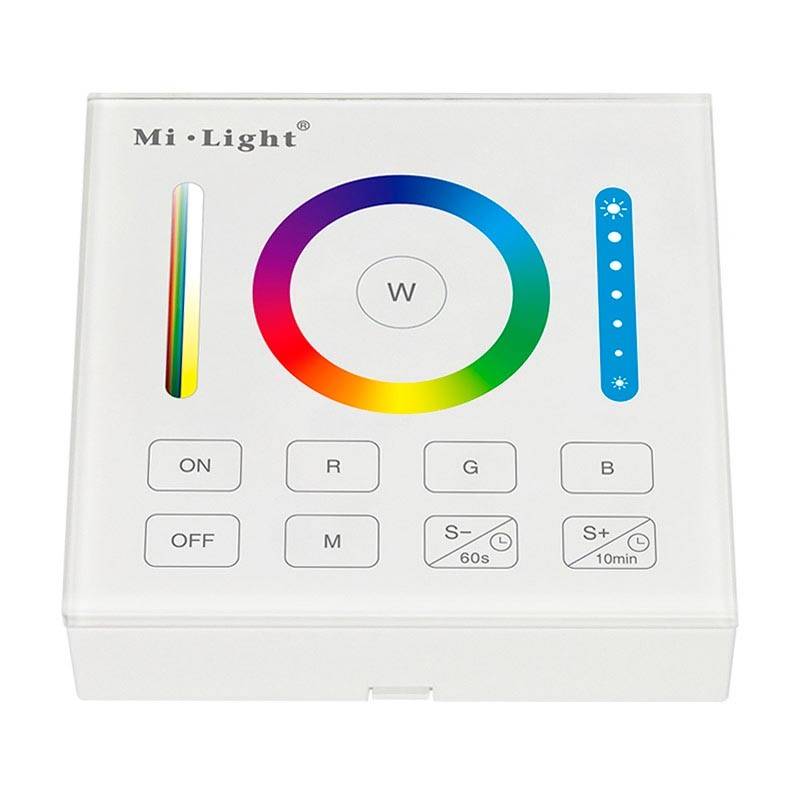

The Milight touch control panel offers complete lighting control for RGB and CCT LED luminaires.

With a sleek, high sensitivity touch interface it allows you to adjust brightness, saturation, color, speed in scenes and dynamic modes, etc.

Compatible with the Mi-Light/MiBoxer line of LED controllers.

** Powered by 2 AAA batteries - NOT included**

Shipping to Africa available
public
For any shipping requests to Africa, please contact our sales department at:  comercial@barcelonaled.com

Elegant and Practical Design

The Milight Touch Panel stands out for its modern and elegant white design, capable of elevating the aesthetics of any space.

Its backlit capacitive touch screen allows precise and intuitive control of lighting, with a range of up to 30m.

It features high speed 2.4GHz RF transmission with low power consumption.

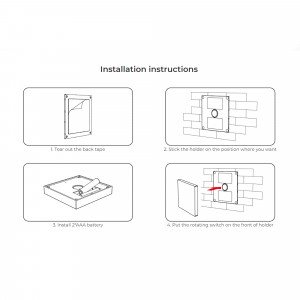

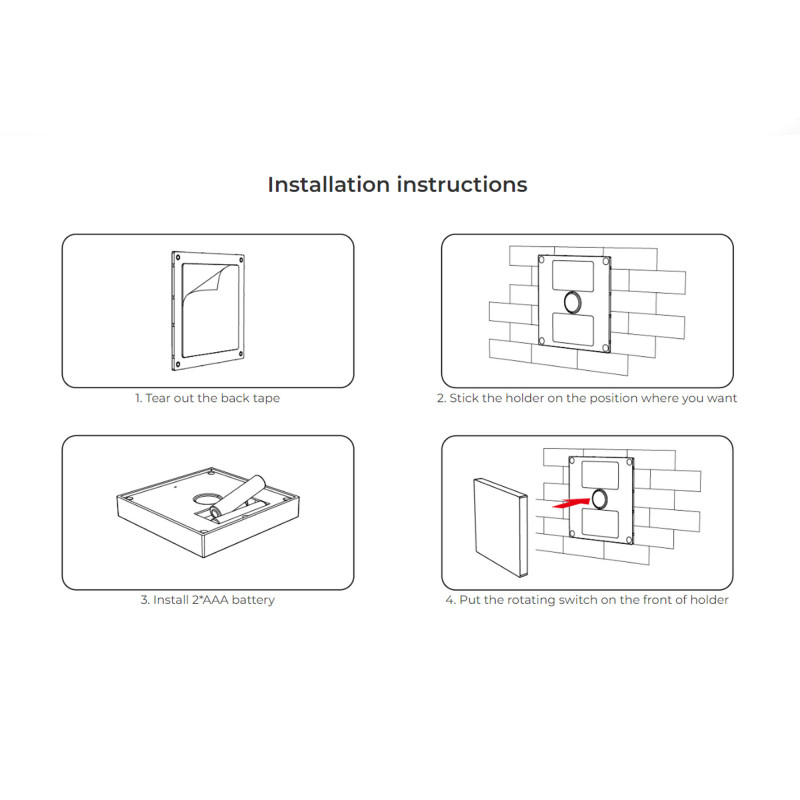

Installation is easy: the self-adhesive base is fixed to the wall and the panel is placed on it, being firmly attached by magnetism.

Versatile Lighting Control

This touch panel allows you to manage both RGB and CCT lighting with ease.

Through simple touches, it allows adjustment of brightness, colors and color temperature from warm white to cool white.

With full control over more than 16 million colors, you can customize lighting for any occasion. From cozy dinners to vibrant events, this panel gives you the freedom to create the perfect ambiance.

Key features:

  • 1 zone control.
  • Quick red/green/blue color activation via touch button.
  • Dynamic programs available.
  • Confirmation sound when pressing any key.
  • Compatible with RGB and RGB+CCT LED luminaires.
  • Allows to change the speed of the dynamic programs.

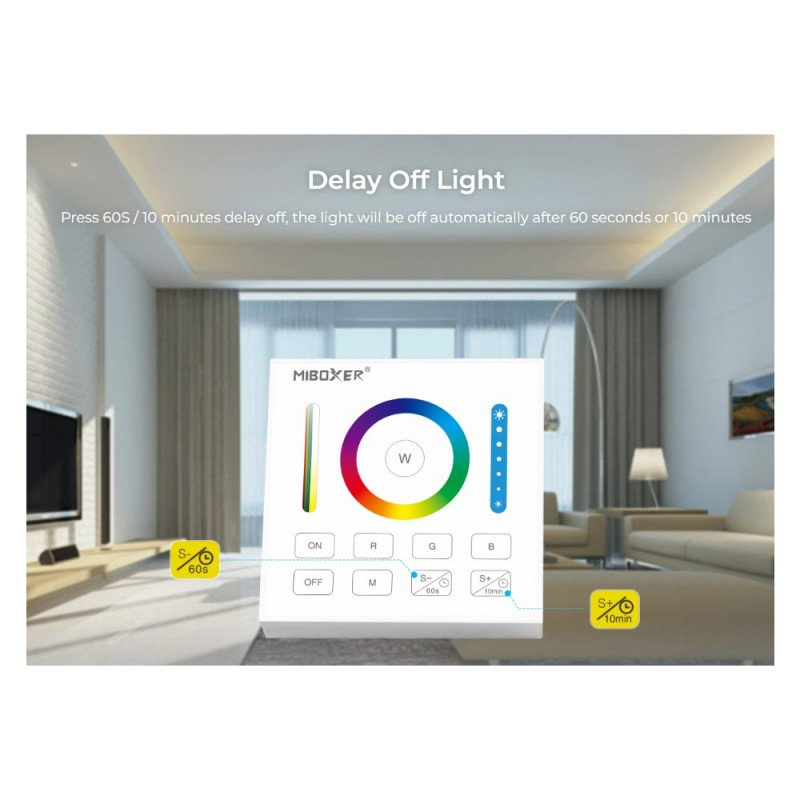

  • Automatic shutdown mode for lighting after 60 seconds or ten minutes.
  • Static colors available via touch buttons (RGB).

Product features:

  • 1 zone
  • Input signal: Touch
  • Output signal: RF 2.4GHz
  • Powered by 2 AAA batteries (not included)
  • Dimensions: 86 x 86 x 16 mm
  • Color: white
  • Indoor use: IP20
Lifetime (h)
30000
IP
IP20
Dimensions (mm) Lxlxh
86x86x16
Detection range (m)
30
Sensor
Yes
Colour control
RGB+CCT
Connectivity
RF
Battery Type
3V (AAA * 2PCS)
Use Outdoor
No
Temperature range
-10~40°C
Frequency of use
Normal
Energy efficiency class
A++ (2021)
Certificates
CE
ROHS
Warranty
3 years
Mi Light

Questions

P: Question: Good afternoon,
Does this RGB+CCT | Mi Light Remote Controller Panel work with any WiFi controller?
Thank you
R: Answer: Mr. Joaquim, this product is specifically compatible with Mylight products.
P: Question: Hello, To control FUT103 lamps with this panel, is there any other controller needed?
R: Answer: With this RGB panel you can control the GU10 FUT103
P: Question: Which E27 bulbs are compatible with this unit?
R: Answer: The bulb compatible with this controller model in E27 thread is ref. B1404RGB+CCT.
P: Question: Is this device watertight? It could be used in a bathroom.

What led strip or spotlights are used with this controller?
R: Answer: This controller is for mi-light brand products, it is ip 20, it is not waterproof.
