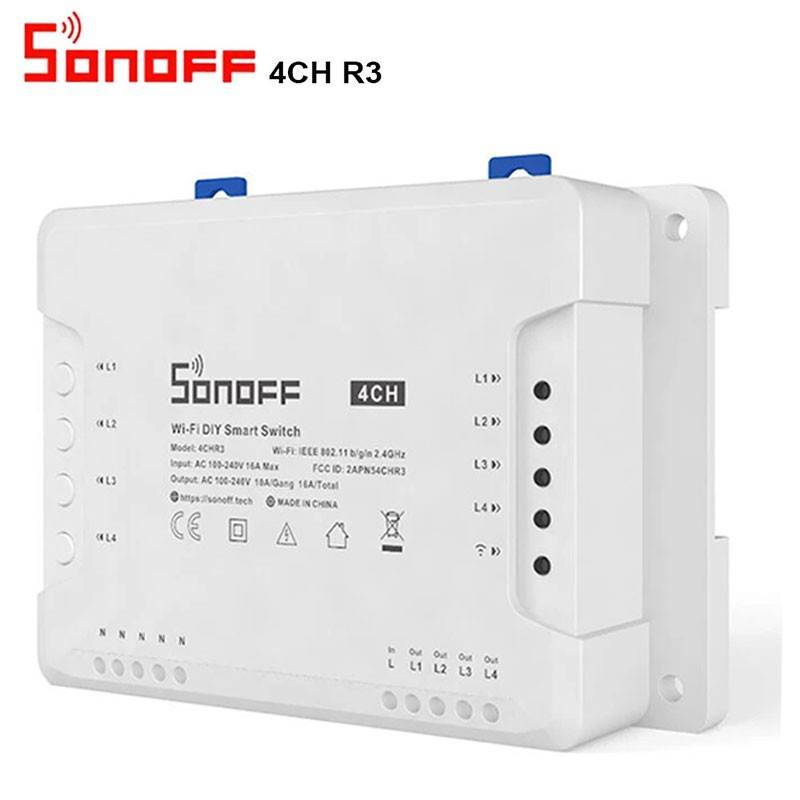

SONOFF 4CH 4 Channel 10A WiFi Switch for Smart Home

SKU:SONOFF4CHR3
Has superado el límite de unidades
Out of stock
Data sheet

SONOFF 4CH 4 -channelswitch that allows remote control of up to 4 independent devices or luminaires. Prepared for DIN rail mounting.

Controls the switching on and off of the elements connected to each channel via WiFi, through iOS / Android smartphone device with the eWeLink app and through Smart devices such as Google Home or Amazon Alexa.

  • 4 channels
  • WIFI
  • 2200W / 10A
  • IP20

Shipping to Africa available
public
For any shipping requests to Africa, please contact our sales department at:  comercial@barcelonaled.com

SONOFF 4CH Wifi 4 Channel Smart Switch | Smart Home

The SONOFF 4CH switch device is a 4-band on/off mechanism that supports connecting and controlling up to 4 electrical devices independently, through the eWeLink App. The main new improvement compared to the Sonoff 4CH R2 is that the Sonoff 4CH R3 allows users to configure the 3 working modes directly from the eWeLink App instead of the hardware itself, being easier to operate with the device. Integrate smart control into your home to transform it into a smart home.

interruptores inteligentes

Voice-activate your devices with Alexa and the Google Home smart assistant. If the device is away from the switch you can create a mobile space under a DIN rail for them to connect.

amazon alexa y google home

SONOFF 4CH switch features.

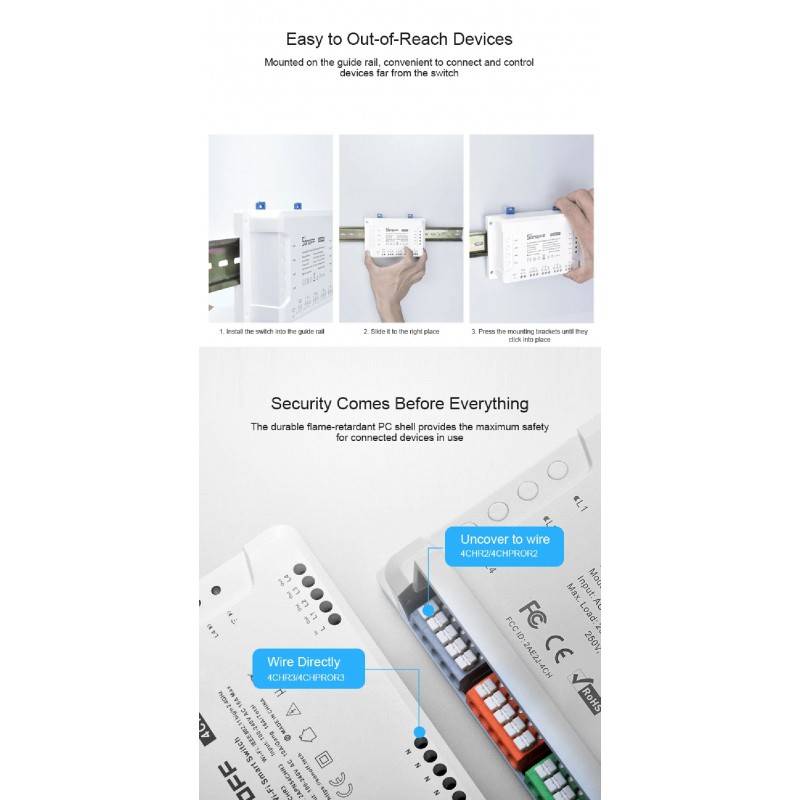

The SONOFF 4CH switch housing, made of flame retardant ABS plastic, is designed to fit on standard type metal DIN rail for switch mounting.

  • Remote on/off switching of 4 appliances or luminaires.
  • Synchronized display of the status of the devices through the application.

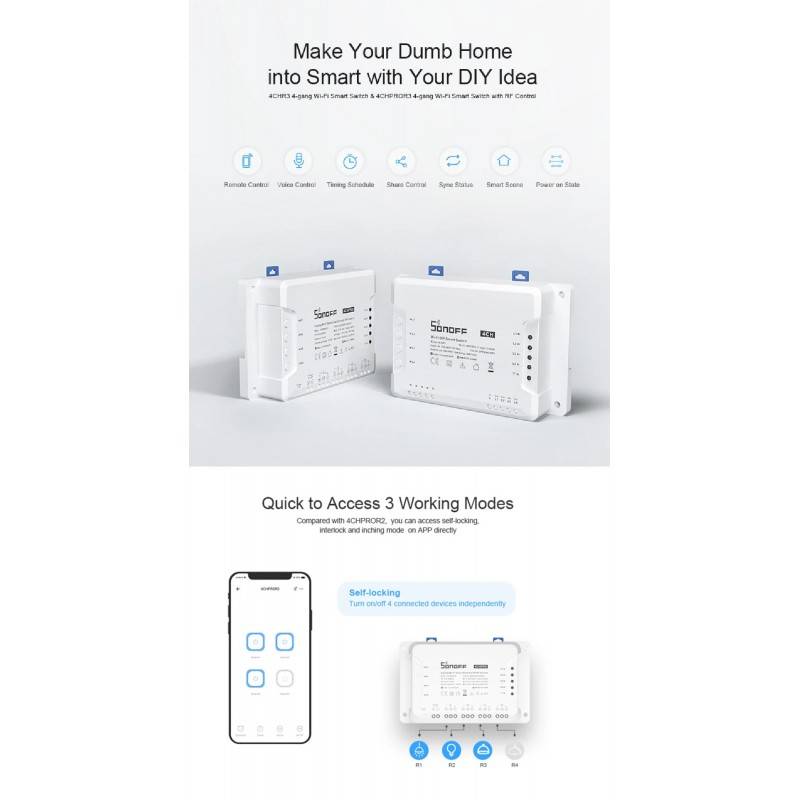

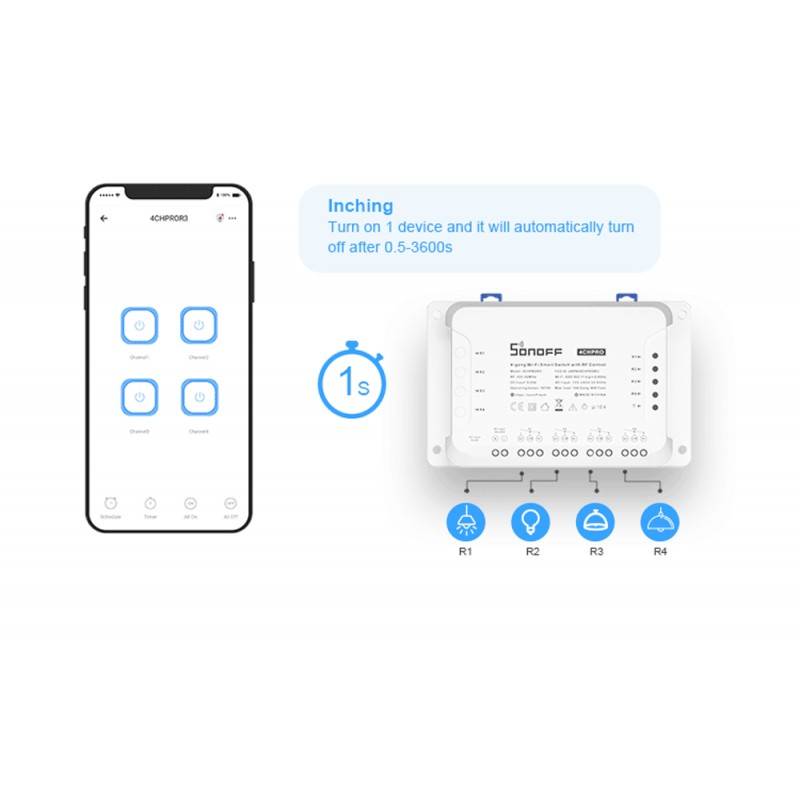

  • 3 working modes with self-locking, interlocking and slow forward.
  • Customize intelligent scenes.
  • Programmer / timer with countdown.
  • Share control permissions.
  • Amazon Alexa compatibility: Echo, Echo Dot, Echo Plus.
  • Compatibility with Google Home.
  • IFTTT functionality.

SONOFF 4 GANG WIFI

interruptor de control remoto

Smart switch modes

  • Auto lock mode: to turn on or off 4 connected devices separately.

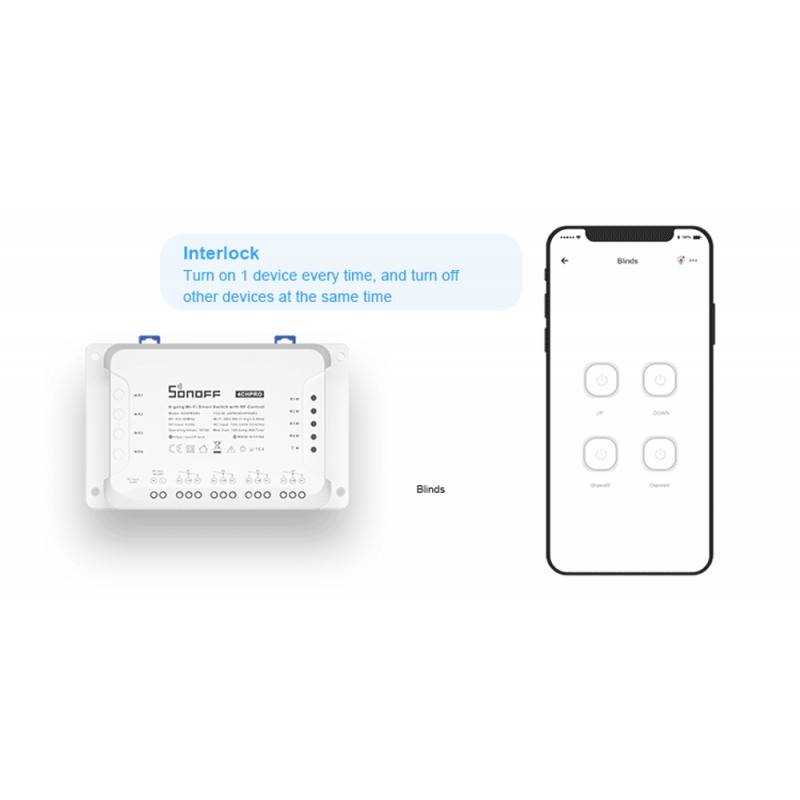

  • Interlock mode: serves to turn on 1 device by connecting and deciding a certain time for its automatic switching on and off.

SONOFF

These modes are even suitable for garage doors and roller shutters with remote control. In addition, you can set the device status to hold mode, so that the device connected before a power failure remains the agreed state after power restoration. In addition, with the 4-channel SONOFF switch you can check the status of the connected devices in real time for each of the devices. Thus, you have a multi-band switch with 4 integrated wireless switches.

Hogar inteligente

SONOFF 4CH switch technical specifications

  • Input voltage 90-250V AC (50-60Hz)
  • Maximum current: 10A per channel
  • Maximum power: 2200W per channel
  • Wireless standard: 802.11 b/g/n
  • Security protocol: WPA-PSK/WPA2-PSK
  • Housing material: ABS V0 flame retardant plastic
  • Channels: 4, independent of each other
  • Dimensions: 145*90*34mm
  • CE/FCC/RoHS certification

sonoff 4ch

Nominal Voltage (V)
90-264V-AC
Lifetime (h)
25000
IP
IP20
Dimensions (mm) Lxlxh
145x90x34
Frequency (Hz)
50-60
Sensor
Yes
Power factor (cosφ)
0,5
Control system
Switch
Output voltage (V)
90-264V-AC
Connectivity
WIFI
Number of channels
4
Material
Plastic
Use Outdoor
No
Temperature range
-20 ~ +45°C
Frequency of use
Intensive
Energy efficiency class
A+ (2021)
Certificates
CE
ROHS
Warranty
According to legal guarantee: 2 years
Maximum intensity (A)
10A
SONOFF

Questions

P: Question: I would like to control the lighting of my patio using an intelligent solution. Is it possible to take into account the light conditions (sunrise and sunset)?
Or is it only possible by time scheduling as a program?
Is the system compatible with a Phillip Hue?

Thank you very much Guido
R: Answer: Good morning,

This is only possible through time scheduling. The system is not compatible with Phillips HUE.

Regards

Barcelona LED: Benajamin| 05/10/2023

P: Question: hello. if you remove the power to the wifi switch for a while it deprograms and you have to reconnect it to the wifi? thanks.
R: Answer: Once synchronized with the local wifi network, the configuration is maintained if disconnected from the mains, but there will be a delay until the connection to the wifi network starts completely.
P: Question: I need a switched contact with stop to perform the following maneuver. We have a gas boiler and an aerothermal, I need to choose one of them without the other can turn on and if I want to not run any. We have the option of being able to perform this maneuver.
R: Answer: The outputs are independent, can be switched on and off separately, but are not mechanically switched.

Barcelona LED: Alejandro| 03/05/2023

P: Question: Is it possible to set a buzzer to ring for 3-5 seconds 20 times a day at different times of the day, and if so, how?
Thank you very much.
R: Answer: Separate on/off scenes should be created for each schedule.
P: Question: In order to act on an element that has to be active for a certain short time, is it possible to act from the mobile app as a push button or program it to turn off after a certain period of time?
R: Answer: If it can be switched on and off by mobile App or programmed time, but it is not for relay contact use for reduced time, but an output with mains voltage.
P: Question: Hello, would this device be useful to turn on a ducted air, where you have to give the remote on / off directly on the electronic board, ie only opening and closing a circuit but would not need any current or DC or AC? Thanks
R: Answer: No, the outputs switch the 220vac input voltage. The outputs have electrical potential.
P: Question: Good evening.
Do you have the sonoff product that ADD RF control, in addition to the wifi control?
Thank you.
R: Answer: This model has only 2.4G wifi connection.
P: Question: I can also control the lights in the traditional way with the pushbuttons of each of them.
I mean that if I install this 4-channel switch in the light panel of the house as I have to connect to continue to act the classic interruportes I already have installed.

greetings
R: Answer: If it is connected to the panel and the Sonoff line comes out of the Sonoff you will not be able to switch the power on with normal switches. Sonoff is intended to link sonoff devices such as switches, sockets etc.. in scenes in a wifi network and create a configuration. You should consult an installer to see the best option for the installation.
P: Question: how do i link to my phone or router?
R: Answer: Download the Ewelink APP and follow the steps in the instructions.
P: Question: Can it be connected to a push button or a switch?
R: Answer: They can be linked with other Sonoff switches such as the (B1619) to create multiple on/off switches. But not with conventional switches.
