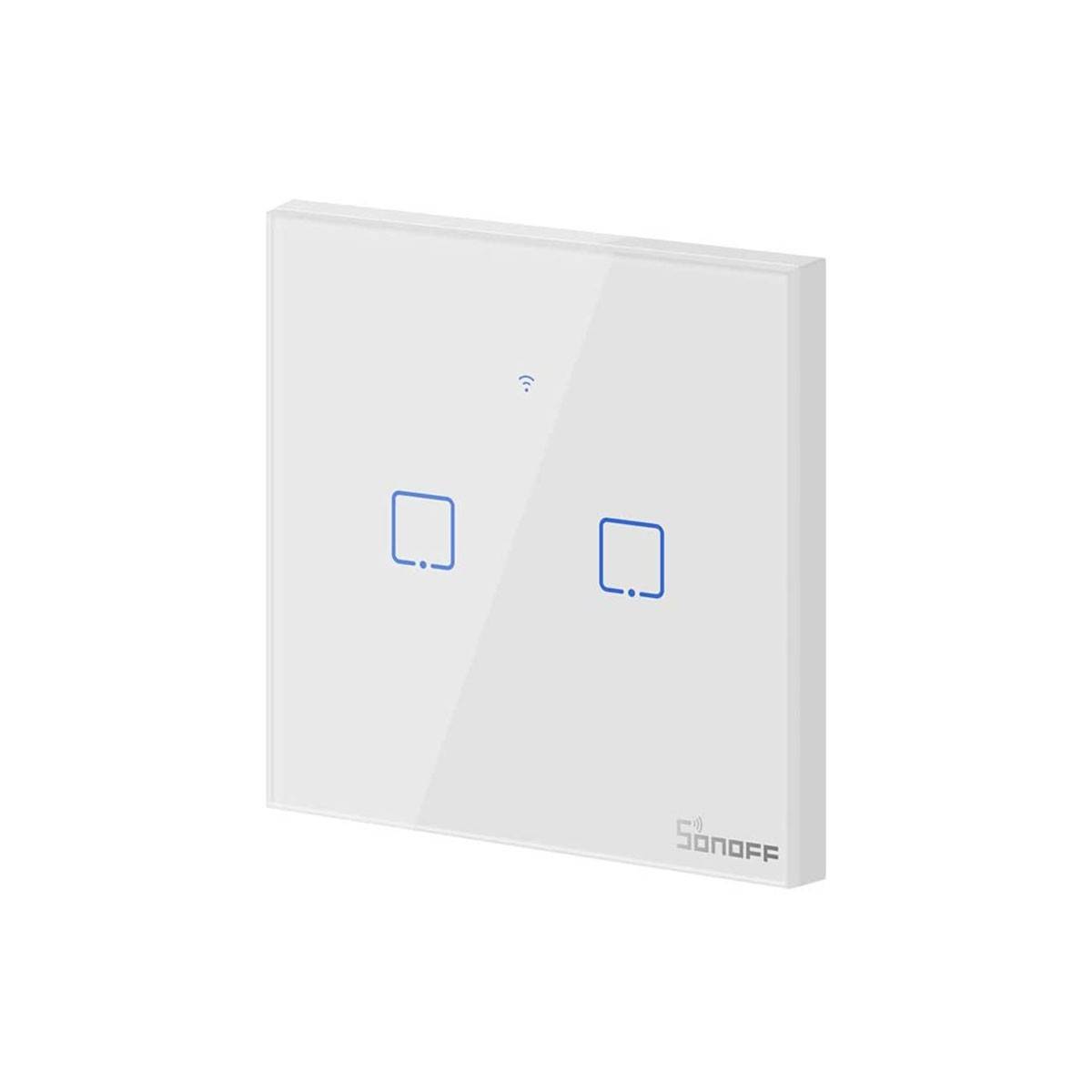

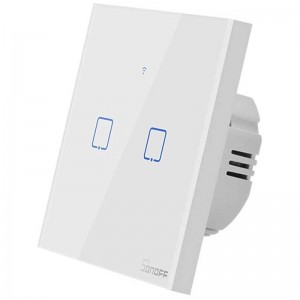

SONOFF TOUCH Dual WiFi / SmartHome touch switch
SKU:SONOFFT0EU2C
€19.95
Tax included
Shipping to Africa available
For any shipping requests to Africa, please contact our sales department at: comercial@barcelonaled.com
SONOFF WiFi / SmartHome double touch switch
The SONOFF TOUCH dual switch, is a 2-line touch control device with on/off function. It allows remote control of LED lights, anywhere, anytime, using the eWeLink app for iOS and Android.
No hub required. The SONOFF switch works with a 2.4G Wi-Fi router. Create smart scenes with SONOFF's eWeLink app to turn devices on or off separately or together, with the ability to turn two devices on or off at once.
Designed with high quality glass cover. Waterproof design, fireproof, easy to clean. With this flush-mounted switch, you can check the real-time status of your devices and luminaires anywhere from your smartphone.
The tactile wall switch includes a small pilot light that allows you to easily locate it in the dark of night. It can be used to control lights or also devices and appliances connected to the electrical circuit.
Upgrade your home with this modern, contemporary designed switch as an alternative to traditional mechanical switches and turn your home into a smart home controlled on your mobile from the palm of your hand.
Alexa / Google Home Compatibility
The SONOFF T0EU2C is compatible with Amazon Alexa and Google Home, which allows you to use your voice to control any device. Once set up, you will be able to give on, off and time scheduling instructions verbally with regular Alexa or Google Assistant operation.
SONOFF TOUCH Touch Switch Installation.
The double touch switch comes ready to embed in standard EU/86 box, supports up to 2A load per channel, a total of 4A, and a simple wiring will suffice. If you have any questions, our customer service and technical support department has a thorough knowledge of the specifications and will be able to help you with any questions regarding mounting, wiring and configuration.
Technical Specifications
- EU Standard
- Input voltage: 100-240V AC
- Maximum current: 2A (1ch) - 4A (2ch)
- Color: white
- Wireless Protocol: 802.11 b/g/n
- Security protocol: WPA-PSK / WPA2-PSK
- Materials: ABS plastic and toughened glass panel
- Control lines: 2
- Dimensions: 86x86x35mm
- Certification: RoHS, FCC, CE
App functions:
- Remote ON/OFF control
- Single mode / repeat / countdown timer
- Shared control from multiple devices
- User group management
- Works with Amazon Echo, Echo Dot, Amazon Tap, Echo Plus
- Works with Google Home, Google Home Mini, Nest
- Universal IFTTT communication
Nominal Voltage (V)
100 - 240 V/AC
Dimensions (mm) Lxlxh
86x86x35
Material
ABS
Certificates
CE
ROHS
ROHS
Warranty
According to legal guarantee: 2 years
Number of zones
2
Maximum intensity (A)
2A (1ch) - 4A (2ch)
Questions
| P: Question: |
Do you have the 3 channel one available? Thank you, |
|---|
| R: Answer: | Only 1 and 2 touch buttons are available. |
|---|
| P: Question: |
My electrical installation is phase-phase, i.e. there is no neutral, is it possible to install these switches? Thanks |
|---|
| R: Answer: | In general terms if the final voltage is 220Vac it should work, but the switch cuts one phase, it could be that there would be problems of derivation to not cut the other and there would be problems of slight lighting in leds. But we are not aware of its use in 2-phase systems. |
|---|
| P: Question: | Can you make this switch conmitador? Or can you send me information that you have wifi switch switch q is compatible with amazon alexa? Thanks |
|---|
| R: Answer: | Sonoff switches are not for normal fixture switching. The idea of Smart switches is to create scenes where several switches are linked to a given action, such as on or off, and where only one switch or other sonoff product is connected to the luminaire, the others linked by the programmed scene. |
|---|
| P: Question: |
Hola, does the switch require a neutral conductor? Ho puedo utilizar la instalacion tradicional with 2 conductors? Grazcias Burger |
|---|
| R: Answer: | The Sonoff touch switch must always be connected to the mains with a Line wire, a Neutral wire and a third wire that must go to the lamp to be controlled. the lamp closes the circuit with the neutral. The switch also has the function to control other Sonoff products on the wifi network, in this case it will only need Line and Neutral cable. |
|---|
| P: Question: | How many watts does this switch withstand? Would it hold 4 led bulbs 200w each or two of 200w each switch. Thank you. |
|---|
| R: Answer: | Depends on the type of product connected to the output, max. 2A for each channel, for LED products at 220vac about 300W per channel. |
|---|
| P: Question: |
Hello, there is the possibility of placing a sonoff wifi switch with touch panel and next to it a socket. (With the same frame) |
|---|
| R: Answer: | Sonoff systems are frameless, so they cannot be placed in a standard frame. |
|---|
