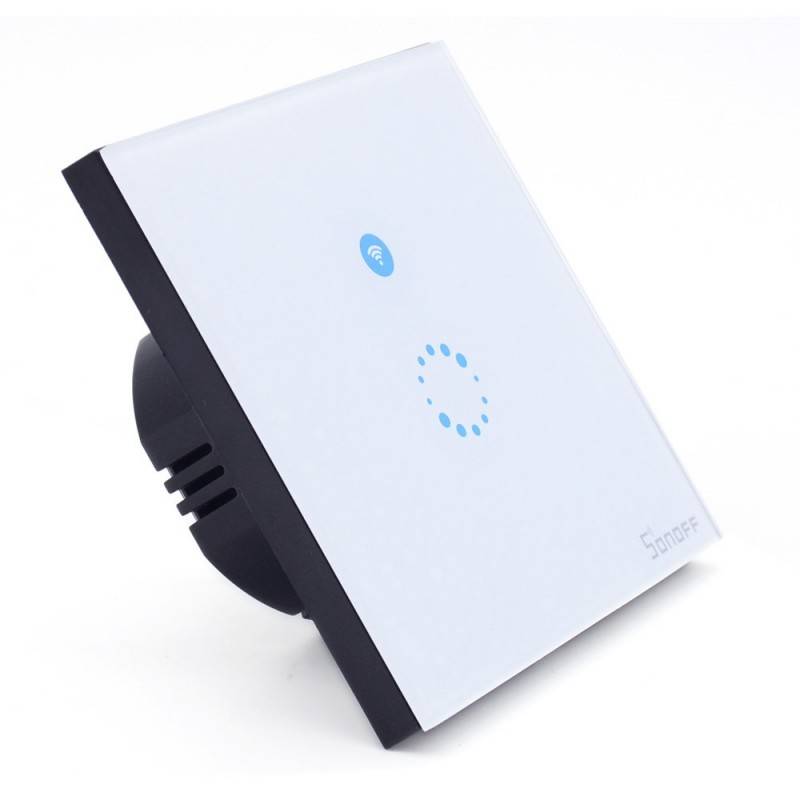

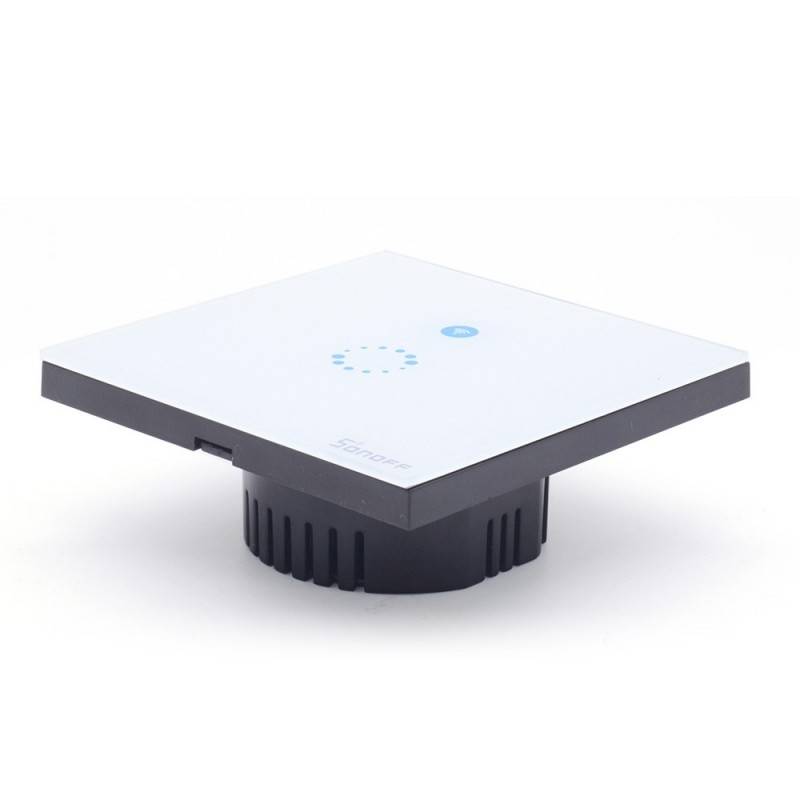

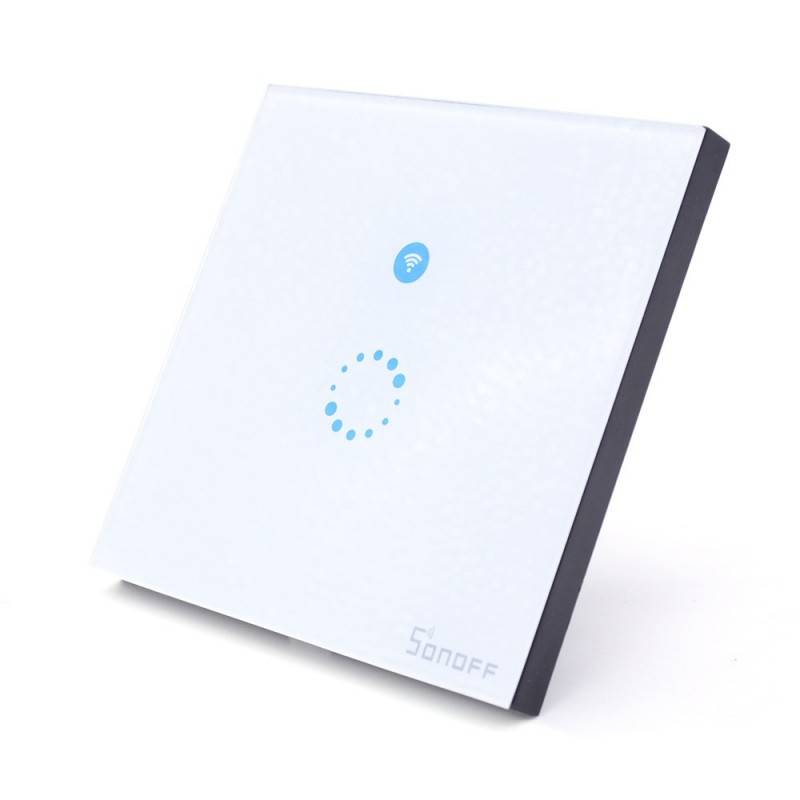

SONOFF TOUCH Touch WiFi / SmartHome switch
SKU:SONOFFT4EU1C
€34.09
Tax included
Shipping to Africa available
For any shipping requests to Africa, please contact our sales department at: comercial@barcelonaled.com
SONOFF TOUCH Touch WiFi / SmartHome switch
The SONOFF TOUCH recessed wall switch is a 1-line touch control device with on/off function. Finished in high quality glass cover, the switch works with iOS / Android systems with the eWeLink app, allowing users to remotely control lights from anywhere, anytime.
With this flush-mounted switch, you can check the real-time status of your devices and luminaires anywhere from your smartphone.
The tactile wall switch includes a small pilot light that allows you to easily locate it in the dark of night. It can be used to control lights or also devices and appliances connected to the electrical circuit.
Upgrade your home with this modern, contemporary designed switch as an alternative to traditional mechanical switches and turn your home into a smart home controlled on your mobile from the palm of your hand.
Alexa / Google Home Compatibility
The SONOFF TOUCH touch switch can be easily connected using the Alexa skill and the Google Home app. Once set up, you can give on, off and time scheduling instructions verbally with regular Alexa or Google Assistant operation.

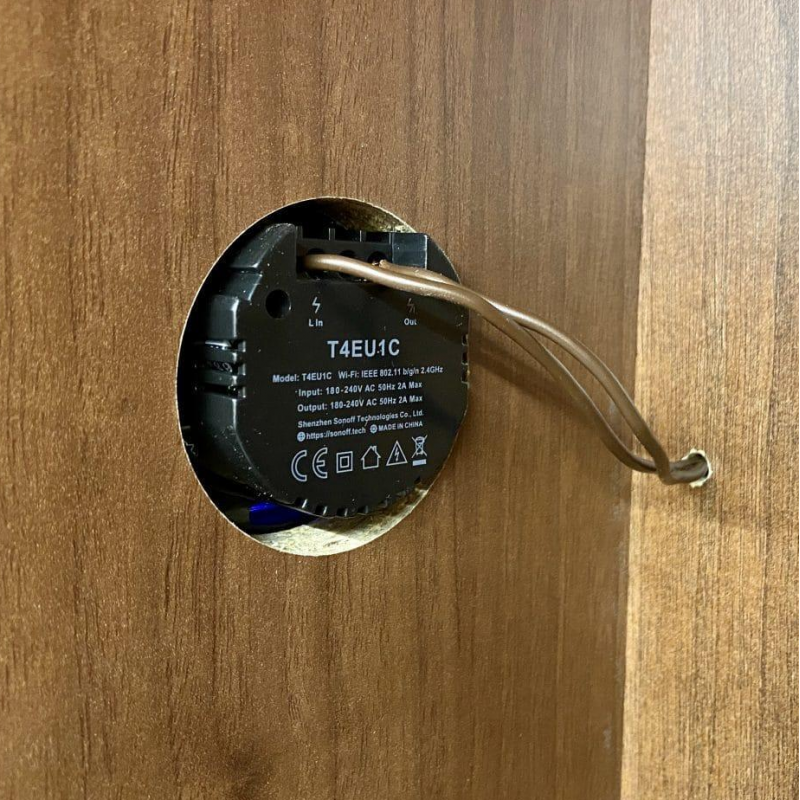

SONOFF TOUCH Touch Switch Installation.

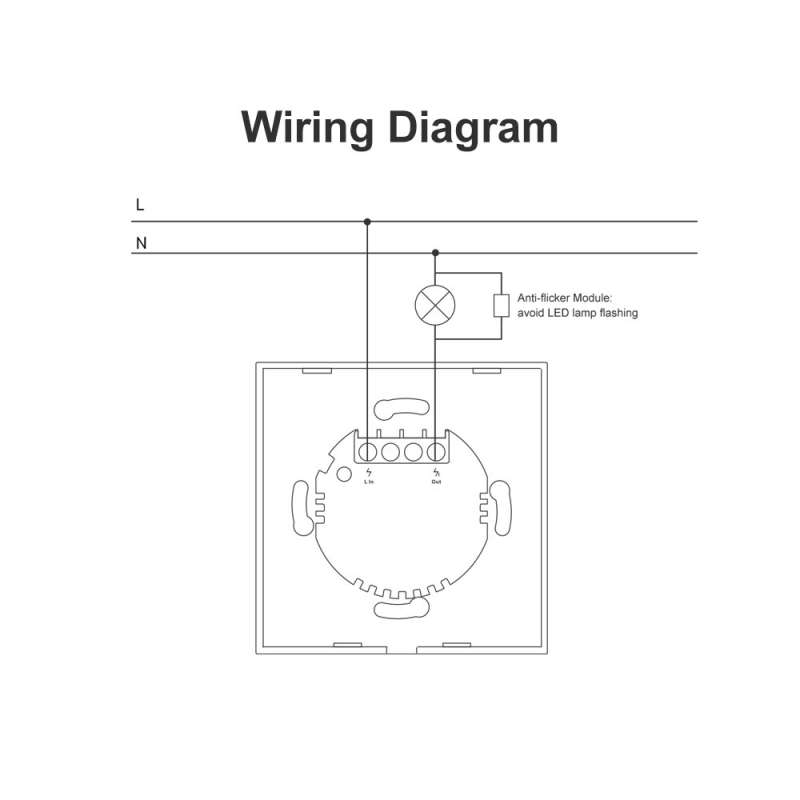

The touch switch comes ready to be recessed in standard EU/86 box, supports up to 400W / 2A load and a simple wiring will suffice according to the graphic indications below. If you have any questions, our customer service and technical support department has a thorough knowledge of the specifications and will be able to help you with any questions regarding mounting, wiring and configuration.
Technical specifications
- EU Standard
- Input voltage: 90-250V AC
- Maximum current: 2A
- Maximum power: 400W
- Color: white
- Wireless protocol: 802.11 b/g/n
- Security protocol: WPA-PSK / WPA2-PSK
- Materials: ABS plastic and toughened glass panel
- Control lines: 1
- Dimensions: 86x86x34mm
- Certification: RoHS, FCC, CE
App Functions:
- Remote ON/OFF control
- Single mode / repeat / countdown timer
- Shared control from multiple devices
- User group management
- Works with Amazon Echo, Echo Dot, Amazon Tap, Echo Plus
- Works with Google Home, Google Home Mini, Nest
- Universal IFTTT communication
Power (W)
200-480 máx.
Lifetime (h)
25000
IP
IP20
Dimensions (mm) Lxlxh
86x86x35
Frequency (Hz)
50 - 60
Sensor
Yes
Power factor (cosφ)
0.5
Control system
Switch
Connectivity
Wifi
Material
Aluminium
Use Outdoor
No
Temperature range
-20 ~ +45°C
Frequency of use
Intensive
Energy efficiency class
A+ (2021)
Certificates
CE
ROHS
ROHS
Warranty
According to legal guarantee: 2 years
Maximum intensity (A)
2
Questions
| P: Question: | I have connected the switch but I have not put the capacitor because the lamp did not blink but I can not connect it to the app in any way and it is strange because I have other devices connected to eWelink and they work perfectly. Could it be because I have not put the capacitor? Or could the switch be defective? |
|---|

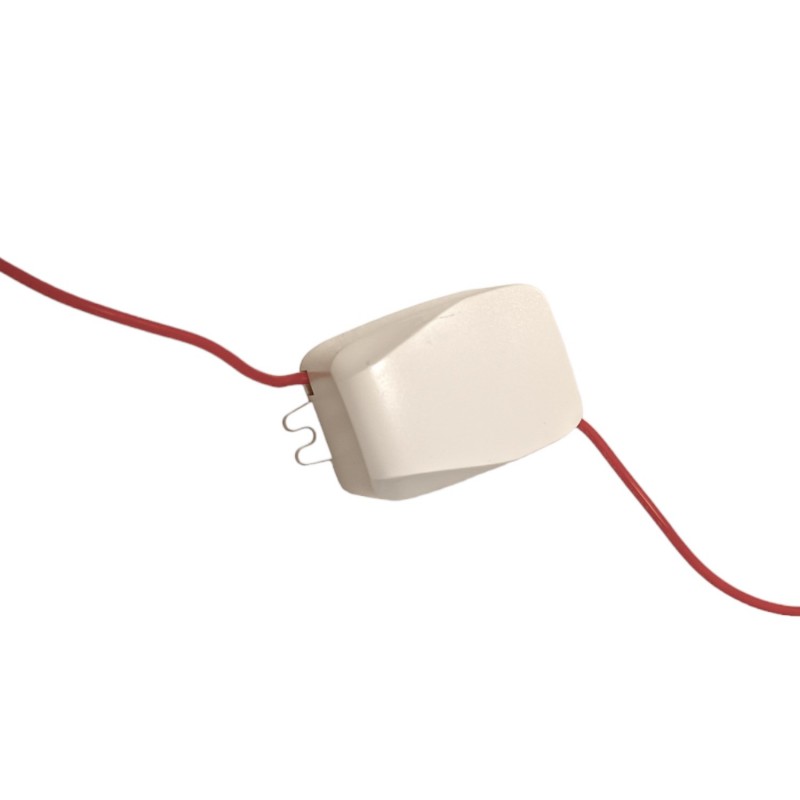

| R: Answer: | The current sonoff switch SONOFFT4EU1C needs the included device (capacitors) for correct operation. The synchronization is done according to the included manual (register APP >> include device to the network). |
|---|
| P: Question: |
Part number:B1619 Sonoff switch. Which model is T1, T2, T3 or T4? I have 433Mhz wireless switches ref: T2 eu 1c- rf. Will I be able to use it with your switch? |
|---|
| R: Answer: | Model T0EU1C is for wifi networking, model T0 does not support RF 433Mhz*Note: Some older units of the T1EU1C that support RF433 MHz may still be in stock in stores. |
|---|
| P: Question: |
Is this switch compatible with a push button? In other words, do I press it once and it turns on, and press it again and it turns off? We want to use this solution to control a gate! |
|---|
| R: Answer: | You need to check how many watts the gate motor has. This switch works with a voltage of 100-240V, with 200-480W, and a maximum of 2A. The main purpose of this switch is to regulate the lighting. |
|---|
| P: Question: |
Hi, I need to control a bulb from 3 points. What should have to buy for this? Thanks |
|---|
| R: Answer: | Only one Sonoff switch must be connected between to the electrical network (220vac) and the light bulb, the rest of the Sonoff switches only connect to the electrical network and linked through the Sonoff mobile APP and the Wi-Fi network, to create scenes and to be able to turn on / off from any switch. |
|---|
| P: Question: |
Necesita neutral |
|---|
| R: Answer: | The Sonoff touch switch must always be connected to the mains with a Line wire, a Neutral wire and a third wire that must go to the lamp to be controlled. the lamp closes the circuit with the neutral. The switch also has the function to control other Sonoff products on the wifi network, in this case it will only need Line and Neutral cable. |
|---|
| P: Question: | Is it possible to switch with these mechanisms? |
|---|
| R: Answer: | The smart Sonoff systems are not installed as mechanical switches to continue using the existing installation. One Sonoff switch must be connected to the mains (220vac) and to the luminaire to be turned on, the other Sonoff switch is only connected to the mains to have voltage for its operation and is linked through the Sonoff mobile APP and the wifi network of the room, to create scenes and to be able to turn on/off from any switch. So you can switch between two switches or more switches and to control the same luminaire or other Sonoff devices. |
|---|
