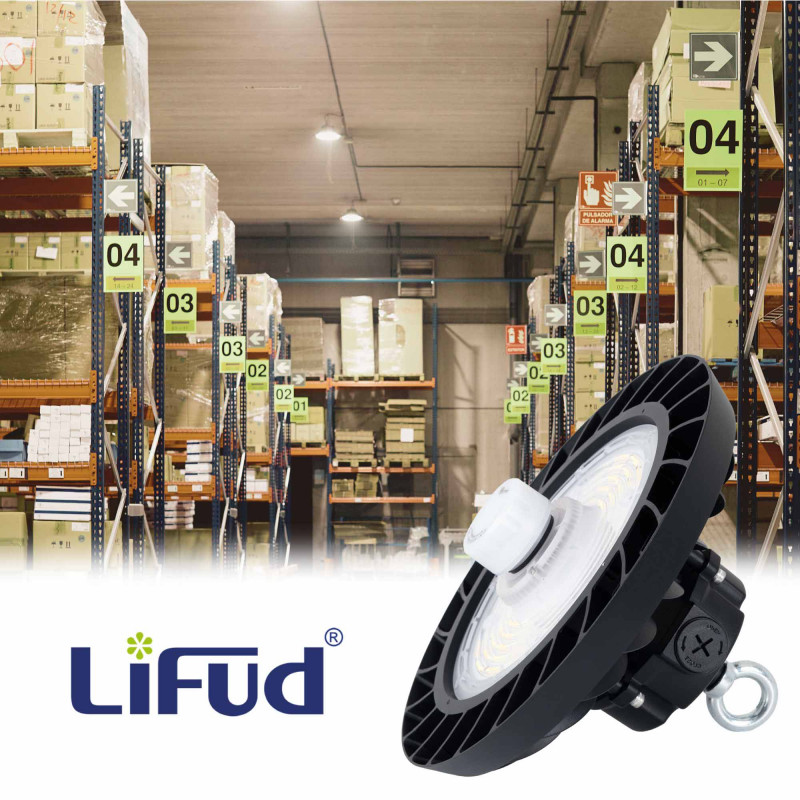

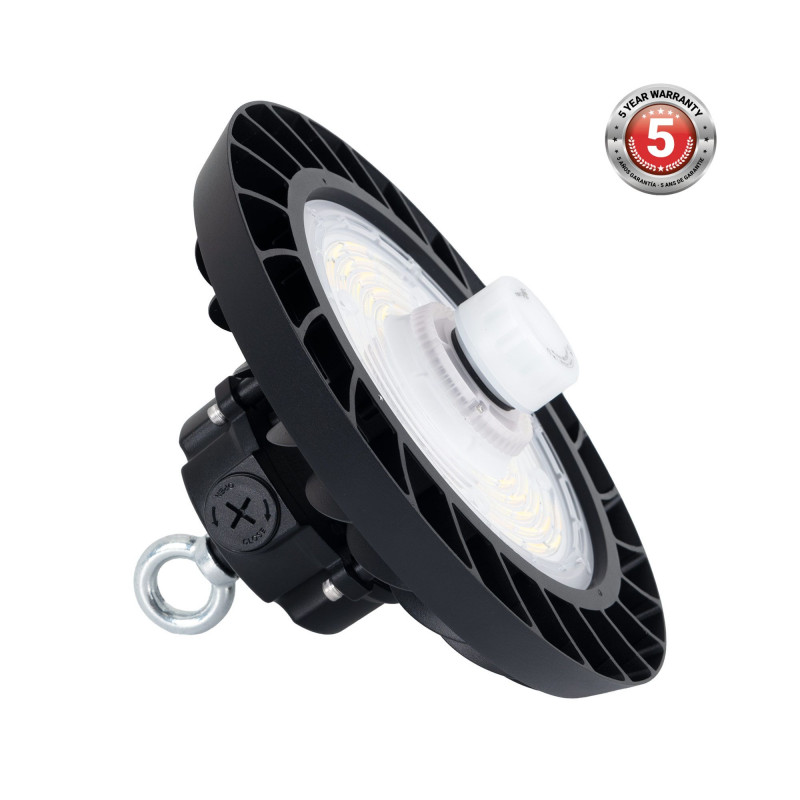

Industrial LED UFO High Bay - 150W - CCT - With motion sensor - 170lm/W - LIFUD Driver - IP65 - 5 years warranty

UFO LED CCT industrial hood with motion sensor: Innovation and energy savings

This UFO LED industrial hood represents the state-of-the-art in lighting for industrial environments, combining high energy efficiency and robustness in a compact design. With its high-rise motion sensor, this luminaire optimizes energy consumption by switching on only when motion is detected.

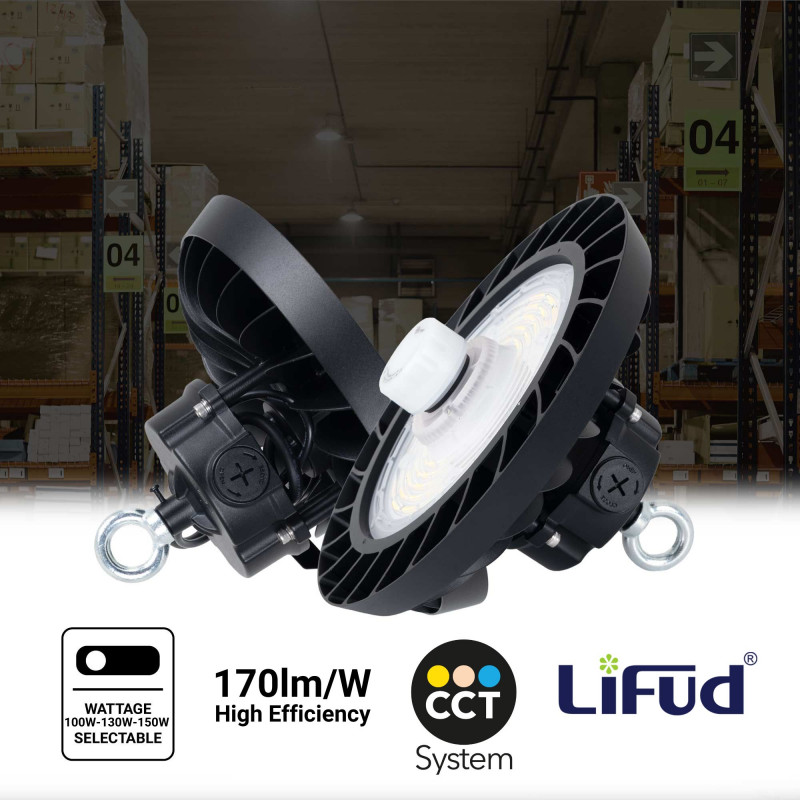

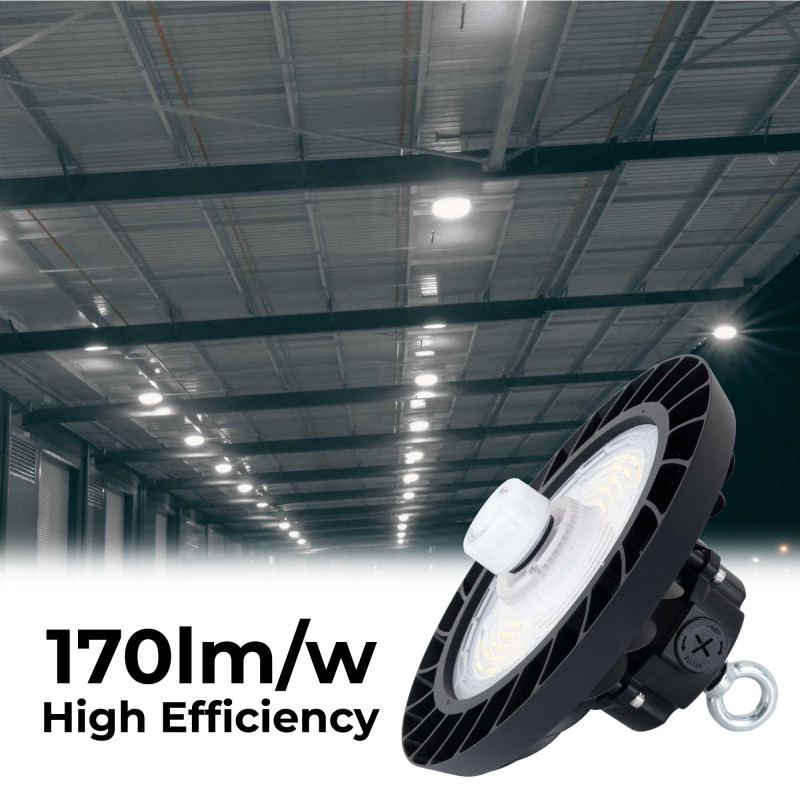

• Maximum efficiency: This canopy offers a luminous efficiency of 170 lm/W, providing high quality lighting that ensures clarity and visual comfort in large spaces.

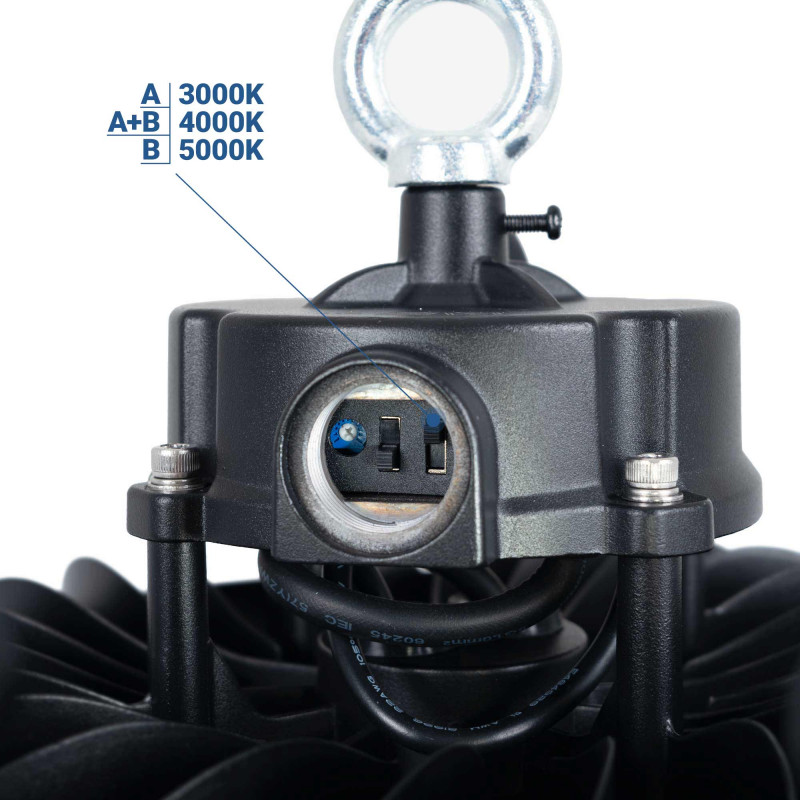

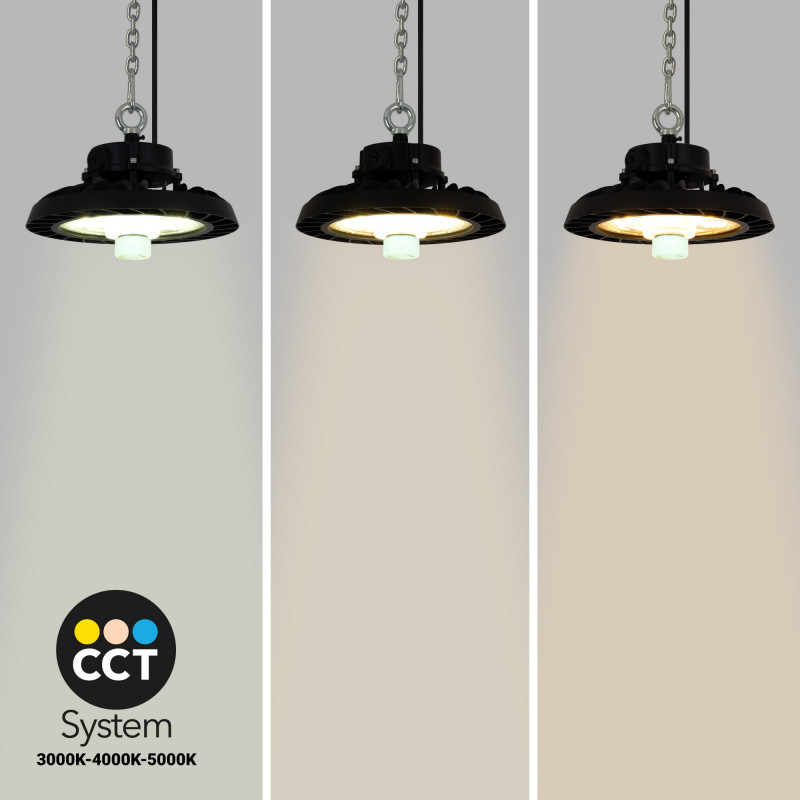

• CCT system: by means of a switch it is possible to select the color temperature between warm white (3000K), neutral white (4000K) and cool white (5000K).

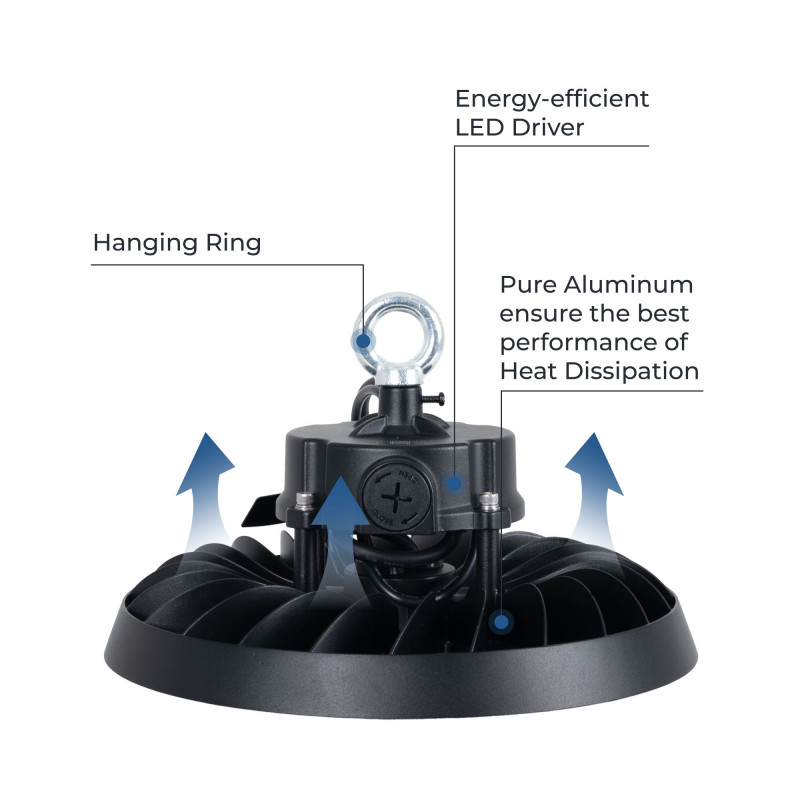

• Integrated Lifud driver: The Lifud driver maximizes energy efficiency and includes protections against overheating and overvoltage, ensuring the safety and durability of the luminaire.

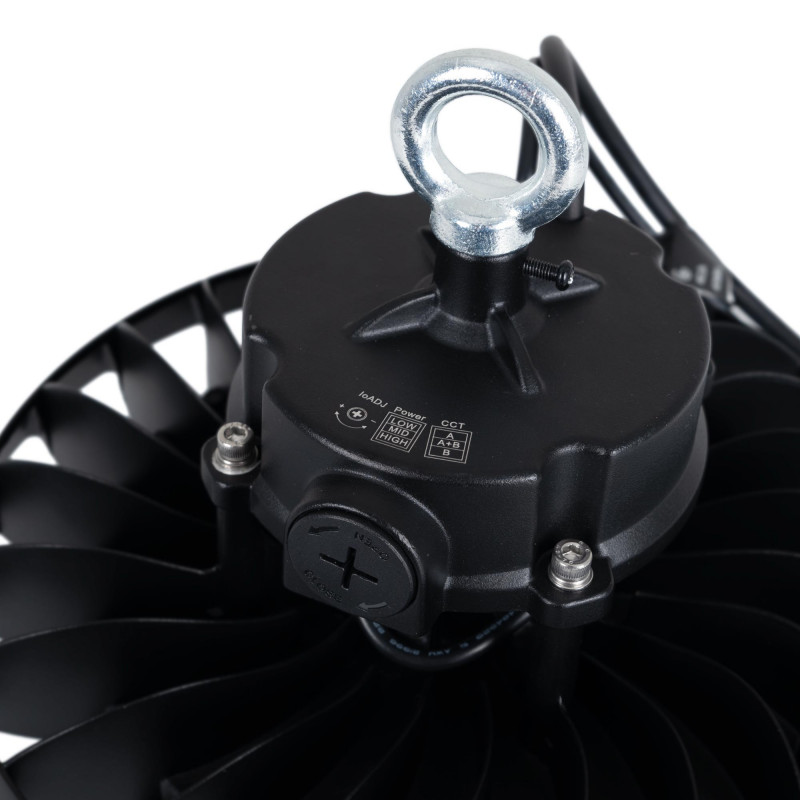

• Power adjustment: A rear switch allows power adjustment between 150W, 130W and 100W, depending on the specific needs of the environment.

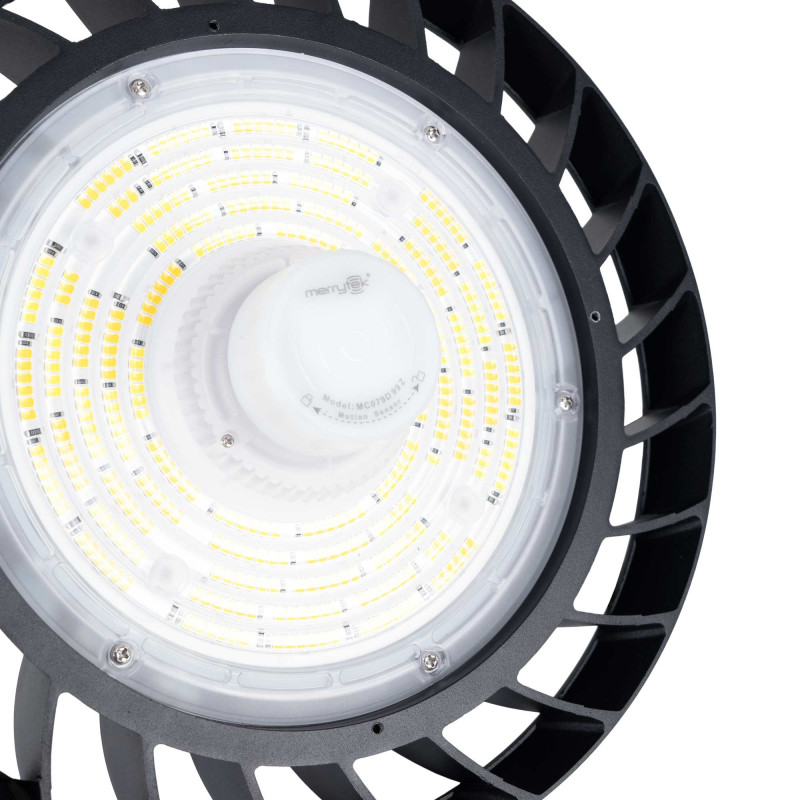

• High-sensitivity motion sensor: Designed specifically for industrial and warehouse environments, this sensor has a detection angle of 150° (wall-mounted) and 360° (ceiling-mounted), allowing efficient lighting control. In addition, detection parameters, such as switch-off time and standby period, can be adjusted from a compatible remote control (not included, see related products).

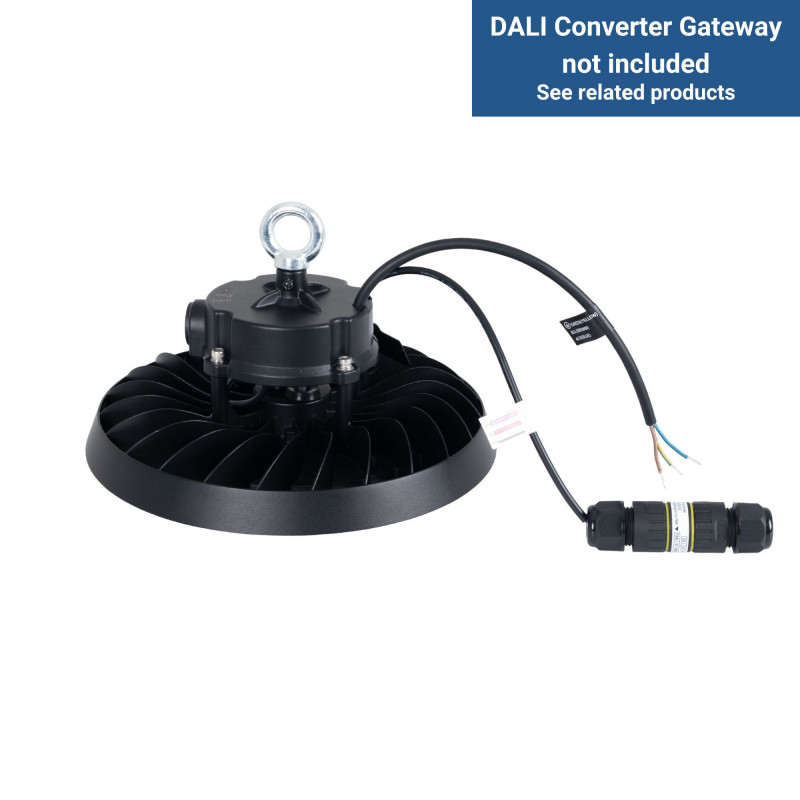

• DALI dimmable: Allows dimming. Requires DALI gateway (not included - See related products).

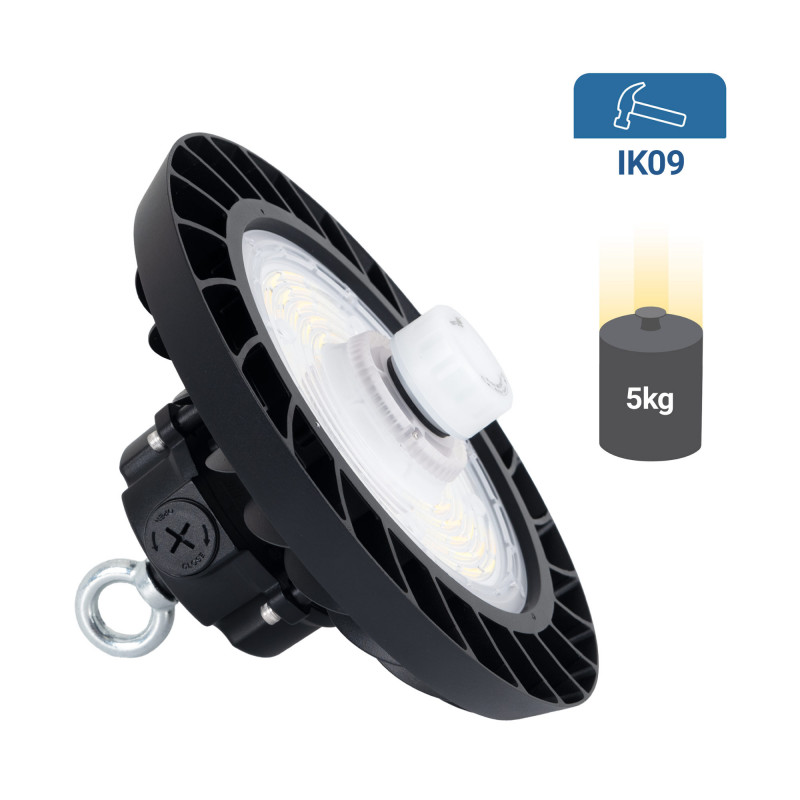

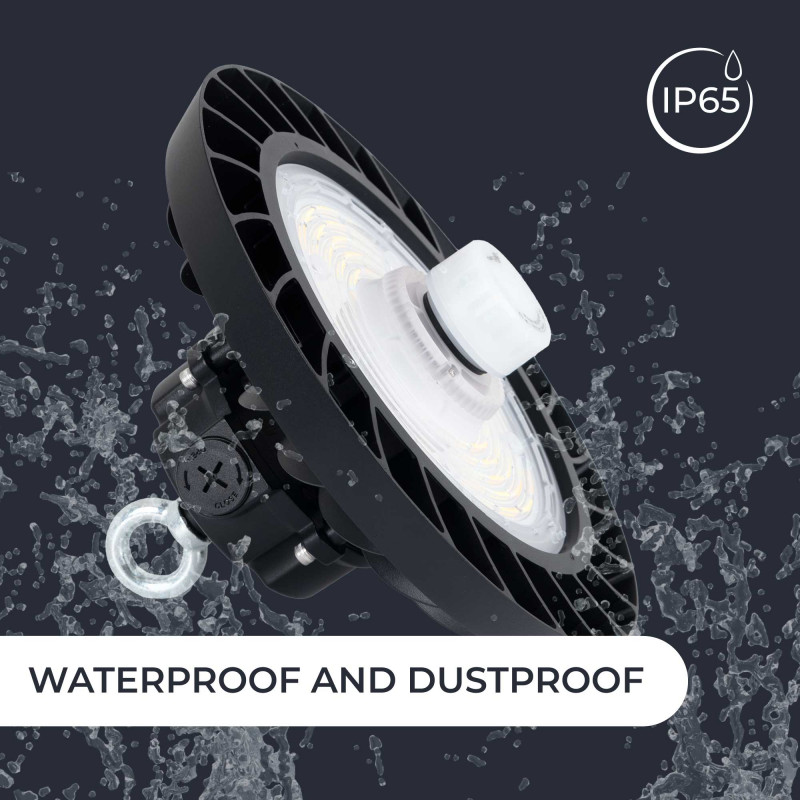

• Robust and resistant design: With an IP65 protection rating, this hood is dust and water resistant, making it suitable for outdoor installations. In addition, its physical impact resistance (IK09) ensures that it can withstand harsh industrial conditions.


• Easy installation: Its lightweight and compact design makes it easy to mount, allowing quick installation without compromising stability.

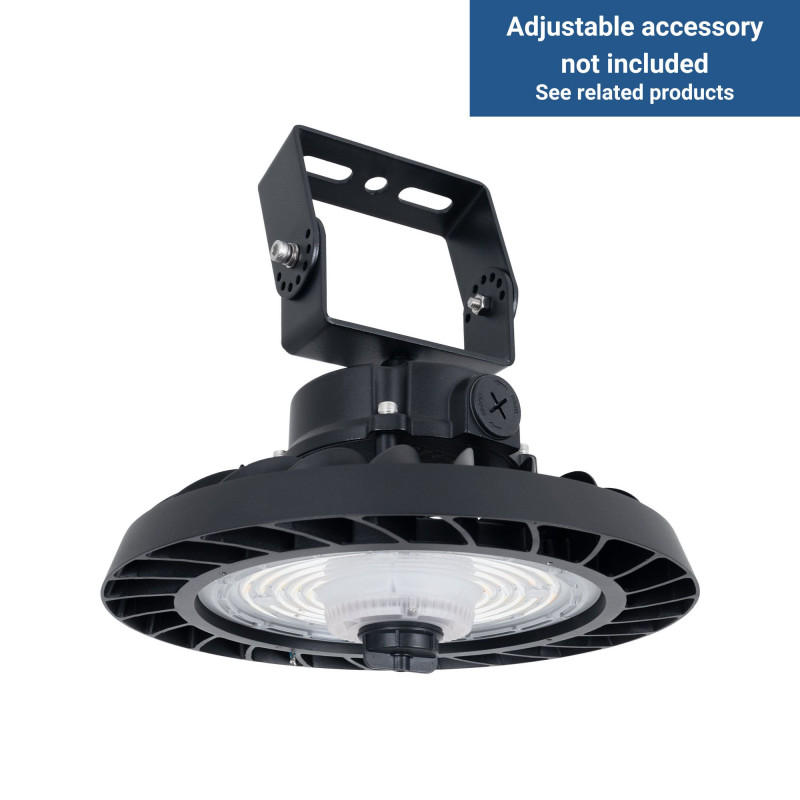

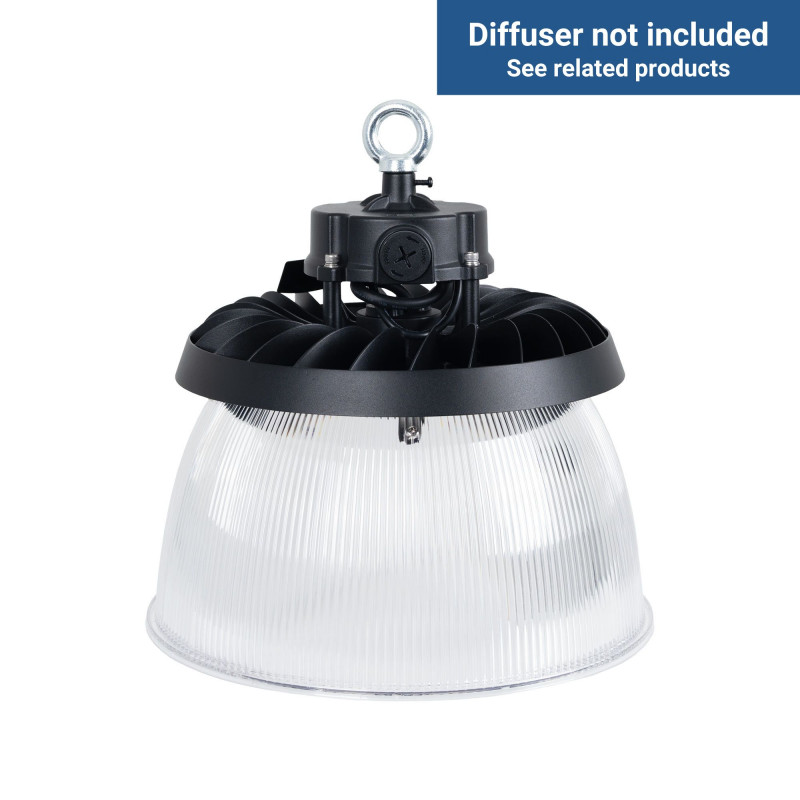

• Additional options: Compatible with a light diffuser for a more aesthetic finish and with an adjustable bracket for surface installation (see related products).

Industrial LED hood applications

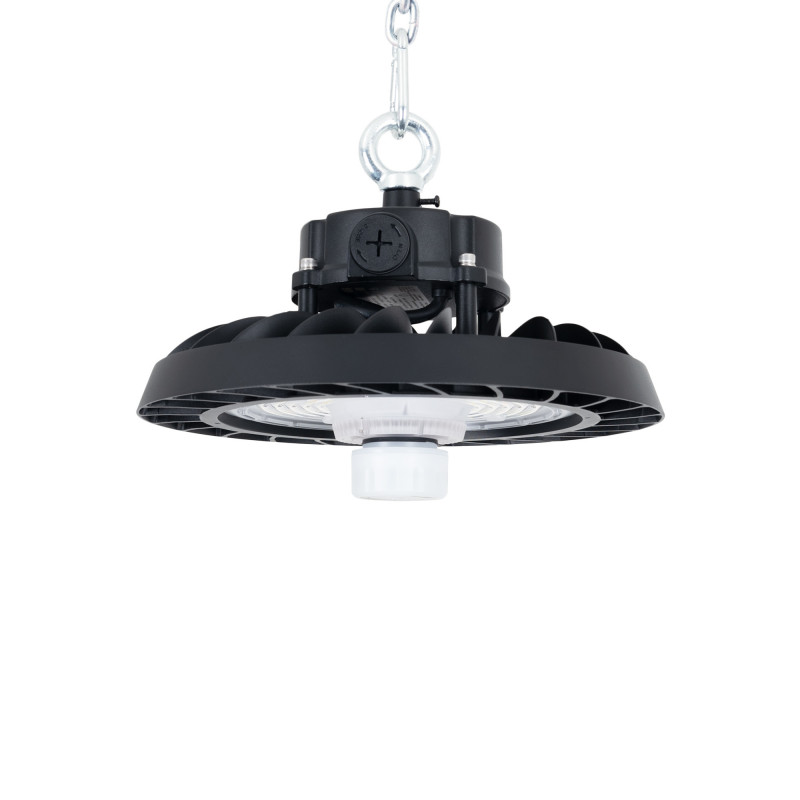

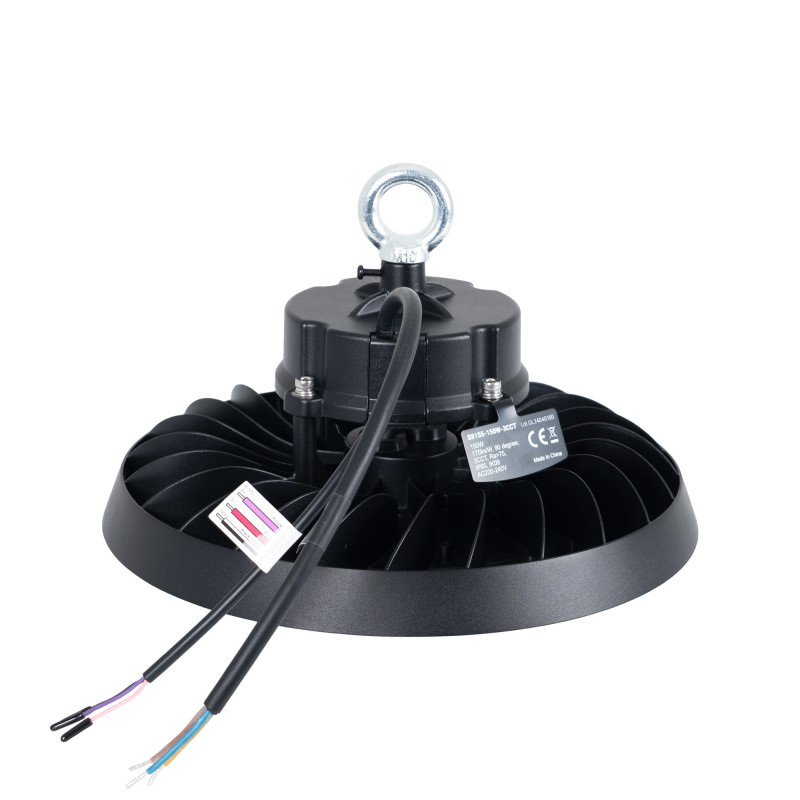

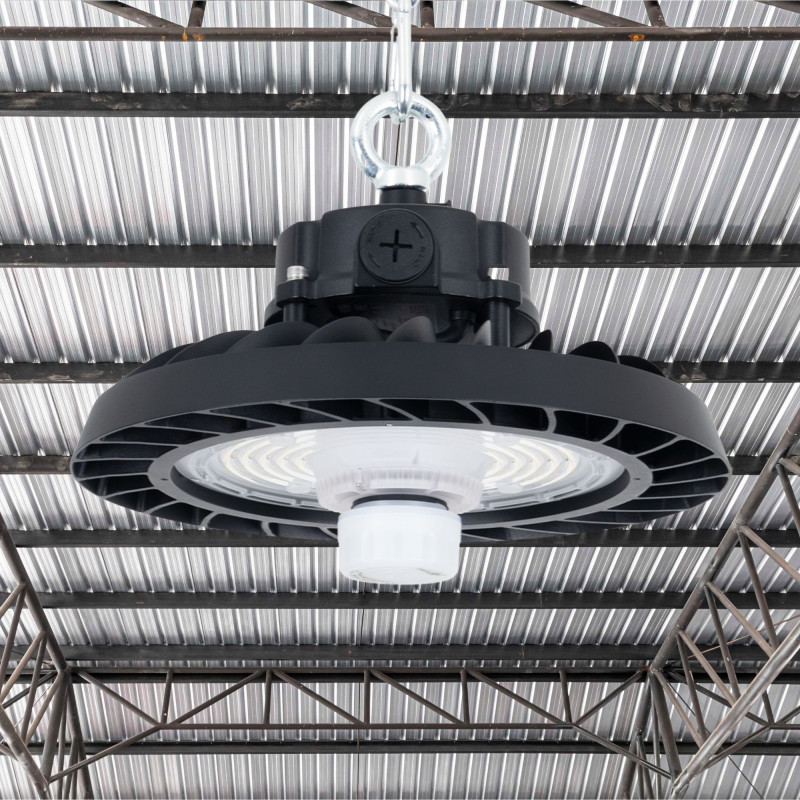

Thanks to its light weight, the hood can be easily hung from its hook on any ceiling. It is important not to hang it directly from the electrical cable and to check that the cable is not pulled tight.

This LED hood is the perfect choice for a variety of industrial environments. Some of the applications include:

• Industrial buildings
• Workshops
• Factories
• Warehouses
• Parking lots
• Logistics centers

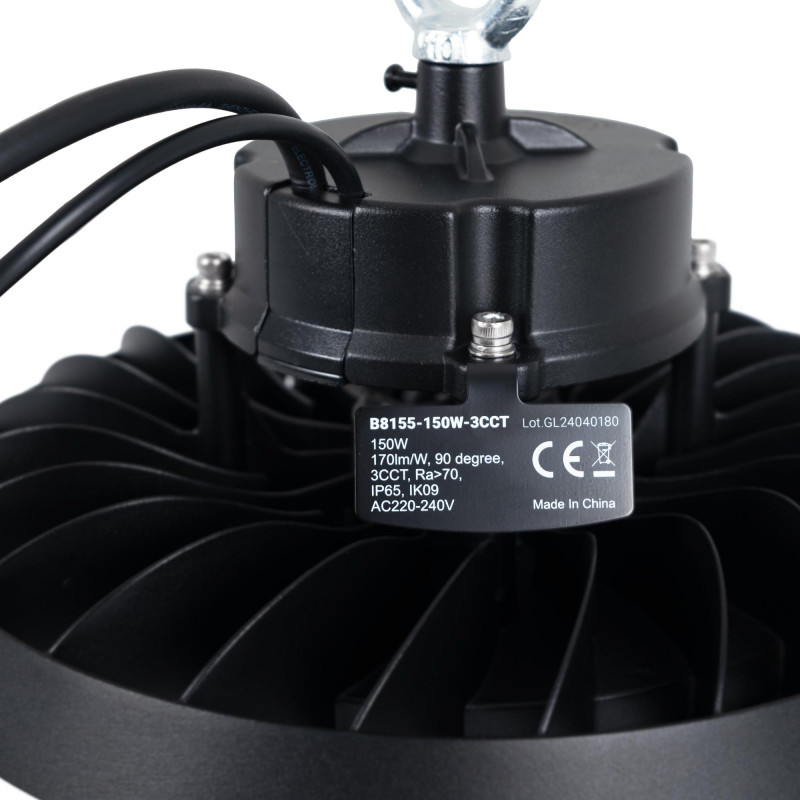

Technical characteristics of the hood:

• Power: 150W / 130W / 100W
• Lumens: Up to 22800 lm
• Efficiency: 170 lm/W

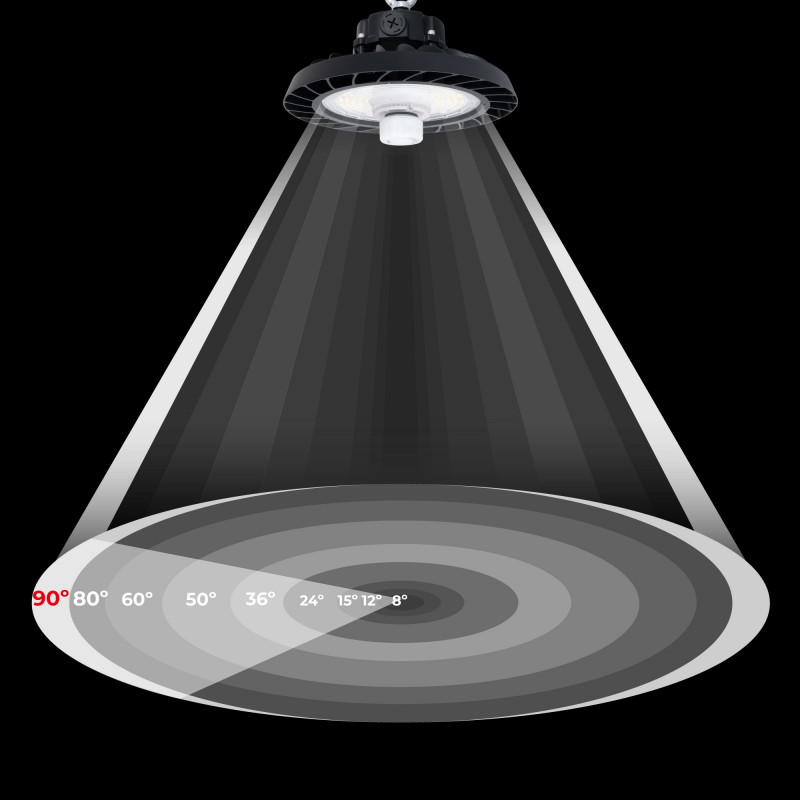

• Opening angle: 90°.
• CCT Shade: warm white, neutral white and cool white
• Protection: IP65, IK09
• Dimensions: Ø270 X 187mm

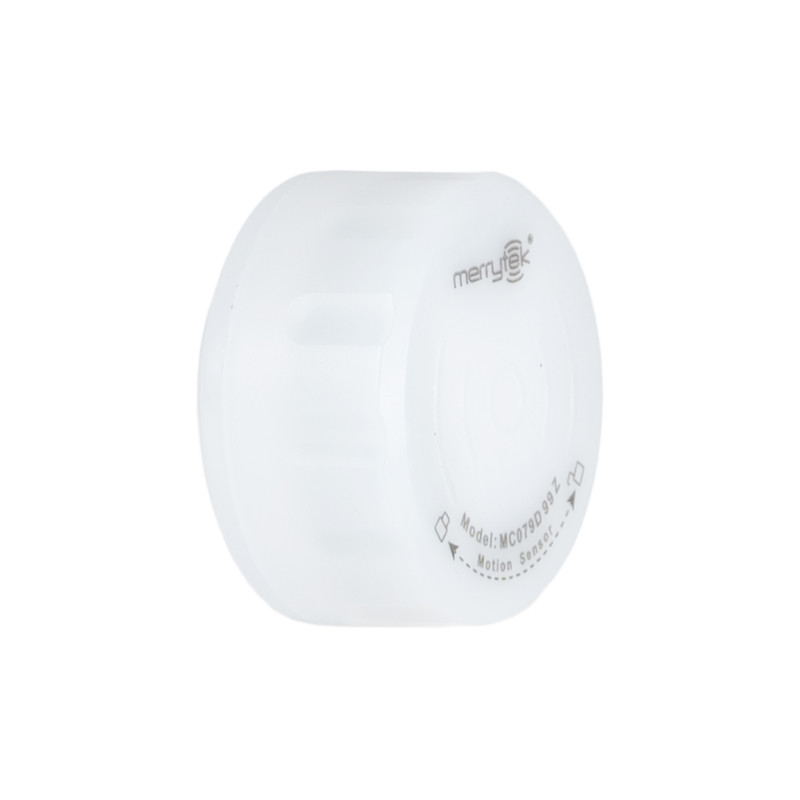

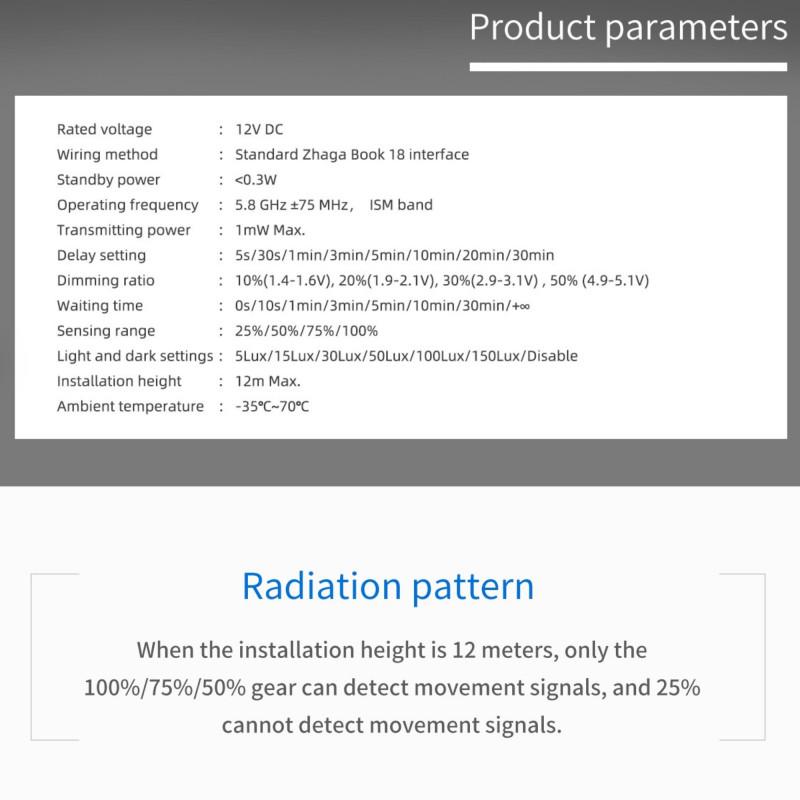

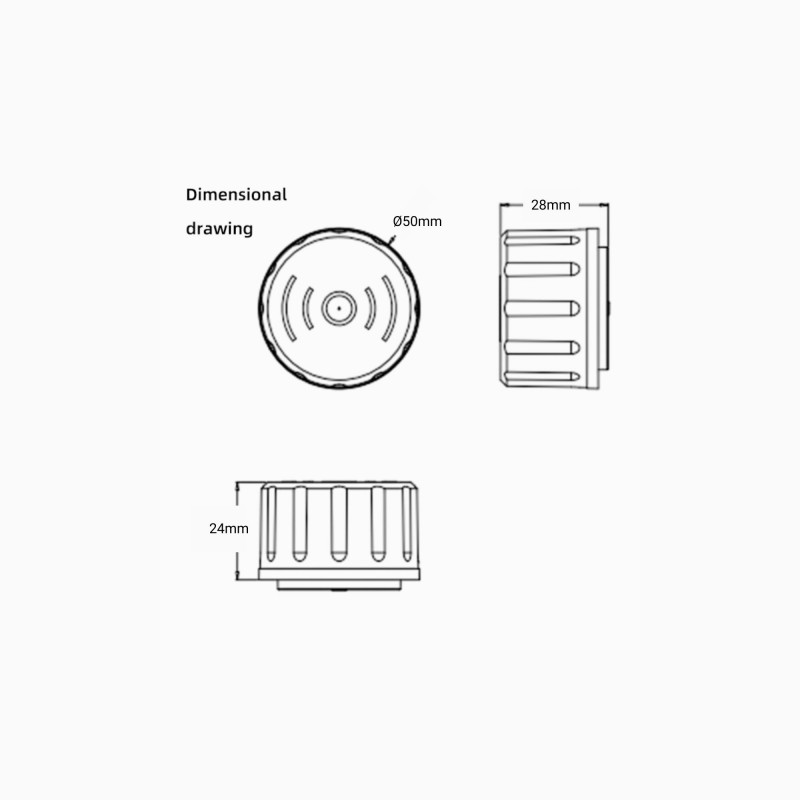

Technical characteristics of the motion sensor

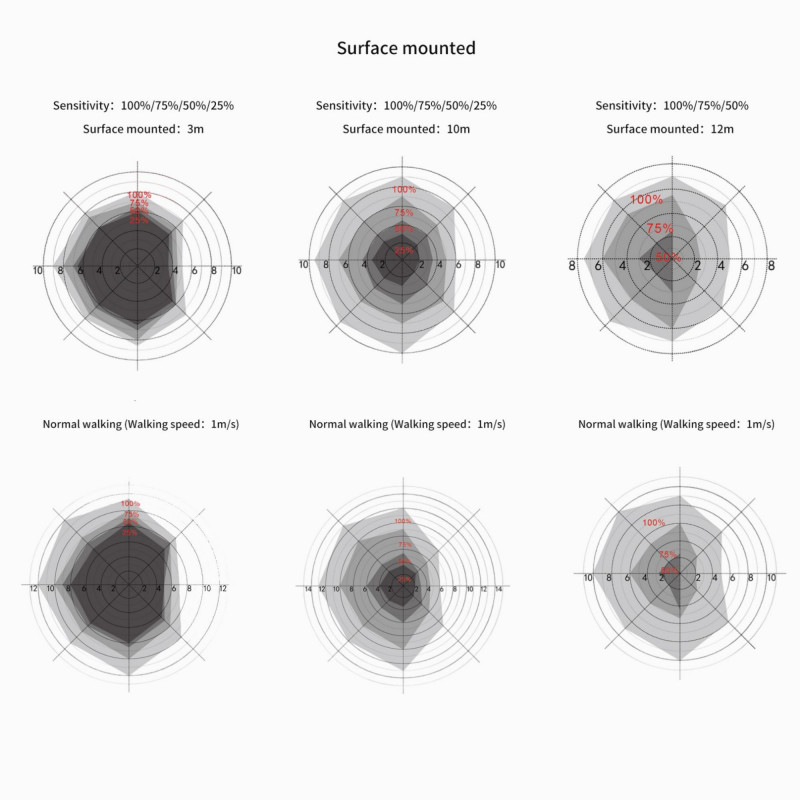

• Detection distance: max. 12 meters

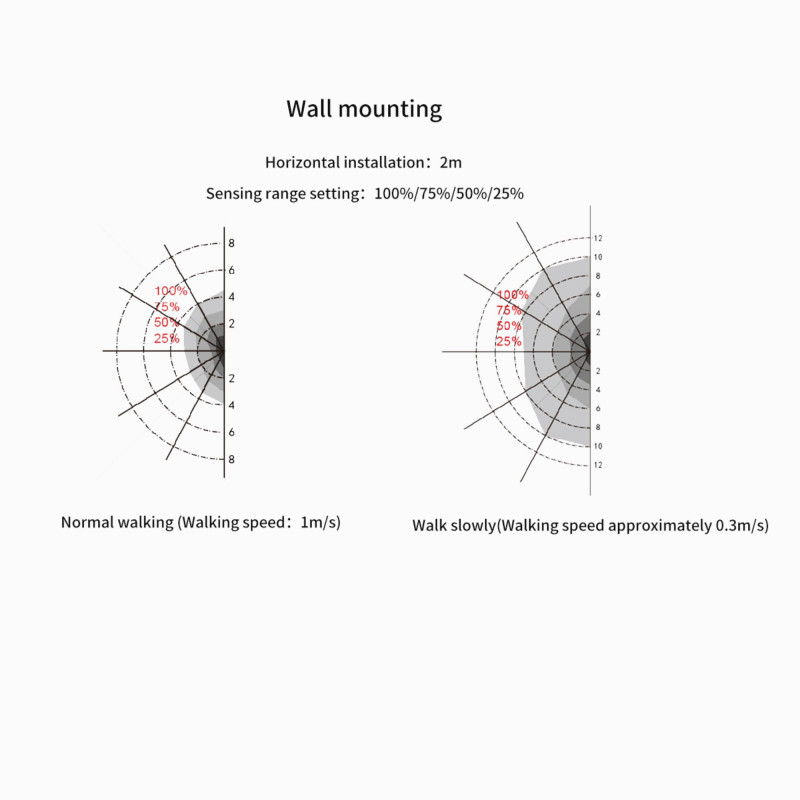

• Detection angle: 150° (wall mounting) and 360° (ceiling mounting)
• Shutdown setting: The sensor allows setting the shutdown time once motion is detected with options of 5s, 30s, 1min, 3min, 3min, 5min, 10min or 20min.

• 12V DC auxiliary output

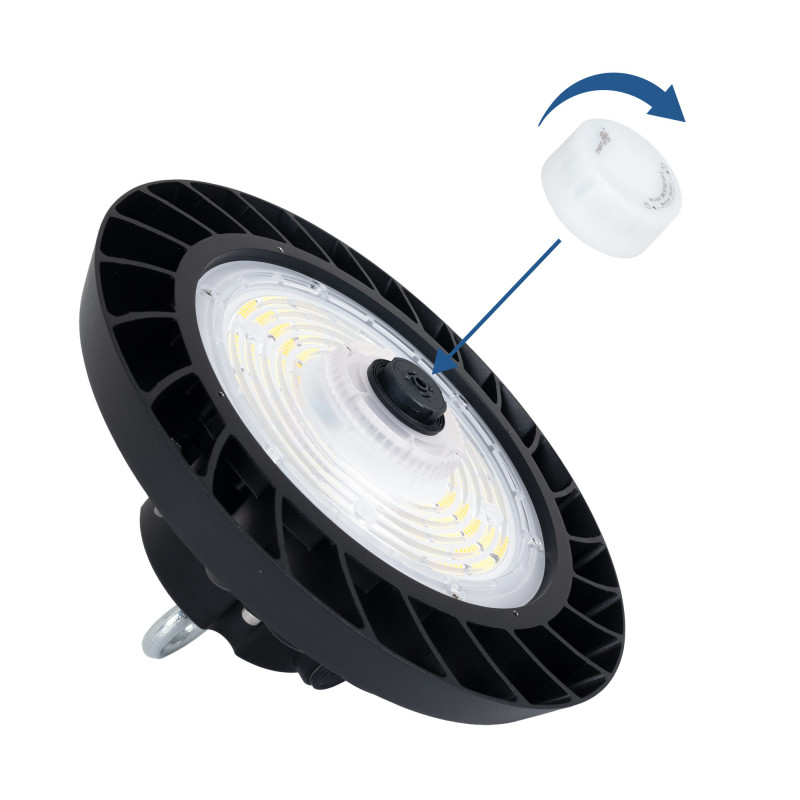

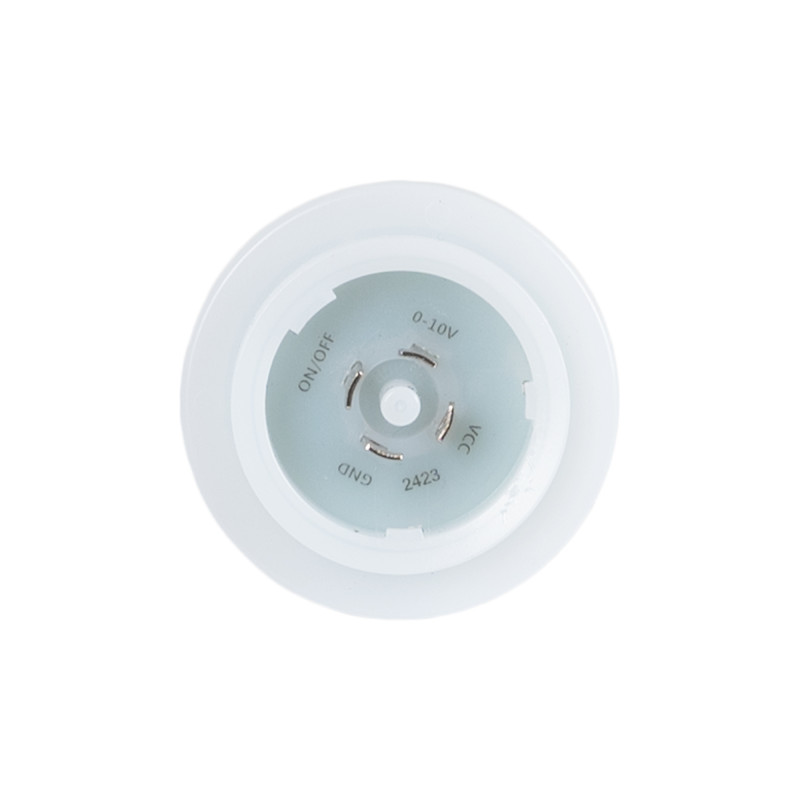

• Zhaga Book 18 connector (IP65)

Sensor functions

The sensor has several functions that are configured from a remote control and allow to adapt to various needs and scenarios, from immediate energy saving to daylight prioritization.

1. On/Off function (Standby period: 0 s): The sensor turns the light on or off immediately based on motion detection, without any timeout delay. It is ideal for applications where fast and direct response is required, as the light automatically turns off as soon as no motion is detected, maximizing energy savings.


2. Two-step dimming function (Standby period: ∞): In this mode, the sensor activates a two-step dimming of the light. After detecting motion, the light remains on at its maximum intensity. When no further motion is detected, the light dims to a low level indefinitely (+∞) instead of turning off, ensuring dim but continuous illumination that can be easily reactivated if motion is detected again.


3. Three-step dimming function (Adjustable standby period): This function offers three configurable dimming steps. The sensor turns the light on when motion is detected and, once no further activity is detected, dims after an adjustable waiting period (10 seconds, 1 minute, 3 minutes, 5 minutes, 10 minutes or 30 minutes). Then, if no motion is detected during that time, the system turns off the light completely, ensuring both energy savings and flexibility in lighting control.


4. Daylight priority (Standby period: ∞): This feature ensures that the sensor prioritizes the natural light available in the environment. The system keeps the lights off indefinitely (+∞) as long as there is sufficient daylight, even if motion is detected. In this way, artificial light will only be activated when natural light is insufficient, maximizing energy savings and making the most of ambient lighting.
